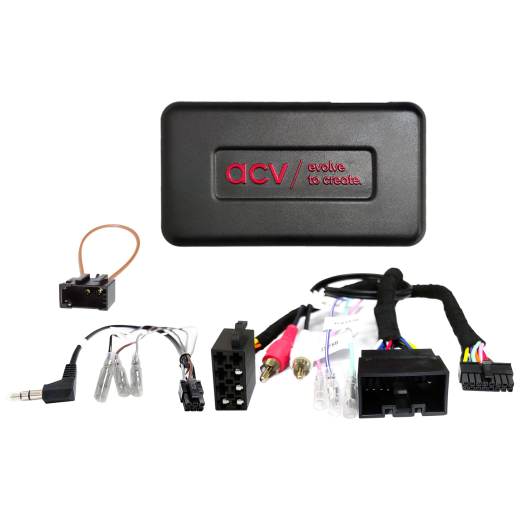

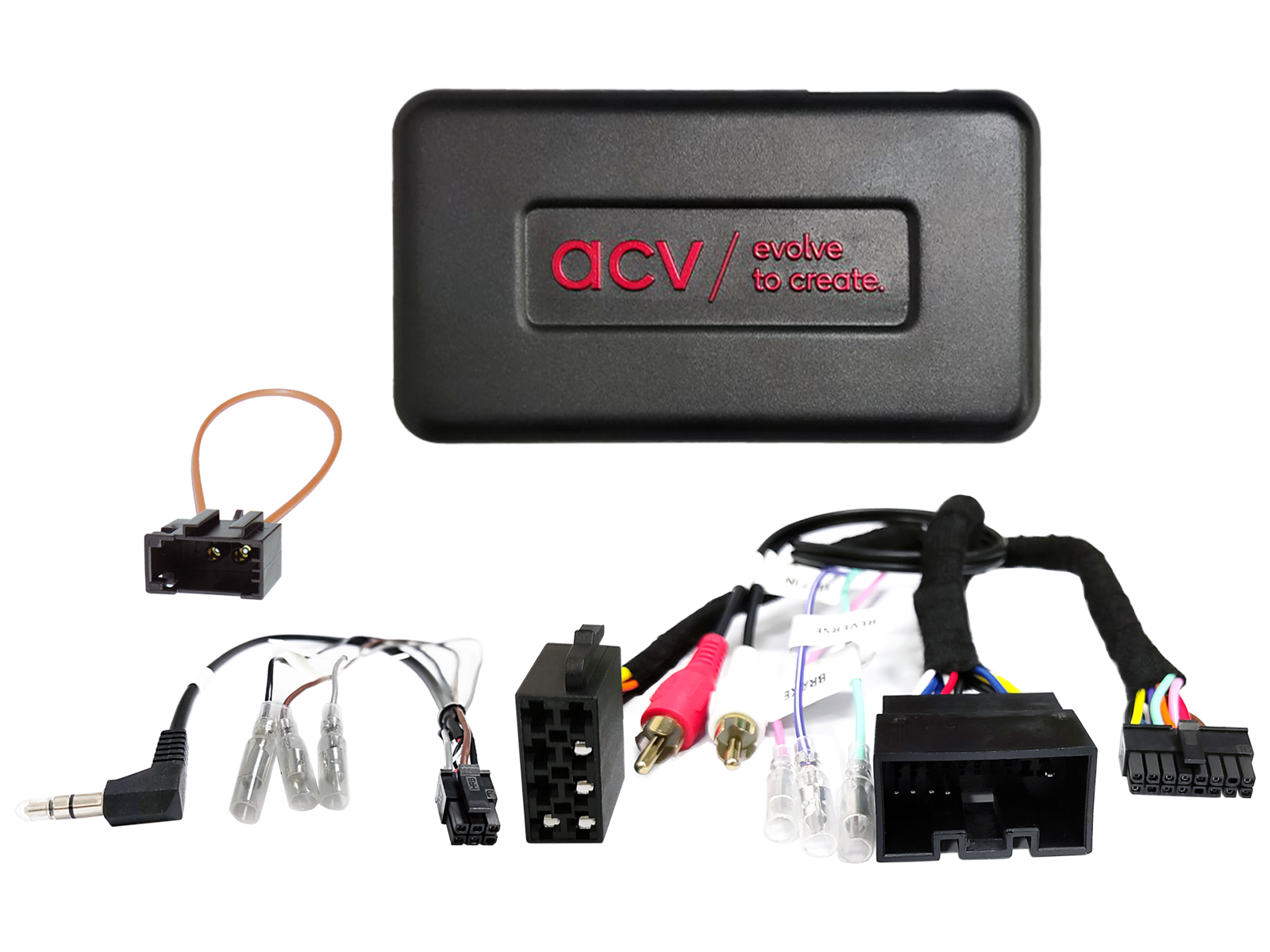

Steering Wheel Button Control Adapter for Land Rover ACV SWC 42XLR011-0
Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Verify whether one of the listed OEM head units was originally installed. Before final installation, check vehicle functionality, system settings and correct operation of the steering wheel control (SWC).
Intended for vehicles
- Land Rover Discovery IV [LA] (09/2009 -> 11/2013) - vehicles with OEM MOST amplified system; vehicle settings and date/time are not supported; OEM display is not supported and shows the Land Rover start logo; fader function is not supported.
- Land Rover Range Rover Sport I [LS] (09/2009 -> 08/2013) - vehicles with OEM MOST amplified system; vehicle settings and date/time are not supported; OEM display is not supported and shows the Land Rover start logo; fader function is not supported.
CAN Bus information
Connectors and power:
- Connector: 20-pin Land Rover.
- OEM steering wheel control (SWC) connection: 3.5 mm jack or free wire.
- OEM amplified system connection: RCA (male) red/white – front pre-out from aftermarket HU; fader not supported.
Settings:
- DIP switch settings according to the aftermarket head unit manufacturer (see device manual).
Compatibility and limitations:
- Vehicles with CAN Bus.
- Vehicles with OEM MOST amplified system.
- Vehicle settings and date/time settings are not supported.
- OEM display is not supported; only the Land Rover start logo is displayed.
Signals and output load capacity:
- Red: +12 V ignition power (terminal 15).
- Orange: +12 V illumination (terminal 58).
- Purple/white: +12 V reverse signal.
- Pink: speed pulse.
- Green: GND parking brake signal.
- Max. output load: 250 mA. For higher current draw use relays – 1 relay with coil resistance min. 75 Ω, 2 relays with coil resistances min. 150 Ω.
Important additional information
- Analog steering wheel control (SWC). For reimported vehicles or vehicles with different software, function incompatibilities may occur.
- To fully activate the adapter, it is necessary to order the connection cable specific to the head unit brand.
General installation instructions
Checks before installation:
- Check all functions and vehicle settings with the original OEM head unit.
- Disconnect the original radio (OEM HU) with power off.
- Check all interface connections to ensure they are correctly connected – with power off.
Connections and wiring sequence:- Check the interface settings and hardware configuration – with power off.
- Check the configuration of the HU connection cable – with power off.
- Connect the cable to the HU according to the aftermarket device manual.
- Connect the other wires according to the device manual.
- Connect the entire installation to the vehicle – connect the main power connection last.
- Perform the software configuration of the interface according to the product description or manual.
- Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power and others).
- Perform a functional test of the steering wheel control and communication with the vehicle.
Changing interface configuration and HU cable:
- Make all changes with power off.
- After any change, repeat steps 5 to 8 listed above.
In case of interface or vehicle system malfunction:- Reinstall the original OEM HU.
- Start the original unit.
- Initiate CAN Bus shutdown.
- Check the hardware configuration of the interface.
- After CAN Bus shutdown repeat steps 5 and 6 listed above.
When modifying wiring or cabling:- Wiring and modifications may only be carried out by professionally trained personnel.
- All changes must be verified regarding manufacturer approval or effect on the vehicle warranty before connection.
- All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
- Modifications are carried out at your own risk, without guarantee of functionality.
- Modifications are made at your own risk, without guarantee of preventing damage to the vehicle, device or interface.
- Pre-modified cabling may result in loss of product warranty.
- Reinstall the original OEM HU.
- Start the original unit.
- Initiate CAN Bus shutdown.
- Check the hardware configuration of the interface.
- After CAN Bus shutdown repeat steps 5 and 6 listed above.
When modifying wiring or cabling:- Wiring and modifications may only be carried out by professionally trained personnel.
- All changes must be verified regarding manufacturer approval or effect on the vehicle warranty before connection.
- All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
- Modifications are carried out at your own risk, without guarantee of functionality.
- Modifications are made at your own risk, without guarantee of preventing damage to the vehicle, device or interface.
- Pre-modified cabling may result in loss of product warranty.
| Catalog number | 42XLR011-0 |
| Brand | ACV |
| Links | Official web presentation |
