Steering Wheel Button Control Adapter for Land Rover ACV SWC 42XLR008-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed head unit, some functions may be limited or substituted by others. Compare the shown wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

• Land Rover Range Rover III [L322/Vogue] (09/2009 -> 12/2012) - vehicles with Alpine OEM touch main unit, vehicles with OEM MOST amplified system, vehicle settings and date/time are not supported, fader function is not supported.

CAN Bus information

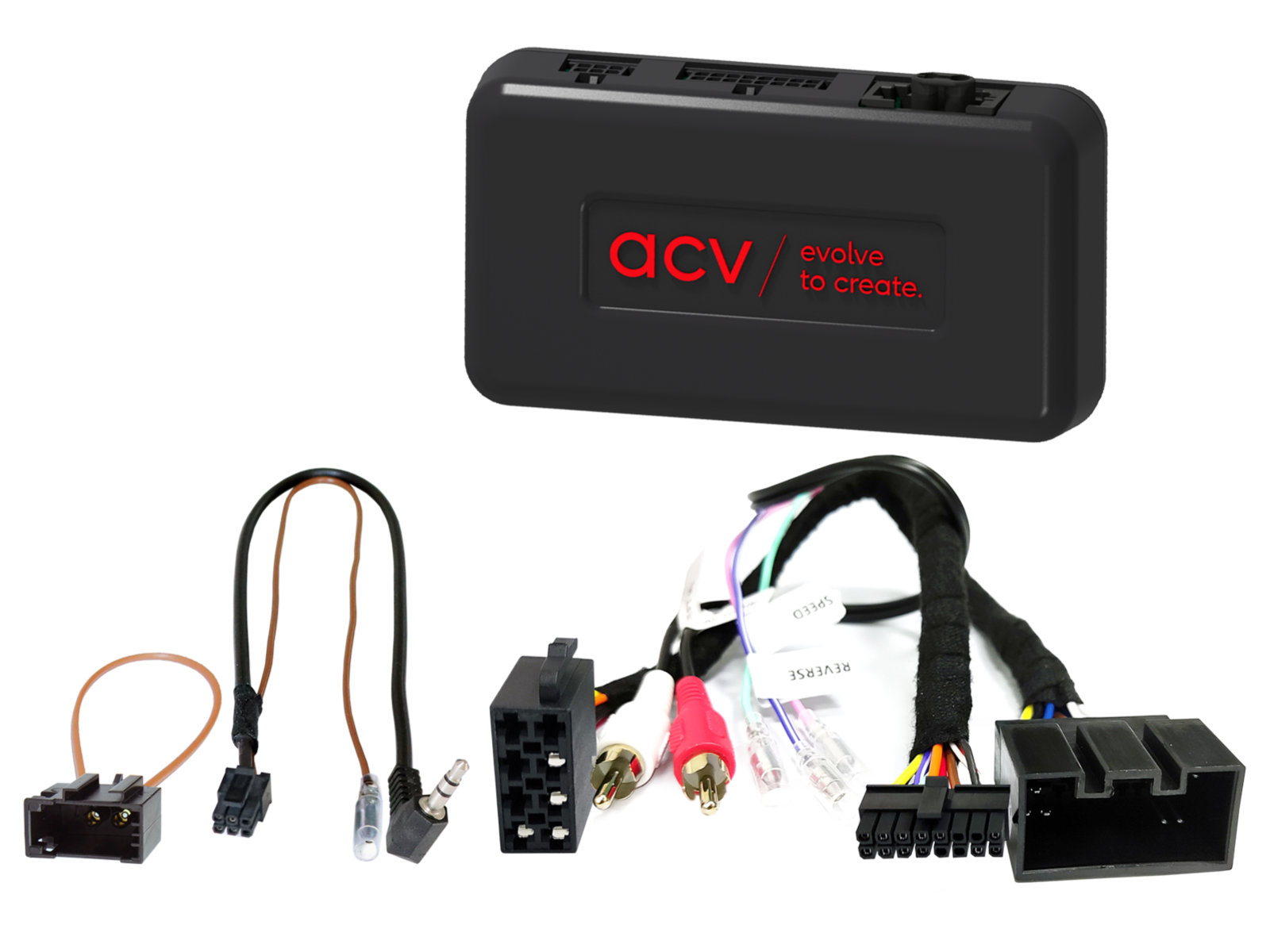

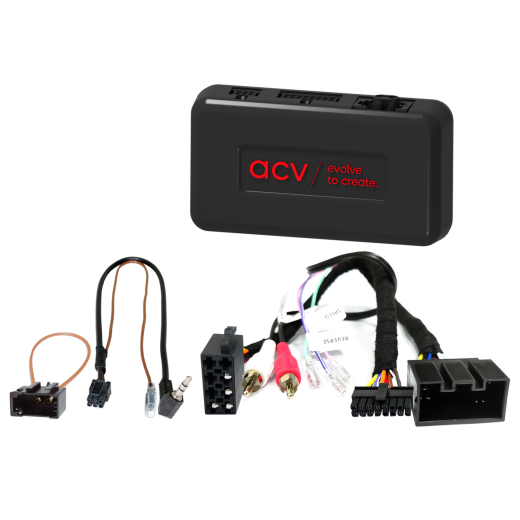

Connectors and power:

• Connector: 20-pin Land Rover.
• OEM steering wheel control (SWC) connection: 3.5 mm jack or free wire.
• OEM amplified system connection: RCA (male) red/white.
• Optical loop: MOST (f) – connection to OEM display.
• Pre-amplified output from aftermarket head unit: RCA (front pre-out) – fader not supported.

Settings:

• Set DIP switches according to the manufacturer of the aftermarket unit (see the unit’s manual).

Vehicle compatibility:

• Vehicles with CAN Bus.
• Vehicles with OEM MOST amplified system.
• Vehicles with Alpine OEM touch main unit.
• Vehicle settings and date/time are not supported.

Available signals and load limits:

• Red: +12 V ignition power (terminal 15).
• Orange: +12 V illumination (terminal 58).
• Purple/white: +12 V reverse signal.
• Pink: speed pulse.
• Green: GND parking brake signal.
• Maximum output load: 250 mA.
• For current draw above 250 mA: 1 relay with minimum 75 Ω coil; 2 relays minimum 150 Ω coils.

Important additional information

• Analog steering wheel control (SWC). In reimported vehicles or vehicles with a different software version some functions may be incompatible.
• To fully activate the adapter you must order a connection cable for the specific head unit brand.

General installation instructions

Checks before installation:

1. Check all steering wheel controls and vehicle settings with the original OEM head unit.
2. Disconnect the original radio (OEM HU) with power off.
3. Check all interface connections to ensure they are correctly connected – with power off.

Connections and wiring sequence:

1. Check the interface settings and hardware configuration – with power off.
2. Check the configuration of the connection cable to the head unit – with power off.
3. Connect the cable to the head unit according to the aftermarket unit’s manual.
4. Connect the other wires according to the device manual.
5. Connect the entire installation to the vehicle – connect the main power lead last.
6. Perform the software configuration of the interface according to the product description or manual.
7. Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power and others).
8. Perform a function test of the steering wheel control and communication with the vehicle.

Changing interface configuration and HU cable:

• Make all changes with power off.
• After changes repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

• Reinstall the original OEM head unit.
• Start the original unit.
• Trigger CAN Bus shutdown.
• Check the interface hardware configuration.
• After CAN Bus shutdown repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

• Connections and modifications may only be performed by professionally trained personnel.
• All changes must be verified regarding manufacturer approval or effects on the vehicle warranty before connection.
• All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
• Modifications are made at your own risk, without guarantee of functionality.
• Modifications are carried out at your own risk, without guarantee against damage to the vehicle, device or interface.
• Pre-modified cabling may result in loss of product warranty.
