Steering wheel button control adapter for Jeep Connects2 CTSJP00C

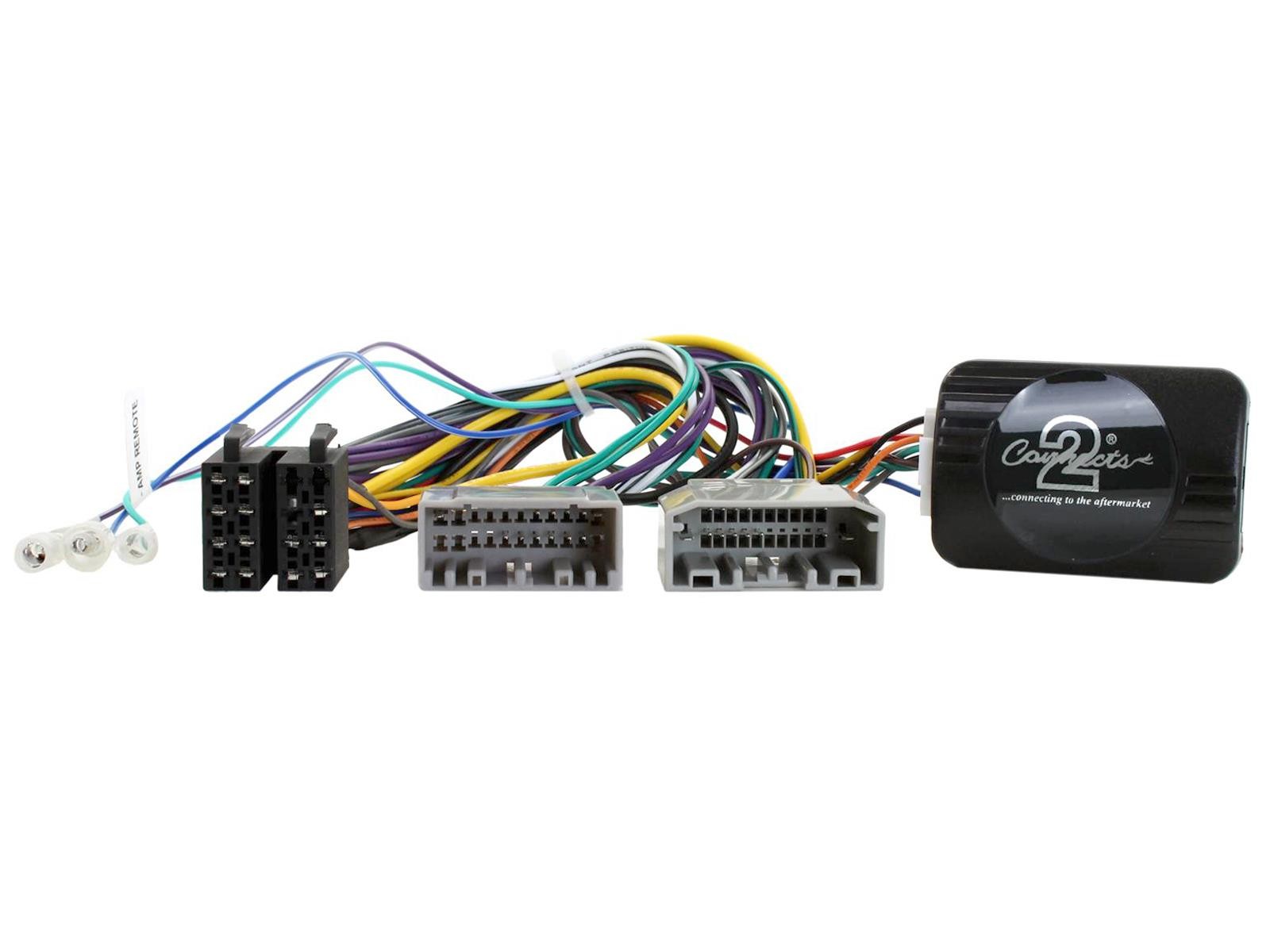

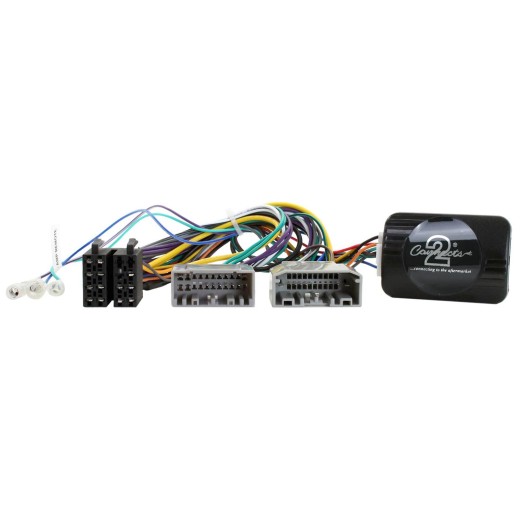

Steering Wheel Control Adapter for Jeep Connects2 CTSJP00C

Adapter for activating steering wheel control buttons when purchasing an aftermarket car radio with an ISO connector (included with the adapter).

Designed for Vehicles

• Jeep Commander (2008 -> 2010)
• Jeep Wrangler (2003 -> 2008)
• Jeep Compass (2009 -> 2015)
• Jeep Grand Cherokee (2002 -> 2010)
• Jeep Liberty (2002 -> 2008)
• Jeep Patriot (2009 -> 2014)

Main Features

• Steering wheel control adapter.
• Compatible with branded aftermarket car radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
• Interface allows connection of an aftermarket head unit while retaining the use of original steering wheel control buttons.
• Enables you to keep your hands on the wheel and eyes on the road.
• Plug & Play - no need to cut cables.
• Provides outputs for speed pulse and reverse gear.
• To fully activate the adapter, you need to order a connection cable for the specific brand of car radio!
• This product was developed based on carefully documented data and research.
• Connects2 Ltd. is not responsible for discrepancies/inconsistencies that may occur due to changes or additions in vehicle production, nor for any damage that may occur to the vehicle during component installation.
• All application data is subject to change over time, and neither Ahifi nor the manufacturer is responsible for changes.
• Before installation, check that the cable connection in the vehicle matches the harness of the adapter you are purchasing.

Additional Info on Analog Inputs

• The steering wheel adapter includes wires with analog signals.
• +12 V when ignition is on (terminal 15) - fitted in the ISO connector.
• +12 V when vehicle lighting is on - fitted in the ISO connector.
• +12 V when reverse gear is engaged - loose wire.
• Speed pulses - loose wire.
• Ground (- pole) when handbrake is engaged - loose wire.
