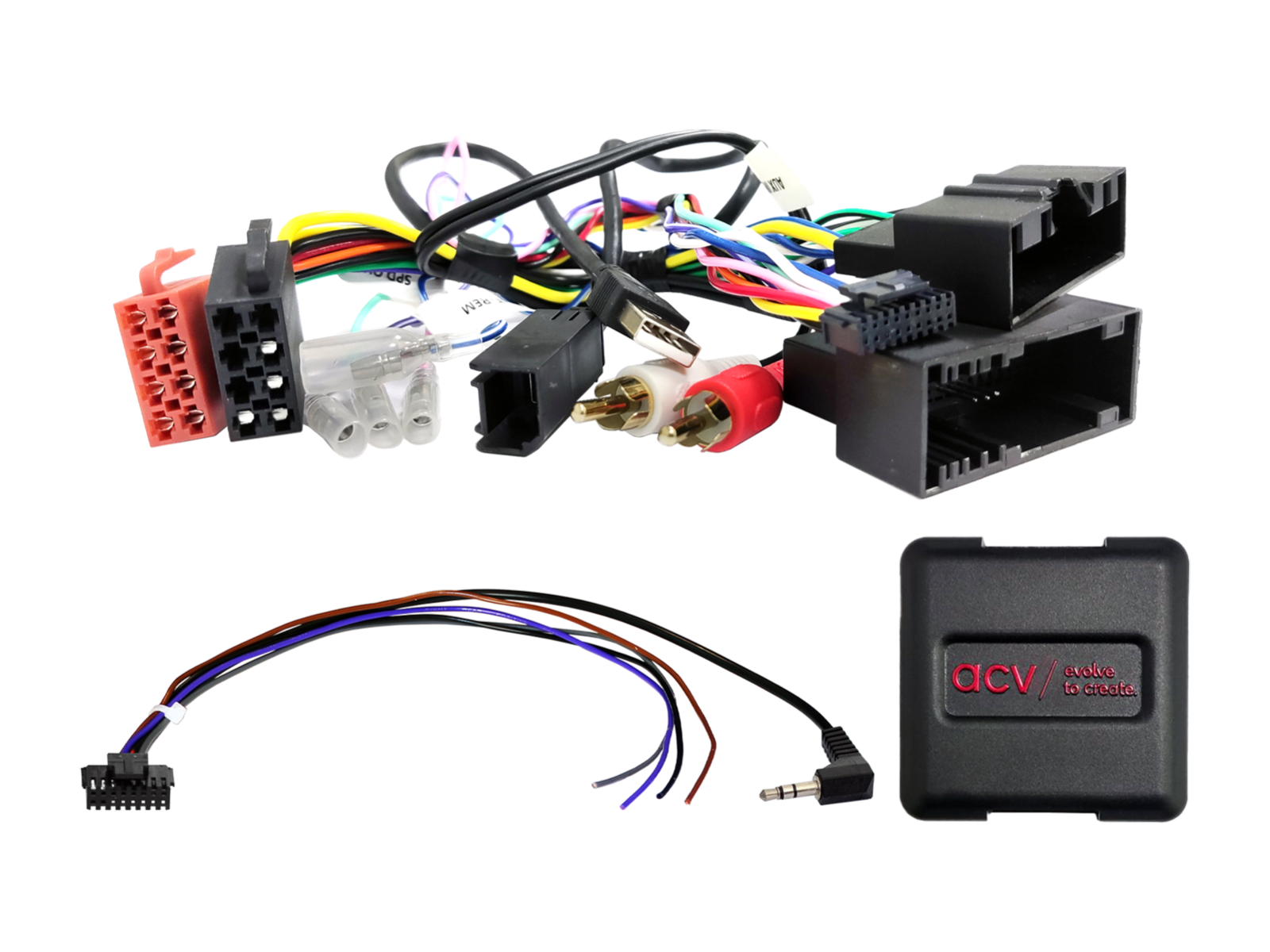

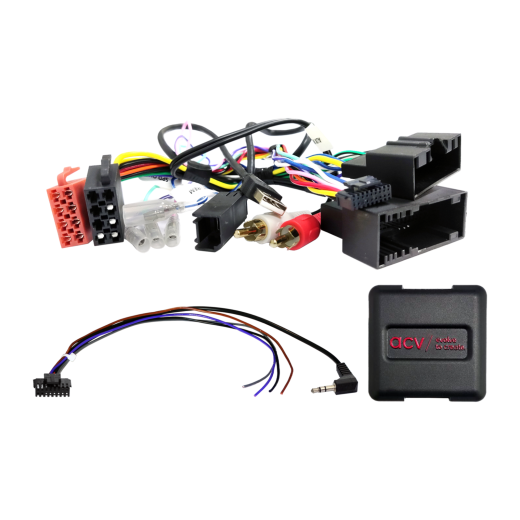

Steering wheel button control adapter for Ford ACV SWC 42XFO018-0

Steering wheel button control adapter for Ford ACV SWC 42XFO018-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

• Ford Everest (2015 -> 2020) - original OEM head unit.
• Ford Ranger [2AB] (01/2016 -> 01/2019) - original OEM head unit.
• Ford Ranger [2AB] (01/2019 -> 2021) - original OEM head unit.
• Ford Transit Custom [FAC/FAD] (06/2016 -> 01/2018) - OEM USB/AUX not supported, vehicles with Euro 6 emissions standard.
• Ford Transit [V363] [FCA/FAD] (06/2016 -> 06/2019) - OEM USB/AUX not supported, vehicles with Euro 6 emissions standard; vehicles with Euro 5 emissions standard – item: 42xfo008; vehicles without OEM display – item: 42xfo015; installation of OEM display is not supported using the radio mounting frame, the OEM display must remain connected.

CAN Bus Information

• System type: CAN Bus.
• Connector: 24-pin Ford.
• Output for OEM steering wheel control: 3.5 mm jack or free wire.
• OEM AUX connection: RCA red/white.
• OEM USB connection: USB-A.
• Vehicles with OK button and/or voice control button.
• Vehicles with OEM display.
• SYNC function is not supported.
• Date/time setting is not supported.
• Vehicle settings are not supported.
• Set DIP switches according to the aftermarket radio manual.

Important Additional Information

• Before installation, disable SYNC and Bluetooth functions in the OEM unit, if available.
• Intended for aftermarket head units from Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper and universal "China HU" units with Key1/Key2/GND wires or a 3.5 mm jack depending on type.
• To fully activate the adapter, it is necessary to order the brand-specific connection cable for the head unit.

Provided Signals

• Red: +12V switched power (terminal 15).
• Orange: +12V illumination (terminal 58).
• Violet-white: +12V reverse.
• Pink: speed pulse.
• Green: parking brake signal ground.
• Maximum output load: 250 mA.
• When drawing more than 250 mA:
  • 1 relay – minimum coil resistance 75 Ohm.
  • 2 relays – minimum coil resistance 150 Ohm.
• Steering wheel control (SWC).

General Installation Instructions

Verification Before Installation:

1. Check all control functions and vehicle settings using the original OEM HU.
2. Disconnect the original radio (OEM HU) in a voltage-free condition.
3. Check all interface connections – without power.

Connection and Installation Sequence:

1. Set and check the HW configuration of the interface – without power.
2. Check the configuration of the HU connection cable – without power.
3. Connect the cable to the HU according to the aftermarket device manual.
4. Connect the remaining wires according to the device manual.
5. Connect the complete installation to the vehicle – connect the main power supply last.
6. Perform the software configuration of the interface according to the product description or manual.
7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
8. Perform a functional test of steering wheel control and vehicle communication.

Configuration Changes:

• All changes must be carried out without power.
• After changes repeat steps 5 to 8 above.

In Case of Failure:

• Reinstall the original OEM HU.
• Start the original unit.
• Initiate CAN Bus shutdown.
• Check the HW configuration of the interface.
• After CAN Bus shutdown repeat steps 5 and 8.

When Modifying Wiring:

• Installation and modifications may only be carried out by professionally trained personnel.
• All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
• All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
• Modifications are carried out at your own responsibility without guarantee of functionality.
• Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
• Modifications of pre-installed wiring may result in loss of product warranty.
