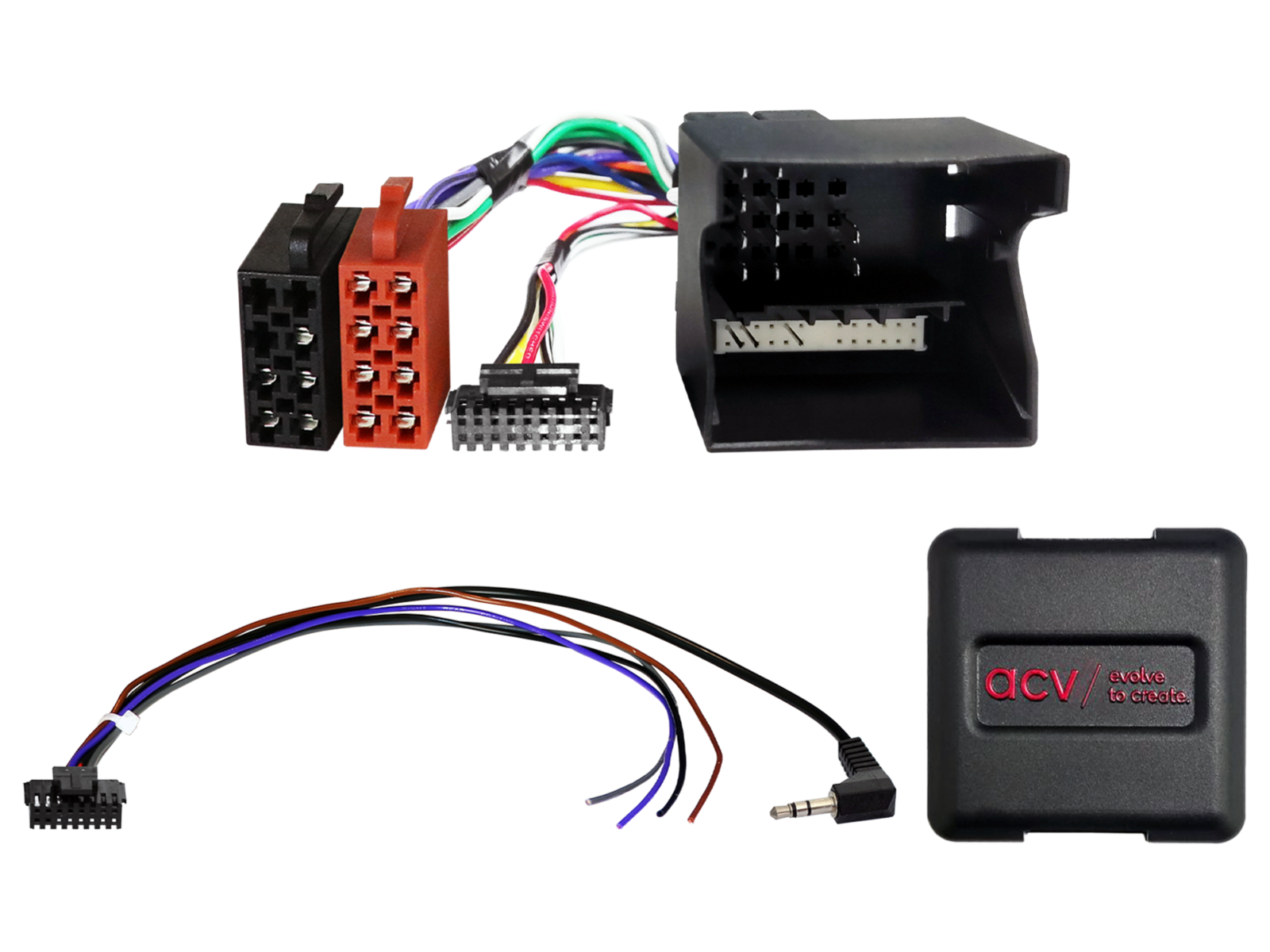

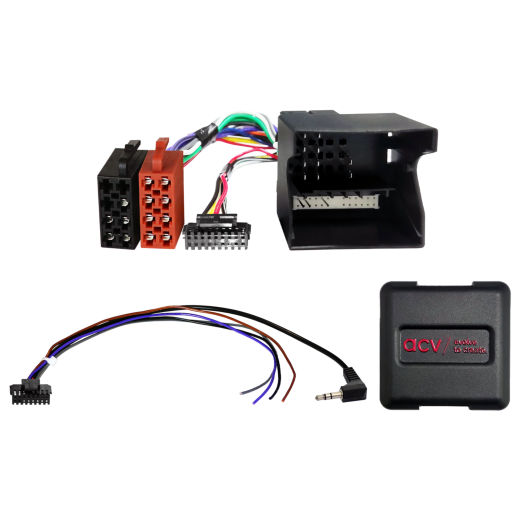

Steering wheel button control adapter for Ford ACV SWC 42XFO002-0

Be the first to rate the product

Add to FavoritesRemove from favourites

steering wheel adapter for Ford C-Max (DM2) (11/03->05/07, 05/07->09/10), Fiesta (JH1/JD3) (10/05->09/08), Focus (DA3) (11/04->03/08, 02/08->03/11), Fusion (JU2) (10/05->07/12), Galaxy II (WA6) (03/06->04/10, 05/10->05/15), Kuga (DM2) (06/08->12/12), Mondeo III (B4Y/B5Y/BWY) (06/03->04/05, 05/05->06/07), Mondeo IV (BA7) (06/07->10/10, 11/10->08/14), S-Max (WA6) (06/06->04/10, 05/10->05/15), Transit (F**6) (07/06->03/14), Transit Connect (P*2) (06/06->07/13)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Ford ACV SWC 42XFO002-0

New

Description and parameters
Comments0
Evaluation0
Category

Steering wheel button control adapter for Ford ACV SWC 42XFO002-0

Retain the original steering wheel radio controls when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the shown wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM radios was originally installed. Before final installation verify vehicle functionality, system settings and correct operation of the steering wheel controls.

Intended for vehicles

Ford C-Max [DM2] (11/2003 -> 05/2007) - original OEM head unit.
Ford C-Max [DM2] (05/2007 -> 09/2010) - original OEM head unit.
Ford Fiesta [JH1/JD3] (10/2005 -> 09/2008) - original OEM head unit.
Ford Focus [DA3] (11/2004 -> 03/2008) - original OEM head unit.
Ford Focus [DA3] (02/2008 -> 03/2011) - original OEM head unit.
Ford Fusion [JU2] (10/2005 -> 07/2012) - original OEM head unit.
Ford Galaxy II [WA6] (03/2006 -> 04/2010) - original OEM head unit.
Ford Galaxy II [WA6] (05/2010 -> 05/2015) - original OEM head unit.
Ford Kuga [DM2] (06/2008 -> 12/2012) - original OEM head unit.
Ford Mondeo III [B4Y/B5Y/BWY] (06/2003 -> 04/2005) - original OEM head unit.
Ford Mondeo III [B4Y/B5Y/BWY] (05/2005 -> 06/2007) - original OEM head unit.
Ford Mondeo IV [BA7] (06/2007 -> 10/2010) - original OEM head unit.
Ford Mondeo IV [BA7] (11/2010 -> 08/2014) - original OEM head unit.
Ford S-Max [WA6] (06/2006 -> 04/2010) - original OEM head unit.
Ford S-Max [WA6] (05/2010 -> 05/2015) - original OEM head unit.
Ford Transit [F**6] (07/2006 -> 03/2014) - original OEM head unit.
Ford Transit Connect [P*2] (06/2006 -> 07/2013) - original OEM head unit.

CAN Bus information

Connector: 40-pin Ford Quadlock.
Output for OEM steering wheel control: 3.5 mm jack or open wire.

Important additional information

Intended for vehicles with OEM main units 5000C, 6000CD and 6006CD.
Not intended for vehicles with the 7" OEM color Sat Nav display with integrated climate control.
Intended for aftermarket radios by Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper and universal “China HU” units with Key1/Key2/GND wires or a 3.5 mm jack depending on type.
To fully activate the adapter it is necessary to order the connection cable for the specific head unit brand.

General installation instructions

Checks before installation:

Check all steering control functions and vehicle settings with the original OEM main unit installed.
Remove the original radio with the system powered off.
Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring sequence:

Perform interface setup and hardware configuration with power off.
Check the configuration of the connection cable to the head unit (HU).
Connect the cable to the HU according to the aftermarket device manual.
Connect the remaining wires according to the device manual.
Connect the entire installation to the vehicle – connect the main power last.
Perform the software configuration of the interface according to the product description or manual.
Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
Perform a functional test of the steering wheel control and communication with the vehicle.

Changing interface and HU cable configuration:

Make all changes with power off.
After changes repeat steps 5 to 8 listed above.

In case of interface or vehicle system malfunction:

Reinstall the original OEM HU.
Start the original unit.
Wait for the CAN Bus system to go to sleep.
Check the hardware configuration of the interface.
After the CAN Bus sleeps, repeat steps 5 to 8 listed above.

When modifying wiring or cable routing:

Connections and modifications may only be carried out by professionally trained personnel.
All changes must be verified before connection regarding manufacturer approval or impact on the vehicle warranty.
All modifications must be verified before connection by measurement and comparison with the vehicle wiring diagram.
Modifications are made at your own risk, without any warranty of functionality.
Modifications are performed at your own risk, without guarantee of preventing damage to the vehicle, equipment, or interface.
Changes to pre-installed wiring may result in loss of product warranty.
