Steering Wheel Control Adapter for Dacia / Opel / Renault ACV SWC 42XRN004-0

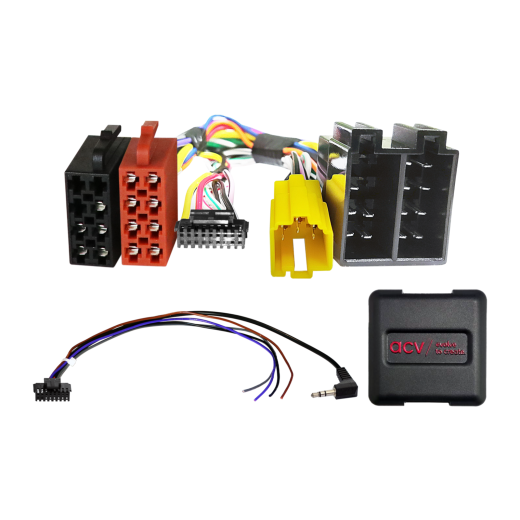

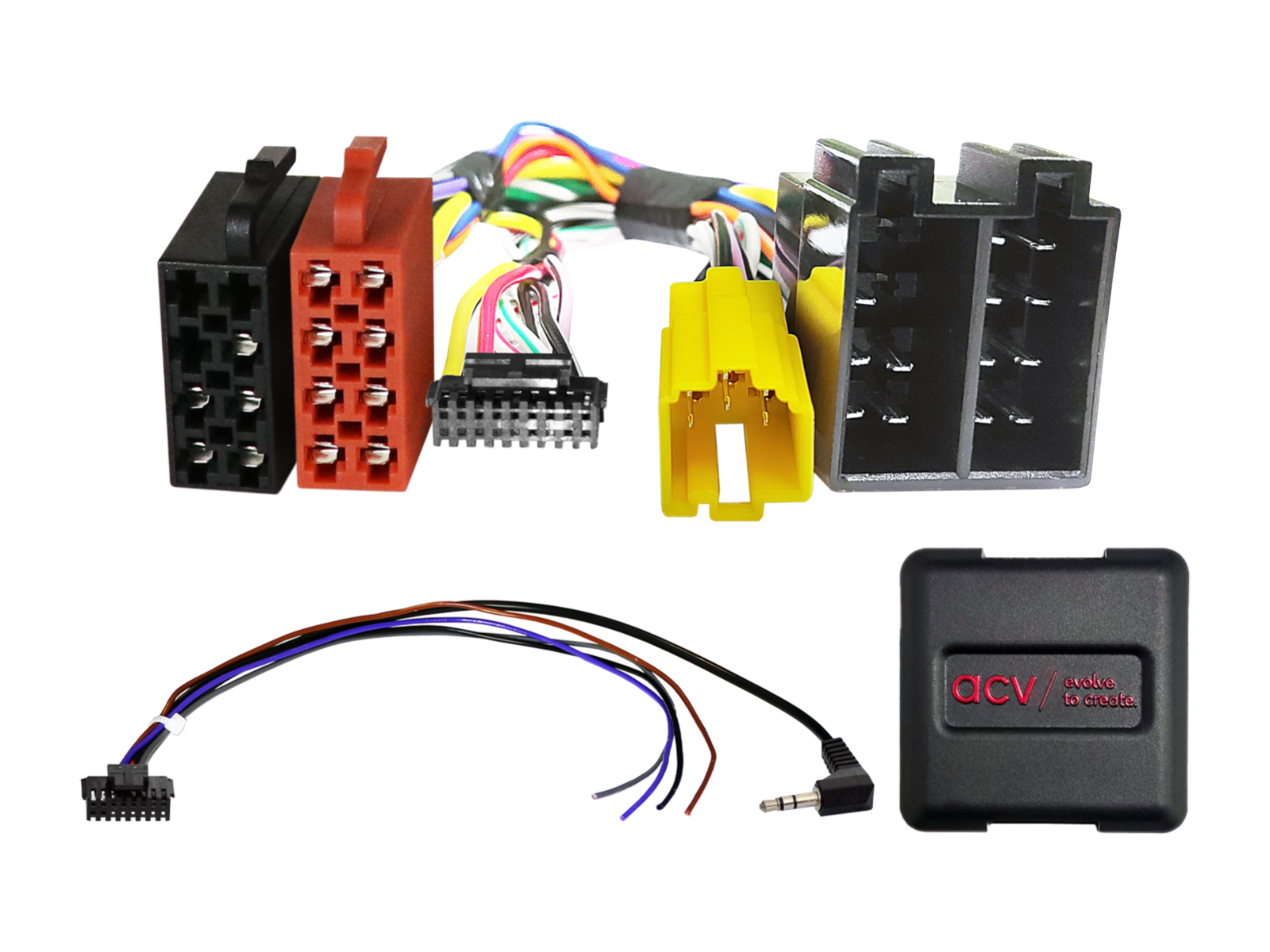

Retain original steering wheel radio controls when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, available functions and the software of the newly installed radio, some functions may be limited or replaced. Compare the pictured wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM radios was originally installed. Before final mounting, verify vehicle functionality, system settings and correct operation of the steering wheel controls (SWC).

Suitable for the following vehicles

• Dacia Duster (SD) (04/2010 -> 11/2013) - OEM Blaupunkt 1-DIN without external display.
• Dacia Sandero (SD) (06/2008 -> 12/2012) - OEM Blaupunkt 1-DIN without external display.

• Opel Vivaro (X83) (09/2006 -> 12/2010) - OEM Tuner List or Update List with display in the unit, without Carminat and without the Cabasse amplifier system.

• Renault Clio II (09/1998 -> 09/2005) - OEM Tuner List or Update List with external display, without Carminat and without the Cabasse amplifier system.
• Renault Megane I (BA) (10/2000 -> 09/2003) - OEM Tuner List or Update List with display in the unit, without Carminat and without the Cabasse amplifier system.
• Renault Megane II (CM/EM) (10/2002 -> 12/2005) - OEM Tuner List or Update List with display in the unit, without Carminat and without the Cabasse amplifier system.
• Renault Kangoo (KC) (01/1998 -> 09/2005) - OEM Tuner List or Update List with display in the unit, without Carminat and without the Cabasse amplifier system.
• Renault Twingo (C06) (01/2003 -> 07/2007) - OEM Tuner List or Update List with display in the unit, without Carminat and without the Cabasse amplifier system.

CAN Bus information

Connectors and power:

• Connectors: ISO / yellow Mini ISO / Mini ISO 6-pin connected.
• OEM steering wheel control connection: 3.5 mm jack or a free wire to the SWC input of the car radio.

Settings:

• Set DIP switches according to the aftermarket unit manufacturer's instructions (see the unit manual).

Vehicle compatibility:

• Dacia – only models with OEM Blaupunkt 1-DIN without external display.
• Opel/Renault – only models with OEM Tuner List or Update List with display in the unit, without Carminat and without the Cabasse amplifier system.

Special cases and warnings:

• Re-imported vehicles or vehicles with different software may have limited functionality.

Important additional information

• Compatible with aftermarket car radios that have an analog input for steering wheel control.
• To fully activate the adapter, you must order the connecting cable specific to the brand of the car radio.

General installation instructions

Pre-installation checks:

1. Check all steering wheel control functions and vehicle settings with the original OEM head unit installed.
2. Disconnect the original radio (OEM HU) with power off.
3. Check all interface connections to ensure they are correctly attached – with power off.

Connection and wiring sequence:

1. Set and verify the hardware configuration of the interface – with power off.
2. Check the configuration of the head unit cable – with power off.
3. Connect the cable to the head unit according to the aftermarket device instructions.
4. Connect the remaining wires according to the device instructions.
5. Connect the entire installation to the vehicle – connect the main power last.
6. Perform the interface software configuration according to the product description or manual.
7. Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power, etc.).
8. Perform a functional test of steering wheel control and vehicle communication.

Changing the interface configuration and HU cable:

• Make all changes with power off.
• After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system fails:

• Reinstall the original OEM head unit.
• Start the original unit.
• Initiate CAN Bus system shutdown.
• Check the hardware configuration of the interface.
• After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

• Wiring and modifications must be performed only by professionally trained personnel.
• All changes must be verified for manufacturer approval or impact on the vehicle warranty before connection.
• All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
• Modifications are made at your own risk and without guarantee of functionality.
• Modifications are at your own risk and there is no guarantee against damage to the vehicle, device or interface.
• Pre-modified cabling may result in loss of product warranty.
