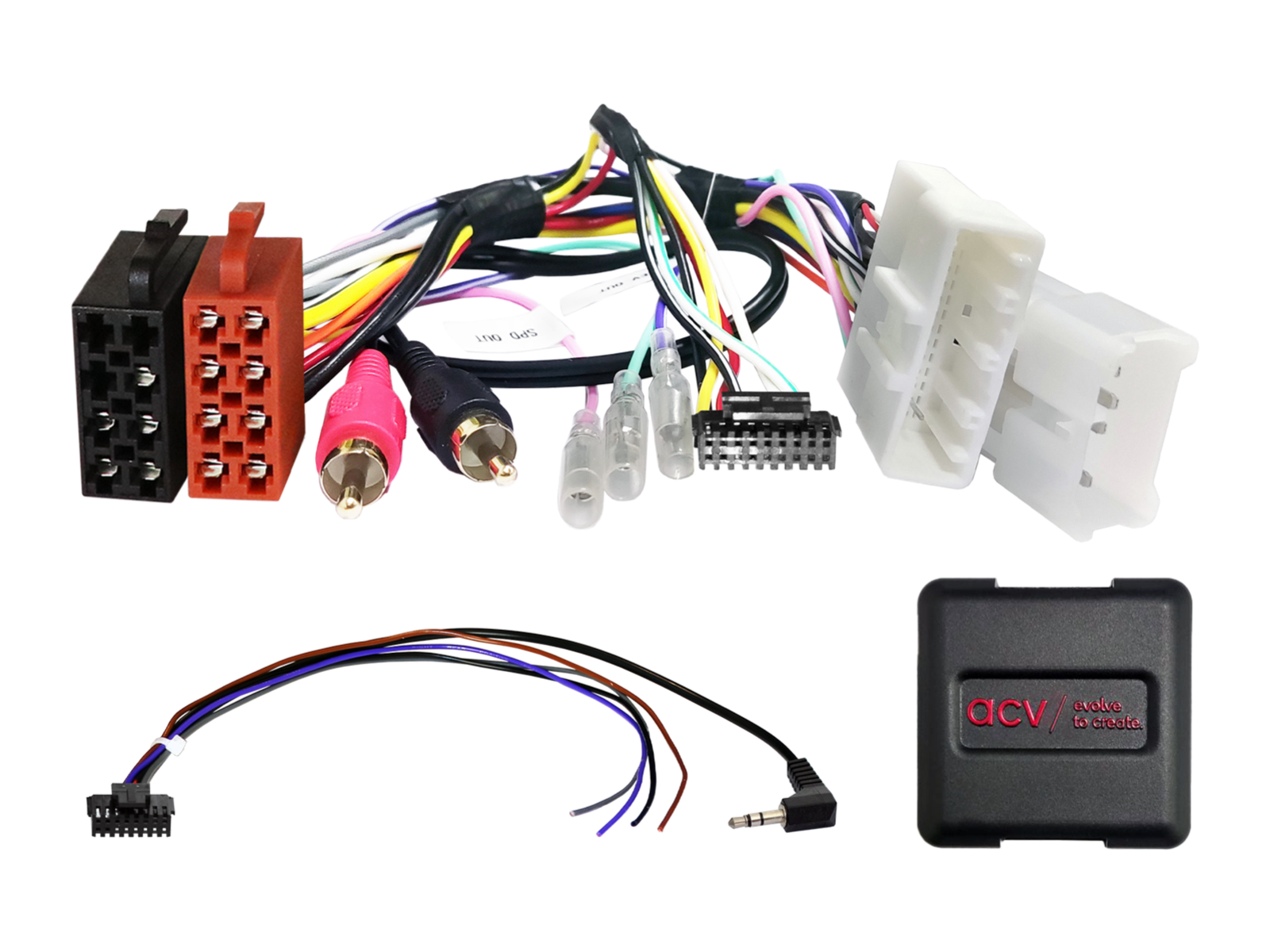

Steering wheel button control adapter for Citroen / Peugeot / Toyota ACV SWC 42XPG016-0

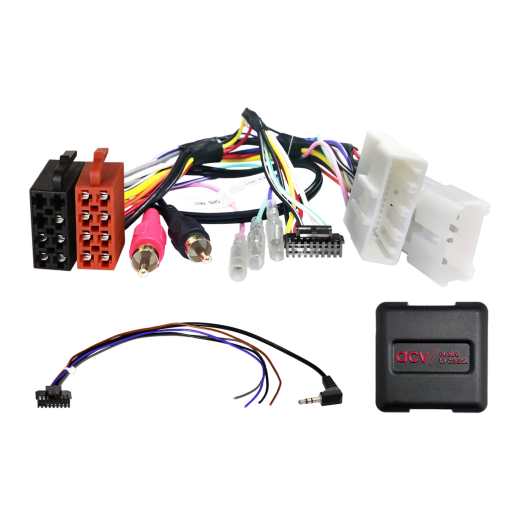

Steering wheel button control adapter for Citroën / Peugeot / Toyota ACV SWC 42XPG016-0

Preserve the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

• Citroën C1 (P) (07/2014 -> 09/2021) - original OEM head unit.

• Peugeot 108 (P) (07/2014 -> 03/2021) - original OEM head unit.

• Toyota Aygo (AB1) (07/2014 -> 06/2018) - original OEM head unit.
• Toyota Aygo (AB1) (06/2018 -> 03/2022) - original OEM head unit.

CAN Bus information

Connectors and power:

• Connectors: Toyota 10-pin / 6-pin / 20-pin.
• OEM steering wheel control connection: 3.5 mm jack or spare wire to the SWC input of the head unit.
• OEM AUX connection: RCA (red/black).

Settings:

• Set DIP switches according to the aftermarket unit manufacturer (see user manual).

Compatibility with vehicles:

• Analog steering wheel control (SWC).

Special cases and warnings:

• Reimported vehicles or vehicles with different software may have limited functionality.

Important additional information

• Compatible with aftermarket head units that have an analog steering wheel control input.
• To fully activate the adapter, a brand-specific connection cable for the head unit must be ordered.

General installation instructions

Pre-installation checks:

1. Check all steering wheel control functions and vehicle settings with the original OEM main unit.
2. Disconnect the original radio (OEM HU) with power off.
3. Check all interface connections to ensure they are correctly connected – with power off.

Connections and wiring sequence:

1. Set and verify the hardware configuration of the interface – with power off.
2. Check the wiring configuration of the connection cable to the HU – with power off.
3. Connect the cable to the HU according to the aftermarket device instructions.
4. Connect the remaining wires according to the device instructions.
5. Connect the entire installation to the vehicle – connect the main power connection last.
6. Perform the software configuration of the interface according to the product description or manual.
7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power, etc.).
8. Perform a functional test of the steering wheel control and communication with the vehicle.

Changing the interface configuration and HU cable:

• Make all changes with power off.
• After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

• Reinstall the original OEM HU.
• Start the original unit.
• Trigger CAN Bus shutdown.
• Check the hardware configuration of the interface.
• After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying connections or wiring:

• Wiring and modifications may only be carried out by professionally trained personnel.
• All changes must be verified for manufacturer approval or effect on the vehicle warranty before connection.
• All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
• Modifications are carried out at your own risk, without guarantee of functionality.
• Modifications are at your own risk, without guarantee against damage to the vehicle, device, or interface.
• Modifications to pre-fitted wiring may result in loss of product warranty.
