Steering wheel button control adapter for Citroen / Fiat / Mitsubishi / Peugeot ACV SWC 42XMT003-0
New

Steering Wheel Button Control Adapter for Citroen / Fiat / Mitsubishi / Peugeot ACV SWC 42XMT003-0

Retain the original radio control functions from the steering wheel when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and the correct operation of the steering wheel controls (SWC).

Designed for vehicles

  • Citroen C4 Aircross (B) (06/2012 -> 05/2017)
  • Fiat Fullback (KT0T) (08/2016 -> 07/2020)
  • Mitsubishi ASX (GAO) (07/2010 -> 09/2012), ASX (GAO) (10/2012 -> 10/2016), ASX (GAO) (11/2016 -> 08/2019), ASX (GAO) (09/2019 -> 10/2021 – vehicles with/without Rockford Fosgate OEM HU)
  • Mitsubishi Challenger (PC) (2010 -> 2017)
  • Mitsubishi L200 (KA0T) (10/2015 -> 08/2019), L200 (KJ0T) (09/2019 -> 10/2022)
  • Mitsubishi Lancer (CYO) (09/2010 -> 04/2015), Lancer (CYO) (05/2015 -> 08/2017)
  • Mitsubishi Mirage (Space Star) (2013 -> 2015), Mirage (Space Star) (2015 -> 2022)
  • Mitsubishi Outlander (CWB) (02/2010 -> 10/2012)
  • Mitsubishi Outlander Sport (ASX) (2010 -> 2022)
  • Mitsubishi Pajero (V80) (10/2014 -> 08/2018)
  • Mitsubishi Shogun (V80) (2014 -> 2018)
  • Mitsubishi Space Star (A00) (04/2016 -> 01/2020), Space Star (A00) (02/2020 -> 2024)
  • Mitsubishi Triton (L200) (2015 -> 2022)
  • Peugeot 4008 (B) (06/2012 -> 05/2015)

CAN Bus information

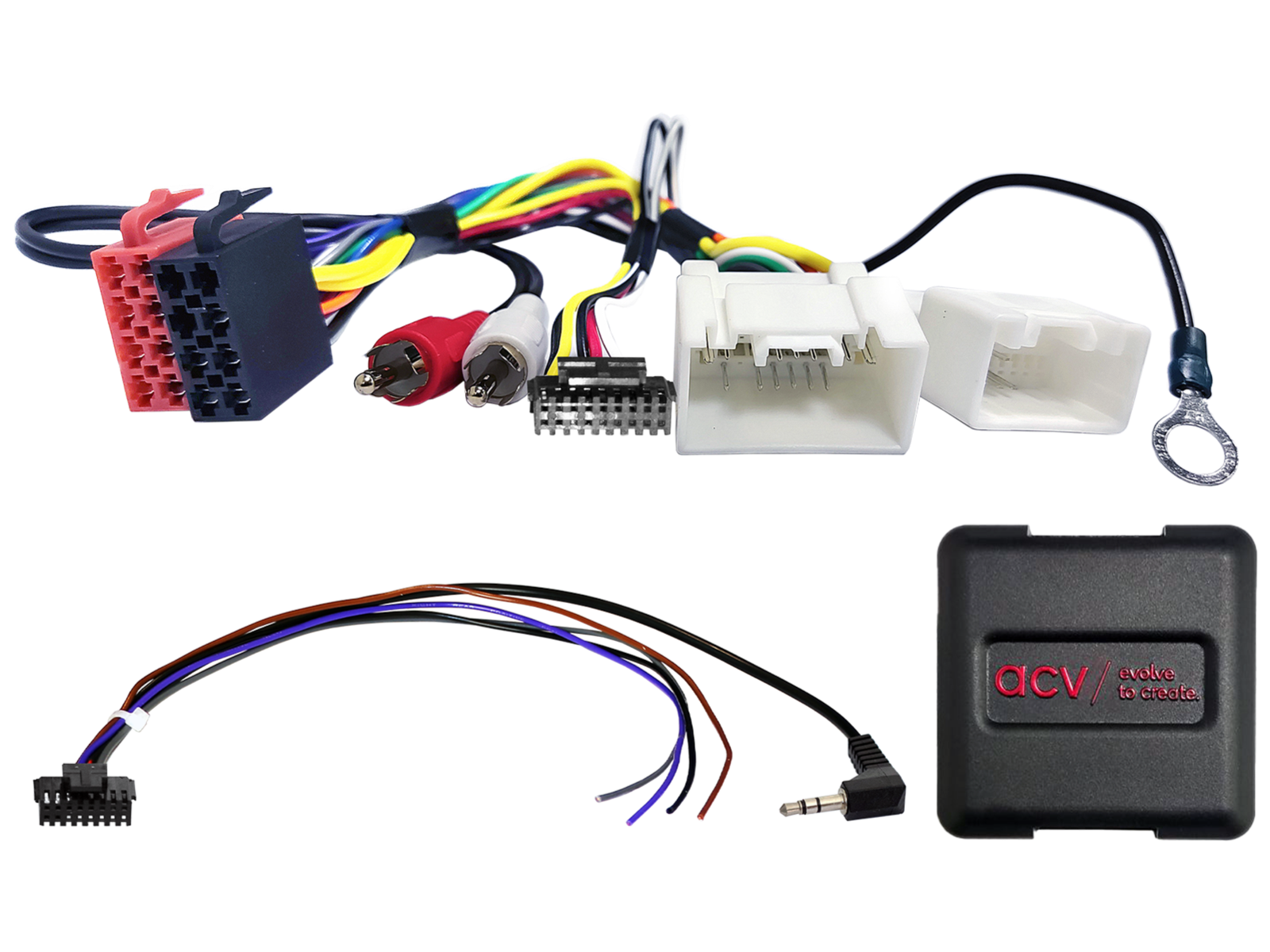

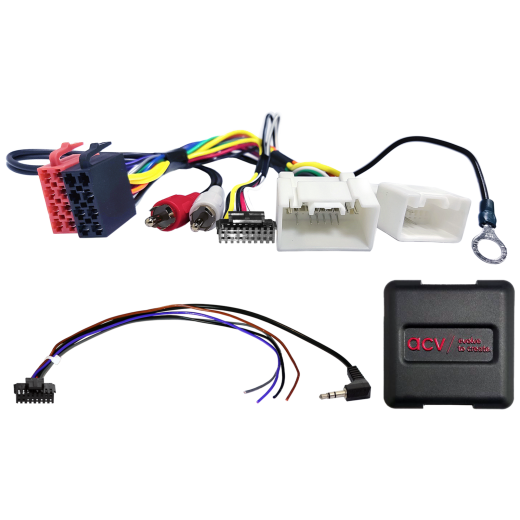

Connectors and power:

  • Connector: ISO / Mini ISO.
  • Connector: OEM SWC > 3.5 mm Jack / loose wire.
  • Connector: OEM AUX > RCA (m) red/white.
  • Black wire: GND (Terminal 31).

Compatibility and limitations:

  • Vehicles with an OEM Mitsubishi radio.
  • Vehicles without an OEM amplifier system – for vehicles with Rockford Fosgate OEM amplifier system use adapter: 42smt009.
  • OEM AUX – verify correct wiring by measurement before installation.

Important additional information

  • To fully activate the adapter, it is necessary to order a connection cable for the specific head unit brand.

General installation instructions

Checks before installation:

  1. Check all steering wheel control functions and vehicle settings with the original OEM head unit installed.
  2. Disconnect the original radio (OEM HU) from power.
  3. Check all interface connections to ensure they are correctly connected – without power.

Connections and wiring sequence:

  1. Check the interface settings and hardware configuration – without power.
  2. Check the configuration of the connection cable to the radio – without power.
  3. Connect the cable to the radio according to the instructions of the aftermarket device.
  4. Connect the other wires according to the device manual.
  5. Integrate the entire installation with the vehicle – connect the main power last.
  6. Perform software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel controls, camera, handsfree, antenna power and others).
  8. Perform a functional test of the steering wheel controls and communication with the vehicle.

Changing the interface and HU cable configuration:

  • Make all changes with no power applied.
  • After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Trigger a CAN Bus shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

  • Wiring and modifications must be performed only by professionally trained personnel.
  • All changes must be verified for manufacturer approval or impact on the vehicle warranty before connection.
  • All modifications must be verified by measurement and compared with the vehicle wiring diagrams before connection.
  • Modifications are carried out at your own risk, without guarantee of functionality.
  • Modifications are performed at your own risk, with no guarantee against damage to the vehicle, device or interface.
  • Pre-modified wiring may result in loss of product warranty.
Catalog number42XMT003-0
BrandACV
LinksOfficial web presentation
