Steering wheel button control adapter for BMW / Mini ACV SWC 42XBM00C-0
steering wheel adapter for BMW 3 (E46) (07/98->02/07), 5 (E39) (01/96->05/04), 7 (E38) (09/94->09/01), X3 (E83) (02/04->08/10), X5 (E53) (03/00->11/06), Z4 (E85) (03/02->08/08) and Mini (R50/R53) (06/01->11/06), Mini (R52) (07/04->08/08)
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

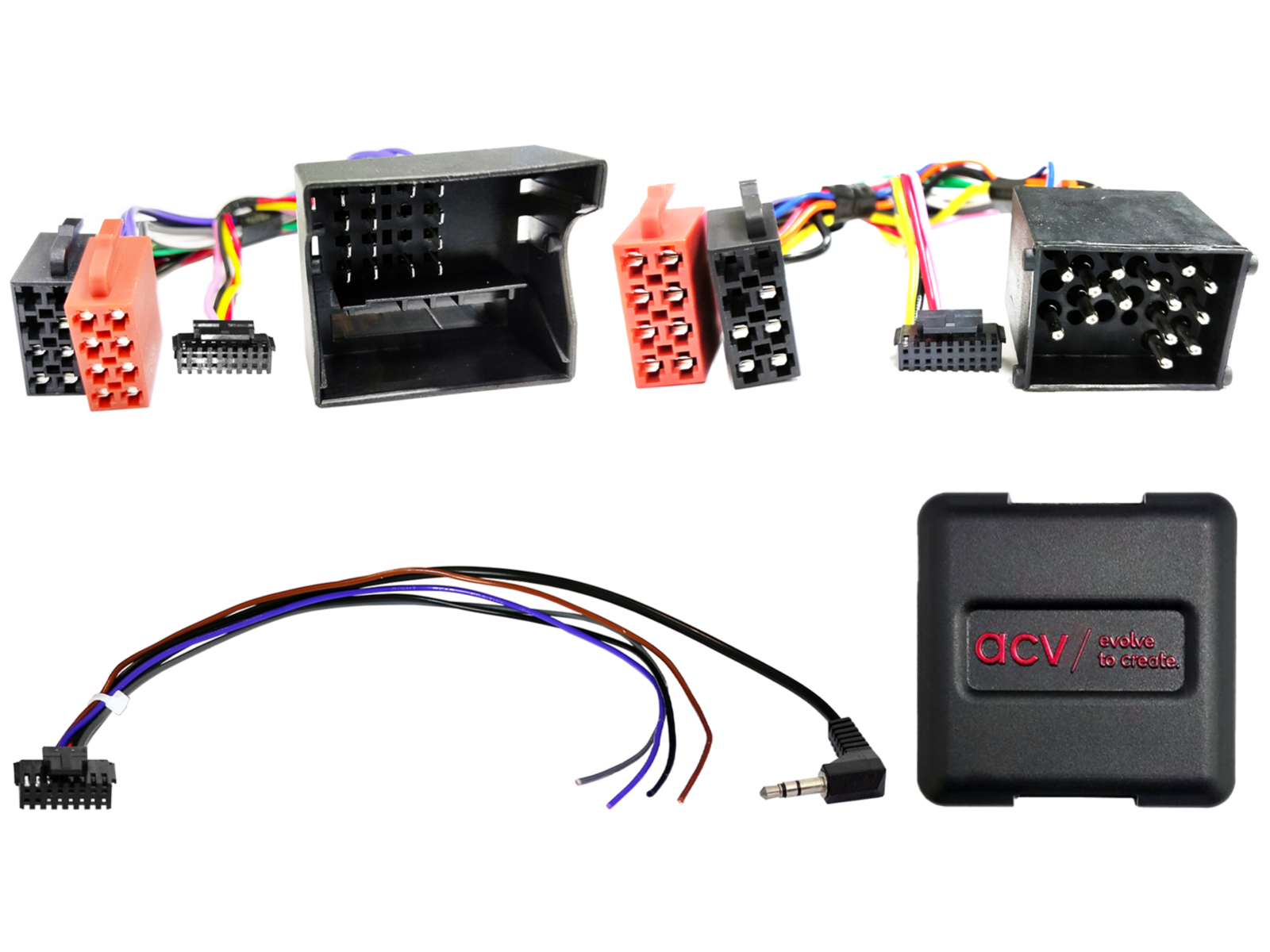

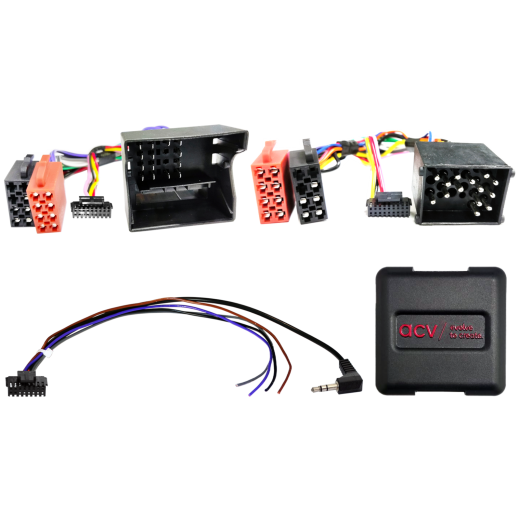

Steering Wheel Control Adapter for BMW / Mini ACV SWC 42XBM00C-0
Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle and ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Verify the vehicle's functionality, system settings, and correct steering wheel control (SWC) operation before final installation.
Compatible Vehicles
- BMW 3 Series [E46] (1998 -> 2007) - original BMW Business radio.
- BMW 5 Series [E39] (1996 -> 2004) - original BMW Business radio.
- BMW 7 Series [E38] (1994 -> 2001) - original BMW Business radio.
- BMW X3 [E83] (2004 -> 2010) - original BMW Business radio.
- BMW X5 [E53] (2000 -> 2006) - original BMW Business radio.
- BMW Z4 [E85] (2002 -> 2008) - original BMW Business radio. Vehicles with a soft top.
- Mini [R50, R53] (2001 -> 2006) - original BMW Business radio. Vehicles (R53) with original Harman Kardon sound system, BMW Mini LFB adapter (R50/R52/R53) 2001–2008 iBus Harman Kardon amplifier (item: 42k-1024-001).
- Mini [R52] (2004 -> 2008) - original BMW Business radio.
CAN Bus Information
Connectors and Power:
- Connector: 17-pin BMW.
- Connector: 40-pin Quadlock BMW.
- Output for OEM steering wheel control: 3.5mm jack or loose wire.
Settings:
- Set DIP switches according to the aftermarket radio manufacturer's specifications.
Vehicle Compatibility:
- Vehicles with original Business radio.
- Vehicles without Professional OEM navigation.
- Vehicles without OEM sound system.
OEM Accessory Removal:
- CD changer, TV tuner, and phone module must be removed.
Available Auxiliary Signals:
- +12 V ignition (Klemme 15).
- +12 V lighting (Klemme 58).
- +12 V reverse.
- Speed signal.
- GND for handbrake signal.
Important Additional Information
- Intended for aftermarket radios Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper, and universal "China HU" with Key1/Key2/GND wires or 3.5mm jack depending on the type.
- To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.
General Installation Instructions
Pre-Installation Check:
- Check all control functions and vehicle settings with the original OEM head unit.
- Remove the original radio without power.
- Check all interface connections for correct connection – without power.
Connection and Wiring Order:
- Perform interface settings and hardware configuration without power.
- Check the configuration of the connecting cable to the HU.
- Connect the cable to the HU according to the aftermarket device instructions.
- Connect other wires according to the device instructions.
- Connect the entire installation to the vehicle – connect the main power supply last.
- Perform the software configuration of the interface according to the product description or instructions.
- Configure the aftermarket HU (steering wheel control, camera, hands-free, antenna power, etc.).
- Perform a functional test of the steering wheel control and vehicle communication.
Changing Interface and HU Cable Configuration:
- Make all changes without power.
- After changes, repeat steps 5 to 8 above.
In Case of Interface or Vehicle System Failure:
- Return the original OEM HU.
- Start the original unit.
- Wait for the CAN Bus system to go to sleep.
- Check the HW configuration of the interface.
- After the CAN Bus goes to sleep, repeat steps 5 to 8 above.
When Modifying Wiring or Cabling:
- Only professionally trained personnel may perform connections and modifications.
- All changes must be verified for manufacturer approval or vehicle warranty impact before connection.
- All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
- Modifications are carried out at your own risk, without warranty of functionality.
- Modifications are performed at your own risk, without a guarantee of excluding damage to the vehicle, device, or interface.
- Changes to pre-installed cabling may result in loss of product warranty.
| Catalog number | 42XBM00C-0 |
| Brand | ACV |
| Links | Official web presentation |
