Steelmate SBS-2 Blind Spot Assistant
The new and improved Steelmate 2nd generation blind spot monitoring system with a maximum range of up to 30 meters. The SBS-2 alerts the driver when being overtaken by another vehicle from the left or right side. Drivers often neglect visual checks of the lane behind the vehicle - in the blind spot before merging. The system reduces the likelihood of fatal traffic accidents during overtaking and lane changes. The SBS-2 is homologated and developed in collaboration with car manufacturers. It uses 77GHz microwave high-frequency technology.
Application Range

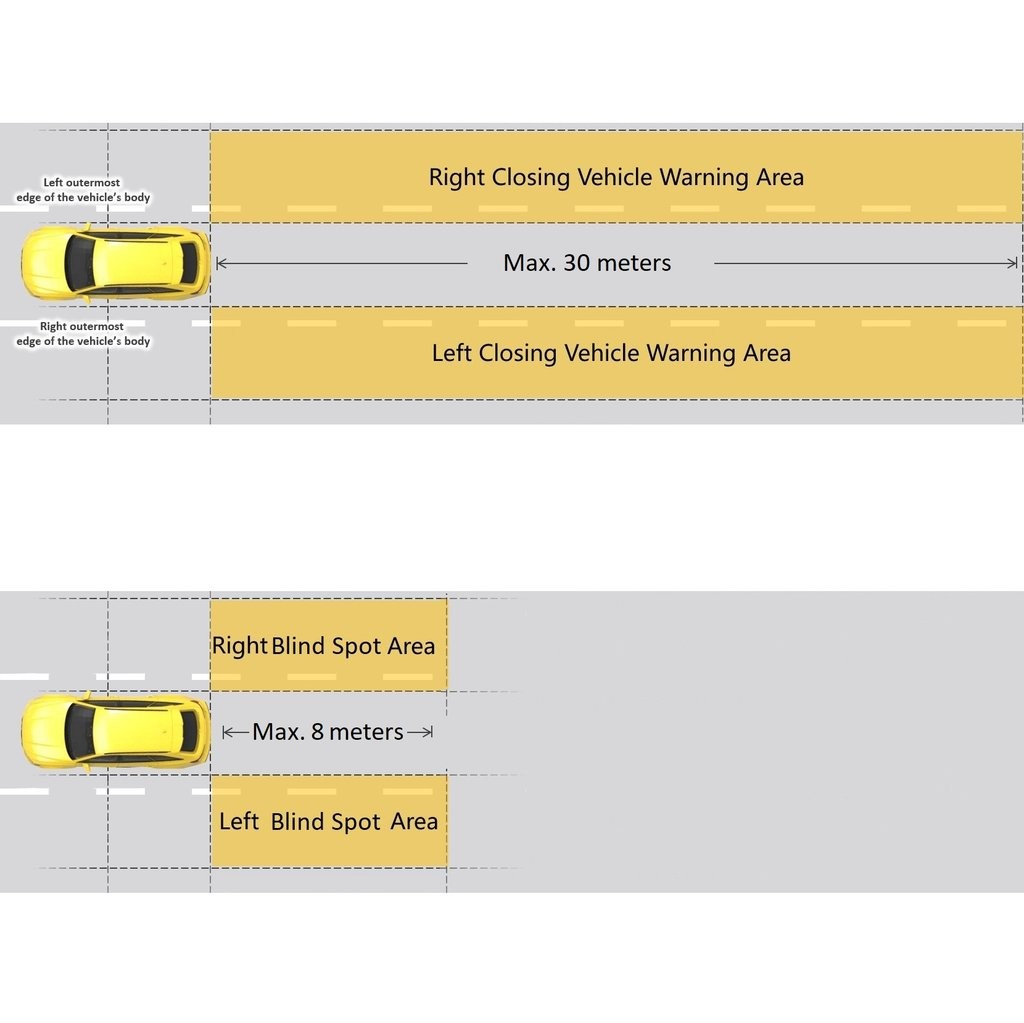

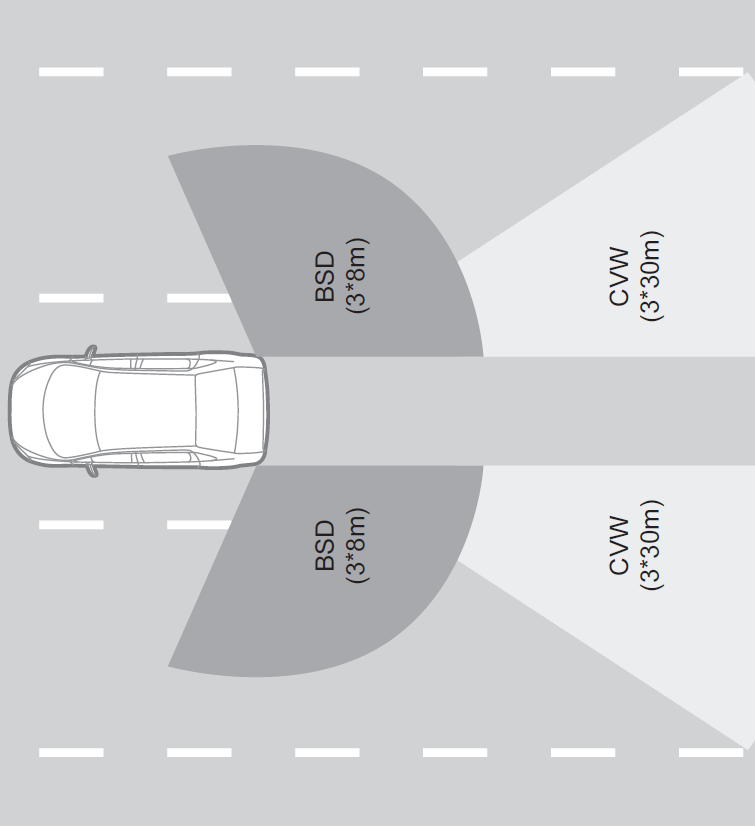

- Vehicle detection in blind spot BSD (max 8 meters).
- Detection of approaching vehicle CVW (max 30 meters).
Main Features
- Signalization
- Internal (advantageous during heavy rain, low visibility)
- Visual and audible (audible can be turned off)
- Detects:
- Vehicles approaching from the left or right side
- Not detected:
- Parked vehicles in both directions
- Vehicles approaching from the opposite lane
- Vehicles being overtaken
- For vehicles with 12V onboard voltage
- Current consumption: <250 mA

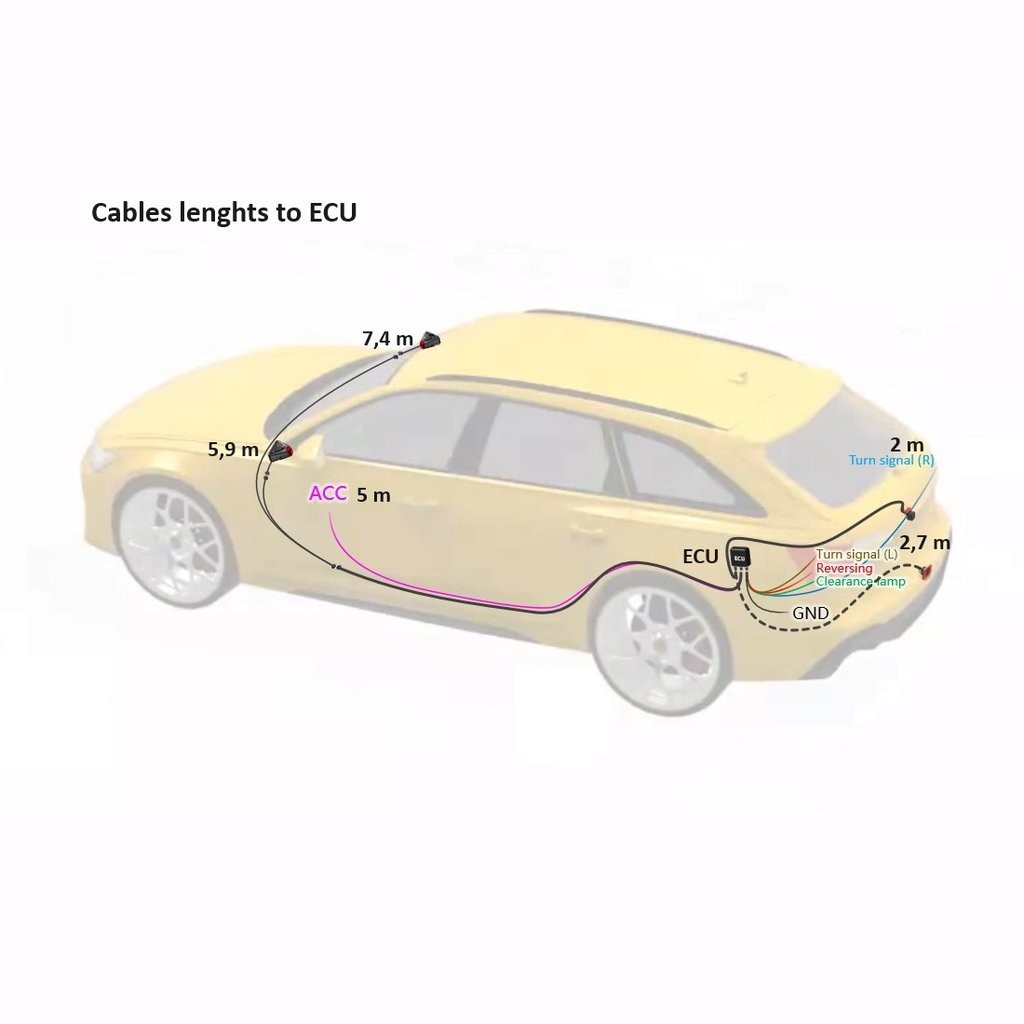

- Cable length from RJ to displays approx. 5.5 m and 6.5 m
- Optimized algorithms
- A test drive is required before use in traffic
Sensor
- 77GHz microwave - only 1x
- IP67 - waterproof
- Installation without drilling a hole
- Minimal dimensions
- Range: up to 30 m

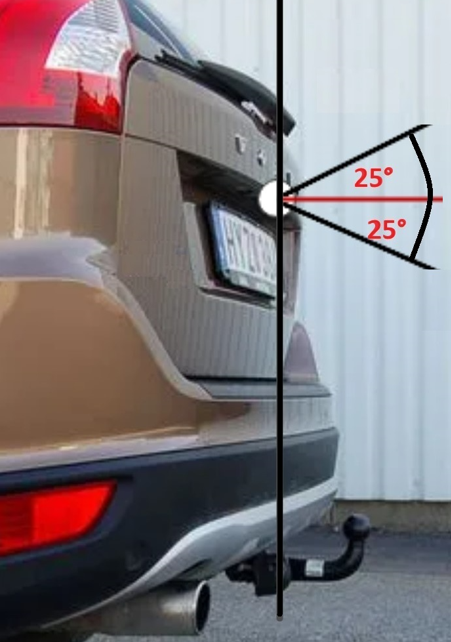

- Installation height: 55 cm (+/- 10 cm)

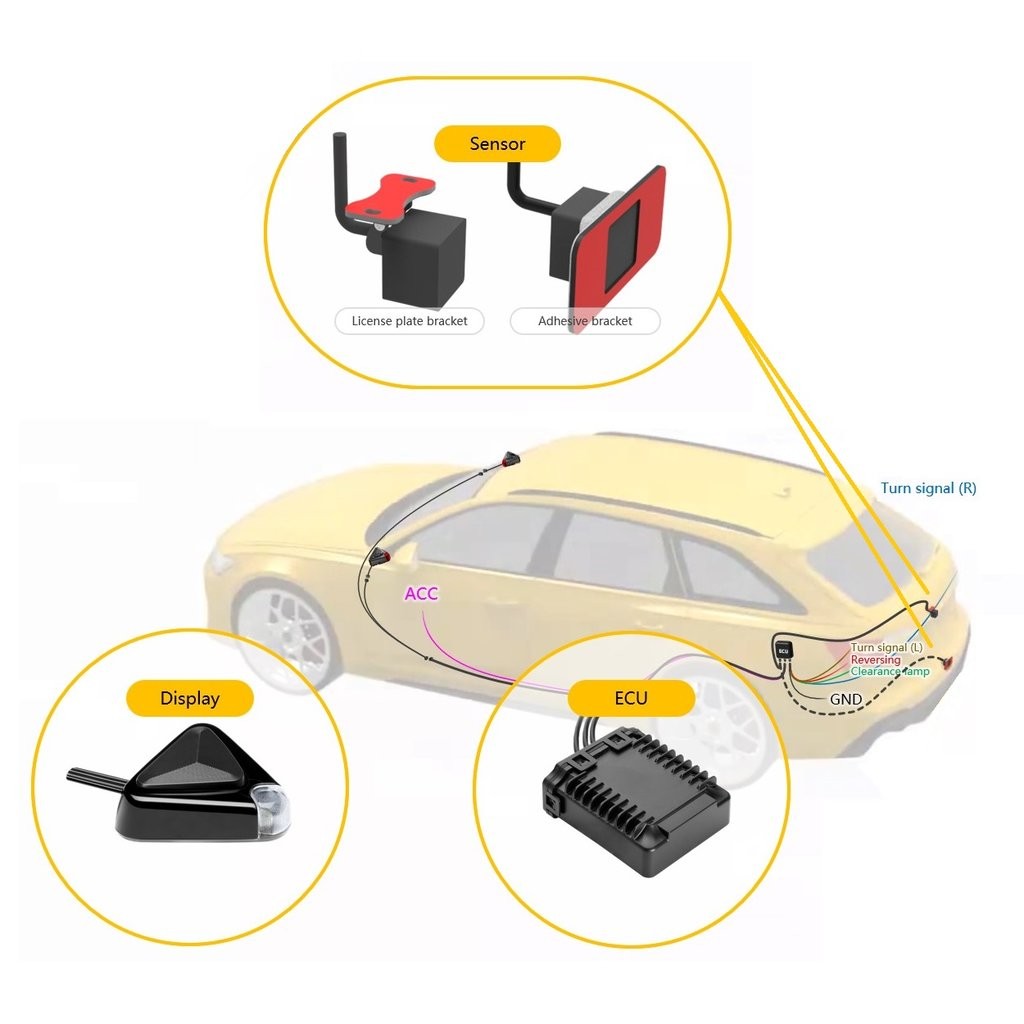

Connection
- Ignition
- Ground
- Left indicator
- Right indicator
- Reverse
- Parking light
Warning
At higher relative speeds, there is a risk that at the moment of warning about an approaching vehicle, the immediate relative speed and distance may no longer allow avoiding a collision. Therefore, it is essential for the driver to always rely on their abilities and driving experience. This device does not replace the driver's ability to control the vehicle and make correct decisions while driving. When installing the SBS-2 on a vehicle with a towing device, the sensor must be placed at such a height that the towing device is not in the detection zone. The sensor must not be obstructed by metal objects.
About the Brand
The Steelmate brand is synonymous with reliability, innovation, and maximum safety on roads and during parking. For over 30 years, it has been bringing high-quality electronic systems to the market, such as advanced parking sensors and accessories that protect you, your loved ones, and the vehicle itself. All Steelmate products are designed with an emphasis on quality, ease of installation, and user-friendliness. Thanks to its own development and testing, Steelmate is the choice of professionals worldwide.
| Catalog number | SBS-2 |
| Brand | Steelmate |
