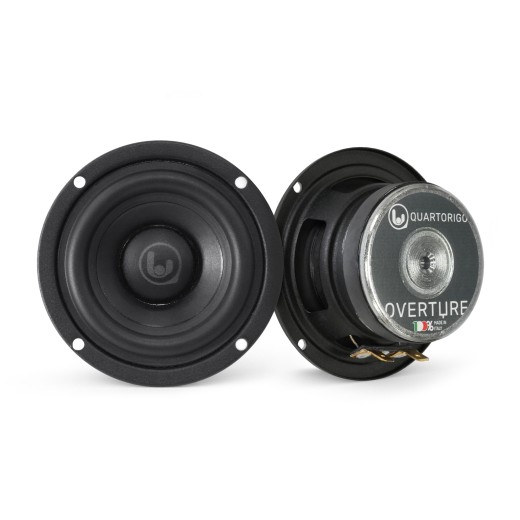

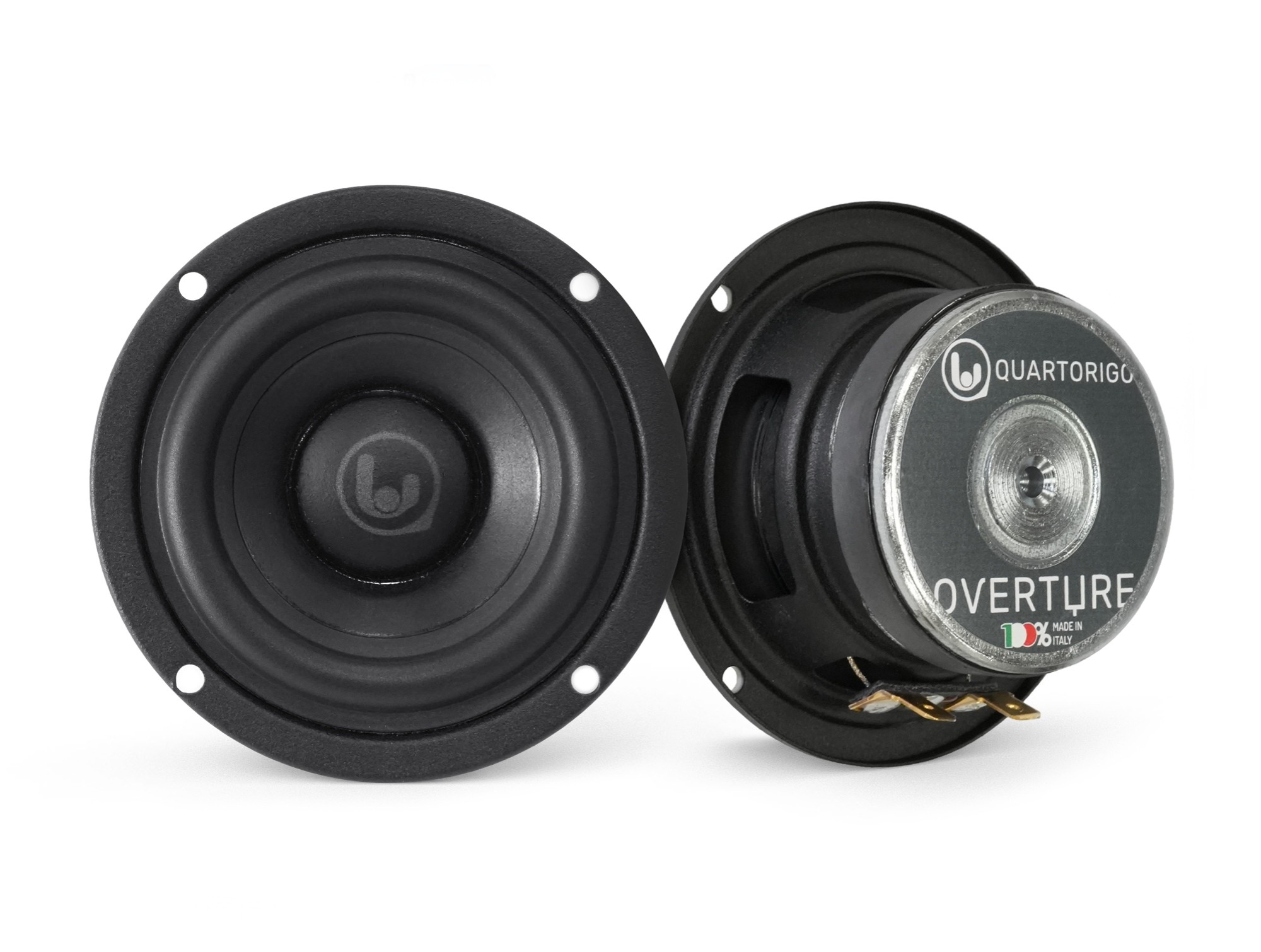

Speakers Quartorigo Overture Mid
center speakers, Ø 89 mm, 60 W RMS, 4 Ω, 92 dB (2.83V/1m)
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
Tip

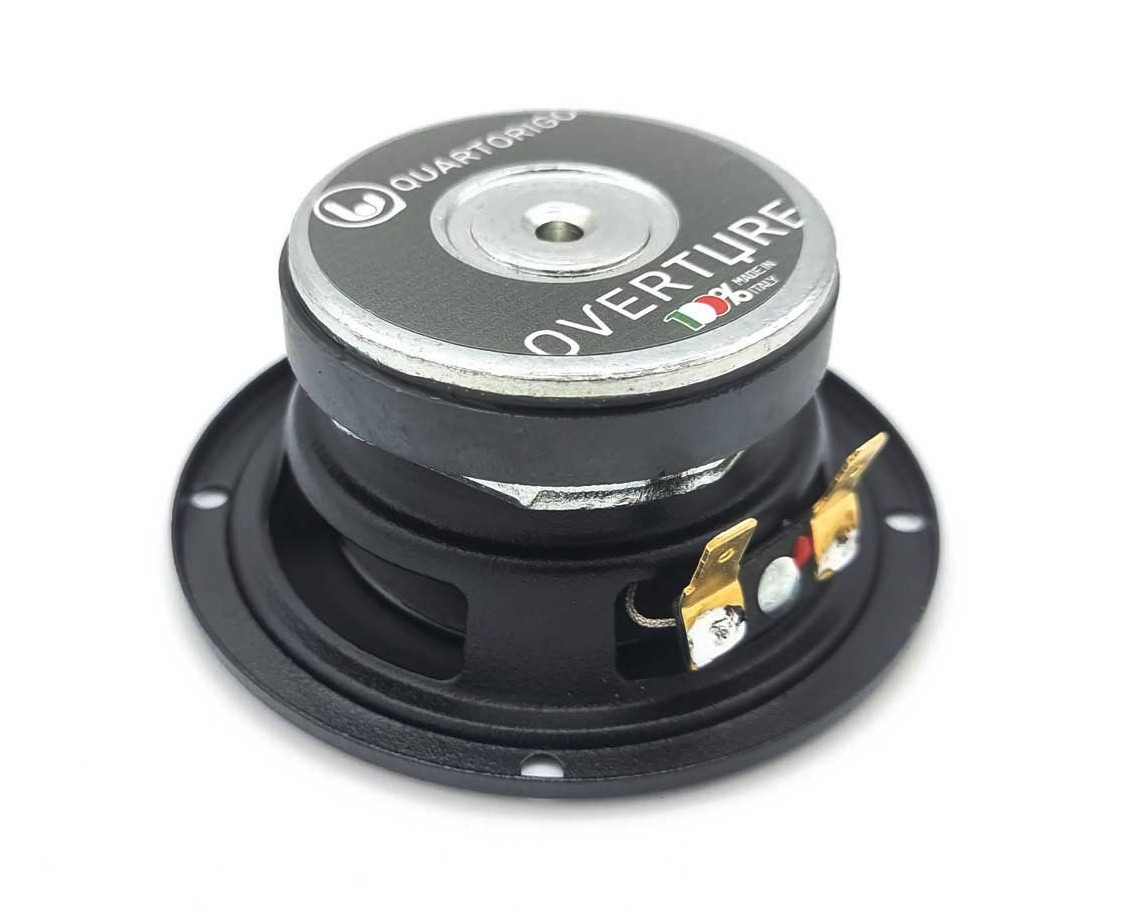

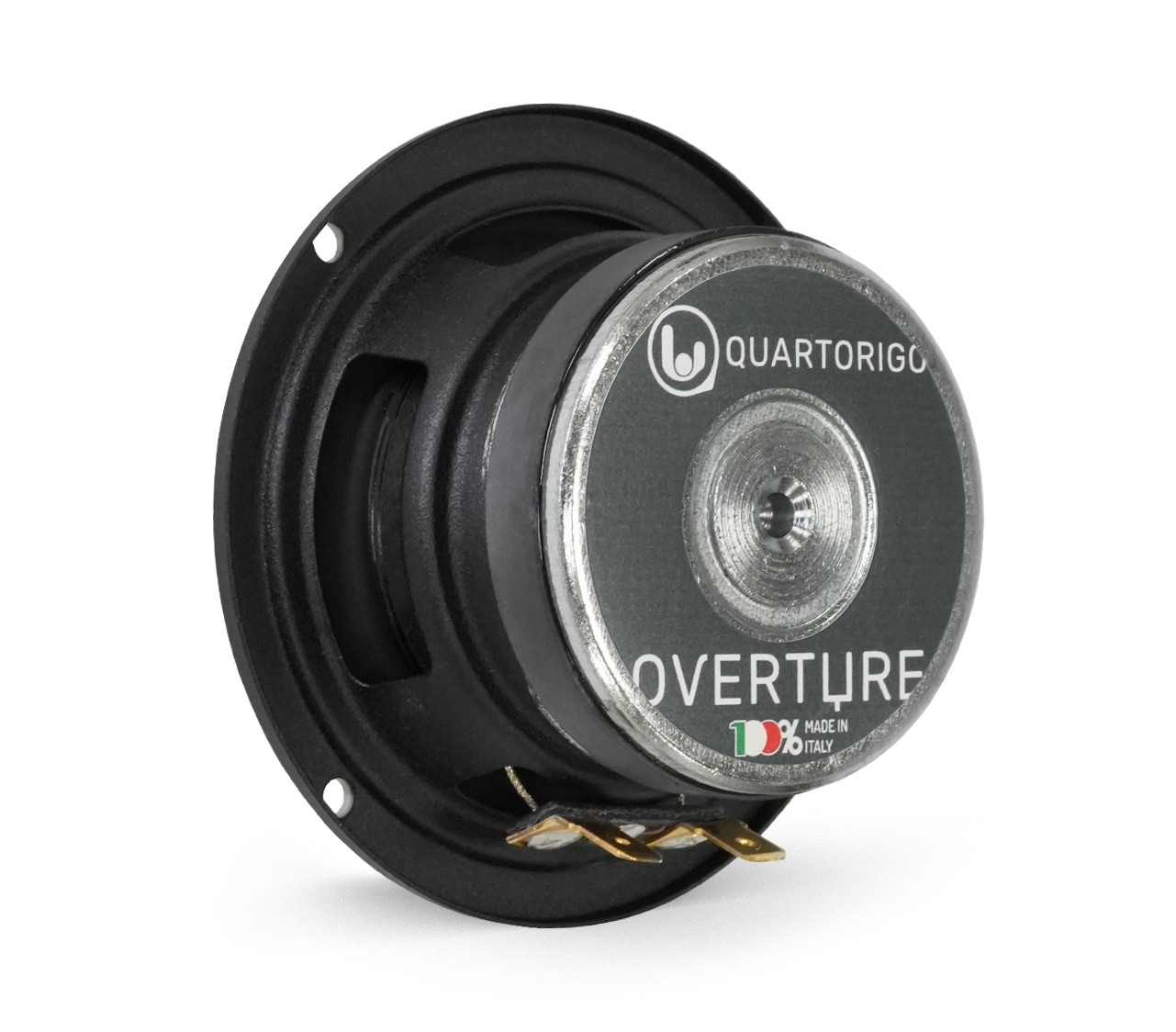

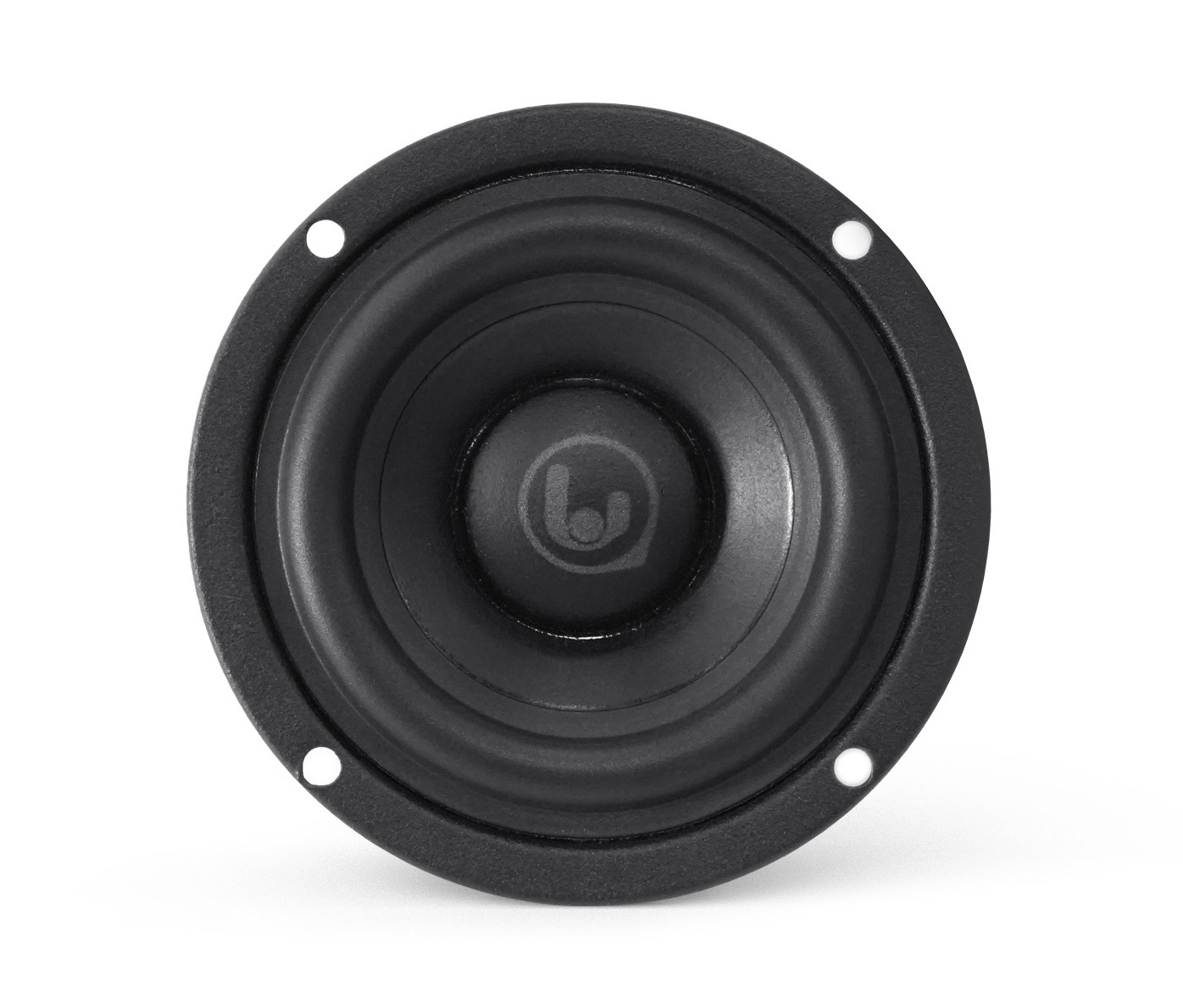

Quartorigo Overture Mid Center Speakers
The Overture model range from Quartorigo was created to amaze all enthusiasts of high-quality sound at a very affordable price point. Overture represents Quartorigo's entry-level speakers, yet they were developed for audiophile sound and an exceptional musical experience. The engineers at Quartorigo did their utmost so that these speakers would not need to be connected to an amplifier and, thanks to their high sensitivity, could perform well even with the limited output of modern factory radios. Emphasis was also placed on an OEM look for installation. Everything else is typical Quartorigo, focusing on an extraordinary musical experience. The paper cone of the center speaker with a water-resistant coating is an excellent combination of lightness, stiffness and, above all, fidelity of sound. Unusual in this price segment is also the processing of the cast basket of the center speaker. It is exceptionally rigid, eliminates vibrations and deforms less during cone movement than conventional steel baskets. The guarantee of high quality and perfect workmanship is ensured by the internationally recognized 100% Made in Italy certification.
Main features of Quartorigo Overture Mid speakers
- Center speakers with a diameter of 89 mm (3.5").
- Paper cone with a water-resistant coating.
- Durable rubber surround ensures exemplary damping ability and lateral stability.
- High sensitivity for use with factory radios.
- Exceptionally rigid cast aluminum basket with excellent vibration damping.
- High-quality ferrite magnet for exceptional power control.
- 100% Made in Italy certification.
About the Quartorigo brand
For music Lovers. The motto of this Italian manufacturer, depicted by a conductor in its logo, also expresses the core principles of Quartorigo. In a highly competitive market where brands and products quickly lose their identity, Quartorigo offers a clear and firm origin. Quartorigo is proud of its heritage and in every product combines the essence of Italian design, honest craftsmanship and a passion for music, through which it seeks to present its way of being, thinking and perceiving. With Quartorigo products you instantly move from the concert hall to the seats of your car, experiencing the same emotions without losing a single tone. With this concept in mind, Quartorigo embodies a true conductor sitting in front of you to provide a unique musical experience that remains true to its origin. For more than 25 years you can rely on handmade products born in the distant past, perfected over time and lasting a lifetime.| Catalog number | OVERTURE MID |
| Brand | Quartorigo |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | Center |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 60 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 92 dB |
| Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 89 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 150 - 5000 Hz |
| Center speaker diameterThe diameter of the center speaker is given as the diameter of a round speaker, not including the mount, where the mounts protrude even more on smaller speakers. | 89 mm (3.5\") |
| Center speaker diaphragm materialDiaphragm material that was used in the manufacture of the center speakers. | Paper with water-resistant coating |
| Resonant frequency of the center speaker | 122.06 Hz |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | No |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
