Speakers Pioneer TS-Q160F-FD
coaxial speakers, Ø 160 mm, 50 W RMS, 4 Ω, 92 dB (1W/1m), mounting depth 56 mm
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
New

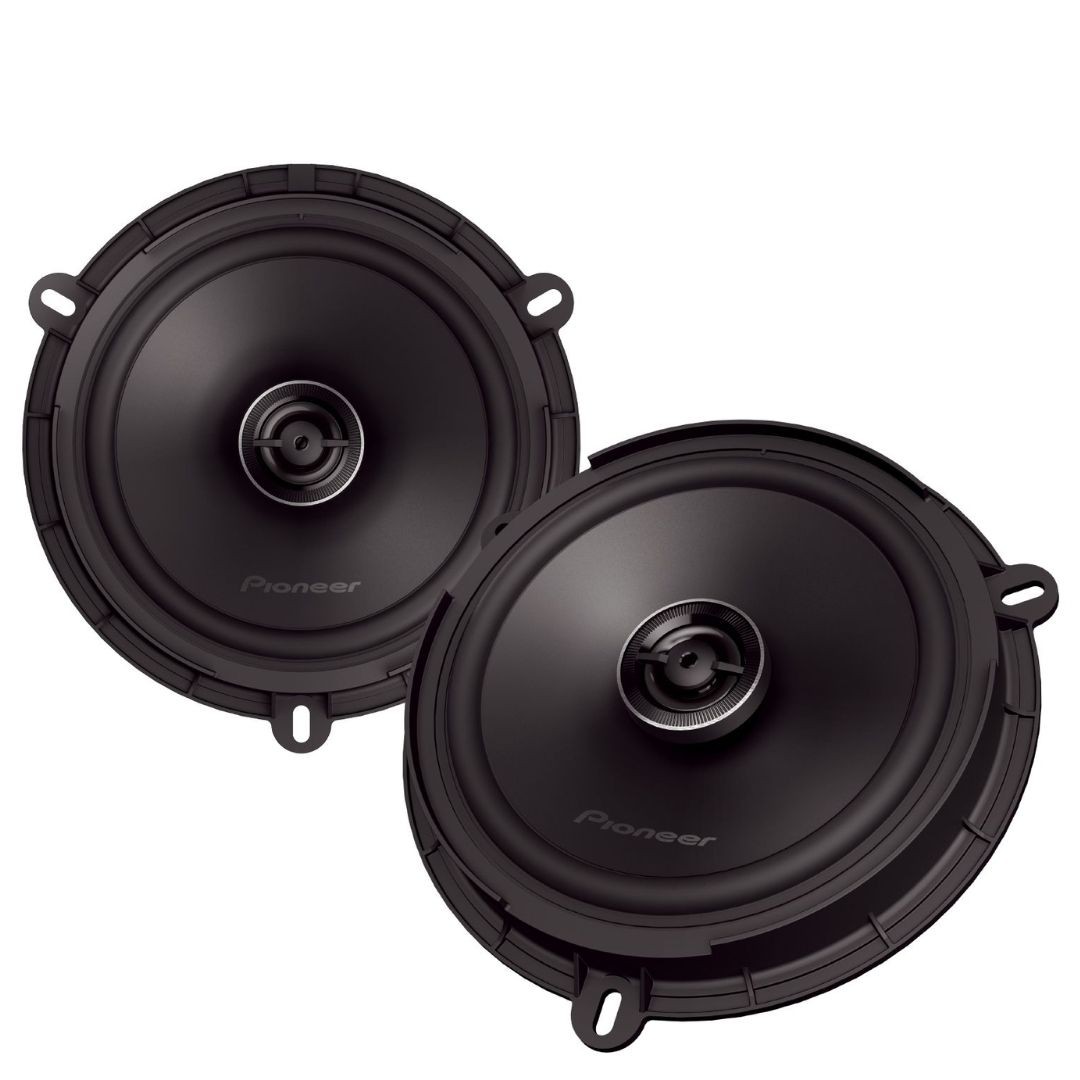

Pioneer TS-Q160F-FD
Pioneer TS-Q160F-FD are 16.5 cm 2-way coaxial speakers from the Q-Series, designed as a Perfect Fit solution for selected Ford, Jaguar, Land Rover and Mazda vehicles. Thanks to OEM Plug & Play connectors, mounting parts and accessories adapted to specific vehicles, they allow an easier replacement of factory speakers without unnecessary complicated modifications.
The speakers offer a maximum power of 350 W, a nominal power of 50 W RMS, a sensitivity of 93 dB and an impedance of 4 Ω. The coaxial design combines the mid-woofer and tweeter into a single driver, making it a practical solution to improve the factory audio system while retaining the original mounting positions.
Perfect Fit solution for easy installation
The Pioneer TS-Q160F-FD were developed with an emphasis on easy installation in selected cars. The kit includes OEM adapter cables, mounting screws, rivets and woofer damping pads. This allows the speakers to be connected to the vehicle's original wiring and installed in the original positions with minimal additional modifications.
IMPP™ cone for cleaner sound
The mid-woofer uses a lightweight and rigid IMPP™ Injection Molded PolyPropylene cone, which helps reduce unwanted resonances and distortion. The result is cleaner reproduction of mid frequencies and more accurate bass. The integrated tweeter uses a PEI diaphragm and a neodymium magnet. The coaxial design enables reproduction of mid and high frequencies from a single mounting point.
Open & Smooth™ technology
Pioneer’s Open & Smooth™ technology is designed for a smoother transition between the mid-woofer and the tweeter. It contributes to a more open and natural sound character and helps create a wider soundstage.
Main features
- 2-way coaxial speakers with a diameter of 16.5 cm.
- Designed as a Perfect Fit solution for selected Ford, Jaguar, Land Rover and Mazda vehicles.
- Maximum power 350 W.
- Nominal power 50 W RMS.
- High sensitivity 93 dB.
- IMPP™ polypropylene cone for clean and accurate reproduction.
- Integrated tweeter with PEI diaphragm.
- Open & Smooth™ technology for a more natural and spacious sound.
- OEM Plug & Play connectors for easier installation.
- Mounting accessories adapted to specific vehicles.
- Suitable as a higher-quality replacement for factory speakers.
- Installation without the need for extensive vehicle modifications.
Technical specifications
- Type: 2-way coaxial speakers.
- Series: Q-Series.
- Diameter: 165 mm.
- Maximum power: 350 W.
- Nominal power: 50 W RMS.
- Impedance: 4 Ω.
- Sensitivity: 93 dB.
- Frequency range: 32 to 30,000 Hz.
- Dimensions: 165 × 56 mm.
- Mounting depth: 56 mm.
- Woofer material: Injection Molded PolyPropylene (IMPP™).
- Tweeter material: PEI.
- Woofer magnet: Ferrite.
- Tweeter magnet: Neodymium.
- Set weight: 1.47 kg.
- Protective grilles: Not included.
Compatibility
Pioneer TS-Q160F-FD are primarily designed for selected Ford, Jaguar, Land Rover and Mazda vehicles. According to the manufacturer, the supplied OEM connectors are also compatible with selected Fiat vehicles. We always recommend verifying exact compatibility according to the specific model, year of manufacture and speaker mounting position in the vehicle.

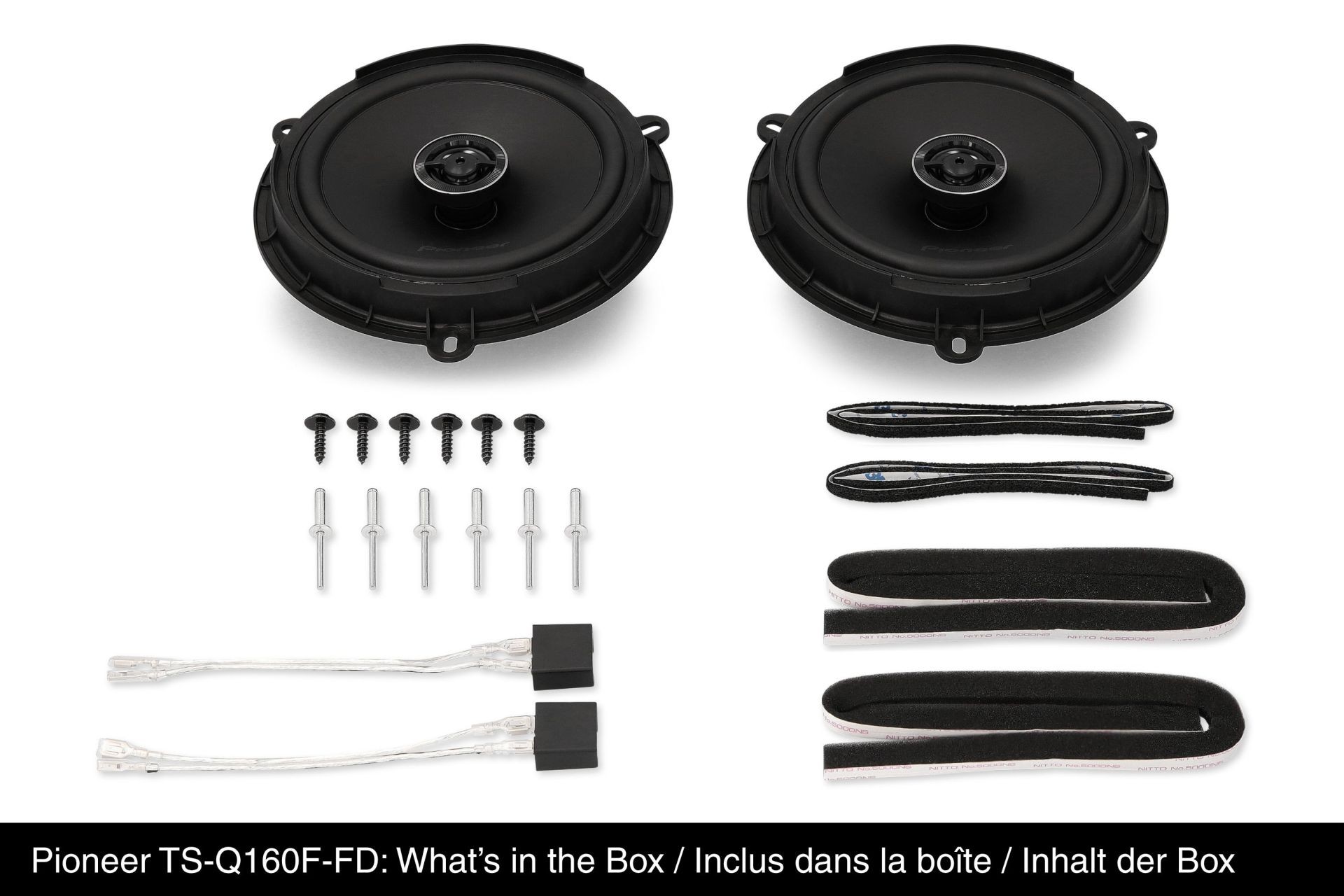

What’s in the box
- 2× 165mm coaxial speaker Pioneer TS-Q160F-FD.
- 6× Mounting screw.
- 6× Mounting rivet.
- 2× OEM adapter cable for the speaker.
- 2× Rear damping pad for the speaker.
- 2× Front damping pad for the speaker.
About the brand
The Japanese brand Pioneer is among the world leaders in car radios and multimedia systems for cars, delivering top-quality sound, modern technologies and reliable performance to every vehicle. In our range you will find car radios, multimedia units, amplifiers, subwoofers and speakers that satisfy both everyday users and more demanding listeners. Pioneer is distinguished not only by precise craftsmanship but also by wide support for features such as Apple CarPlay, Android Auto, Bluetooth and DAB+ digital radio. Thanks to innovative solutions like floating installation or modular systems, Pioneer devices can be easily adapted to almost any vehicle. If you are looking for powerful, modern and well-designed car audio components - Pioneer is the clear choice!| Catalog number | TS-Q160F-FD |
| Brand | Pioneer |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | Coaxial 2-way |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 50 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 350 W |
| Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 92 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 32 - 30,000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 160 mm |
| Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. | 56 mm |
| Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter. | Yes (capacitor) |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | No |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
