Speakers Hertz HMX 7.7 S-LD-G.2
More about the product
- You can return the goods to us within 14 days

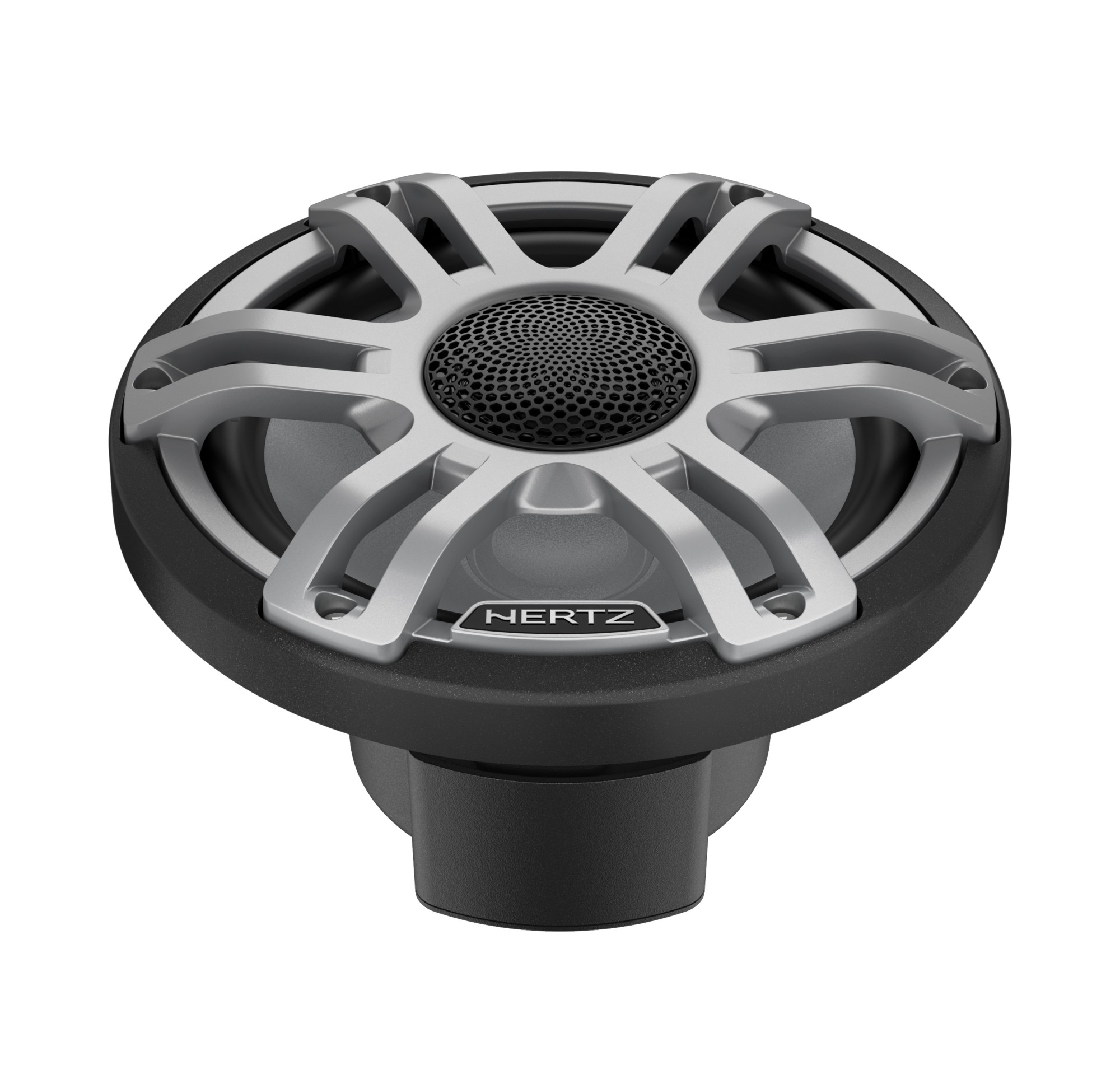

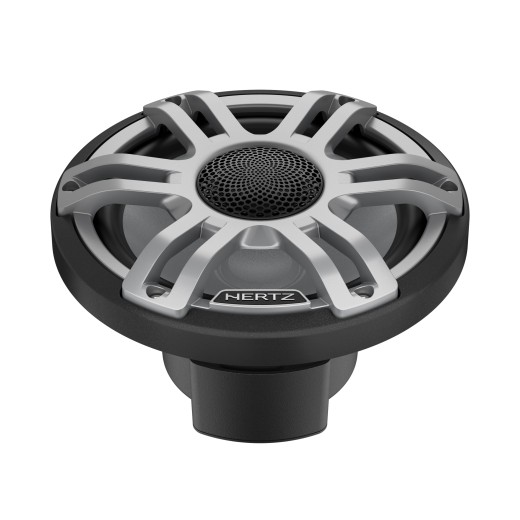

Hertz HMX 7.7 S-LD-G.2
Hertz HMX 7.7 S-LD-G.2 are powerful 7.7" coaxial marine speakers in a grey finish, designed for boats, dinghies and other demanding outdoor applications. They deliver a full, dynamic sound with pronounced mid-bass and good clarity even in open spaces where speakers must overcome higher ambient noise.
The coaxial design combines the mid-bass and tweeter in a single unit, keeping installation simple while providing balanced reproduction across a wide frequency range. Integrated LED backlighting gives the speakers an attractive look and allows you to create an impressive lighting atmosphere on deck.
The Hertz HMX range is engineered for long-term operation in harsh marine environments. The construction and materials used are adapted to the effects of water, humidity, UV radiation and salt exposure, so the HMX 7.7 S-LD-G.2 is also suitable for UTVs, ATVs and other outdoor installations.
Main features
- 7.7" coaxial marine speakers by Hertz.
- Grey finish suitable for modern marine installations.
- Integrated LED backlighting.
- Coaxial design with mid-bass and tweeter.
- Full and dynamic mid-bass.
- Clear and detailed high-frequency reproduction.
- High acoustic output for open-space sound reinforcement.
- Good sensitivity and efficiency.
- Construction adapted to demanding marine environments.
- Increased resistance to water and humidity.
- UV-resistant materials.
- Enhanced resistance to salt exposure.
- Suitable for boats, dinghies, UTVs and other outdoor applications.
About the brand
The most famous European brand in the car hi‑fi segment? Hertz audio! The brand was founded in 1998 in Italy. Hertz belongs to Elettromedia, which also owns Audison and Connection. How did the name Hertz come about? Hertz — the unit of frequency, the number of cycles per second (Hz). Everything in Hertz car audio reflects a brand passionate about music that cares about everything it produces. Over the years the company has built an excellent team of talented and dedicated engineers committed to designing products at the highest level. Every new project and product starts from the needs of the brand’s fans and is developed to connect them directly with the emotional power of music. Hertz’s philosophy is a unique combination of premium sound, living tradition, clever innovation and high quality, combined across a complete product range for maximum customer satisfaction. Hertz offers a full lineup of speakers, amplifiers and subwoofers that let you experience the thrill of high‑quality sound in any situation. Deep knowledge of in‑vehicle acoustics, design requirements and manufacturing processes keeps Hertz products at a high standard. To achieve Hertz’s strict quality standards, the company does not settle for sampling tests from every batch: it uses the most advanced testing tools to analyze every component via a computer-controlled process supervised by highly qualified personnel. The result is a negligible complaint rate and uniformly high quality across all Hertz products.
| Catalog number | 78040333 |
| Brand | Hertz |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | Coaxial 2-way |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 100 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 200 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 91 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 45 - 25000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 200 mm |
| Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. | 91 mm |
| Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. | Polypropylene with UV inhibitors |
| Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses. | 24 mm |
| Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. | 13 mm |
| Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. | PEI |
| Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter. | Yes (capacitor) |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | Yes |
| Other | Nickel-plated corrosion-resistant terminals |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
