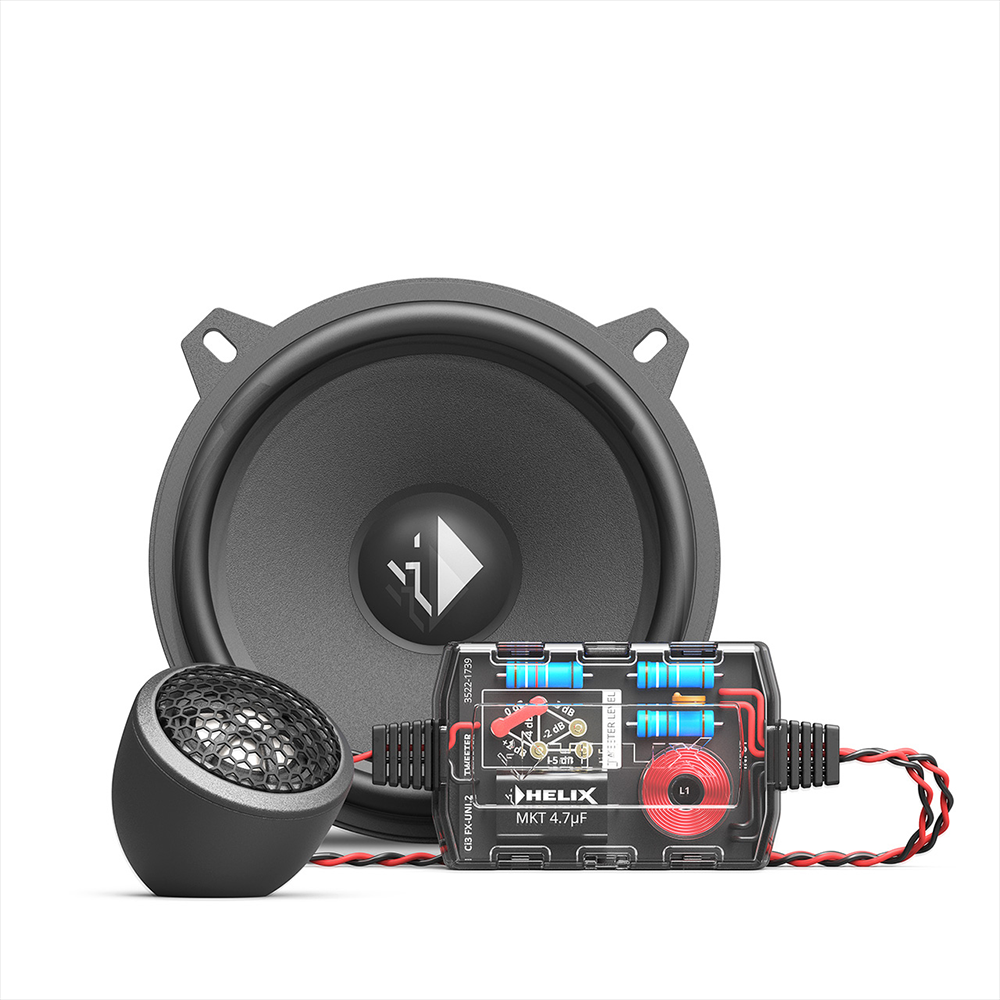

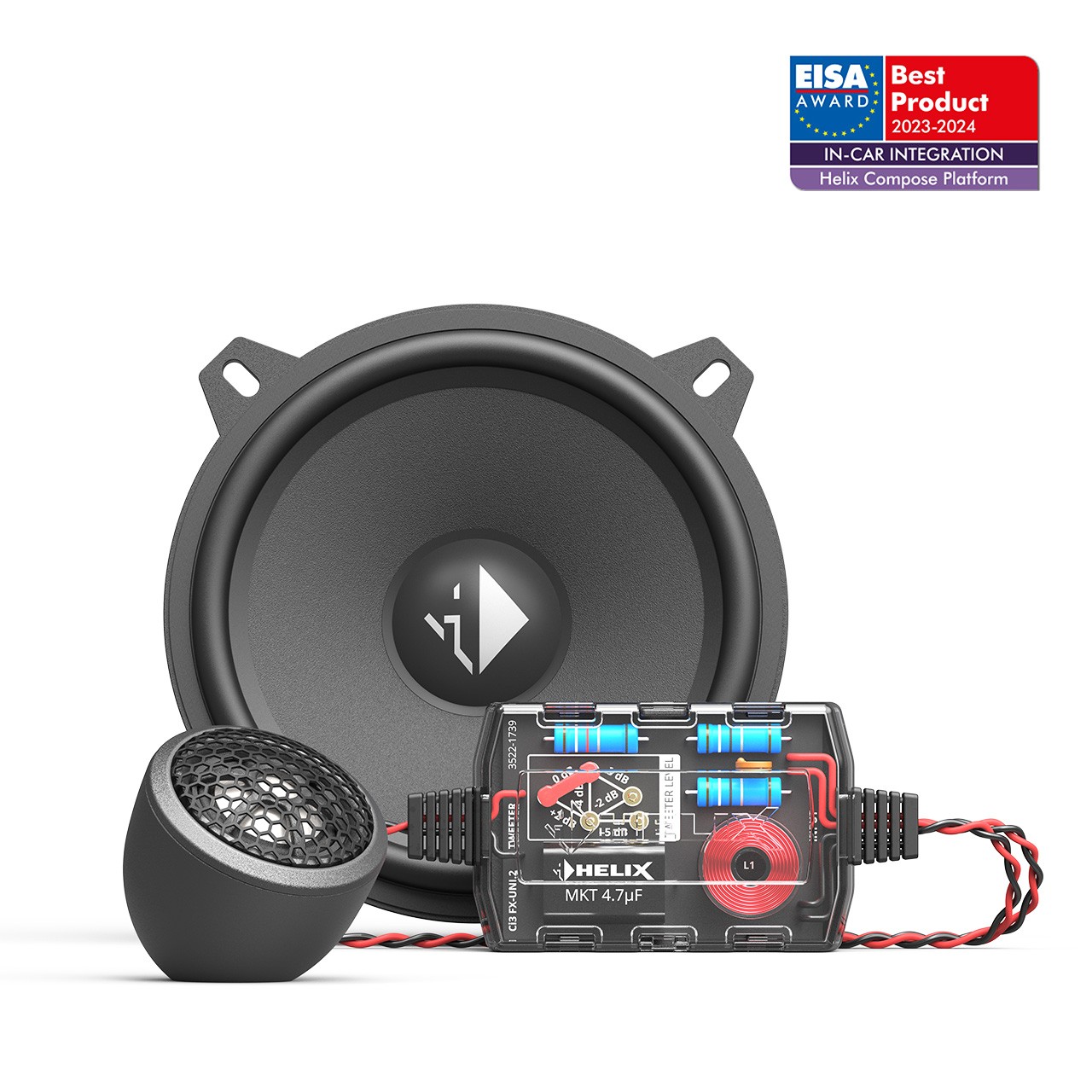

Component speakers Helix Ci3 K130.2-S3
Born from the ever-increasing demands of modern vehicle technologies and HELIX’s characteristic drive for intelligent solutions. Its mission became the gradual redesign of proven universal speaker systems. The result is the innovative HELIX COMPOSE platform, which — in line with the motto "developed inside the vehicle, for the vehicle" — combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies combined with smart and practical engineering — the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit any vehicle. HELIX COMPOSE — universal speakers that have undergone a significant evolution.Outstanding performance
The i3 component systems deliver everything you would expect from an excellent two-way system. Thanks to the use of high-quality materials and exceptionally clever engineering, top-tier sound is easily brought into the car. All components work together perfectly and form the ideal team with HELIX and MATCH amplifiers, guaranteeing maximum performance and output power under all conditions. In addition, new mechanical technologies were implemented with a clear focus on safe connection and operation to create ideal conditions for vehicle integration with maximum compatibility.
High efficiency
HELIX COMPOSE means smart engineering — which is why it uses a highly efficient 3-ohm technology that pairs perfectly with all HELIX and MATCH amplifiers. The result is a noticeable increase in efficiency and maximum acoustic pressure. Some models will also be available as optional 2-ohm variants to deliver absolutely maximum power and force from the respective speaker when combined with the appropriate amplifier.Cenosphere paper cone
Thanks to the innovative "Cenosphere" surface treatment, hollow spheres are incorporated into the polyamide layer applied to the cone. This process increases stiffness and also optimizes internal damping. The result is an exceptionally stable yet lightweight cone that offers outstanding accuracy in sound reproduction.
High-tech polymer basket
All HELIX COMPOSE i7 and i3 speaker baskets are made from a high-tech polymer composite reinforced with glass beads. The result: maximum stability with minimal self-resonance, elimination of modulation of the magnetic system flow, and maximum resistance to thermal effects. Last but not least, this allows for much more compact basket dimensions, simplifying installation in confined mounting conditions.
Stunning highs and excellent stability
The 0.75" / 20 mm tweeter is equipped with an innovative titanium dome that combines excellent stability with low moving mass, high internal damping and enormous thermal resistance — perfectly engineered for brilliant, uncompressed high-frequency reproduction.
Perfectly separated
The Ci3 FX-UNI.2 crossovers are designed for ideal use with HELIX COMPOSE i3 components and therefore for professional COMPOSE vehicle integration. They offer a six-step tweeter level adjustment with a 12 dB slope for optimal adaptation to the installation position and also include integrated tweeter protection. In addition, no expense was spared on the comprehensive fine-tuning of the frequency crossover for the best possible distribution of the frequency band and a harmonious sound image. Thanks to their compact dimensions, the Ci3 FX-UNI.2 crossovers are ideal for installation in tight spaces and are compatible with COMPOSE Connect and WireKit technologies for secure, error-free connections to automotive standards.
COMPOSE Connect
Say goodbye to DIY and soldering! Compose Connect is an ingenious plug-in connection that, together with HELIX COMPOSE components, greatly simplifies car audio installation. Patented plastic housings that accept standard flat plugs and connectors create an absolutely secure, automotive-grade connection that prevents any polarity reversal.
FlexMount20 - universal and vehicle-specific
FlexMount20 is a mounting system based on specially developed adapter rings that allows COMPOSE FlexMount speakers to be installed in an almost unlimited number of vehicles. A universal speaker thus effortlessly becomes a vehicle-specific speaker that can be easily installed into the original mounting position using the appropriate FlexMount adapter ring, acoustically optimized for the vehicle.
WireKit sets - Plug & Play at its best
WireKit sets provide the most convenient way to connect HELIX COMPOSE speaker sets to the vehicle’s original wiring harness. Manufactured to high automotive industry standards, these locking adapter cables meet the requirements for the harsh environmental conditions that installation workshops encounter in vehicles every day.
About the brand
HELIX by Audiotec Fischer is a German brand of premium car audio equipment that has been among the world leaders in amplifiers and DSP processors for more than 35 years. HELIX is regarded as a leader in digital signal processors, offering some of the most advanced and highest-quality DSPs in the world, which allow a skilled technician to tune any audio system to perfection and deliver an authentic hi‑fi experience in the vehicle. The combination of precise German engineering, cutting-edge technologies and innovative design produces clear, dynamic and detailed sound beloved by audiophiles worldwide. HELIX products are characterized by high efficiency, reliability and perfect integration into modern cars. They are the ideal choice for demanding users who require the best possible sound without compromise. Helix, together with the brands Brax and Match, is part of the German manufacturer Audiotec Fischer.
| Catalog number | CI22510 |
| Brand | Helix |
| Links | Official web presentation |
