Speakers GZPC 165.3SQ-ACT

Ground Zero GZPC 165.3SQ-ACT Speakers

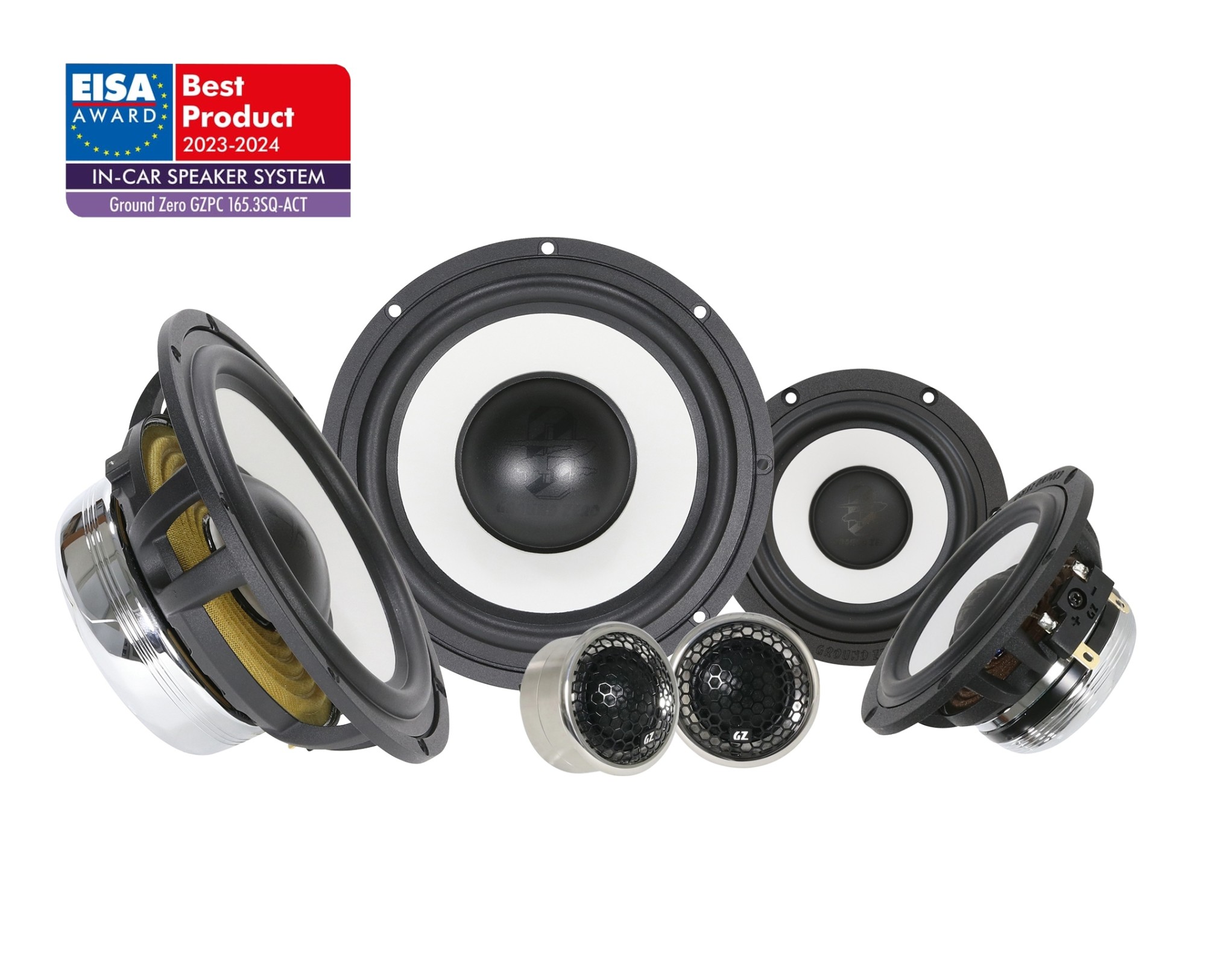

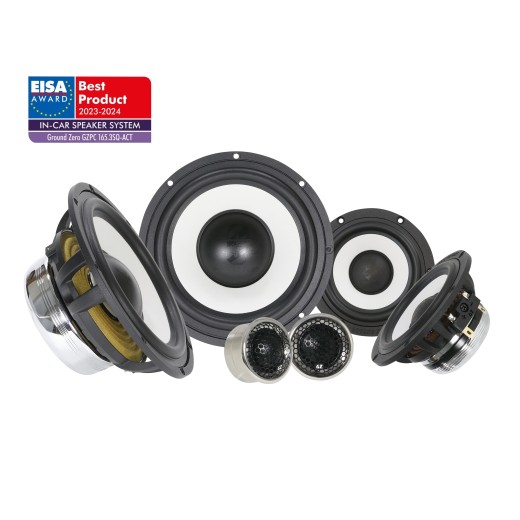

The three-way component system from the Plutonium series represents the accessible high-end of Ground Zero. The quality of these component speakers is evidenced by the prestigious EISA Best Product award in the car speaker category. The mid-bass speaker is equipped with an aluminum, pressure-cast basket in GZ design and unique ventilation. The speaker features several remarkable functions, including a highly efficient hybrid magnetic system made of neodymium and ferrite, protective hexagon-NRG grilles in GZ design with logo option, and gold-plated screw terminals. The 80 mm midrange speaker provides impressively precise mid-frequency presentation thanks to the aluminum diaphragm with a ceramic coating. With a neodymium magnet for high efficiency and linearity, optimized by Klippel®, it's a top-tier midrange speaker that perfectly complements the remaining components. The tweeter with a 28mm dual-coated silk dome and highly durable copper voice coil offers an impressive sound experience with a wealth of details and refined tonality.

Main Specifications of Ground Zero Plutonium High-End Series

The PLUTONIUM series products are suitable for maximum SPL level or top sound quality. Exceptional materials and technologies are used in development to achieve one of these goals. The technical, electrical, and mechanical skills of the resulting products are convincing not only during worldwide SPL competitions but also attract High End product enthusiasts with excellent sound reproduction capabilities. Since its market introduction, the Plutonium series subwoofers have set benchmarks in all SPL competitions worldwide and have been awarded in tests as the best in many prestigious magazines.

Main Features

• Three-way sound quality component system.
• Awarded EISA Best Product in the car speaker category.
• Optimized using the renowned Klippel® measurement system.
• High-tech aluminum diaphragm coated with ceramic.
• Aluminum cast basket in GZ design with unique ventilation.
• Highly efficient hybrid motor with neodymium and ferrite magnets.
• 38mm, lightweight 2-layer aluminum voice coil coated with copper.
• Impedance linearization copper cap.
• Gold-plated screw terminal in GZ design.
• Silk high-resolution tweeter with a 28 mm dome.
• Designed for an active audio system with a DSP processor.
• Chrome-plated aluminum magnet cover.

About the Brand

Ground Zero Audio is a globally recognized brand in the car audio field, founded in 1995 in Germany. Since its inception, it has established a strong market position thanks to top-notch technology, precise engineering, and emphasis on sound quality. Ground Zero specializes in complete car audio solutions, from top-quality car speakers and powerful subwoofers to amplifiers designed for either SPL or SQ. Ground Zero products are known for their durability, high performance, and faithful music reproduction, as confirmed by numerous awards from prestigious global competitions in the Sound Quality (SQ) and Sound Pressure Level (SPL) categories. The manufacturer uses advanced technologies like the KLIPPEL® measurement system and CEA 2006-A standards to ensure maximum precision and reliability of each component. With the slogan "Respect The Music," Ground Zero Audio emphasizes its philosophy - to offer listeners an authentic musical experience that faithfully captures the emotions of each track. If you are looking for top-tier solutions, car speakers, or subwoofers that excel not only in performance but also in quality craftsmanship, Ground Zero Audio is the right choice for demanding customers worldwide. Ahifi is the exclusive importer of the Ground Zero brand for the Czech and Slovak Republics.

Catalog number	GZPC 165.3SQ-ACT
Brand	Ground Zero
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	3-way component
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	140 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	200 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	90 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	30 - 30000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	165 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	68 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Aluminum with ceramic coating
Resonant frequency of the mid-bass speaker	38 Hz
Center speaker diameterThe diameter of the center speaker is given as the diameter of a round speaker, not including the mount, where the mounts protrude even more on smaller speakers.	80 mm
Mounting depth of the center speakerThe mounting depth of the center speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket.	39 mm
Center speaker diaphragm materialDiaphragm material that was used in the manufacture of the center speakers.	Aluminum coated with ceramic coating
Resonant frequency of the center speaker	100 Hz
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	28 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
The resonant frequency of the tweeter	770 Hz
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	No
Cover grids included in the packageOriginal cover grilles in speaker packaging.	Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
