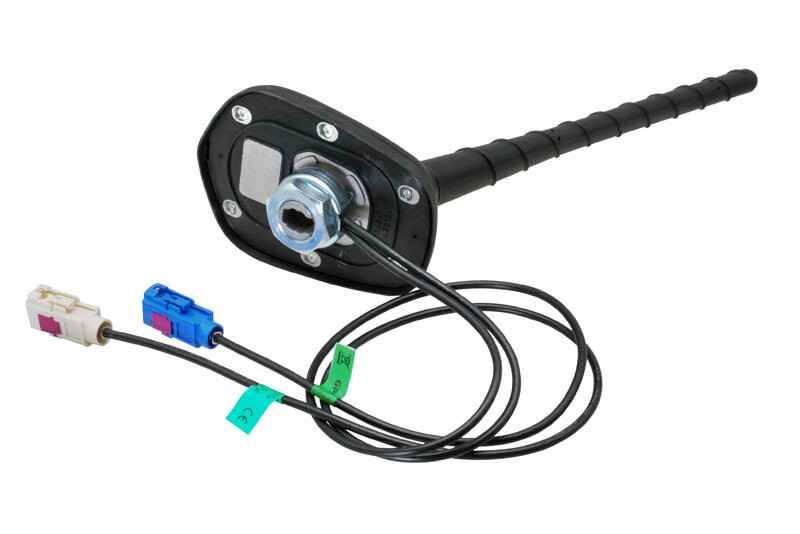

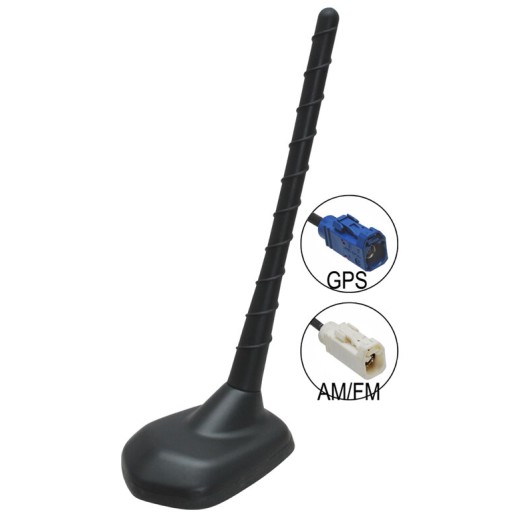

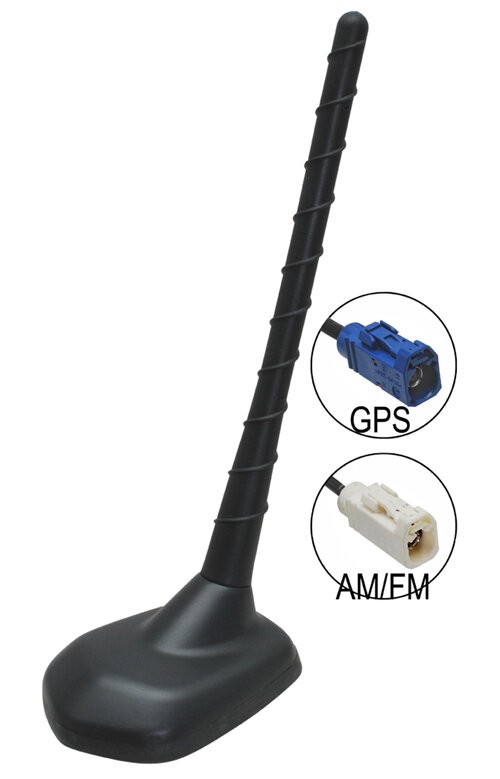

Roof antenna Alfa / Fiat

GPS+AM/FM combined antenna on the roof

GPS part

• GPS frequency range: 1575.42 (+/-1.023) MHz.
• Phantom power: 3-5V.
• Cable length at the antenna: 45 cm.
• Without antenna lead.
• GPS connector: FAKRA female (dark blue).

AM/FM part

• Frequency range FM 76-108 MHz, AM 0.52-1.71 MHz.
• Built-in amplifier.
• 12 V phantom power.
• Cable length at the antenna: 48 cm.
• Without antenna lead.
• Antenna connector: FAKRA female (white color).

Common features

• Black colour.
• Slope: 60°.
• Rod length: 20 cm.
• Antenna rod thread: M5.
• Base dimensions: 85 x 60 mm (L x W).
• Body hole diameter: circular 19 mm / square 15 x 15 mm.

Suitable for cars

• Alfa Romeo
• Fiat
• Lancia

with the antenna in the rear part of the roof connected by a FAKRA connector
