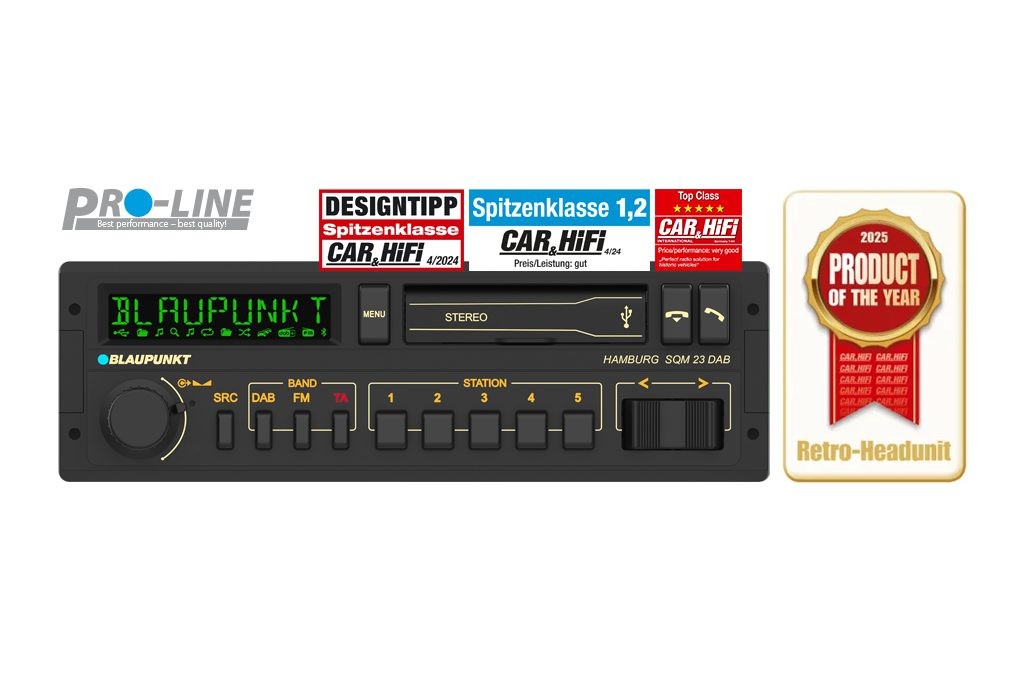

Blaupunkt Hamburg SQM 23 DAB

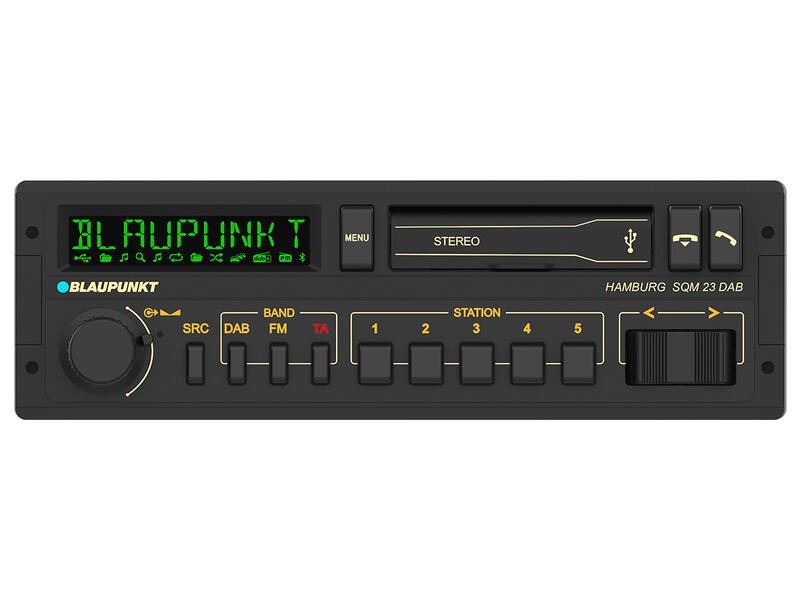

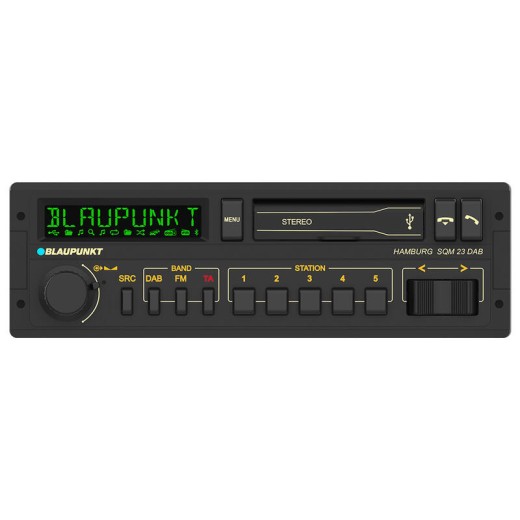

The Blaupunkt Hamburg SQM 23 DAB is a modern reissue of the cult Hamburg SQM 23 car radio from 1983. It retains the distinctive 1980s look while offering contemporary technology inside – DAB/DAB+, Bluetooth 5.0, two USB inputs, Apple iPod/iPhone support, variocolor display and 4 × 50 W output.
Retro look for 1980s cars

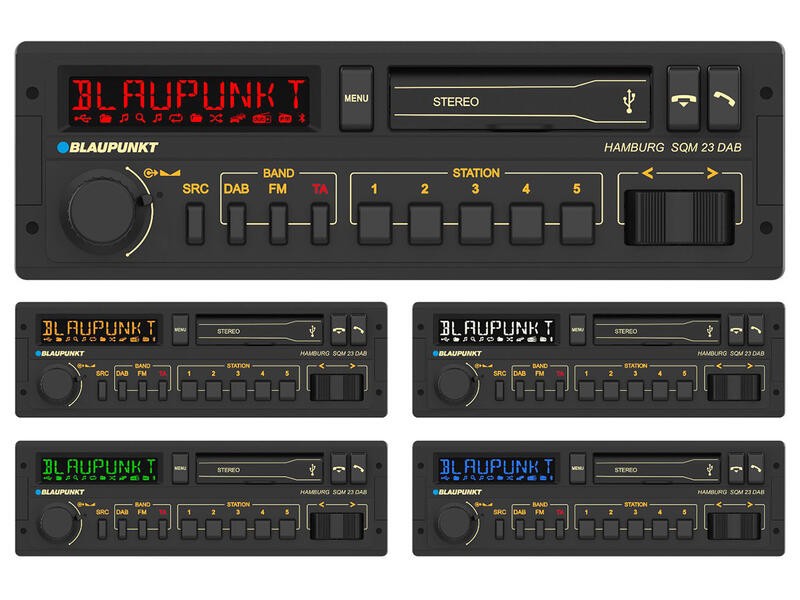

Blaupunkt preserved the original style of the 1983 radio and supplemented it with modern features. The display can be set to 4096 colors, while the button legends are backlit in a warm amber color that mimics the original incandescent illumination.
DAB+ and High-End CODEM IV tuner
The radio uses a high-end Blaupunkt CODEM IV tuner and supports FM, AM, DAB and DAB+. It offers 15 FM, 10 AM and 15 DAB presets, Radiotext, DLS, Service Following and automatic station storage.
Bluetooth 5.0
Built-in Bluetooth 5.0 supports handsfree and music streaming. The radio remembers the last 5 paired devices and one device can be connected at a time. Internal and external microphones are available and voice assistants Siri, Google and Alexa are supported.
Two USB inputs

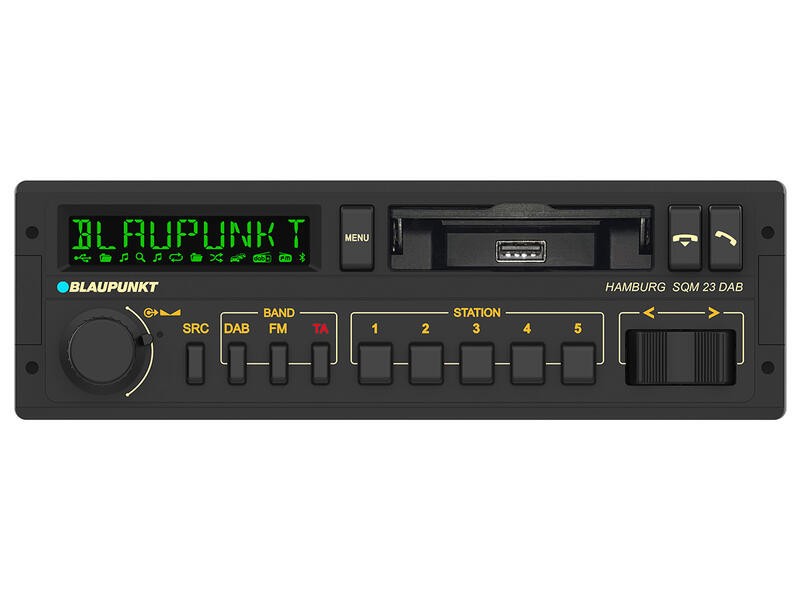

The Hamburg SQM 23 DAB has 1× USB-A at the front and 1× USB-A at the rear. The front USB is hidden under a cover to preserve the original retro look. It supports FAT16, FAT32 and exFAT and media over 128 GB. Supported formats include MP2, MP3, WMA, APE, FLAC, AAC, MP4 and WAV. Both front and rear USB can be used to control compatible Apple iPod/iPhone devices.
4 × 50 W output

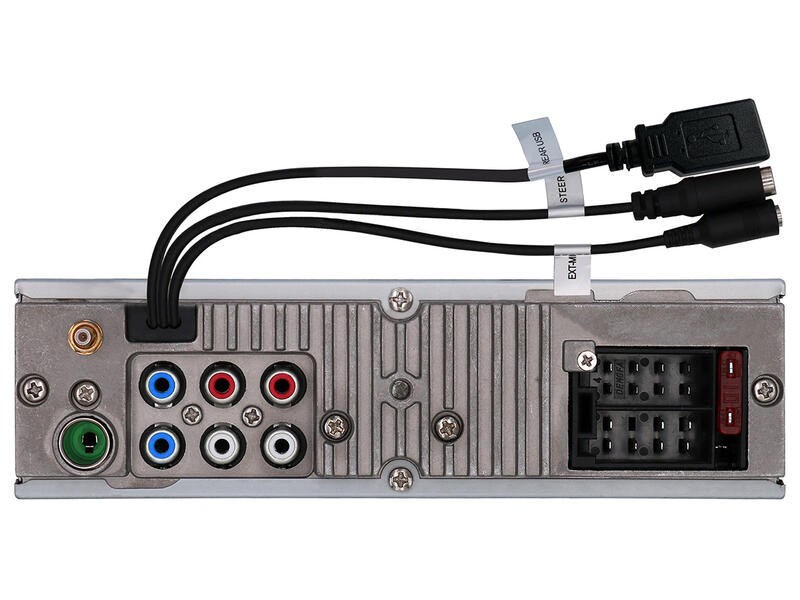

The built-in amplifier offers a maximum output of 4 × 50 W and a nominal output of 4 × 24 W at 14.4 V. For external amplifiers there are 4 RCA pre-out channels < 2 V and a separate stereo Sub-Out with adjustable level and frequency.
Main features
- Retro design based on the 1983 original.
- High-End CODEM IV FM/AM tuner.
- Digital radio DAB/DAB+.
- Bluetooth 5.0 for handsfree and music streaming.
- Memory for the last 5 paired devices.
- Simultaneous connection of 1 phone.
- Internal and external handsfree microphone.
- Two USB-A inputs.
- Support for MP2, MP3, WMA, APE, FLAC, AAC, MP4 and WAV.
- Apple iPod/iPhone support via USB.
- Loudness function and sound presets.
- Maximum output 4 × 50 W.
- Four-channel RCA pre-out.
- Separate adjustable Sub-Out.
- Analog programmable steering wheel control.
- Variocolor LCD display with 4096 colors.
- Amber button backlight in retro style.
- Permanent memory for settings.
- Short installation depth 116 mm.
Technical specifications
- Format: 1DIN.
- Tuner: FM / AM / DAB / DAB+.
- Bluetooth: 5.0.
- Paired devices: Last 5.
- Simultaneously connected devices: 1.
- Front USB: Yes, USB-A.
- Rear USB: Yes, USB-A.
- Memory card: No.
- CD/DVD drive: No.
- AUX input: No.
- Formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV.
- Apple iPod/iPhone: Yes.
- Internal microphone: Yes.
- External microphone: Yes.
- Equalizer: No.
- Bass / Treble: Yes.
- Balance / Fader: Yes.
- Loudness: Yes.
- Sound presets: Rock, Pop, Classic.
- HPF / LPF: No.
- Maximum output: 4 × 50 W.
- Nominal output: 4 × 24 W.
- RCA pre-out: 4 channels / 2 pairs, < 2 V.
- Sub-Out: 1 pair RCA, adjustable.
- SWC: Yes, analog and programmable.
- Display backlight: Variocolor, 4096 colors.
- Button backlight: Amber.
- Supply: 10.5–14.4 V.
- Body dimensions: 50 × 178 × 116 mm.
- Weight: approx. 0.65 kg.

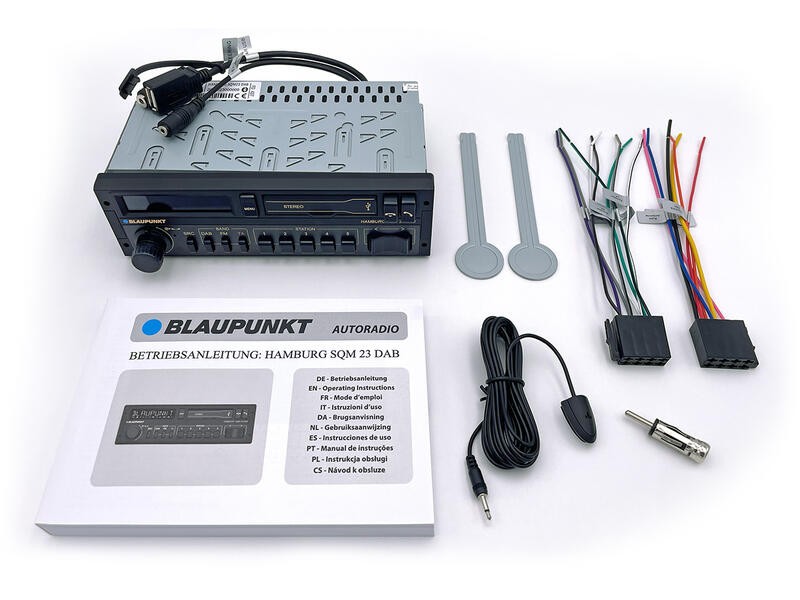

What's in the box
- Blaupunkt Hamburg SQM 23 DAB.
- External Bluetooth microphone.
- ISO A/B connection harness.
- DIN/ISO antenna adapter.
- Removal tools.
- User manual.
About the brand
Blaupunkt is a traditional, globally recognized brand with a long history in automotive electronics. For decades it has been associated primarily with car radios and practical automotive accessories. Today’s range includes modern car radios with Bluetooth, handsfree, digital radio DAB+, USB and support for Apple CarPlay and Android Auto. Popular retro-designed models are also offered, combining a classic look with contemporary technology. These retro radios are ideal for youngtimers and classic cars where preserving the original appearance and interior atmosphere is important. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt appeals to drivers looking for a well-known brand, simple and functional solutions, good compatibility and a balanced price-performance ratio.
| Catalog number | HAMBURG SQM 23 DAB |
| Brand | Blaupunkt |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 4 V |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
