Discover the option of reliable smartphone connectivity with the new models Pioneer SPH-DA97DAB-UNI and Pioneer SPH-DA97DAB-UNI2, which fully support Apple CarPlay and Android Auto both wirelessly and via USB cable. In addition, these top units offer DAB+ digital radio and Bluetooth mobile phone connectivity, all through an impressive 9" floating display. Thanks to this "floating" design, these units can be easily installed in many types of vehicles, including traditional 1DIN or 2DIN positions. This new flexible mounting method makes the SPH-DA97DAB-UNI and SPH-DA97DAB-UNI2 models a universal solution for almost any car. The large 9" capacitive touchscreen with WSVGA resolution supports Split Screen mode, allowing simultaneous display of Apple CarPlay and Pioneer quick menu. You can easily control music (e.g., radio, USB) or other settings while following navigation. The SPH-DA97DAB-UNI and SPH-DA97DAB-UNI2 offer professional sound settings and faithful reproduction thanks to a powerful 48-bit dual-core DSP processor. The UNI model is designed for 1DIN space, and the UNI2 for cars where 2DIN radio installation is possible.
Pioneer car radio SPH-DA97DAB-UNI

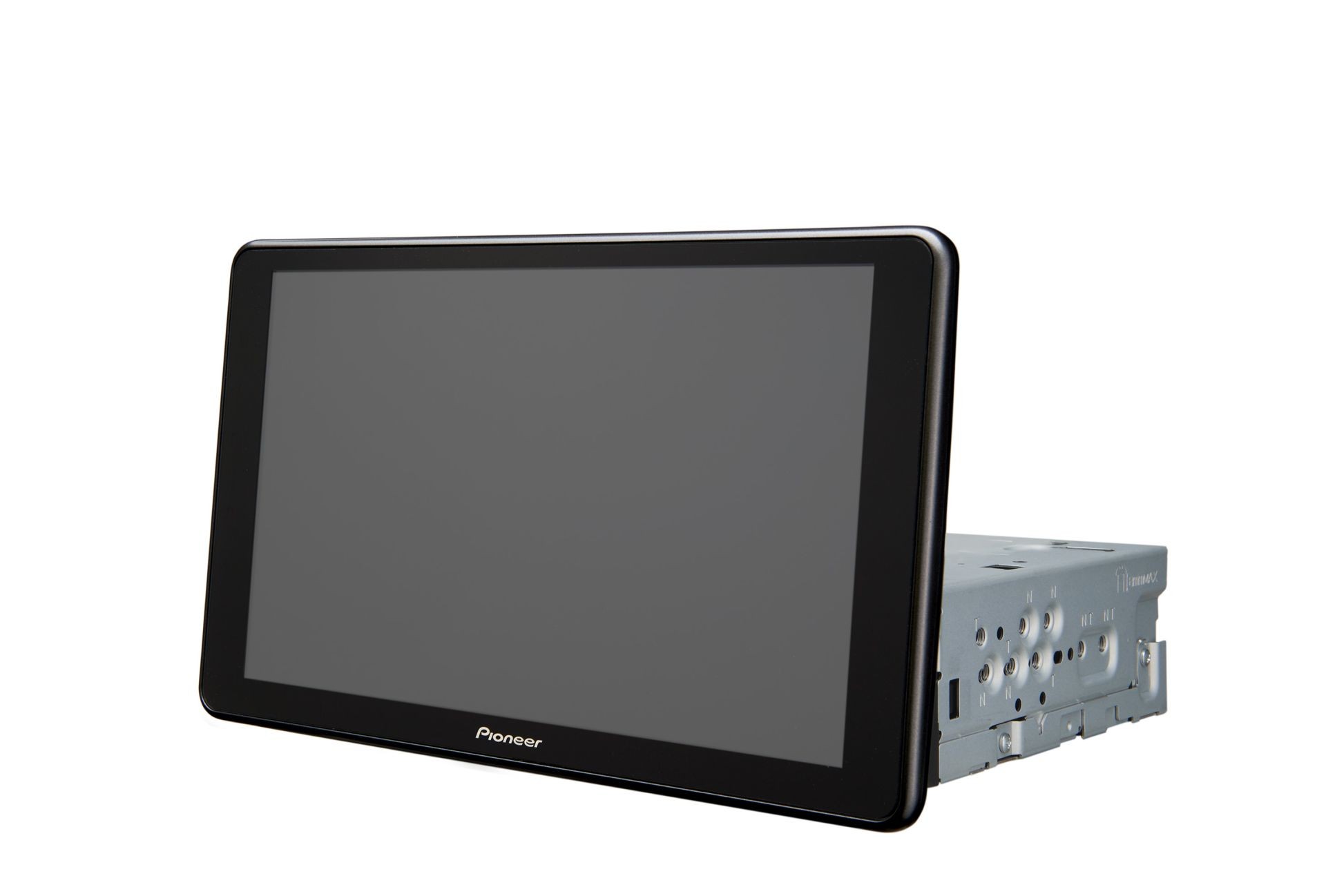

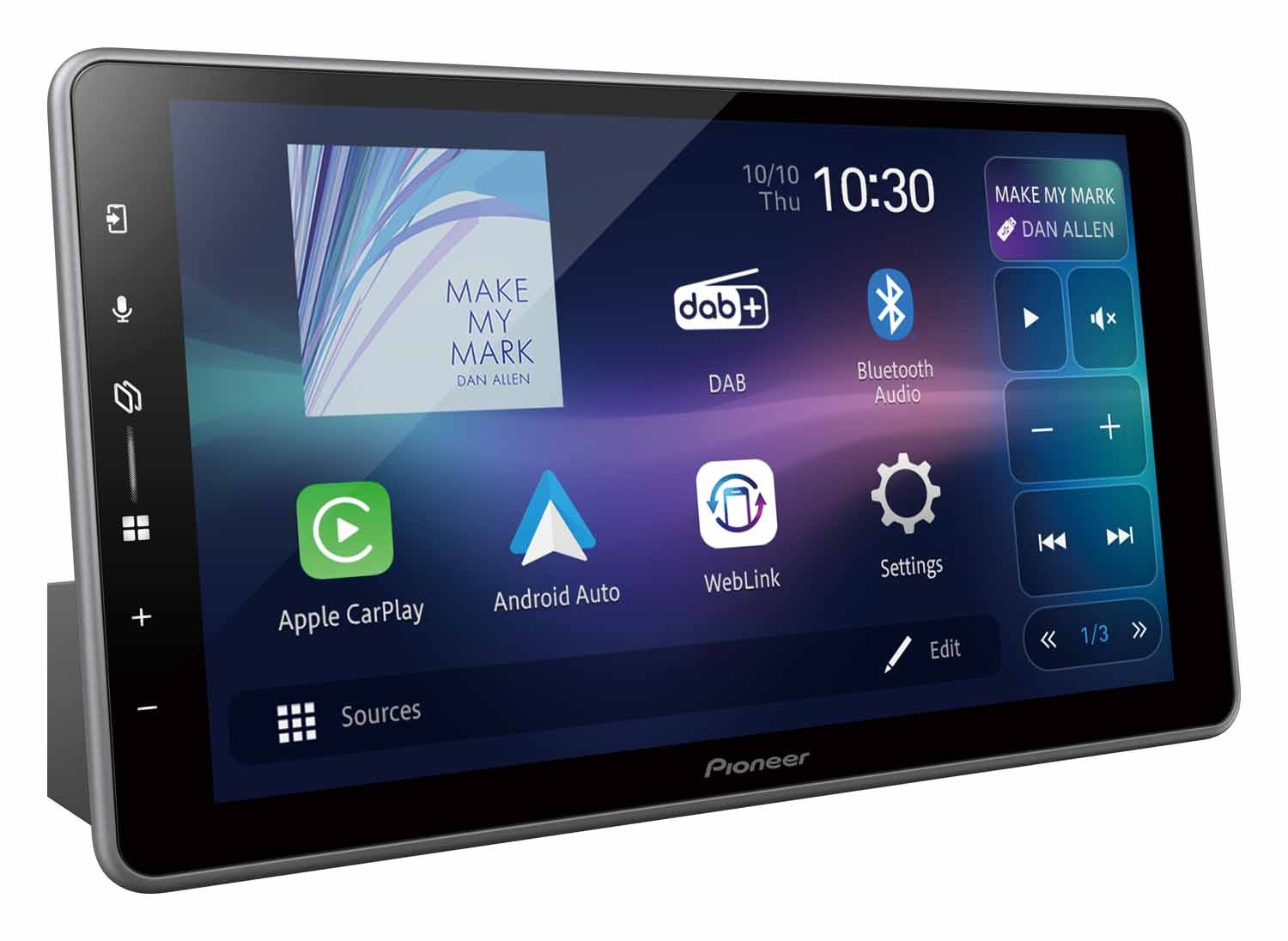

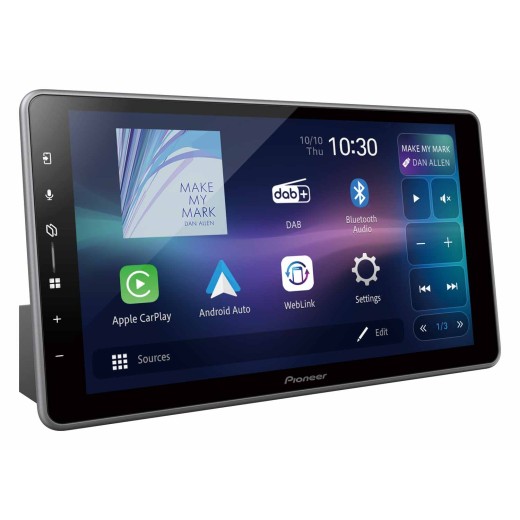

CD Mechanic-free car radio with 9" display for installation in a 1DIN hole, wireless Apple CarPlay and wireless Android Auto, DAB+
More about the product
More about the product
Pioneer SPH-DA97DAB-UNIIn stock (1 pcs) 679,99 EURPioneer SPH-DA97DAB-UNI2In stock (5 pcs) 679,99 EURWe will help you with your purchase
- You can return the goods to us within 14 days
Car Radio Pioneer SPH-DA97DAB-UNI
Main Features
- 13-band Graphic Equalizer - detailed acoustic sound settings according to your preferences.
- Advanced Sound Retriever - play high-quality sound from compressed digital audio files and wireless audio streams.

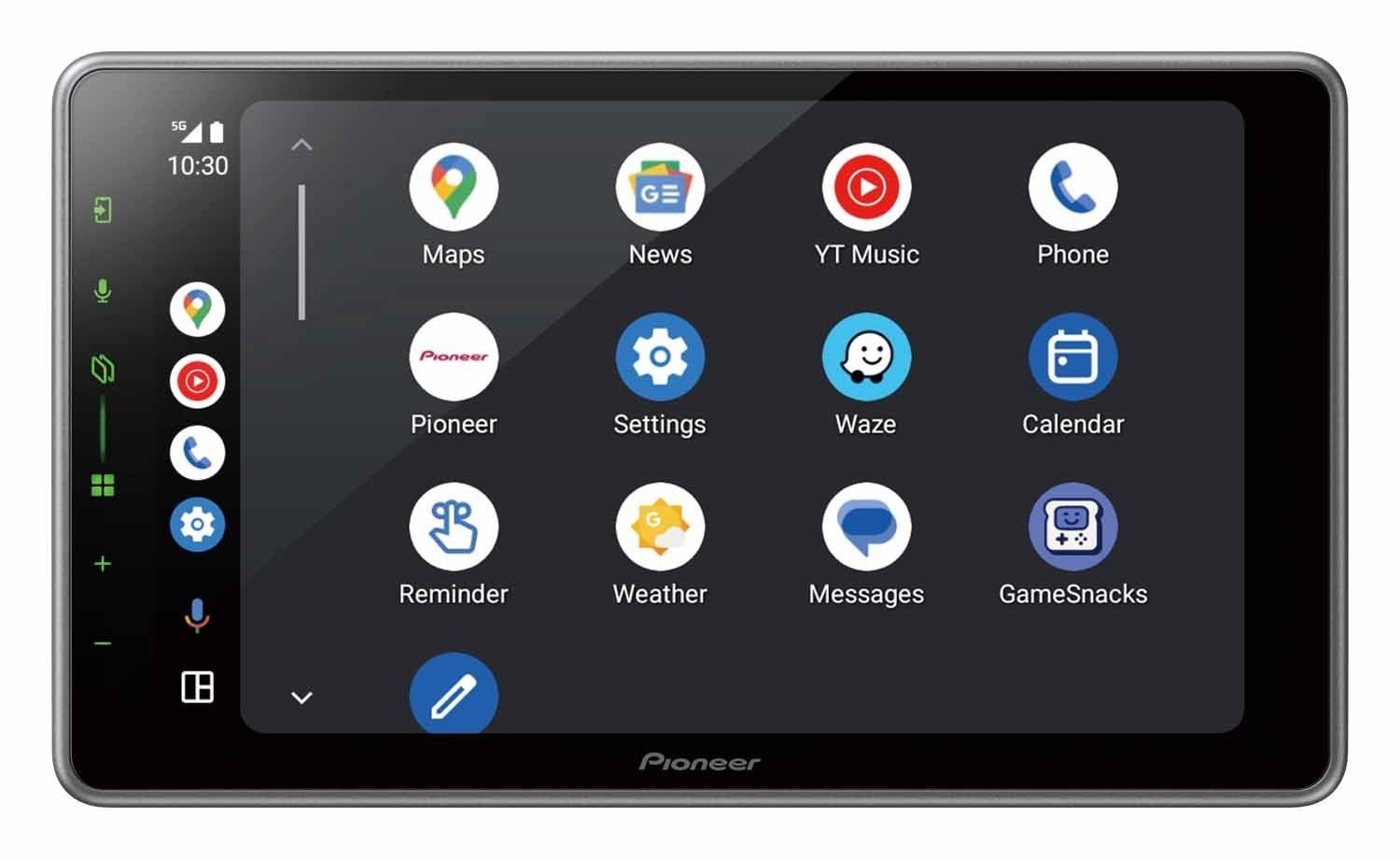

- Android Auto - Android Auto automatically provides useful information and organizes it into simple cards that appear just when needed. Designed to minimize distractions so you can focus on the road ahead - wirelessly.
- Apple CarPlay - Apple CarPlay is a smarter and safer way to use your iPhone in the car. Allows you to focus on the road while getting directions, making calls, sending and receiving messages, and listening to music - wirelessly.
- Aux-in - connect your external compatible device for easy and convenient playback.
- Bluetooth - stay safe and comply with road laws thanks to built-in wireless Bluetooth connectivity, providing hands-free calling and audio streaming.
- Capacitive Touchscreen - the capacitive touch screen allows very responsive multi-touch gestures like pinch-to-zoom, plus swipe and scroll controls at your fingertips.
- Digital Radio DAB+ - enjoy the convenience of listening to your favorite radio stations in crystal-clear digital quality with the built-in digital radio tuner.
- Digital Radio Tick Mark Approved product - manufacturers must meet a minimum specification verified by independent testing. All Pioneer products using this digital radio mark have been independently tested and approved, so you can buy with confidence.
- FLAC - enjoy lossless digital audio FLAC files in your vehicle with CD-quality playback output without conversion.

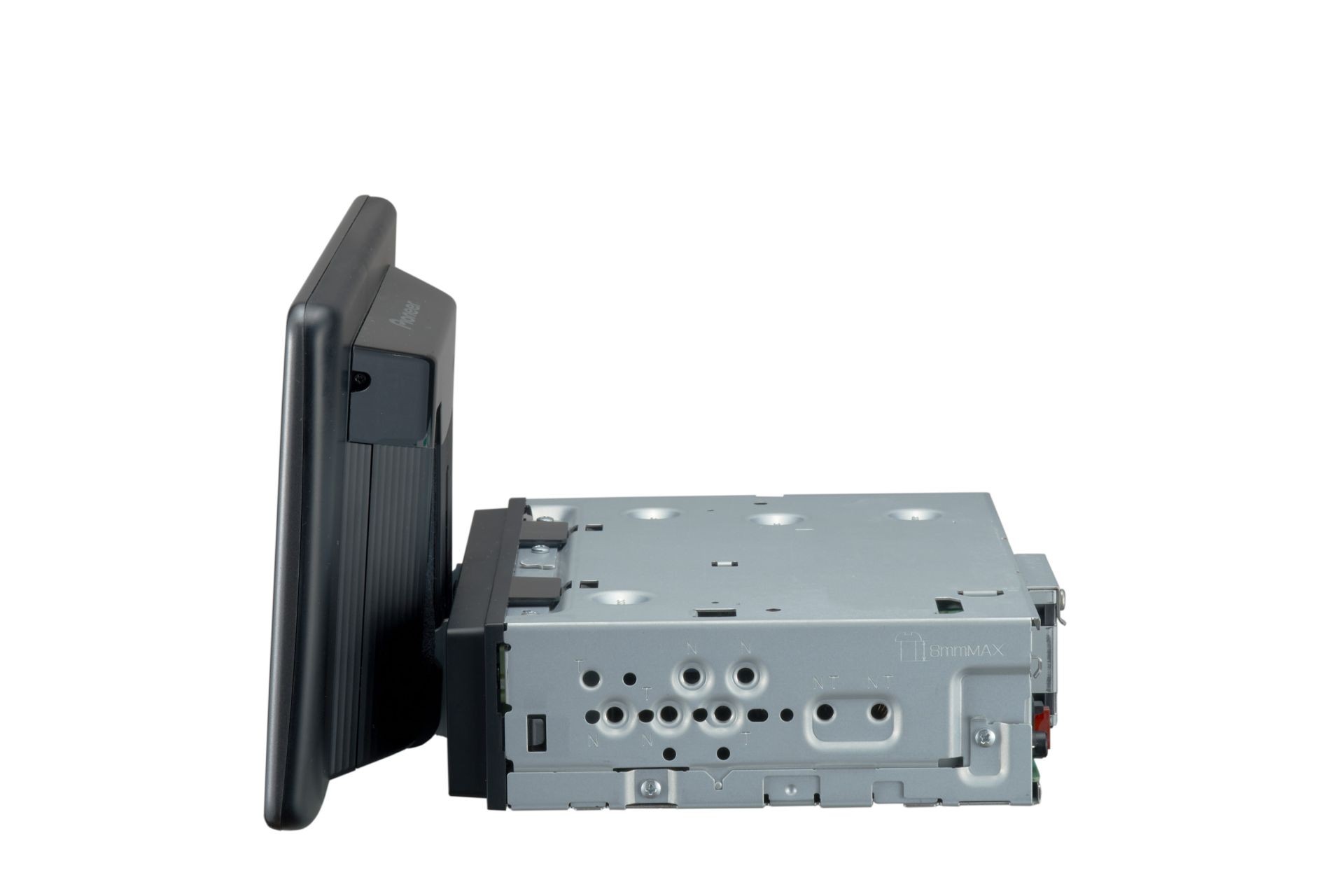

- Modular Design - the screen panel can be installed separately from the main unit, useful for cars without dashboard space, expanding installation options.
- Pioneer PxLink Companion App - Pioneer PxLink brings a user interface tailored to your lifestyle. PxLink enhances the functionality and convenience of the Pioneer In-Dash receiver, providing a safe and convenient in-car experience. What can you do with PxLink? Easily change the equalizer, source, etc., using shortcuts without switching receiver screens. Customize shortcuts to your preferences and change the receiver wallpaper. Get notified of new features, updates, and important messages. Easily update the receiver to the latest firmware using PxLink.
- Pioneer Split Screen Mode - display Apple CarPlay and the receiver menu simultaneously on one screen. Useful when you want to control music (i.e., radio or USB) while viewing the map screen.
- Web Link - the new WebLink app expands in-car entertainment with a world of amazing apps. Enjoy personalized music, videos, and other connected content from your phone, tablet, or cloud.
- Wi-Fi - wireless connectivity specifically designed to support cable-free connection between your smartphone and receiver.
- SPH-DA97DAB-UNI is designed for installation in a 1DIN mounting slot.
About the Brand
The Japanese brand Pioneer is one of the world leaders in car radios and multimedia systems, bringing top sound quality, modern technology, and reliable performance to every vehicle. Our range includes car radios, multimedia units, amplifiers, subwoofers, and speakers, satisfying both regular users and more demanding listeners. Pioneer is known for precise craftsmanship and wide support of functions like Apple CarPlay, Android Auto, Bluetooth, or DAB+ digital radio. Thanks to innovative solutions like floating installation or modular systems, Pioneer devices can be easily adapted to almost any car. If you are looking for powerful, modern, and design-refined car audio components - Pioneer is a clear choice!| Catalog number | SPH-DA97DAB-UNI |
| Brand | Pioneer |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4x 50 W |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3, WMA, AAC, WAV, FLAC, H.264, MKV, FLV, MPEG4, Mpeg2, DivX, JPEG |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile. | Yes |
| Maximum number of registered phones in the car radioCar radios allowing the registration of multiple mobile phones. It is then possible to choose between the registered phones. | 5 |
| Number of mobile phones connected at the same timePossibility to connect x phones to 1 car radio at the same time. Nowadays it is usually possible to connect 2 mobile phones via Bluetooth at the same time. | 2 |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 4 V |
| Made for Apple iPod & iPhoneWhen connecting an Apple device to the car radio, music applications can be controlled using the car radio itself, i.e. basic common functions. | Yes |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | Yes |
| Works with Android OSAfter connecting a smartphone with the ANDROID operating system, the car radio can control music in the Android OS music player (Google Play, Spotify, etc.), so there is no need to pick up a mobile phone. You control the basic, common functions of the music application with the car radio itself. | Yes |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 9" capacitive touch display |
| DimmerThe Dimmer function is used to automatically reduce the brightness after dark. The dimmer can usually be set manually in a few steps. | Yes |
| Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps. Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally. | Yes / Yes |
| Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website. | Yes (CA-AN-DAB.001 must be purchased separately) |
| Direct subwoofer controlSubwoofer settings, where you can add or subtract the dB level, i.e. subtract or add bass according to the recording. Higher class car radios can also rotate the phase and other functions for perfect bass. Some car radios allow you to turn off the subwoofer completely, with a button in the car radio menu. This is a very useful feature if you have a subwoofer in your car. | Yes |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm. | Yes |
