Pin terminal ACV 340015-3

Be the first to rate the product
pack of pin terminals, 100 pcs.
More about the product
26,84 EUR
Catalog number: 340015-3
Guarantee 2 roky
In stock (1 packaging)
We will help you with your purchase
  • You can return the goods to us within 14 days
Pin terminal ACV 340015-3

Pin Terminal ACV 340015-3

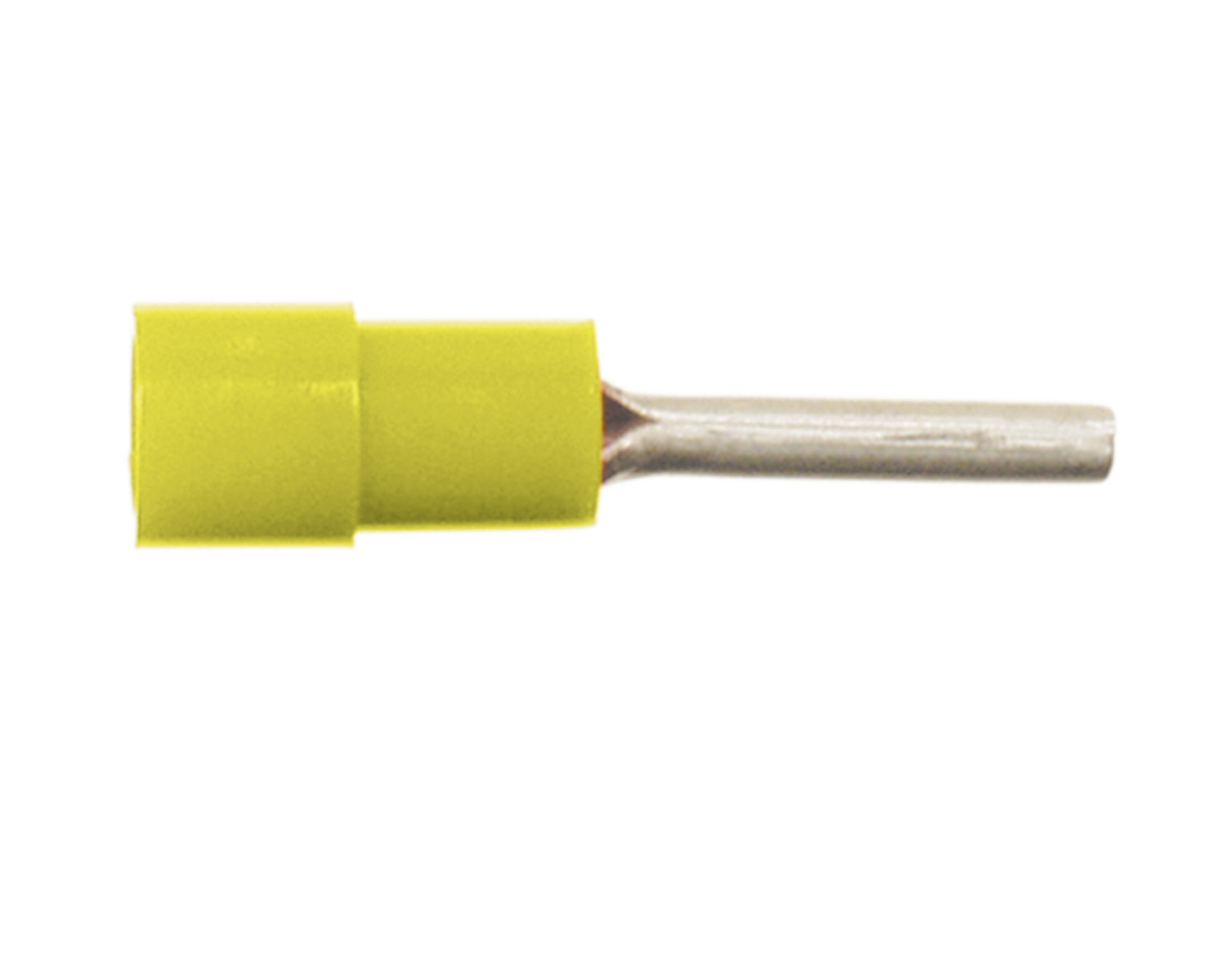

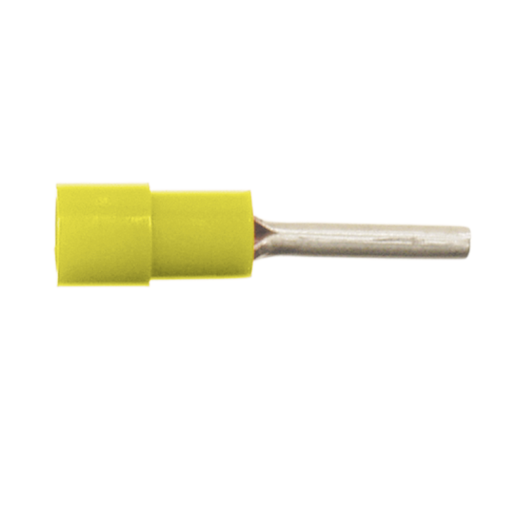

ACV 340015-3 is a yellow pin terminal from the Easy-Entry series. Vinyl PVC pin terminal 4.0 mm² - 6.0 mm² copper, electroplated tin. Pin terminal with high tensile strength and excellent conductivity due to the use of copper for permanent connection of wires protected against corrosion in screw terminals through electrolytic tin plating. Pin terminals are used in vehicle manufacturing, switchboards, electrical systems, cable assembly, and engineering. The Easy-Entry design prevents individual wire strands from fraying during cable insertion, making installation quick, safe, and easy.

Main Features

  • Cable diameter: 4.0 mm² - 6.0 mm².
  • Length: 21.8 mm.
  • Pin length: 12.0 mm.
  • Pin diameter: 1.9 mm.
  • Material: copper, electroplated tin.
  • Insulation: vinyl PVC.
  • Operating temperature: max. -10 °C - 75 °C.
  • Compliant with REACH and RoHS.
  • Package of 100 pcs.
Catalog number340015-3
BrandACV
LinksOfficial web presentation
