Phoenix Gold ZR10P active subwoofer
active subwoofer under the seat, 10" (250 mm), 200 W RMS
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
Phoenix Gold ZR10P active subwoofer
The Phoenix Gold ZR10P is a 10-inch compact subwoofer suitable for almost all types of vehicles. This powerful subwoofer will enhance your sound experience with powerful bass thanks to the integrated digital amplifier with 200 W RMS power along with variable bass boost of 0 to 12 db. The compact size of the chassis is combined with a durable aluminum housing that houses the Phoenix Gold flat subwoofer with excellent sound quality. The subwoofer can be installed in various places in the car, including under the driver or passenger seats, to preserve the interior space of the vehicle. The Phoenix Gold ZR10P is an ideal subwoofer for high-quality addition of low frequencies as well as for advanced vehicle sound installations with minimal space for subwoofer placement.
Main features of the Phoenix Gold ZR10P subwoofer
- Active subwoofer under the seat.
- 10" driver with a power of 200 W RMS.
- Integrated digital amplifier.
- Compact dimensions with a mounting height of 78 mm.
- Connection via RCA and high-level inputs.

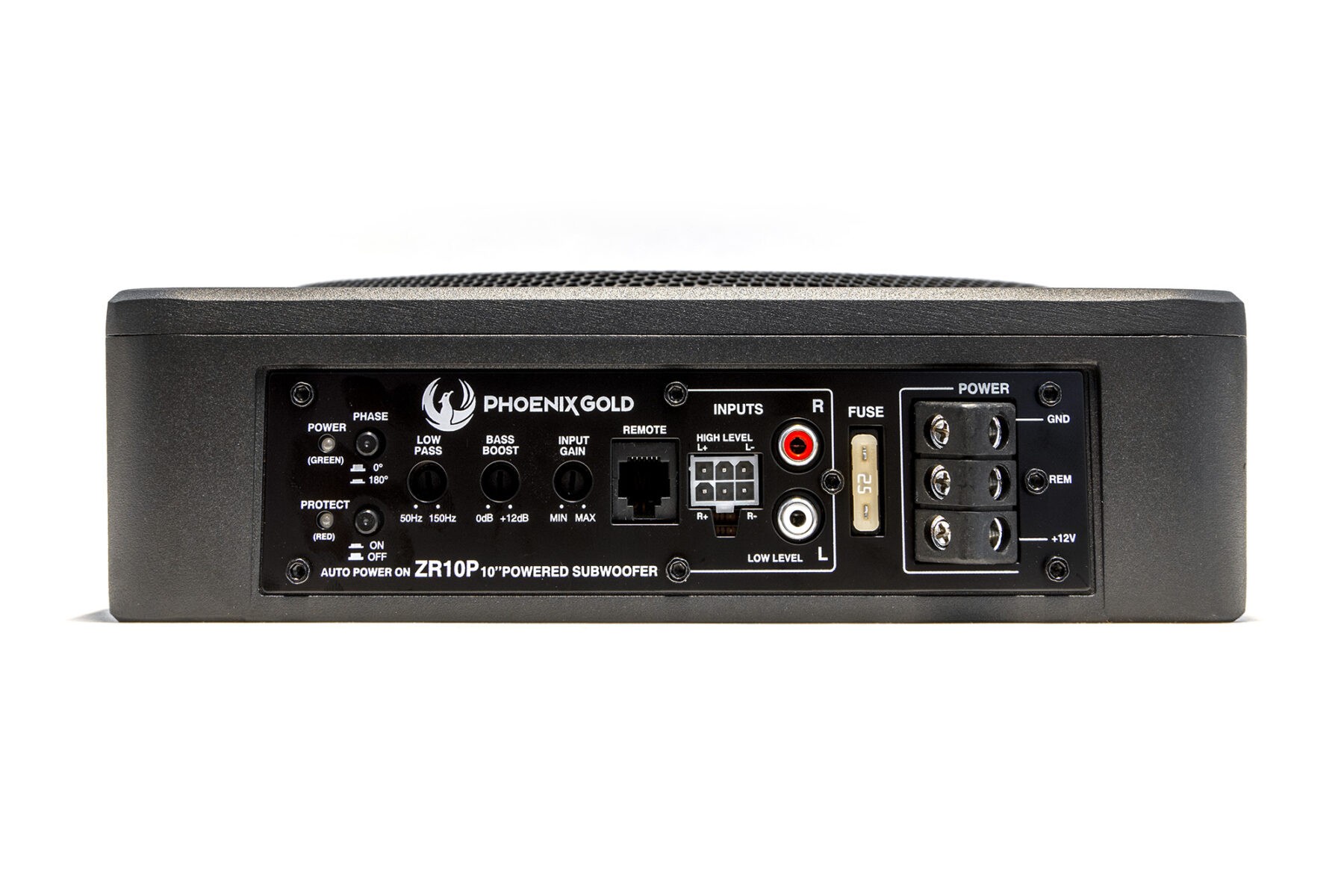

- Option to set gain, subsonic filter, bass boost and LPF.
- A rotary remote control is included in the package.
- Durable aluminum body.
- Dimensions: 340 x 245 x 78mm.
| Catalog number | ZR10P |
| Brand | Phoenix Gold |
| Links | Official web presentation (English) |
| RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning. | 200 W |
| Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power. | 400 W |
| RMS power of the amplifier | 200 W |
| Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers. | D |
| The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box. | 250 mm (10\") |
| Frequency rangeThe ability of the device to reproduce a signal from the lowest frequency to the highest, or the ability of an active subwoofer to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels for reasons of prestige. Data impoverished in this way is worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness, i.e. the undulation of the frequency course in good speaker systems for quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 20 - 150 Hz |
| Low-pass filter (LPF) | 50 - 150 Hz |
| High level inputThe high-level input on the active subwoofer enables connection directly to the speakers in the car without purchasing an external high/low converter. Use in the case of mounting an active subwoofer on the original car radio. | Yes |
| Automatic on and offThis function will facilitate your installation and solve the problem of finding a remote signal, which is sometimes a problem with original car radios. The active subwoofer with the Auto sense function can recognize that the equipment in the car is active and turn itself on. A useful and practical feature. | Yes |
| Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely. | Yes |
| Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. | Yes |
| Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer. | Yes |
| Loudspeaker type | Sealed |
| What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials. | Aluminum |
| Active subwoofer dimensions | 340 x 245 x 78mm |
