Parking sensors Macrom WSP-423TR

Macrom WSP-423TR Parking Sensors

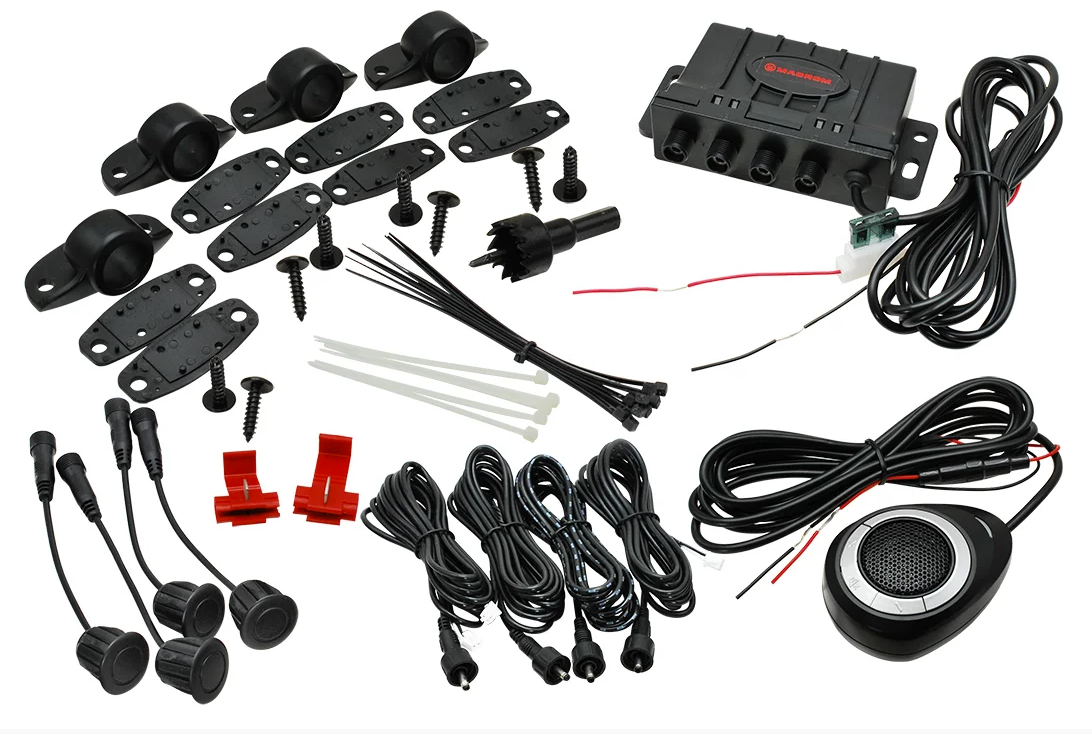

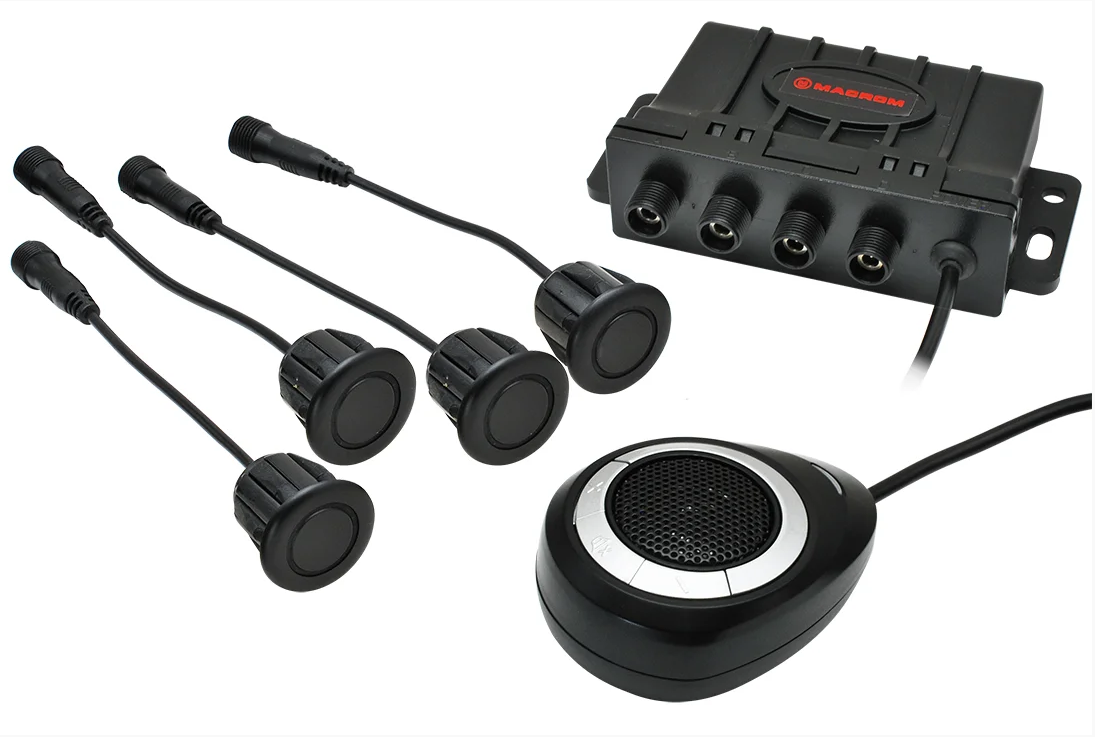

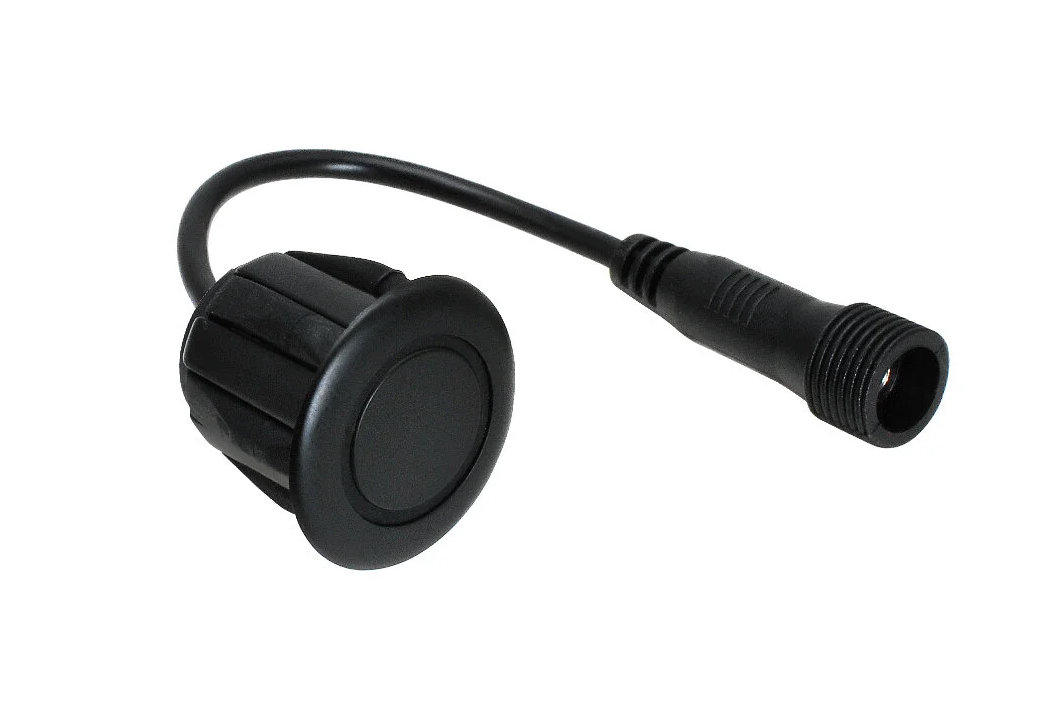

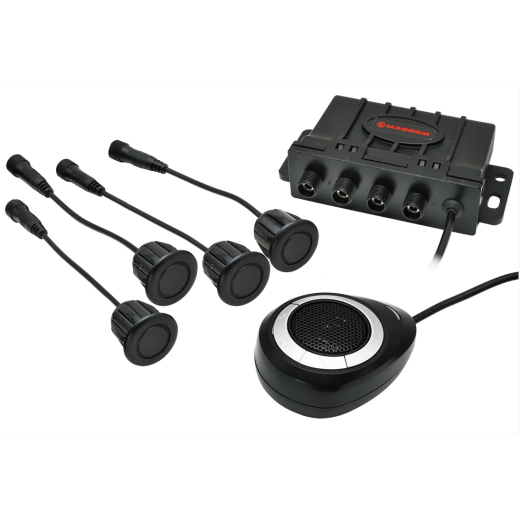

Professional rear parking sensor kit with a wireless buzzer is an ideal solution for vehicles with a metal bumper, vans and trucks. Four 19 mm ultrasonic sensors are installed from the outside of the bumper and provide precise detection of obstacles behind the vehicle. Digital signal processing in the control unit, elimination of false alarms and the ability to adjust the buzzer volume and tone ensure reliable and comfortable system operation. The sensors are waterproof and have a matte black finish that can be painted to match the vehicle color.

Main features

• Suitable for vehicles with metal bumpers, vans and trucks.

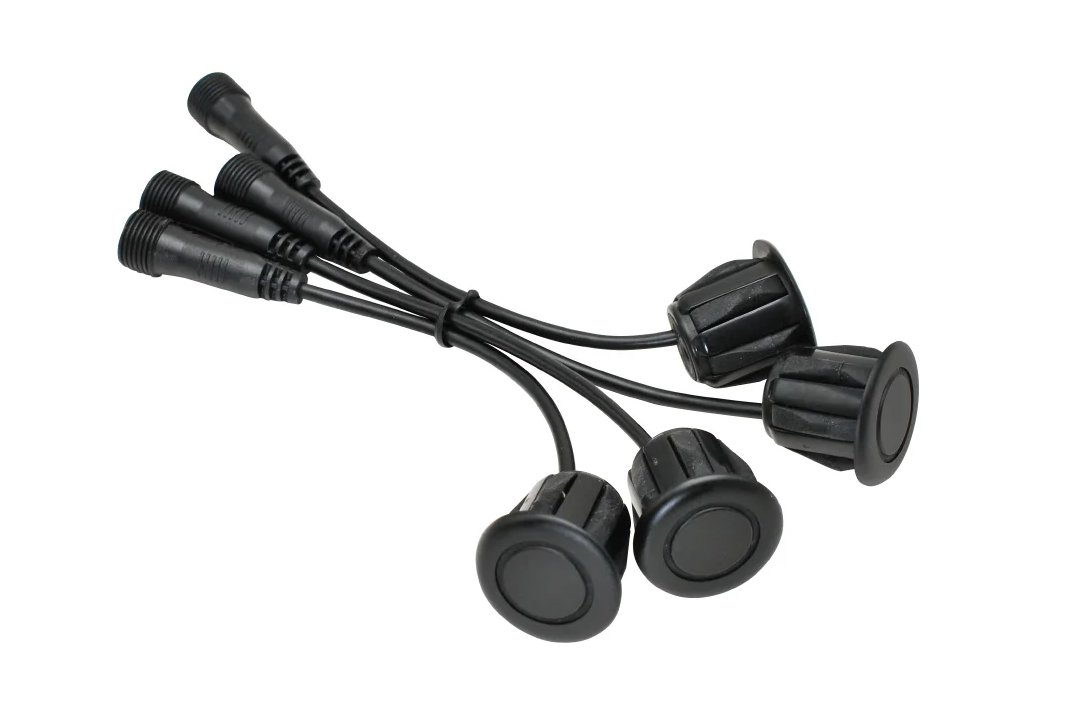

• 4 ultrasonic sensors with a flat emission pattern.

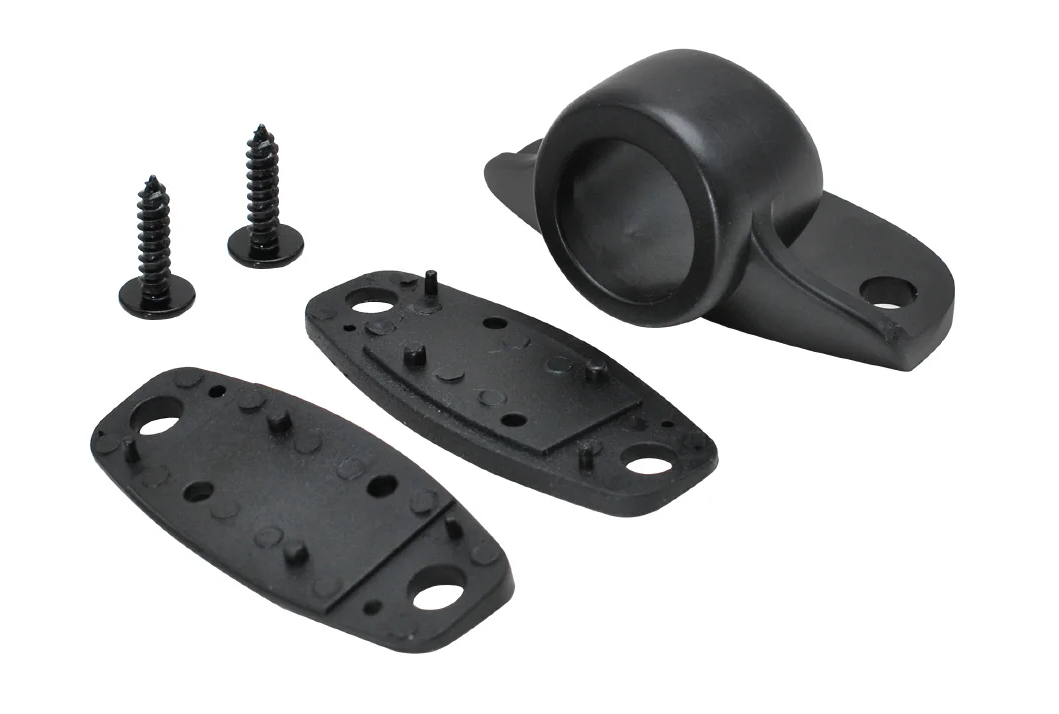

• Installed from the outside of the rear bumper.

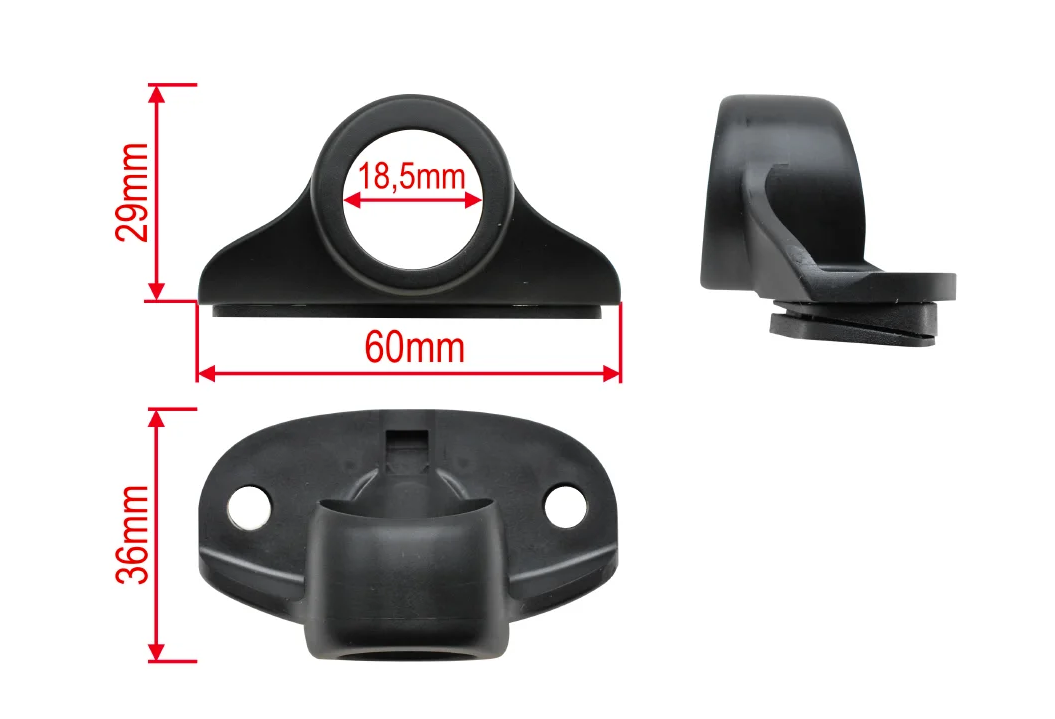

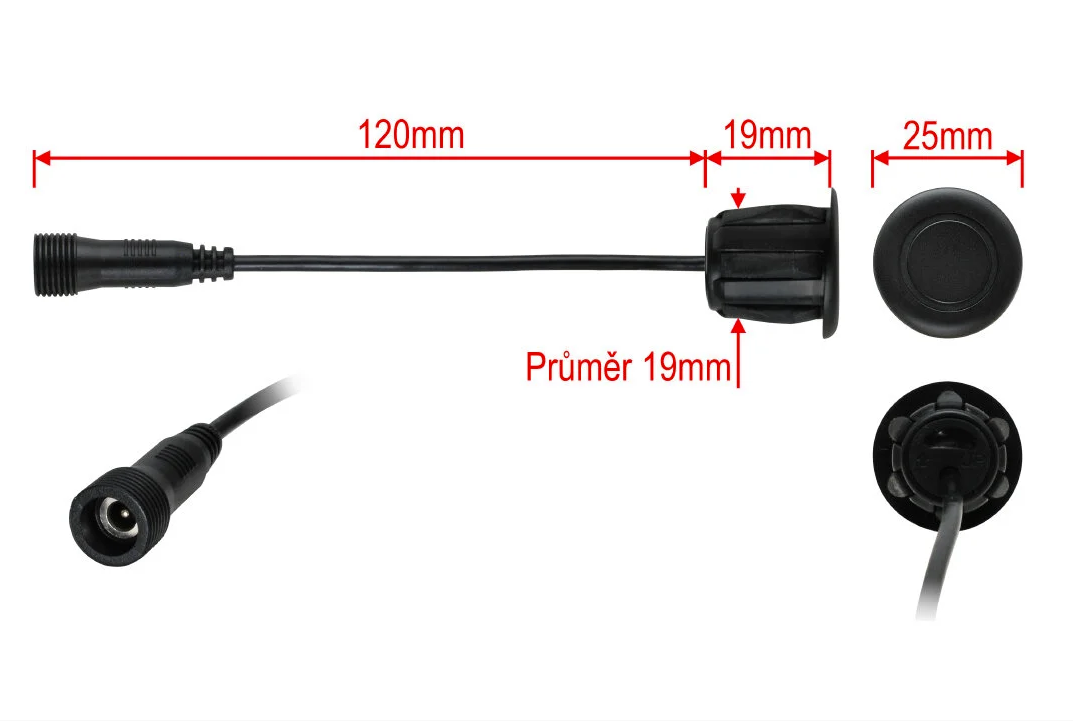

• Sensor diameter: 19 mm.
• Eliminates permanent obstacles (e.g. tow bar, spare wheel, off‑road frames).
• Automatic system function test.
• False alarm reduction technology.
• Waterproof sensors and connectors.

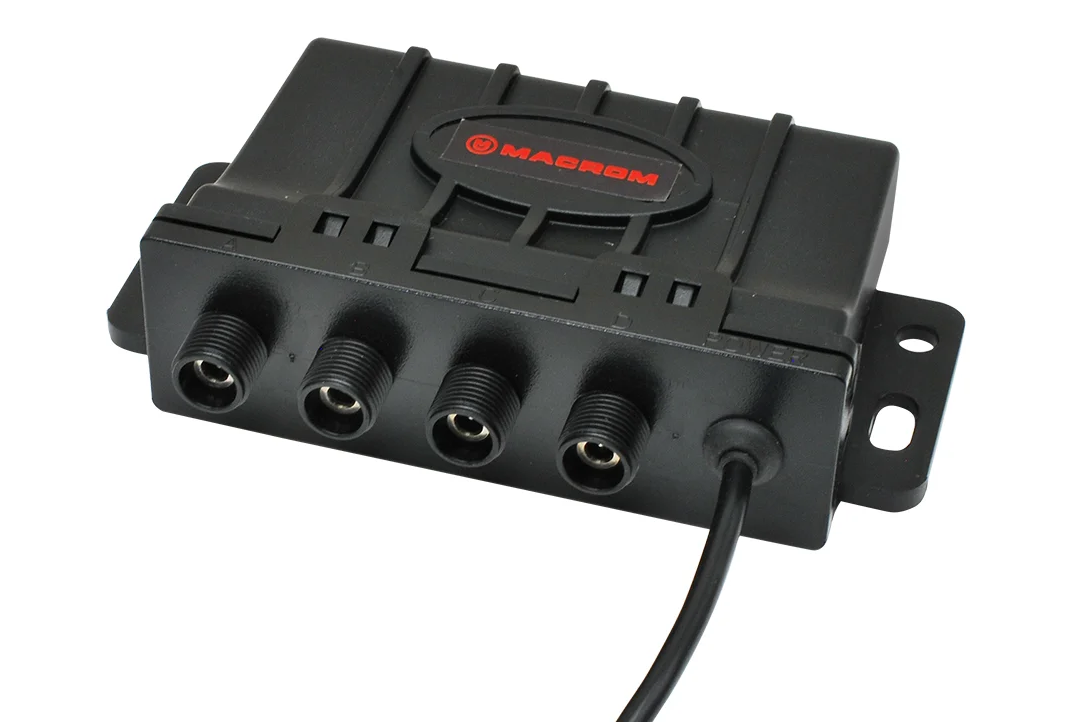

• Digital signal processing in the control unit.

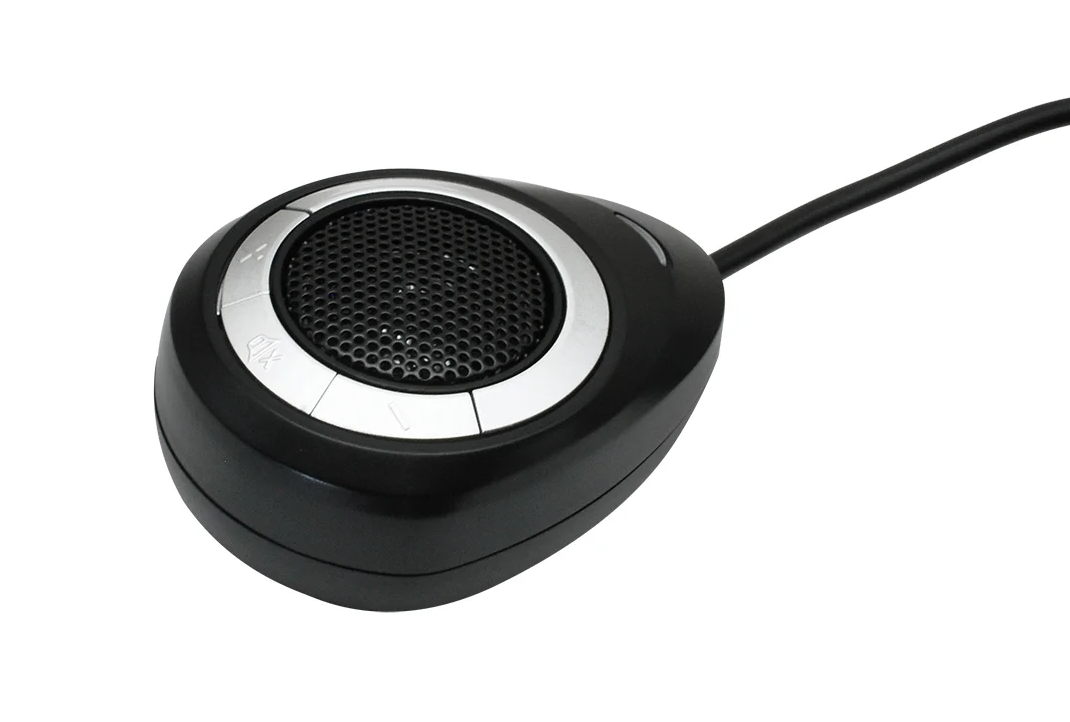

• Wireless piezo buzzer with adjustable volume and tone.

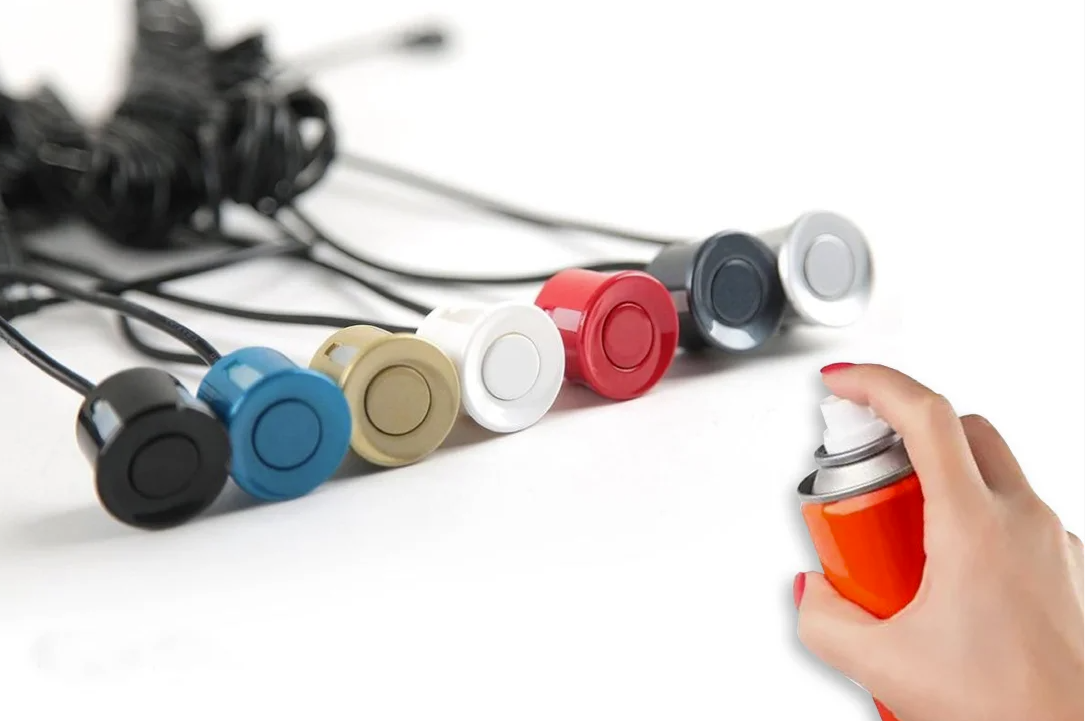

• Matte black sensor color – paintable to match vehicle color.

Technical specifications

• Supply voltage: DC 9–32 V.
• Current consumption: < 300 mA.
• Buzzer volume: 80 ± 10 dB.
• Operating temperature: -40 °C to +80 °C.
• Storage temperature: -40 °C to +85 °C.
• Detection range: 0.3–1.5 m.
• Recommended sensor installation height: 45–55 cm above ground.
