Parking assistant Steelmate PTS411M7 BTI

Parking assistant Steelmate PTS411M7 BTI

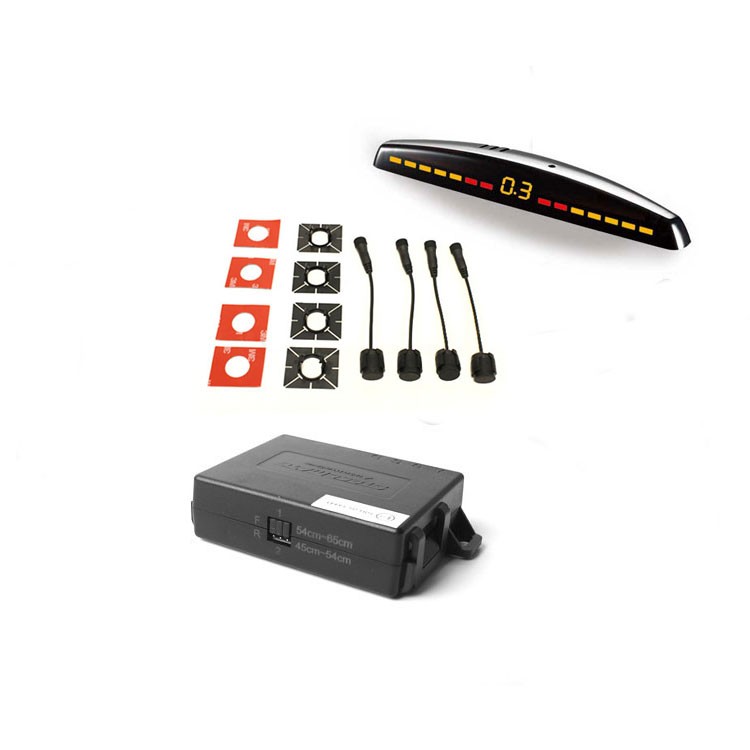

STEELMATE parking assistant with 4   with 16 mm recessed sensors and an M7 LED display, it is intended for installation in the rear or front bumper of a vehicle. The system is supplemented with an Antihook function and automatic identification of a faulty sensor, sensitivity adjustment and a learning function. Supply voltage 12/24 V. If the parking assistant is installed in the front bumper, the EXT CABLE KIT extension cables must be used.

System description

• sensors with fixed mounting in the bumper
• fast obstacle detection
• sound and visual signaling will announce the position of the obstacle
• excellent coverage of the entire space behind or in front of the car, horizontal scanning angle 110° ± 15°
• if the obstacle is within 30 cm of the vehicle, a continuous tone will sound
• autodetection (automatic identification of a faulty sensor)
• adjustable sensitivity of the sensors on the control unit (2 levels)
• unique learning function (ignoring permanent obstacles - reserve, towing, frame, ...)
• additional wire to ignition (pink) for stable power supply (optional connection)
• sensor core diameter 14 mm
• required mounting hole 16 mm

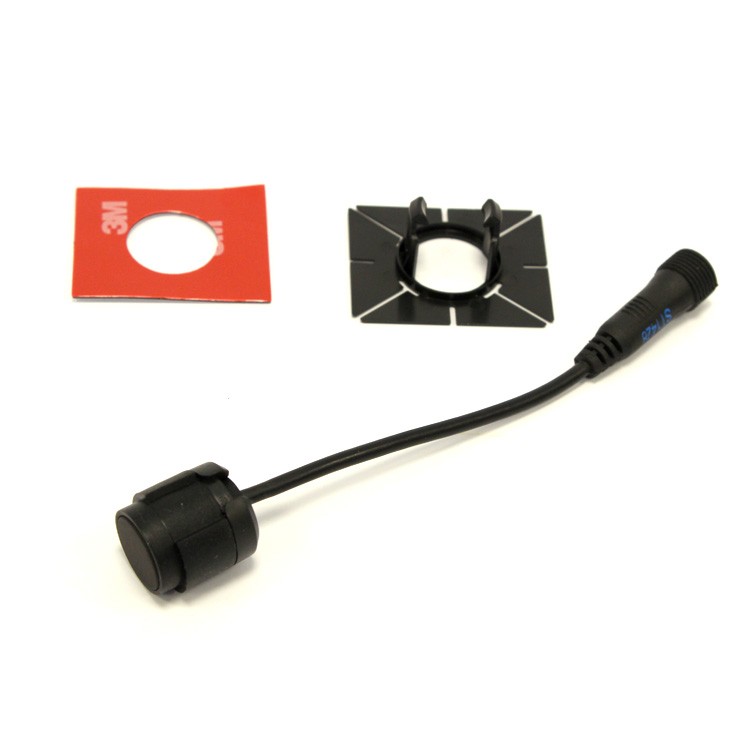

• the sensors are on a 10 cm cable with a waterproof connector, which ensures easy sensor replacement if necessary
• length of wires to sensors 2.3 m
• the control unit is not waterproof and must be installed in a dry place

Notice

The control unit contains a 3PIN connector for connecting the display, old displays with an 8PIN connector are not compatible!
