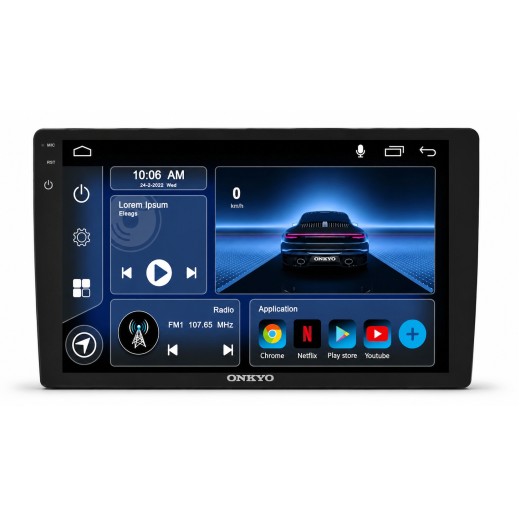

Onkyo X-QD1800 Car Stereo
The Onkyo X-QD1800 represents the flagship model in Onkyo’s Android car stereo lineup, combining very powerful hardware, a premium 9" 2K QLED IPS display and an exceptionally refined audio feature set. At its core is an octa-core Qualcomm Cortex-A73 processor, 8 GB of RAM and 256 GB of internal storage, giving the unit very fast system performance, smooth multitasking and plenty of space for apps, map data and multimedia content. It runs Android 12 and includes Wi-Fi 2.4 / 5 GHz, 4G LTE, GPS navigation, Bluetooth 5.0 and extensive connectivity options for other devices. Another strength of the X-QD1800 is its full-featured DSP, 5.1 RCA outputs with 4 V level and both optical and coaxial digital outputs, allowing the head unit to serve as a high-quality foundation even for demanding aftermarket audio systems.

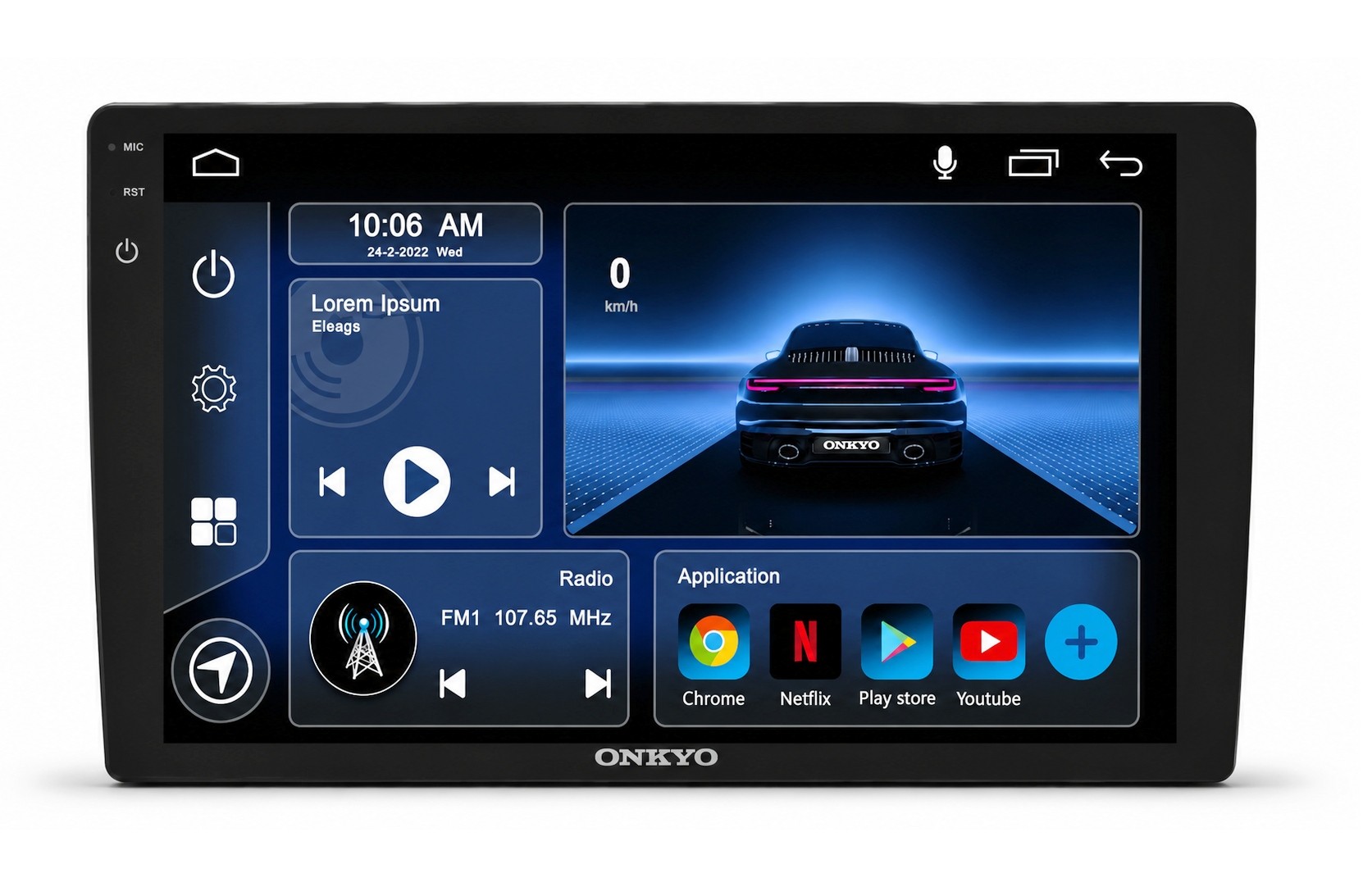

Premium 9" 2K QLED IPS display
The centerpiece of the Onkyo X-QD1800 is its 9" QLED IPS display with a high resolution of 2000 × 1200 px. The employed technology delivers very fine detail, good viewing angles and high brightness up to 500 nits. The capacitive 2.5D G+G glass ensures precise and natural touch control similar to modern smartphones. The high resolution is especially beneficial when using navigation, multimedia apps or camera system images.
Powerful Qualcomm processor and 8 + 256 GB memory
The Onkyo X-QD1800 uses an octa-core Qualcomm Cortex-A73 processor which, together with 8 GB of RAM, ensures snappy system performance even when running multiple apps simultaneously. The 256 GB internal storage provides ample space for apps, maps, music, video and other content. The Android 12 operating system allows installation of compatible apps and customization of the head unit to the user’s needs.
Integrated GPS navigation, Wi-Fi and 4G LTE
The head unit features an integrated GPS receiver and supports both online and offline navigation apps. Internet access is possible via Wi-Fi on 2.4 and 5 GHz bands or through the built-in 4G LTE module. This enables the stereo to function as a fully standalone multimedia center without constantly sharing a phone’s connection. The package includes external antennas for GPS, Wi-Fi and mobile connectivity.
Bluetooth 5.0 and wireless connectivity
Bluetooth 5.0 provides stable wireless connections to smartphones, hands‑free calling and wireless music playback. The package includes an external microphone that can be positioned in the vehicle interior to achieve better voice transmission during calls. The unit also supports screen mirroring of compatible devices via Phone MirrorLink.
Full-featured DSP and 48-band equalizer
One of the main advantages of the Onkyo X-QD1800 is its full-featured DSP processor with very extensive sound tuning options. Available are a 48-band equalizer, time correction, Q-factor adjustment and a wide range of audio features including DTS Surround, TruBass, Circle Surround, Phantom Center and Audio Focus. The system also includes several preset sound profiles. This allows the audio to be finely tailored to the specific vehicle and the listener’s preferences.
5.1 RCA outputs, 4 V and digital audio
The Onkyo X-QD1800 offers 5.1 RCA pre-outs with an output level up to 4 V, a dedicated subwoofer output and a center channel output. The higher RCA signal level is suitable for connecting external amplifiers and helps achieve better signal-to-noise performance. For more complex installations, there is also an optical SPDIF and a coaxial digital audio output, allowing the signal to be passed to an external DSP processor or other digital device without requiring analog conversion.
Hi-Res Audio and DSD support
The audio section of the head unit supports lossless and Hi-Res formats including DSD, FLAC, APE, AAC and MP3. The Onkyo X-QD1800 is thus focused not only on multimedia features but also on high-quality sound reproduction. Combined with the advanced DSP, digital outputs and 5.1 RCA pre-outs, it can serve as a well-equipped signal source for demanding car audio systems.
AHD, 360° and DVR camera support
The Onkyo X-QD1800 offers extensive support for camera systems. A rear AHD parking camera can be connected, and a 360° panoramic camera system is also supported. The unit also supports DVR / dashcam solutions and video recording. The large 2K display provides plenty of space for clear camera image presentation during parking and maneuvering.
HDMI and broad multimedia connectivity
The equipment includes an HDMI output and support for video playback up to 4K resolution. The head unit handles common video formats including H.264, H.265, MP4, AVI, MKV and FLV. Thanks to extensive connectivity, the X-QD1800 can be used as the vehicle’s central multimedia unit and connected to external monitors, cameras, amplifiers or DSP processors.
Main features
- 9" QLED IPS display.
- resolution 2000 × 1200 px, brightness 500 nits.
- capacitive 2.5D G+G touch glass.
- Android 12 operating system.
- octa-core Qualcomm Cortex-A73 processor.
- 8 GB RAM, 256 GB internal storage.
- Wi-Fi 2.4 / 5 GHz.
- integrated 4G LTE.
- GPS navigation.
- Bluetooth 5.0.
- external microphone included.
- Phone MirrorLink for Android and iOS.
- full-featured DSP processor.
- 48-band equalizer.
- time correction and Q-factor adjustment.
- DTS Surround, TruBass, Circle Surround, Phantom Center and Audio Focus.
- built-in amplifier 4 × 50 W.
- 5.1 RCA pre-out.
- RCA output level up to 4 V.
- dedicated subwoofer and center channel outputs.
- optical SPDIF output.
- coaxial digital audio output.
- Hi-Res Audio and DSD support.
- HDMI output.
- video playback support up to 4K.
- AHD parking camera support.
- 360° panoramic camera system support.
- DVR / dashcam support.
Package contents
- Onkyo X-QD1800 car stereo.

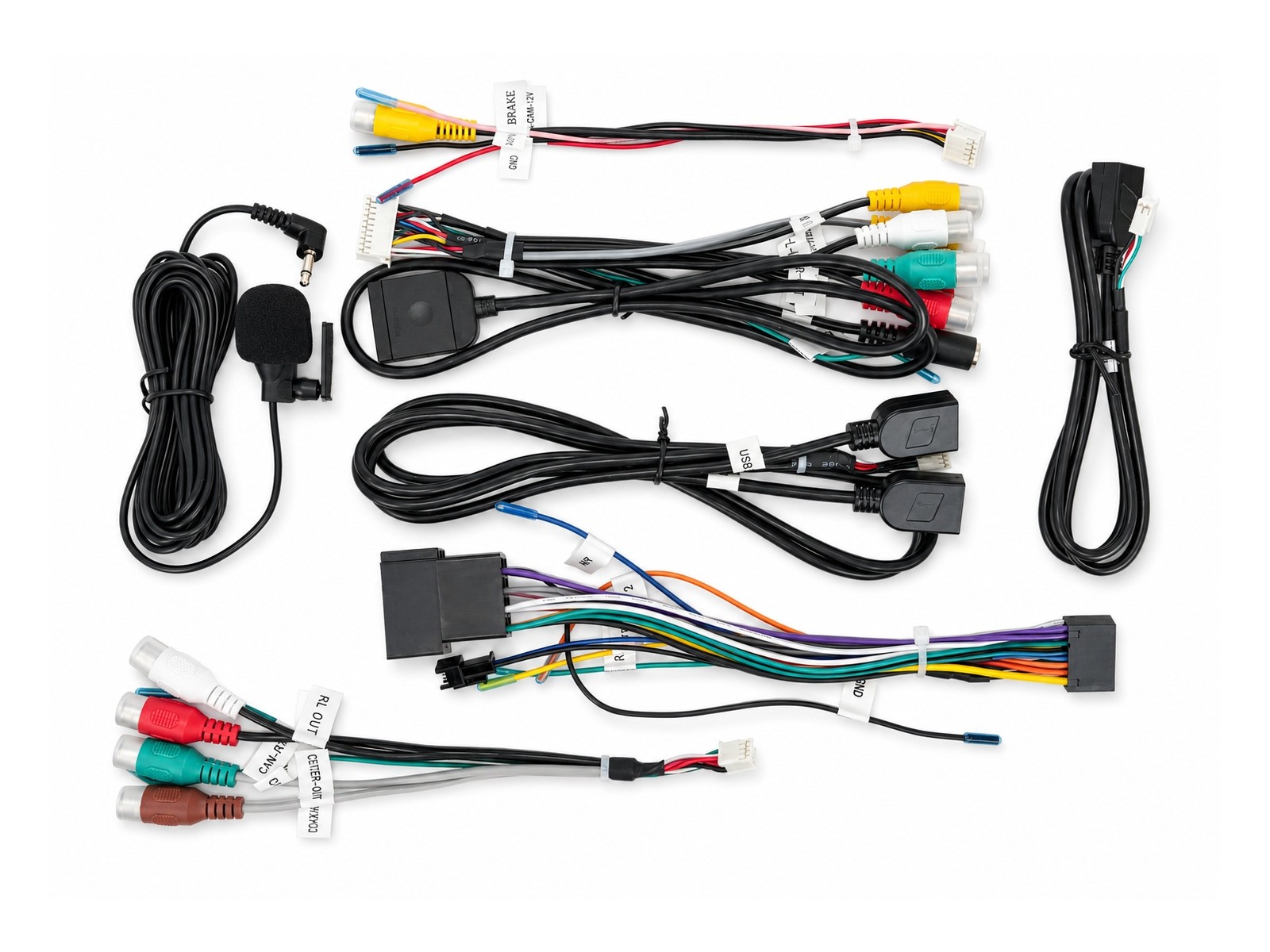

- Main power and speaker wiring harness.
- RCA cable harness.

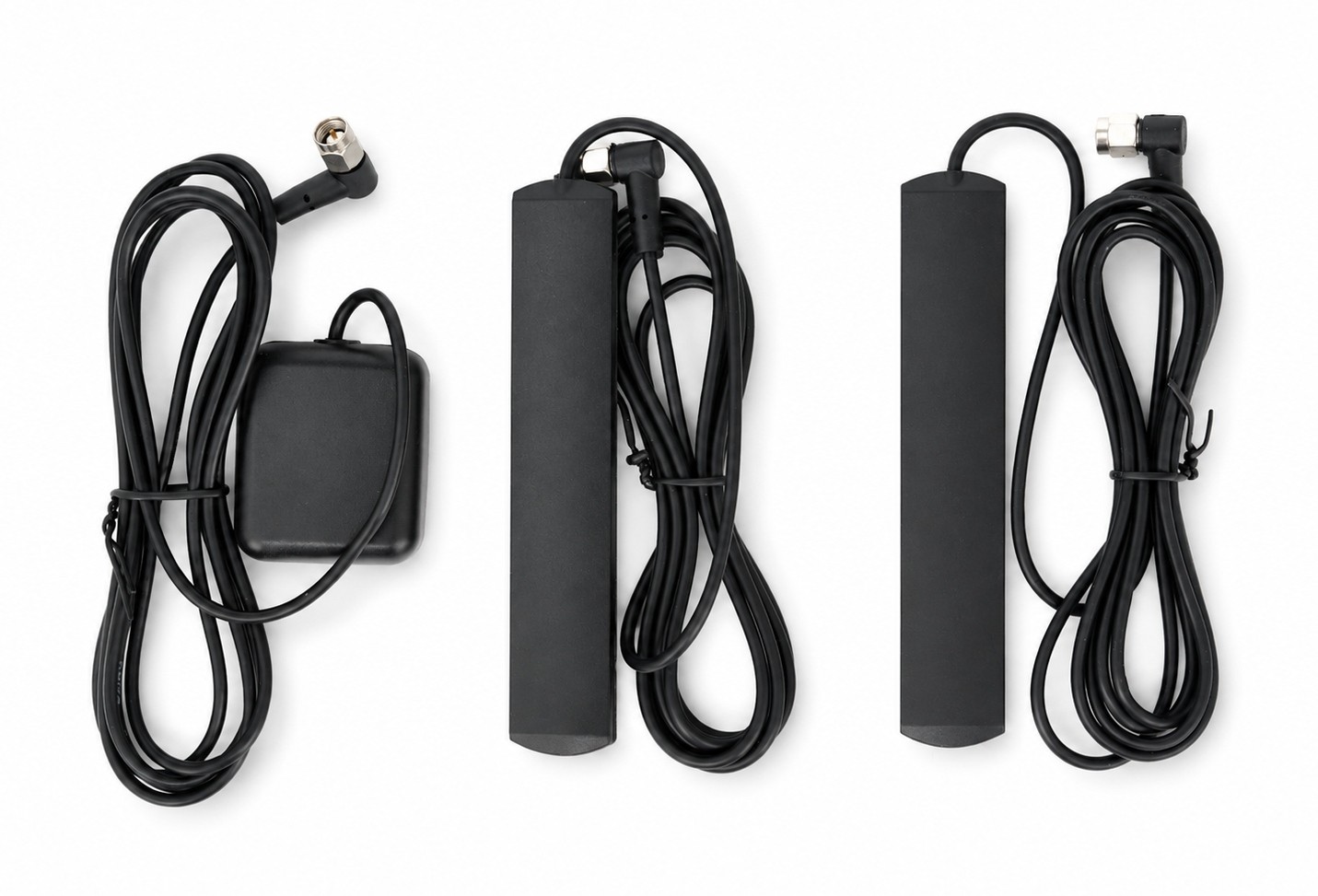

- External GPS antenna.
- External Wi-Fi antenna.
- External 4G LTE antennas.
- External microphone.
- USB cables.
- Camera and multimedia connection cables.
- Mounting accessories.
- User manual.
| Catalog number | X-QD1800-9 (8+256 GB) |
| Brand | Onkyo |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 9" QLED IPS, 2000 × 1200 px, capacitive 2.5D G+G |
| Controls | Touchscreen |
| Operating system | Android 12 |
| Memory | 8 GB RAM / 256 GB internal storage |
| Radio tuner | FM / AM / RDS |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | 5.0, hands-free, A2DP audio streaming |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | 2× rear USB |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | DSD, FLAC, APE, AAC, MP3 |
| Supported video formats | H.264, H.265, MP4, AVI, MKV, FLV up to 4K resolution |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Phone mirroring | MirrorLink |
| Navigation | Yes, via Android OS |
| Wi-Fi | Yes, 2.4 / 5 GHz |
| Mobile connectivity | 4G LTE |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 × 50 W, Hi-Res Audio, DSD |
| DSP processor | Yes, 48-band EQ, time correction, Q factor, DTS Surround, TruBass, Circle Surround, Phantom Center, Audio Focus |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 5.1 (Front / Rear / Center / Sub) |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 4 V |

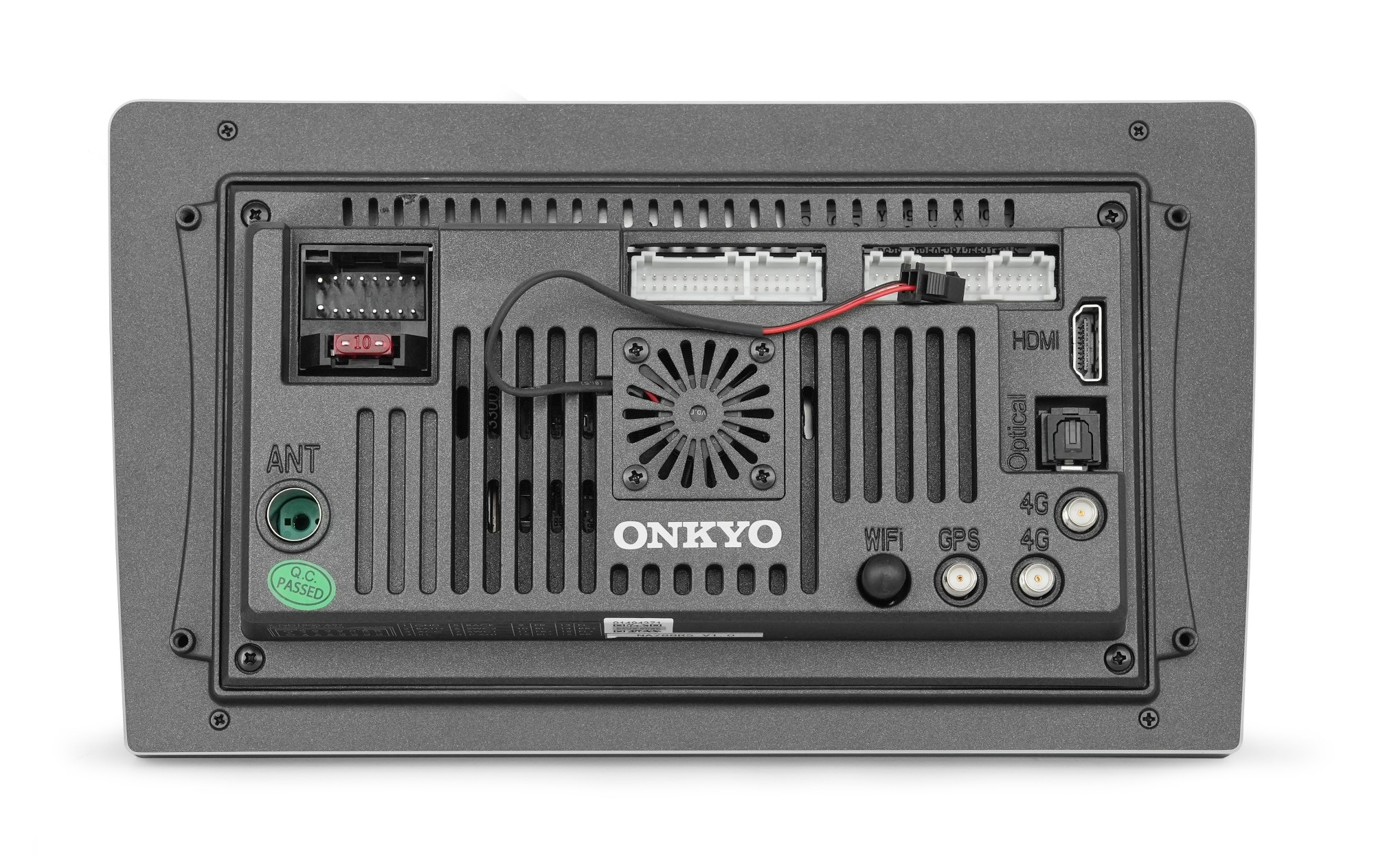

| Additional inputs and outputs | HDMI OUT, optical SPDIF, coaxial SPDIF, AV OUT |
| Camera support | Rear AHD, 360° camera system, DVR |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes, SWC |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
| Installation depth | 42 mm |
