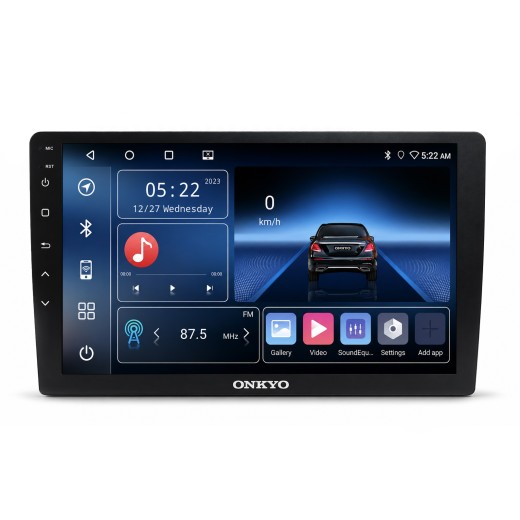

Onkyo X-QD1550 Car Stereo
The Onkyo X-QD1550 is an advanced multimedia car stereo running Android 13, with 4 GB of RAM and 64 GB of internal storage. Compared to more basic Onkyo models, it primarily offers higher hardware performance, an integrated DSP processor with a 36-band equalizer, support for a 360° panoramic camera system and an HDMI output. The large capacitive IPS display provides a 1280 × 720 px resolution and 500 nit brightness, while modern connectivity is complemented by Wi‑Fi, Bluetooth 4.2 + EDR, GPS navigation and MirrorLink for pairing with compatible phones. The unit also supports AHD parking cameras, CAN-bus interface, two USB inputs and steering wheel controls. The built-in amplifier provides a maximum output of 4 × 50 W and a dedicated RCA subwoofer output enables system expansion with an external amplifier. With an installation depth of only 42 mm, the X-QD1550 is easy to install even in vehicles with limited space behind the head unit.
More powerful hardware with Android 13
The combination of 4 GB of RAM and 64 GB of internal storage provides more headroom for multitasking, navigation and app installation compared to base models. The Android 13 operating system lets you use compatible navigation, music and other apps similarly to a regular tablet. Built-in Wi‑Fi provides internet access and the integrated GPS receiver allows full use of navigation.
DSP and 36-band equalizer
The X-QD1550 advances sound tuning options with an integrated DSP processor and a 36-band equalizer. Users get significantly more precise control over the final sound compared to basic multimedia units. The built-in amplifier offers a maximum output of 4 × 50 W and RCA outputs are available for connecting an external amplifier, including a dedicated subwoofer output.
Support for 360° camera system
One of the main advantages of the X-QD1550 is support for a 360° panoramic camera system. When compatible cameras are connected, the display can show the vehicle’s surroundings from multiple angles, including a top-down view, which greatly simplifies parking and maneuvering in tight spaces. A standard input for a rear AHD parking camera is also included with automatic image display when reverse gear is engaged.
Wide connectivity options
In addition to Bluetooth, Wi‑Fi and USB, the X-QD1550 also offers an HDMI output, AV input, audio inputs and outputs and a CAN-bus interface. MirrorLink allows screen mirroring from compatible Android and iOS devices. The head unit also supports steering wheel controls and, thanks to the CAN-bus interface, is better prepared for integration into more modern vehicles.
- Multimedia car stereo with Android 13.
- More powerful configuration with 4 GB RAM and 64 GB internal storage.
- Capacitive IPS display with 1280 × 720 px resolution.
- Integrated DSP processor with 36-band equalizer.
- Support for 360° panoramic camera system.
- Support for rear AHD parking camera.
- HDMI output for connecting an additional display device.
- Built-in Wi‑Fi, GPS and Bluetooth 4.2 + EDR.
- MirrorLink for compatible Android and iOS phones.
- CAN-bus interface for advanced vehicle integration.
- Built-in amplifier with maximum output 4 × 50 W.
- RCA outputs including a dedicated subwoofer output.
- Two rear USB connectors.
- Support for steering wheel controls.
- Playback of FLAC and other common audio and video formats.
- Compact installation depth of only 42 mm.

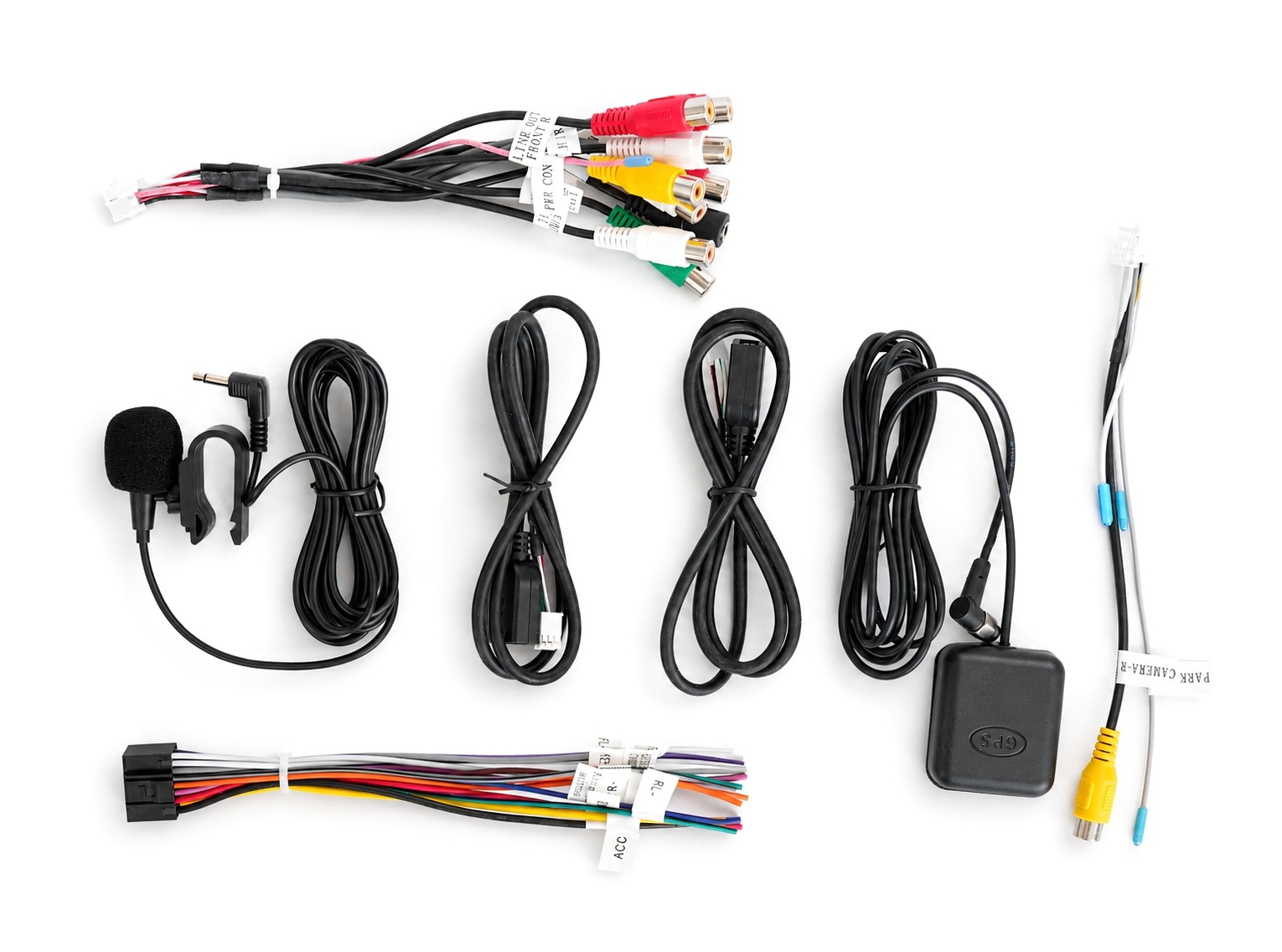

Package contents
- Onkyo X-QD1550 car stereo.
- RCA / AV wiring harness.
- USB cable 4P.
- USB cable 6P.
- GPS antenna.
- CAN-bus cable.
- 4× mounting screws.
- User manual.
- Power cable depending on the specific package variant.
| Catalog number | X-QD1550-9 |
| Brand | Onkyo |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 9" IPS LCD, capacitive, 1280 × 720 px, 500 nits |
| Controls | Touchscreen |
| Operating system | Android 13 |
| Memory | 4 GB RAM / 64 GB internal storage |
| Radio tuner | FM |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | 4.2 + EDR, handsfree, audio streaming |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | 2× rear USB |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | FLAC, MP3, APE and AAC |
| Supported video formats | H.264, MP4, AVI, MKV and FLV up to 1080p resolution |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Phone mirroring | MirrorLink |
| Navigation | Yes, via Android OS |
| Wi-Fi | Yes |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 × 50 W max., 36-band EQ, subwoofer output |
| DSP processor | Yes |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs (Front / Rear / Sub) |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 1 V |
| Additional inputs and outputs | AUX IN L/R, AV IN, HDMI OUT |
| Camera support | AHD, rear camera, integrated support for 360° camera system |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes, SWC |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
| Installation depth | 42 mm |
