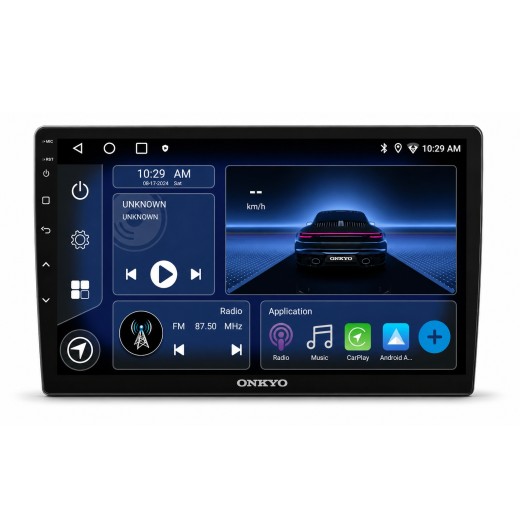

Onkyo X-QD1200-A10 car radio
More about the product
- You can return the goods to us within 14 days
Onkyo X-QD1200 Car Stereo
The Onkyo X-QD1200 is a versatile multimedia car stereo featuring a large 10.1" capacitive IPS touchscreen, an octa-core Cortex-A53 processor, built-in GPS navigation and extensive connectivity options. Compared to the base X-QD1100 model, it offers a more powerful hardware platform, modern Bluetooth 5.0, a 14-band DSP equalizer and stronger 4V RCA outputs for connecting external amplifiers. With a very shallow installation depth of only 42 mm, it’s also suitable for vehicles with limited space behind the dash. The unit includes Wi‑Fi, two USB ports, an external microphone, and supports AHD parking cameras, DVRs, front cameras and 360° camera systems. The Onkyo X-QD1200 also supports steering wheel controls and, thanks to the Android-based platform, allows installation of additional compatible apps.
Powerful octa-core processor
The Onkyo X-QD1200 uses an octa-core Cortex-A53 processor with clock speeds up to 2.0 GHz. The more powerful hardware platform ensures smoother system performance, faster app launches and more comfortable use of navigation and media. The Hot Start feature also enables quicker system restart after the vehicle is started. The OY11.0 operating system based on Android allows installation of compatible APK apps and customization of the head unit to the user’s needs.

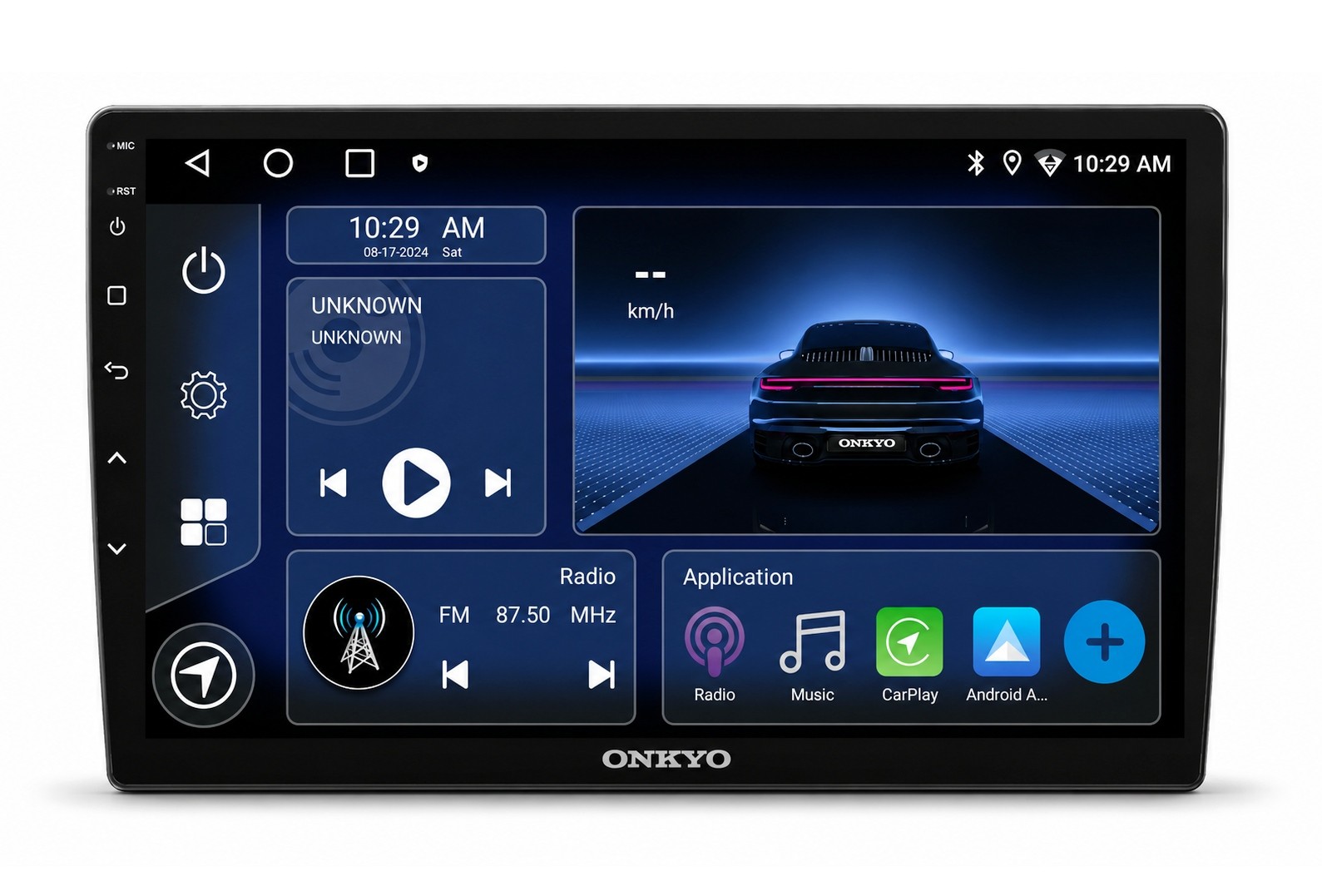

Large 10.1" IPS display
The highlight of the Onkyo X-QD1200 is its large 10.1" capacitive touchscreen with a resolution of 1280 × 720 px. It uses a 2.5D G+G capacitive touch layer that provides pleasant and precise control similar to modern smartphones. The large display area is ideal for navigation, multimedia apps and parking camera images. The screen also supports Picture-in-Picture, allowing selected content to be shown alongside another app.
Built-in GPS navigation, Wi‑Fi and internet connectivity
The head unit includes a GPS receiver and an external GPS antenna supplied in the package. Thanks to Android, you can use compatible online and offline navigation apps according to your preferences. Built-in Wi‑Fi allows the stereo to connect to an available wireless network or to a mobile hotspot created by a smartphone. Once online, you can use online navigation, streaming services and other supported apps. Some variants of the X-QD1200 platform also support 4G LTE mobile connectivity.
Bluetooth 5.0 with external microphone
Modern Bluetooth 5.0 + EDR enables wireless connection between the head unit and a mobile phone. The stereo supports Bluetooth handsfree and wireless music playback via the A2DP profile. The package includes an external microphone with a 3.5 mm connector that can be placed in a suitable spot in the vehicle interior to achieve clearer voice transmission during calls. Bluetooth can also be used to share the internet connection of a supported phone.
14-band DSP equalizer and 4V RCA outputs
The Onkyo X-QD1200 offers extended sound tuning options via a built-in 14-band DSP equalizer. Individual frequency bands can be adjusted to match the vehicle’s acoustics and personal listening preferences. Bass boost and surround sound enhancement functions are also available. The built-in amplifier with an ST7851 chip provides a maximum output of 4 × 50 W. A significant advantage of the X-QD1200 model is the preamp RCA outputs with up to 4 V level, which are a better signal source for connecting external amplifiers. Higher output voltage allows for better signal-to-noise ratio and lower required gain at the input of the connected amplifier.
MirrorLink, USB and multimedia features
The Onkyo X-QD1200 supports Phone MirrorLink for compatible Android and iOS phones. This function lets you connect your phone to the multimedia unit and display supported content on the head unit’s large screen. Availability of specific features depends on the phone and its OS version. The package includes two separate USB cables that can be used for playing multimedia content, connecting compatible accessories or charging mobile devices. The stereo supports lossless audio formats and video playback up to 1080p. Supported audio formats include MP3, APE, AAC and FLAC, and supported video formats include H.264, MP4, AVI, MKV and FLV.
AHD parking, front and 360° camera system
The Onkyo X-QD1200 offers extensive camera system support. You can connect a rear AHD parking camera with up to 720p resolution and have the image automatically displayed on the head unit when reverse gear is engaged. A front camera up to 720p is also supported. The unit supports USB DVR devices with preview and recording capabilities and allows integration of a compatible 360° panoramic camera system. The X-QD1200 can therefore serve not only as a multimedia center but also as a central display unit for a more comprehensive vehicle camera setup.
Package contents
- Onkyo X-QD1200 car stereo.
- Main power and speaker wiring harness.
- 20-pin RCA wiring harness.
- Cable for connecting the rear parking camera.
- External GPS antenna.
- External microphone with 3.5 mm connector.
- USB cable 4P.
- USB cable 6P.
- Mounting screws.
- User manual.
Main features
- 10.1" capacitive IPS LCD display.
- Display resolution 1280 × 720 px.
- 2.5D G+G capacitive touchscreen.
- Octa-core Cortex-A53 processor with speeds up to 2.0 GHz.
- OY11.0 / Android operating system.
- Built-in Wi‑Fi and GPS navigation, external GPS antenna included.
- Bluetooth 5.0 + EDR, 2× USB.
- Bluetooth handsfree and Bluetooth audio streaming A2DP.
- External microphone included.
- Phone MirrorLink for Android and iOS.
- Picture-in-Picture.
- 14-band DSP equalizer.
- Bass and surround sound settings.
- ST7851 amplifier with maximum output 4 × 50 W.
- 4V RCA preamp outputs.
- Support for AHD rear parking camera up to 720p.
- Support for front camera up to 720p.
- Support for 360° panoramic camera system.
- Automatic image switch when reverse gear is engaged.
- Support for USB DVR / dashcam.
- Support for video output, FM tuner.
- Support for steering wheel controls.
- Hot Start feature for faster startup.
- Playback of FLAC, MP3, APE and AAC; H.264, MP4, AVI, MKV and FLV up to 1080p.

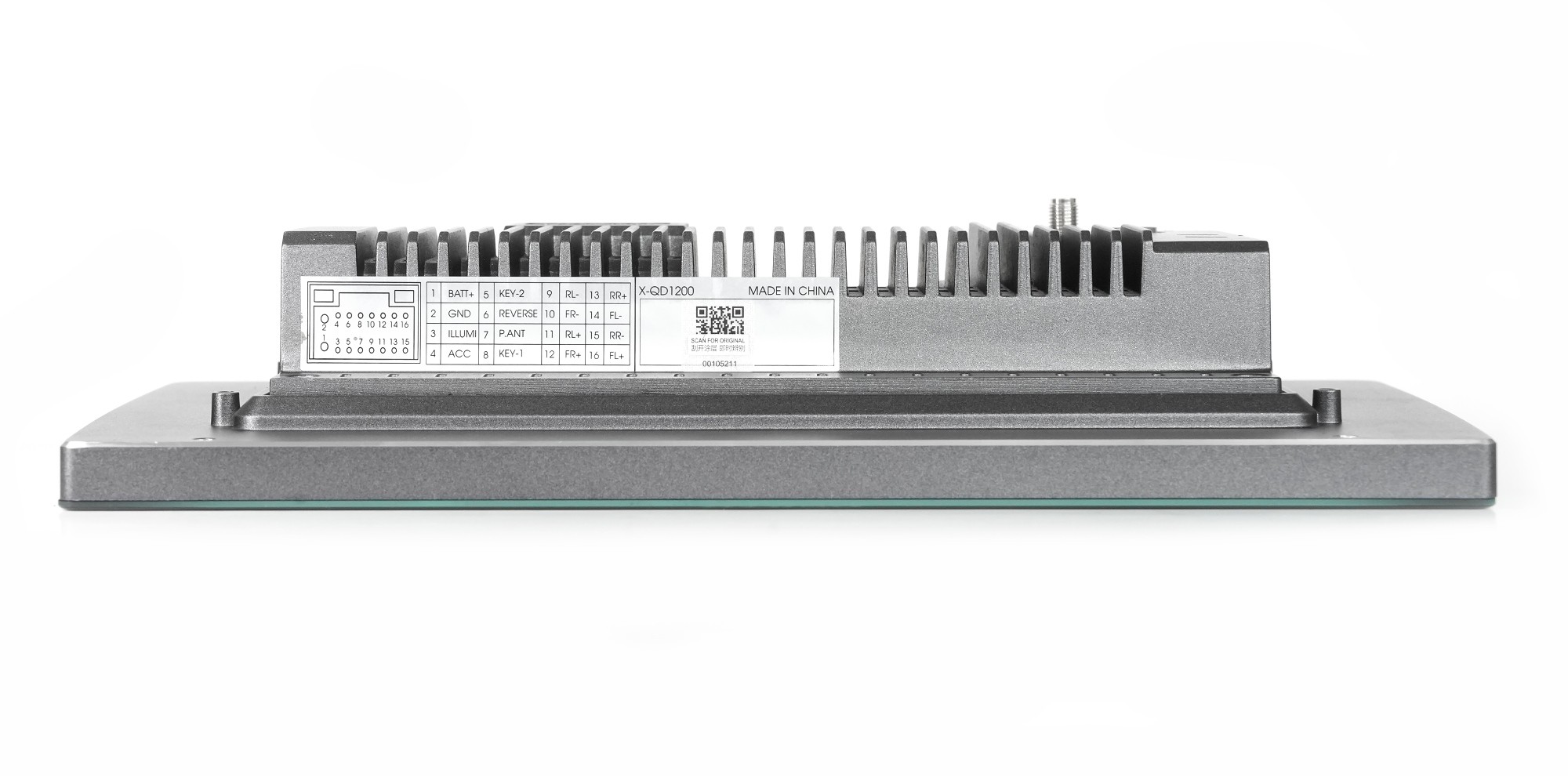

- Installation depth only 42 mm.
| Catalog number | X-QD1200-10 |
| Brand | Onkyo |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 10" HD |
| Controls | Touchscreen |
| Operating system | Android 11 |
| Memory | 2 GB RAM / 32 GB internal memory |
| Radio tuner | FM / RDS |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes, dual |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3/ APE/AAC/FLAC |
| Supported video formats | H.264, MP4, AVI, MKV and FLV up to 1080p resolution |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Phone mirroring | MirrorLink |
| Navigation | Yes, via Android OS |
| Wi-Fi | Yes |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| DSP processor | No |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 1 pair |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2 V |
| Additional inputs and outputs | AUX, AV IN, AV OUT |
| Camera support | rear AHD 720p, front camera, 360° camera system, DVR |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
| Installation depth | 42 mm |
