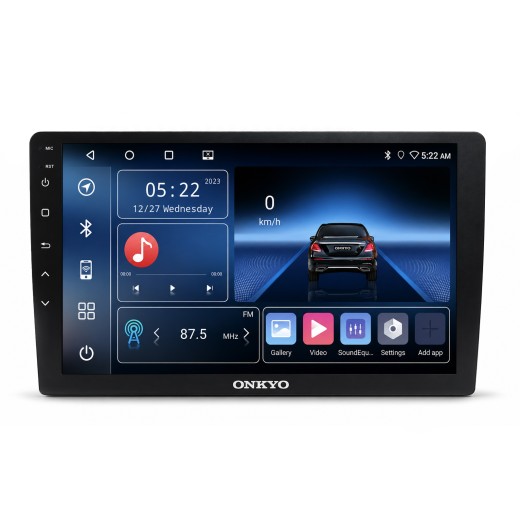

Onkyo X-QD1120 car radio
More about the product
- You can return the goods to us within 14 days
Autorádio Onkyo X-QD1120
The Onkyo X-QD1120 is a modern 2DIN multimedia car radio with a large 10.1" capacitive IPS display, Android operating system and extensive connectivity. Compared to the base X-QD1100 model, it brings notably more advanced sound tuning with a 32-band equalizer, stronger 4V RCA outputs and newer Bluetooth 4.2. The radio is equipped with 2 GB of RAM and 32 GB of internal storage, built-in Wi-Fi, GPS navigation and MirrorLink support for smartphone integration. The large IPS display offers a 1280 × 720 px resolution, 500 nits brightness and a capacitive touch experience similar to a tablet. For connecting external amplifiers there are 4 V RCA outputs, while the built-in amplifier provides a maximum of 4 × 50 W. Support for rear AHD parking cameras, steering-wheel control, two USB inputs and playback of common lossless audio formats including FLAC are included. With an installation depth of only 42 mm, the X-QD1120 can be easily placed even in vehicles with limited space behind the head unit.
Velký 10,1" IPS displej

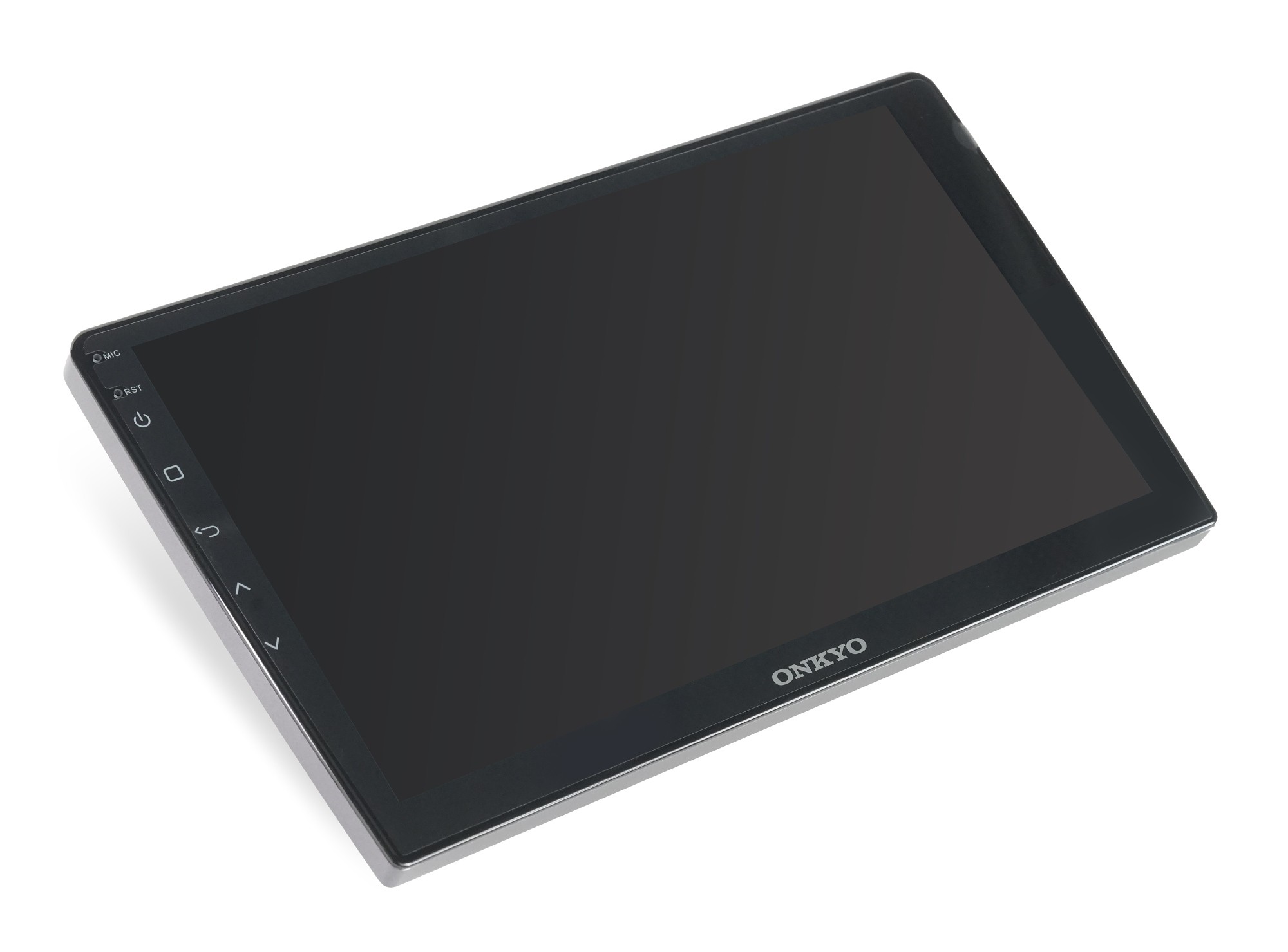

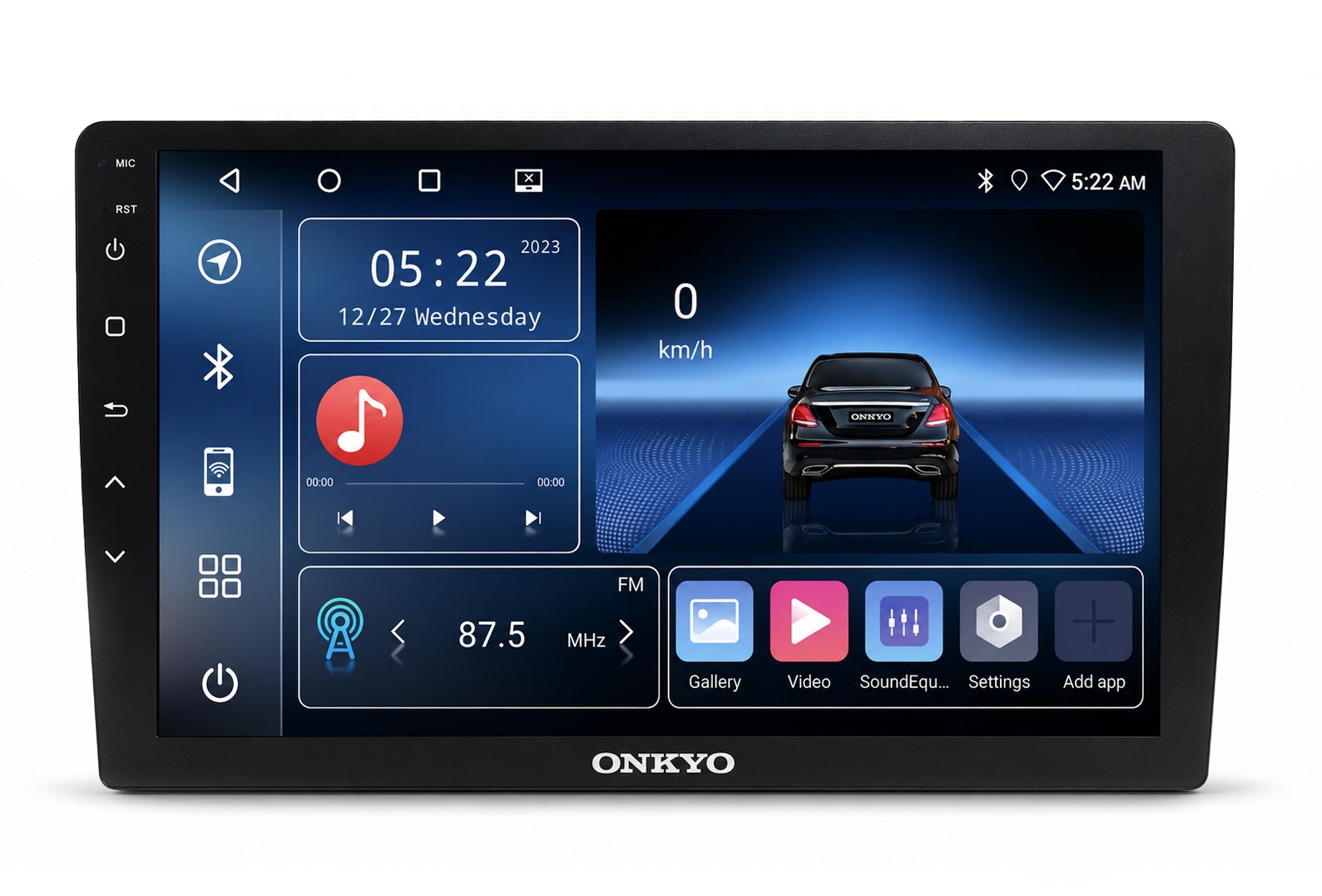

The centerpiece of the Onkyo X-QD1100 is a large capacitive touchscreen with a 10.1" diagonal. The IPS panel used offers a resolution of 1280 × 720 px, up to 500 nits brightness and good viewing angles, which you will appreciate when using navigation, media and other apps while driving. The capacitive technology ensures a natural touch experience similar to a smartphone or tablet and also supports multi-touch gestures. The display supports Picture-in-Picture, allowing selected content to be shown alongside another app. The large display area is especially practical for navigation, parking camera viewing and multimedia apps.
Android, GPS a bezdrátové připojení
The Android operating system enables navigation, multimedia apps and other compatible applications much like on a tablet. The radio has 2 GB RAM and 32 GB internal storage. Internet access is possible via Wi-Fi and an integrated GPS receiver with an external GPS antenna. MirrorLink is also available for compatible Android and iOS devices.
Rozšířené možnosti nastavení zvuku
One of the main differences compared to the X-QD1100 is the 32-band equalizer, which provides much more precise control over the final sound. The built-in amplifier offers a maximum of 4 × 50 W and the speaker outputs are intended for 4 to 8 Ω impedance. For connecting external amplifiers, the 4 V RCA outputs are a major advantage, enabling operation at higher signal levels and lower input sensitivity requirements for the amplifiers.
Bluetooth a multimédia
Bluetooth 4.2 + EDR enables wireless calling and music streaming from a mobile phone. The radio supports playback of MP3, APE, AAC and FLAC audio formats and video files H.264, MP4, AVI, MKV or FLV. The pair of rear USB connectors serves for media playback, accessory connection and charging compatible devices.
Podpora parkovací kamery
The Onkyo X-QD1120 supports connection of a rear parking camera including AHD signals. When reverse gear is engaged, the camera image can be automatically displayed on the large radio screen, which helps with parking and maneuvering. Display of parking guide lines is also supported.
Hlavní vlastnosti
- 10,1" capacitive IPS LCD display.
- Display resolution 1280 × 720 px and 500 nits brightness.
- Operating system Android / OY13.0.
- 2 GB RAM and 32 GB internal storage.
- Built-in Wi‑Fi and GPS navigation.
- Bluetooth 4.2 + EDR.
- MirrorLink for compatible Android and iOS phones.
- Extended 32-band equalizer.
- Built-in amplifier with max output 4 × 50 W.
- 4 V RCA outputs for connecting external amplifiers.
- Support for rear AHD parking cameras.
- Automatic camera image display when reverse gear is engaged.
- 2× rear USB.
- Steering wheel control support.
- Playback of FLAC, MP3, APE, AAC and common video formats.

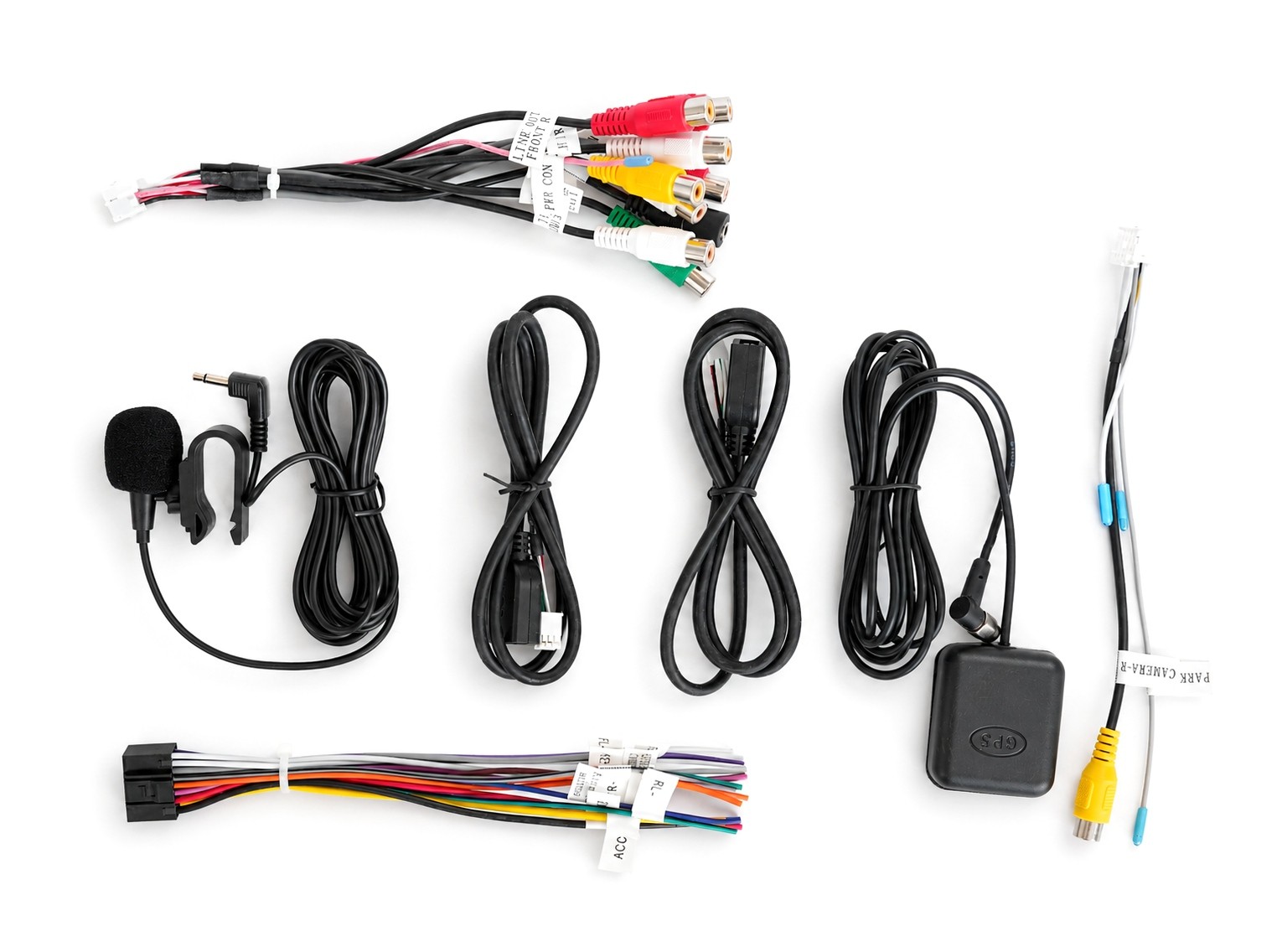

Obsah balení
- Autorádio Onkyo X-QD1120.
- Main power and speaker wiring harness.
- 20-pin RCA wiring harness.
- Wi‑Fi / Bluetooth wiring harness.
- USB cable 4P.
- USB cable 6P.
- External GPS antenna.
- 5× mounting screws.
| Catalog number | X-QD1120-10 |
| Brand | Onkyo |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 10.1\" IPS, 1280 × 720 px, capacitive |
| Controls | Touchscreen |
| Operating system | Android 13 |
| Memory | 2 GB RAM / 32 GB internal memory |
| Radio tuner | FM |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | 4.2 + EDR, handsfree, audio streaming |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | 2× rear USB |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | FLAC, MP3, APE and AAC |
| Supported video formats | H.264, MP4, AVI, MKV and FLV up to 1080p resolution |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Phone mirroring | MirrorLink |
| Navigation | Yes, via Android OS |
| Wi-Fi | Yes, 2.4 / 5 GHz |
| Mobile connectivity | No |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 × 50 W, 32-band equalizer |
| DSP processor | No |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs (Front / Rear / Sub) |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 4 V |
| Additional inputs and outputs | AUX, AV IN |
| Camera support | rear AHD 720p, DVR |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes, SWC |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |

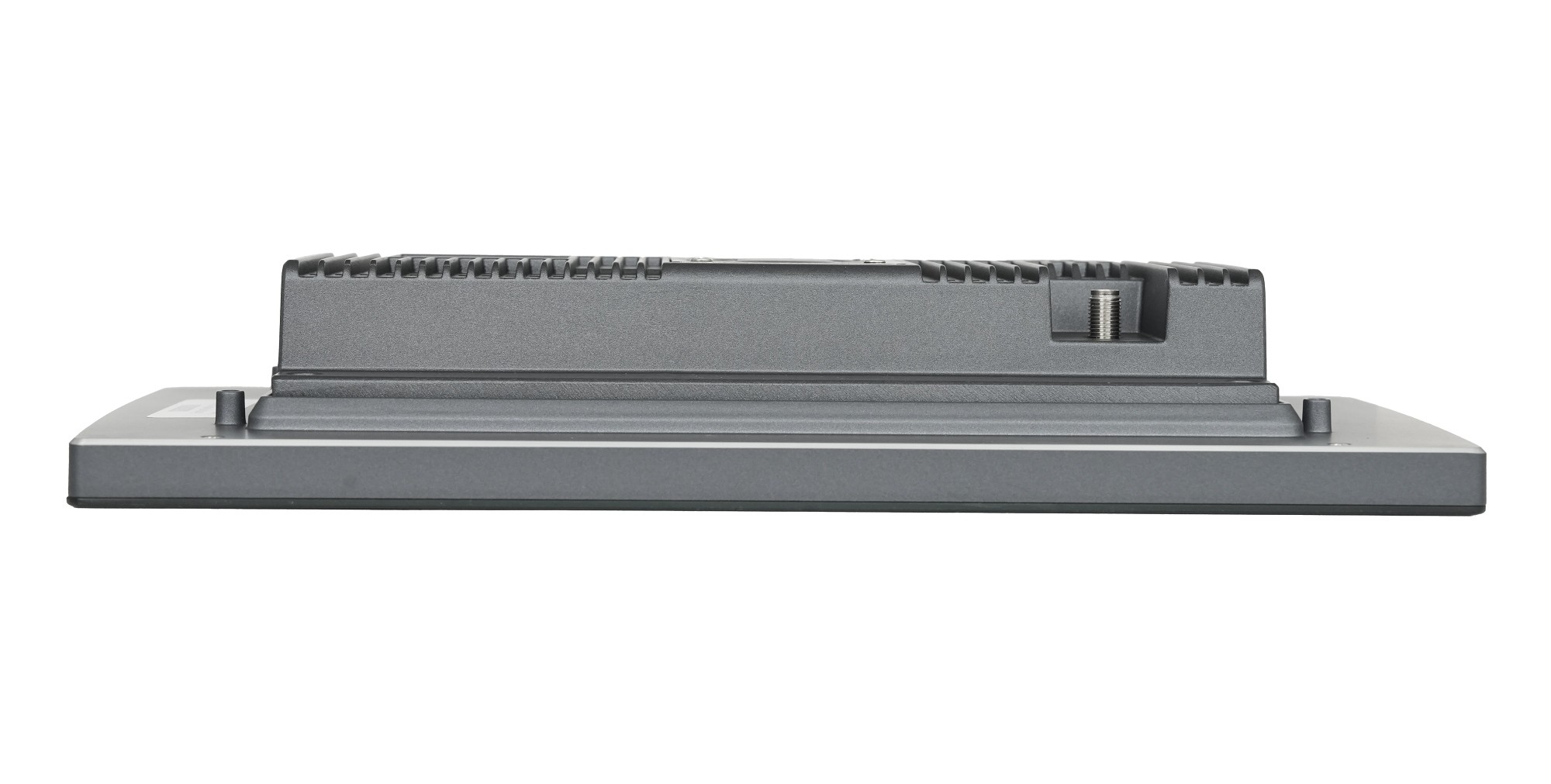

| Installation depth | 42 mm |
