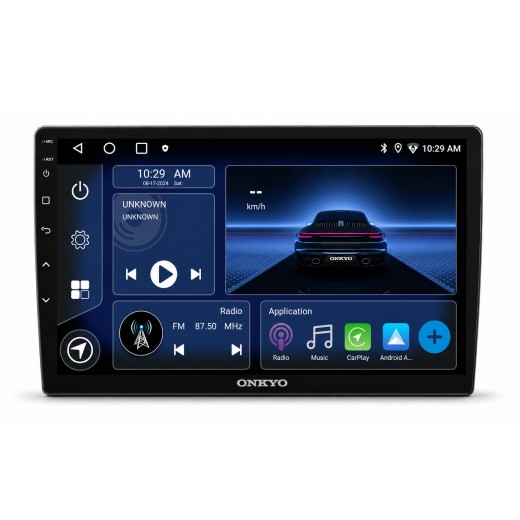

Onkyo X-QD1100 A10 car radio
More about the product
- You can return the goods to us within 14 days
Autorádio Onkyo X-QD1100

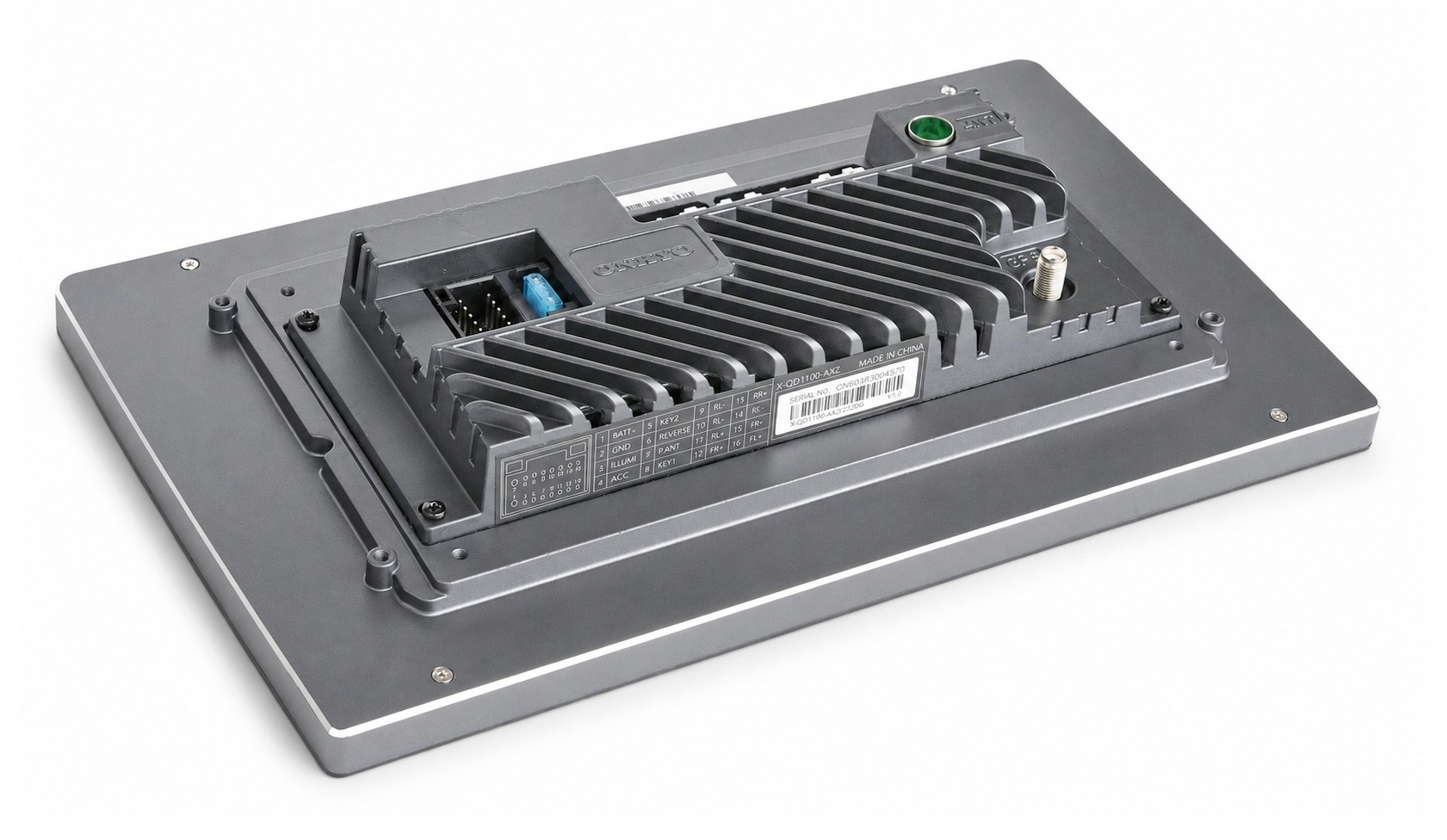

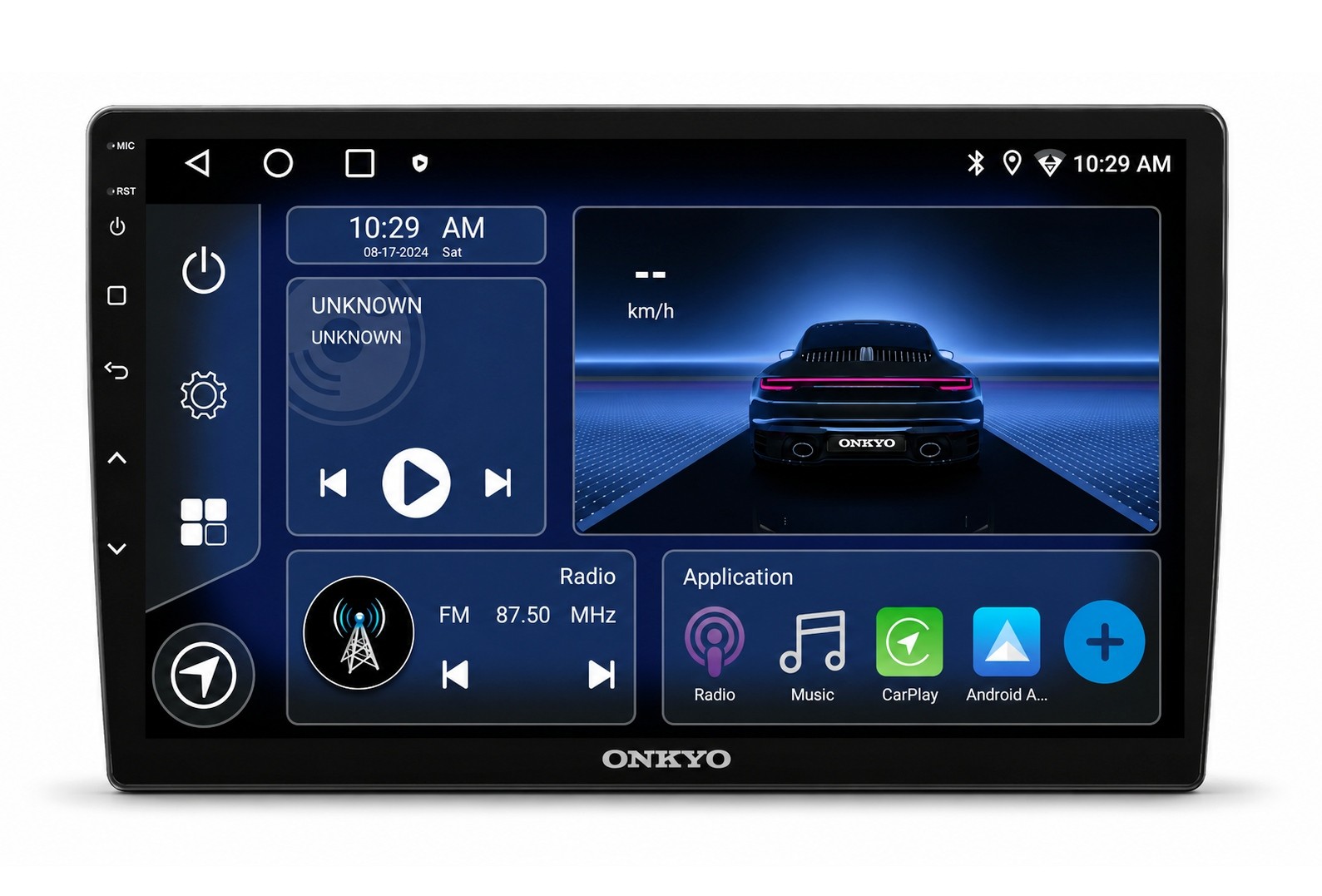

Onkyo X-QD1100 is a versatile multimedia car radio with a large 10.1" capacitive IPS touchscreen, Android operating system, integrated GPS navigation and broad connectivity options. Thanks to a very shallow installation depth of just 42 mm, it is also suitable for vehicles with limited space behind the dashboard. The radio offers Wi-Fi, Bluetooth, support for an external microphone, two USB ports, AHD parking camera support and rich audio connectivity including five RCA outputs and a dedicated subwoofer output. The Onkyo X-QD1100 also supports connection of factory steering-wheel buttons via SWC / KEY inputs. The X-QD1100 is an attractive solution for drivers who want to replace their original head unit with a modern multimedia system featuring a large display and the ability to install their own Android apps.
Velký 10,1" IPS displej

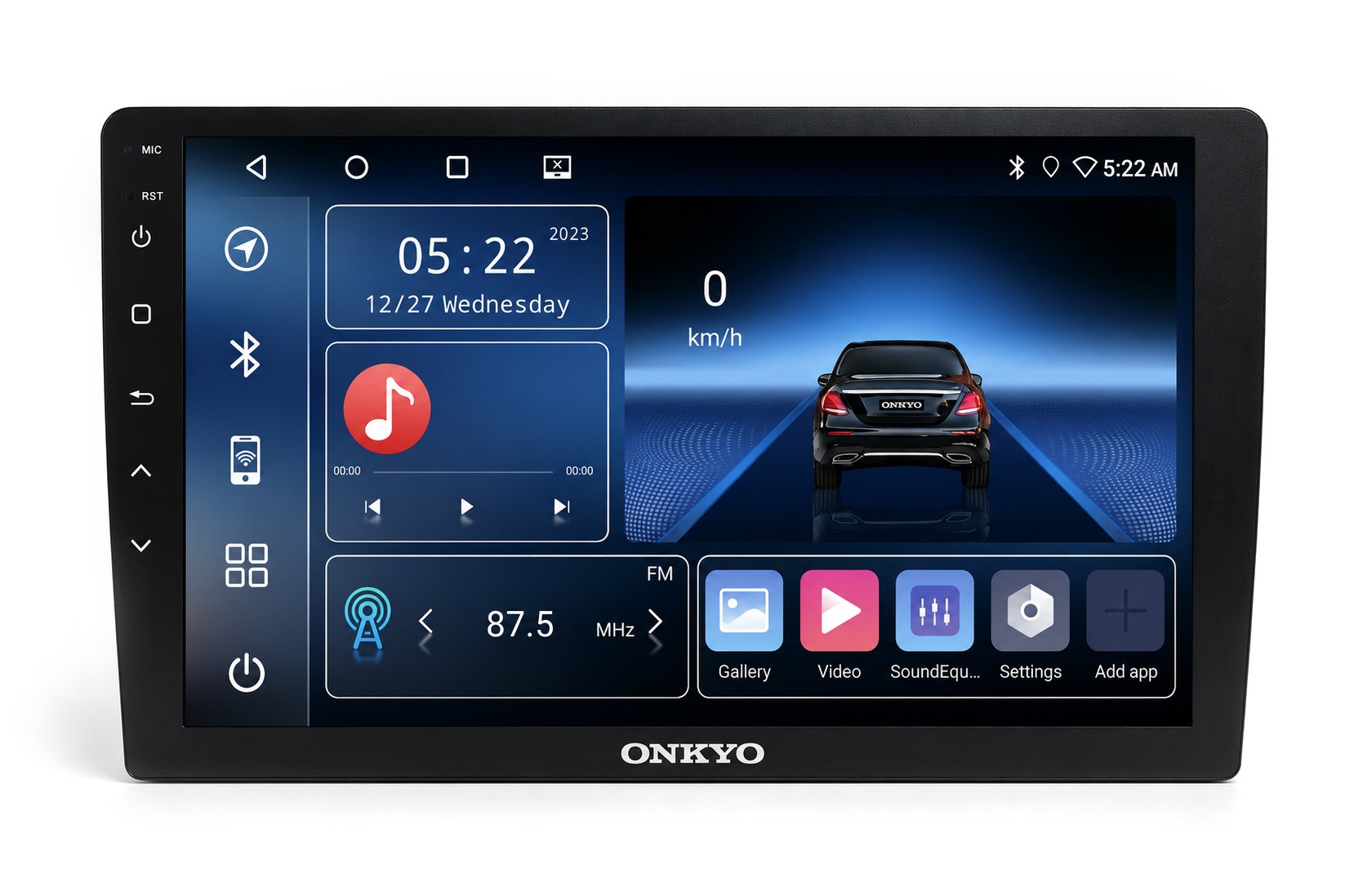

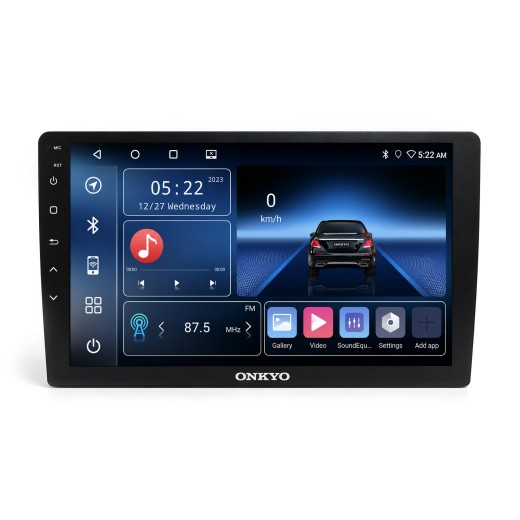

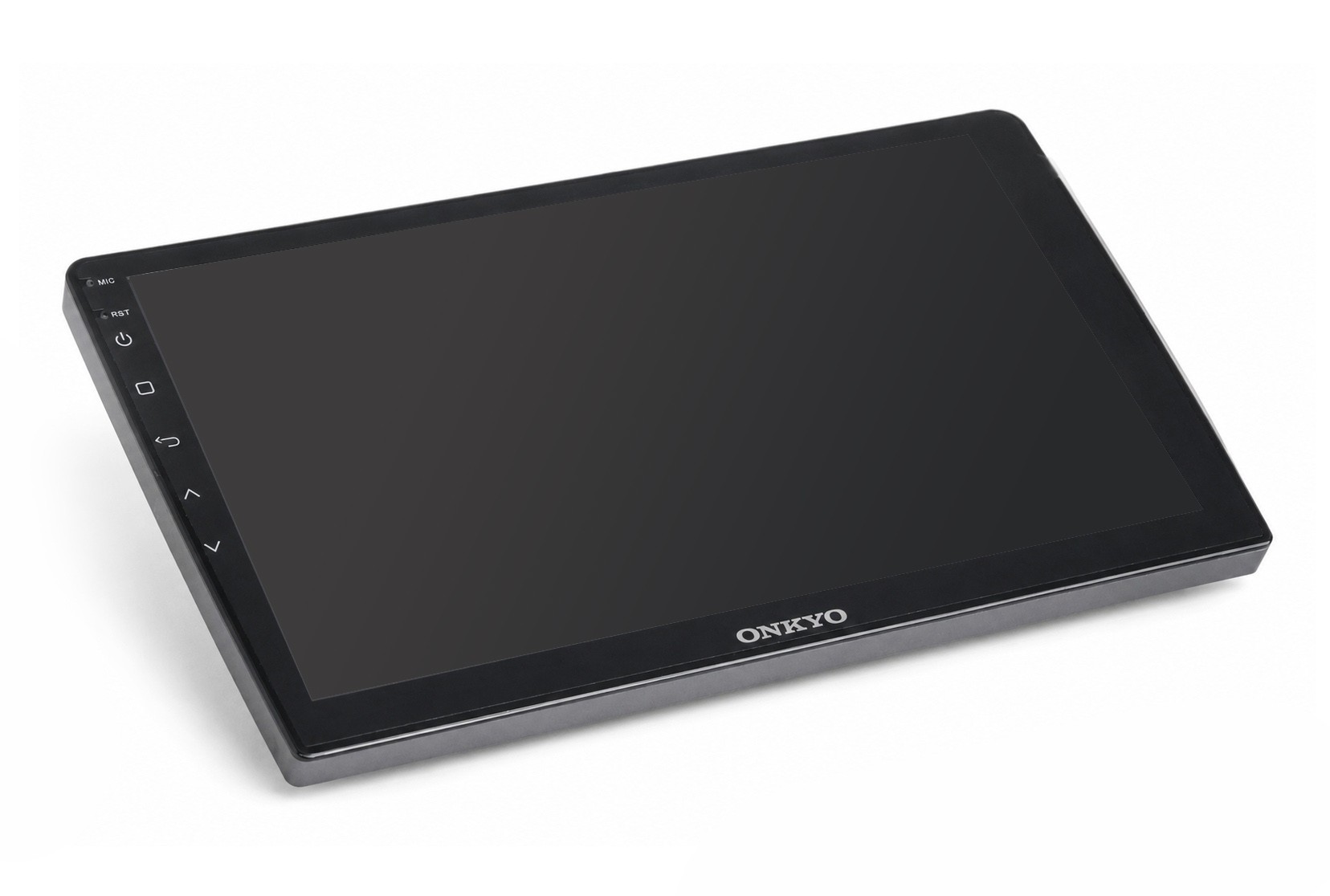

The centerpiece of the Onkyo X-QD1100 is a large capacitive touchscreen with a 10.1" diagonal. The IPS panel used offers a resolution of 1280 × 720 px, up to 500 nits brightness and good viewing angles, which you will appreciate when using navigation, media and other apps while driving. The capacitive technology ensures a natural touch experience similar to a smartphone or tablet and also supports multi-touch gestures. The display supports Picture-in-Picture, allowing selected content to be shown alongside another app. The large display area is especially practical for navigation, parking camera viewing and multimedia apps.
Operační systém Android
The Onkyo X-QD1100 runs OY12.0 based on the Android platform. The user is not limited to preinstalled functions and can install additional compatible APK apps. The radio has 2 GB of RAM and 32 GB of internal storage. The storage can be used for installing apps, map data or other multimedia content. The Android environment enables use of navigation, music and other apps according to user preference. Built-in Wi-Fi or a mobile phone hotspot can be used to connect to the internet.
Integrovaná GPS navigace, Wi-Fi a připojení k internetu
The unit includes a GPS receiver and an external GPS antenna supplied in the package. Thanks to Android, various compatible navigation apps can be used, letting you choose the solution you prefer. The external antenna allows optimal placement in the vehicle for stable GPS reception and reliable positioning. Built-in Wi-Fi enables the radio to connect to available wireless networks or to a phone hotspot. Once online, you can use online navigation, streaming services and other supported Android apps, allowing the radio to operate as a standalone multimedia center without constantly controlling content via a phone.
Bluetooth s externím mikrofonem
Integrated Bluetooth 4.0 + EDR enables wireless pairing with a mobile phone. The radio supports Bluetooth handsfree and wireless music playback via A2DP. A major advantage is the external microphone included in the package. The microphone can be placed in a suitable spot inside the vehicle, for example near the A-pillar or on the upper dashboard, which can provide better voice transmission quality than microphones built into the head unit’s front panel.
MirrorLink, USB a bohatá konektivita

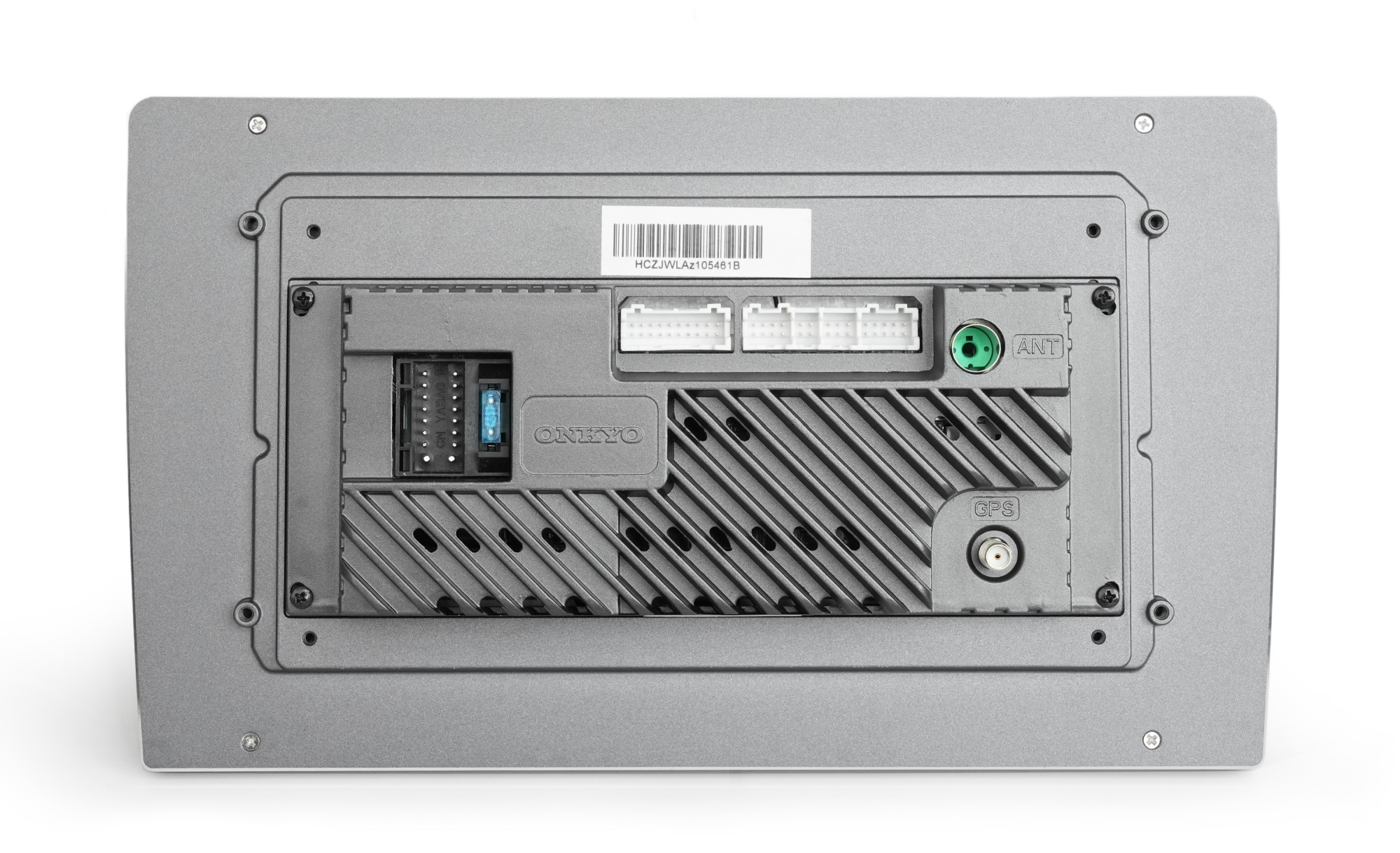

The Onkyo X-QD1100 supports Phone MirrorLink for compatible Android and iOS phones. This feature allows the smartphone to be connected to the multimedia unit and supported phone content to be displayed on the large radio screen. Availability of specific functions may depend on the phone model, OS version and the app used. One practical advantage of the X-QD1100 is its extensive wired connectivity. The package includes a dedicated RCA wiring harness and the radio offers five audio outputs including a dedicated subwoofer output. This makes the radio suitable not only for standard speakers driven by the built-in amplifier but also as a signal source for external amplifiers or an active subwoofer. There are also two audio inputs and one external video input. Two separate USB cables are included. The USB interface can be used for playing multimedia files, connecting compatible accessories or charging mobile devices. The radio supports common audio and video formats including MP3, APE, AAC and FLAC for music and H.264, MP4, AVI, MKV or FLV for video.
Podpora parkovací AHD, DVR a palubní kamery
The Onkyo X-QD1100 supports connection of a parking camera and also supports AHD camera signals up to 720p. When reverse gear is engaged the radio can automatically switch the display to the rear camera, significantly easing parking and maneuvering. The package includes a dedicated cable for connecting a rear parking camera. The radio also supports USB DVR devices and compatible dashcams. Camera previews can be displayed on the radio screen and recording functionality is supported. This expands the multimedia system with an additional practical safety feature without the need for a separate display panel.

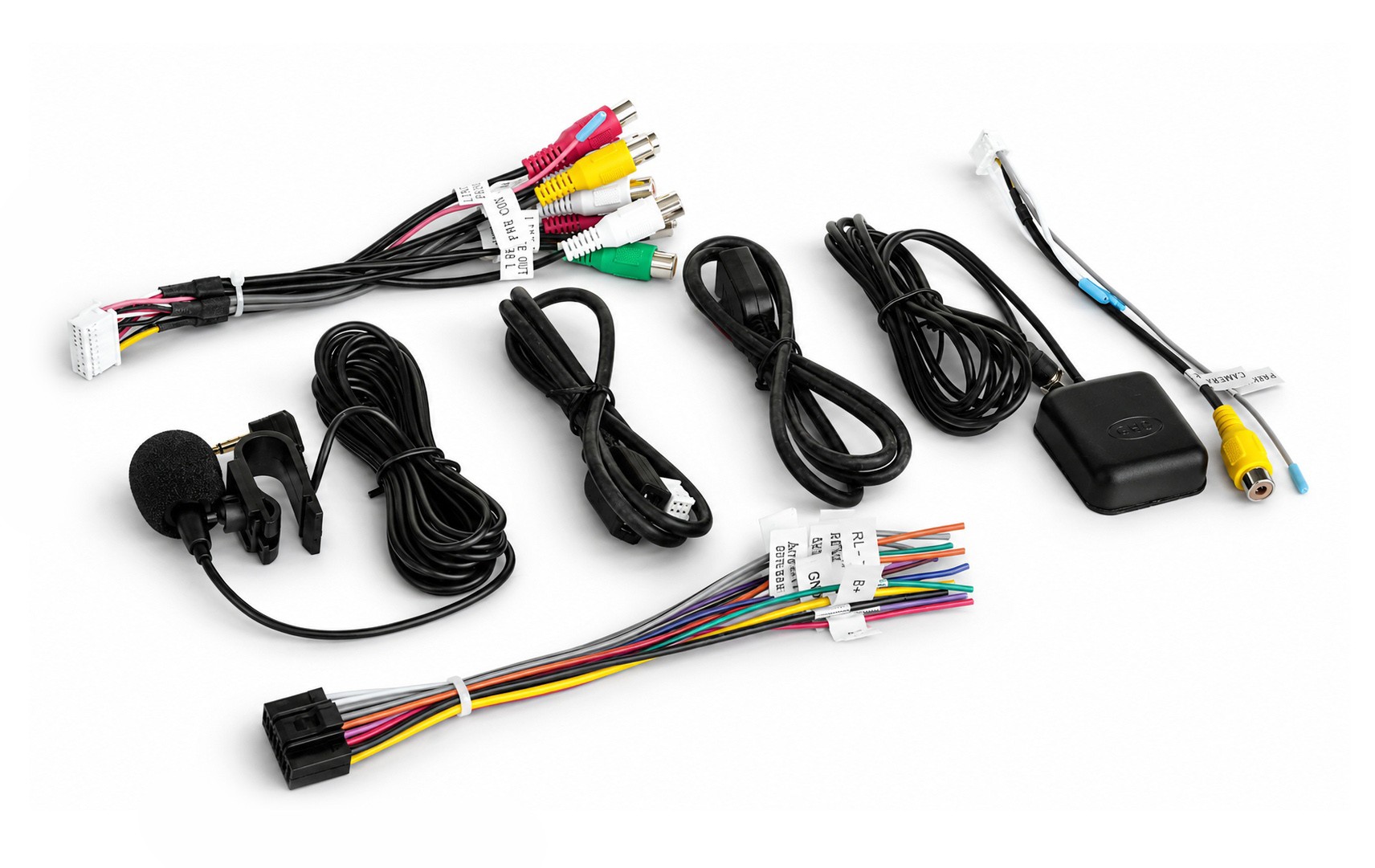

Obsah balení
- Autorádio Onkyo X-QD1100.
- Main power and speaker wiring harness.
- 20-pin RCA wiring harness.
- Cable for connecting a rear parking camera.
- External GPS antenna.
- External microphone with 3.5mm connector.
- USB cable 4P.
- USB cable 6P.
- Mounting screws.
- User manual.
Hlavní vlastnosti
- 10,1" capacitive IPS LCD display.
- Display resolution 1280 × 720 px, display brightness 500 nits.
- Operating system OY12.0 / Android.
- 2 GB RAM, 32 GB internal storage.
- Built-in Wi-Fi and GPS navigation, external GPS antenna included.
- Bluetooth 4.0 + EDR.
- Bluetooth handsfree, Bluetooth audio streaming A2DP.
- External microphone included.
- Phone MirrorLink for Android and iOS.
- Picture-in-Picture.
- 12-band equalizer, built-in amplifier 4 × 50 W max.
- 5× RCA audio outputs, dedicated subwoofer output.
- 2× audio input, 1× video input.
- Support for AHD parking cameras up to 720p.
- Automatic camera display switching when reverse gear is engaged.
- Support for USB DVR / dashcam, 2× USB.
- FM tuner with RDS.
- Steering wheel control support.
- Playback of FLAC, MP3, APE and AAC, H.264, MP4, AVI, MKV and FLV.

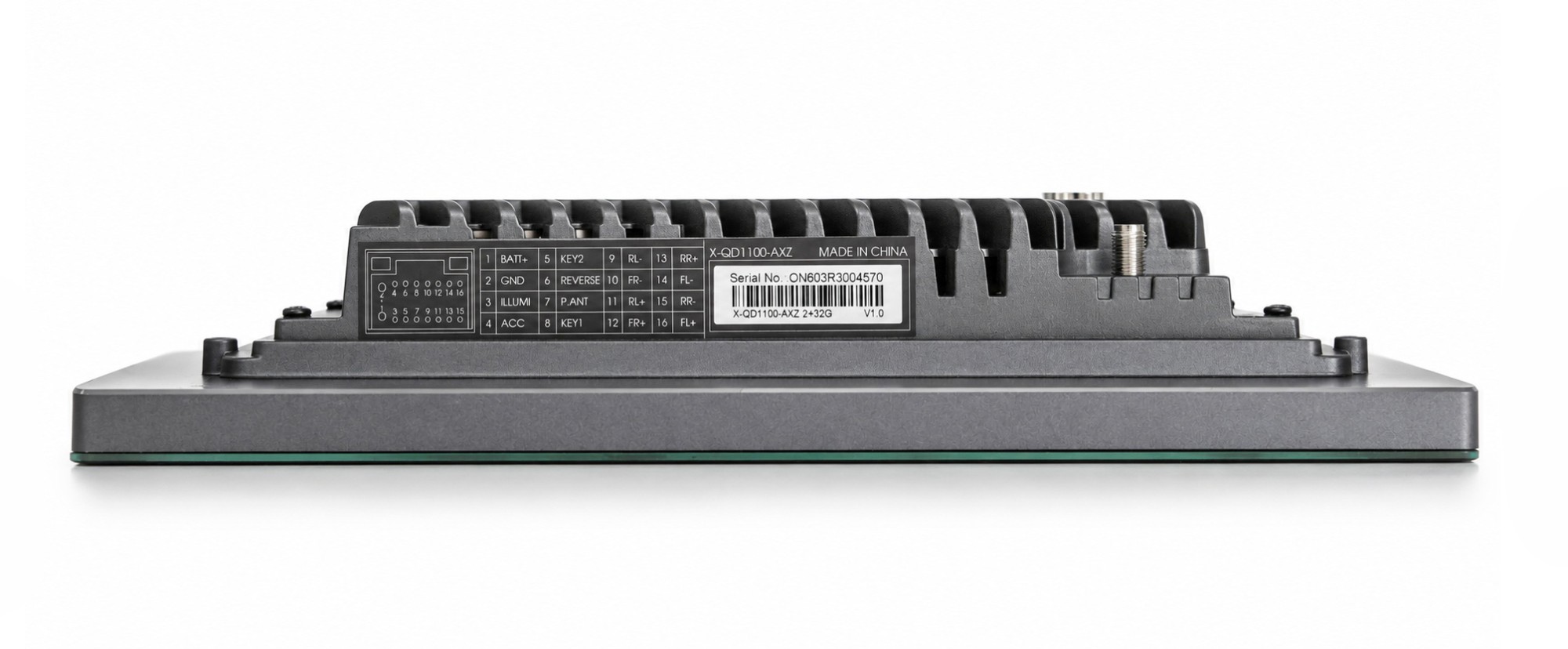

- Installation depth only 42 mm.
| Catalog number | X-QD1100-10 |
| Brand | Onkyo |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 10" HD |
| Controls | Touchscreen |
| Operating system | Android 12 |
| Memory | 2 GB RAM / 32 GB internal memory |
| Radio tuner | FM / RDS |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes, dual |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3/ APE/AAC/FLAC |
| Supported video formats | H.264, MP4, AVI, MKV and FLV up to 1080p resolution |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Phone mirroring | MirrorLink |
| Navigation | Yes, via Android OS |
| Wi-Fi | Yes |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| DSP processor | No |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 1 pair |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2 V |
| Additional inputs and outputs | AUX, AV IN |
| Camera support | rear AHD 720p, DVR |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
| Installation depth | 42 mm |
