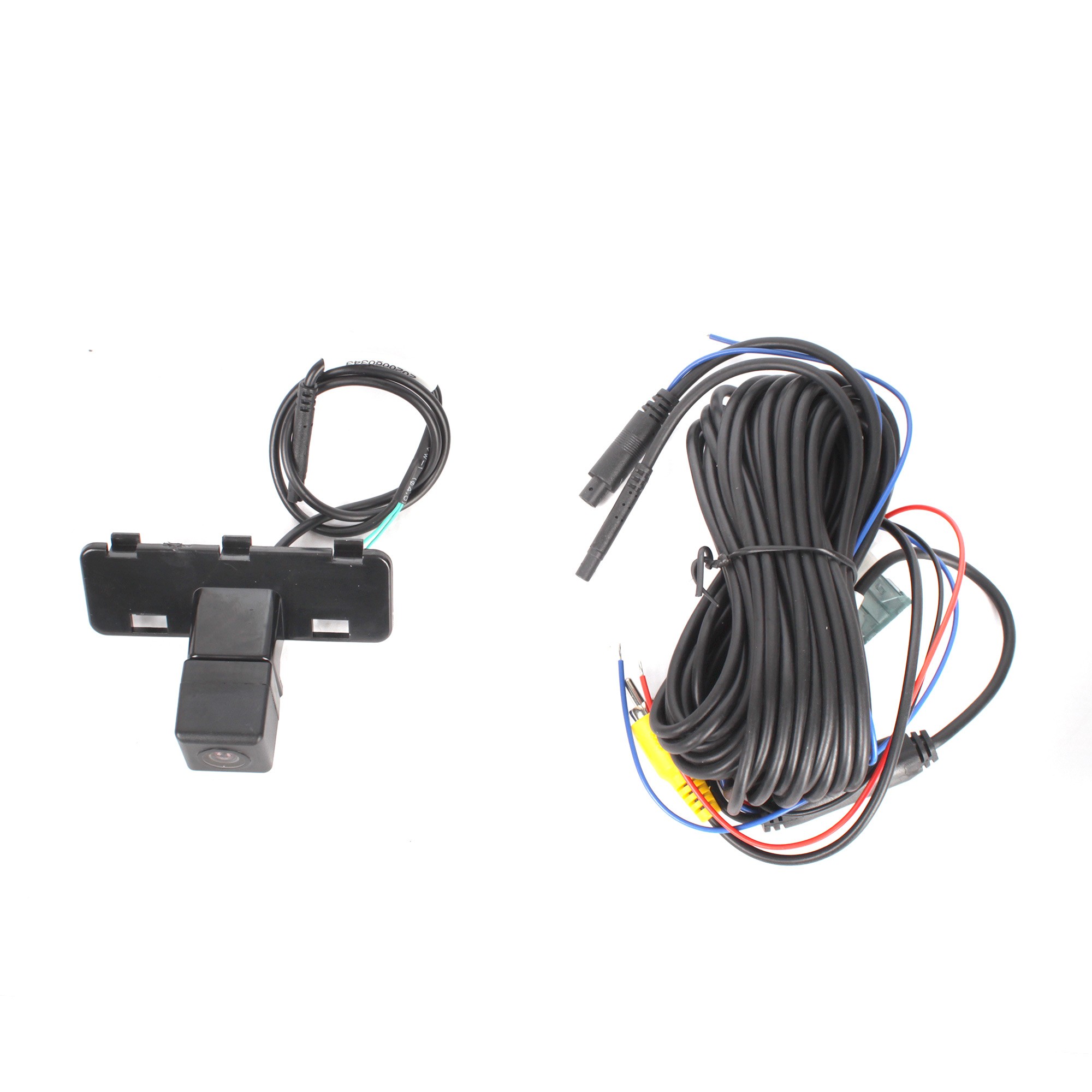

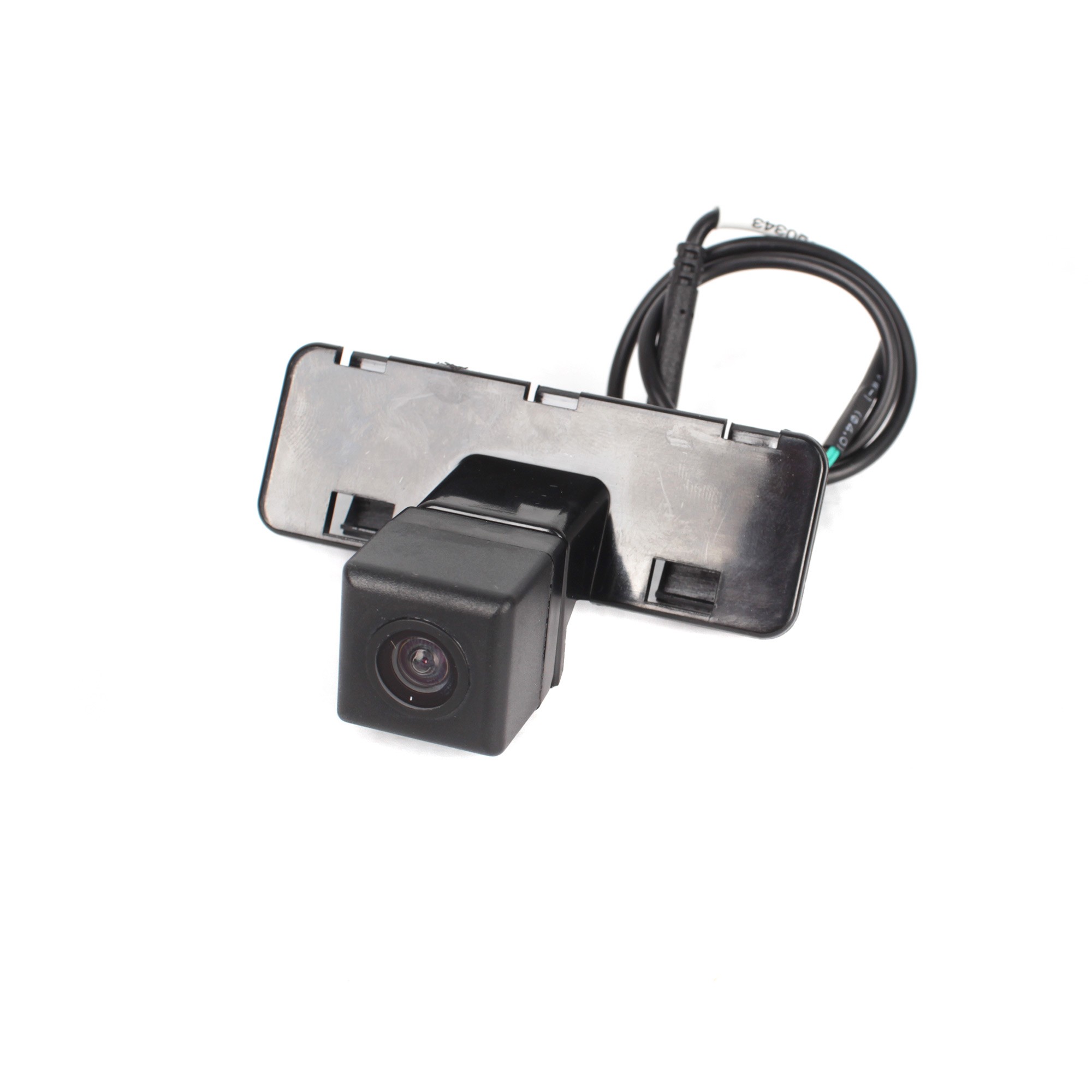

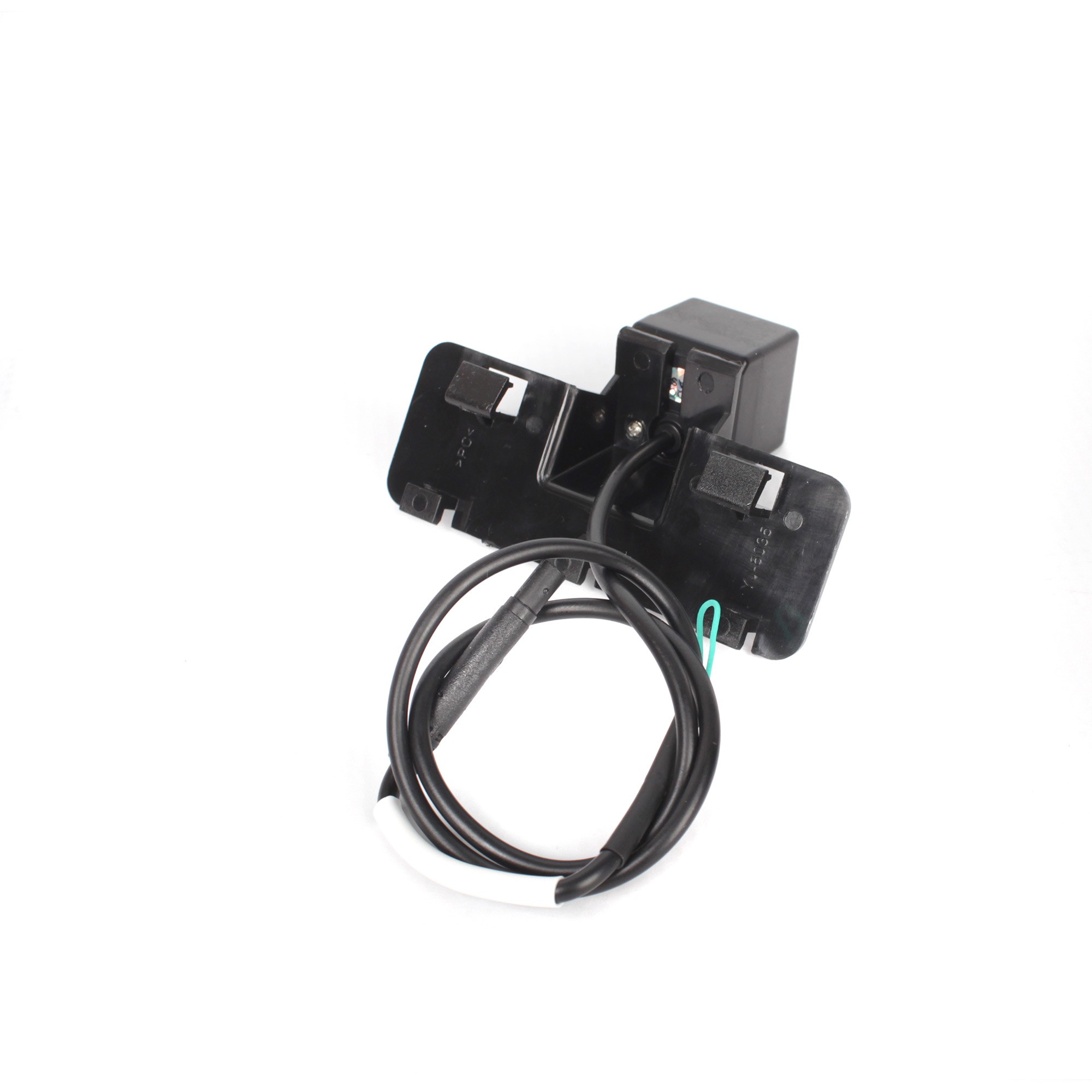

OEM Suzuki parking camera (BC SUZ-12)

OEM parking camera for Suzuki

OEM color parking camera designed to fit the original opening for a parking camera. For Suzuki Swift, Grand Vitara, SX4 S-Cross vehicles.

The camera is suitable for the following vehicles:

• Suzuki Swift III. (2010->)
• Suzuki Grand Vitara II (2005->)
• Suzuki SX4 S-Cross

Technical specifications

• image sensor: CMOS 1/3"
• option to turn on / off the display of guiding trajectories (guide lines)
• electronic shutter: 1/60 1/10000 sec.
• minimum illumination: 0.05 lux
• signal-to-noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal viewing angle: 120°
• image display: mirrored
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cable: 30 cm
• video output: 1.0 V / 75 ohm
• power supply: 12 V DC
• power consumption: <1 W

Dimensions

• base: 83 x 29 mm
