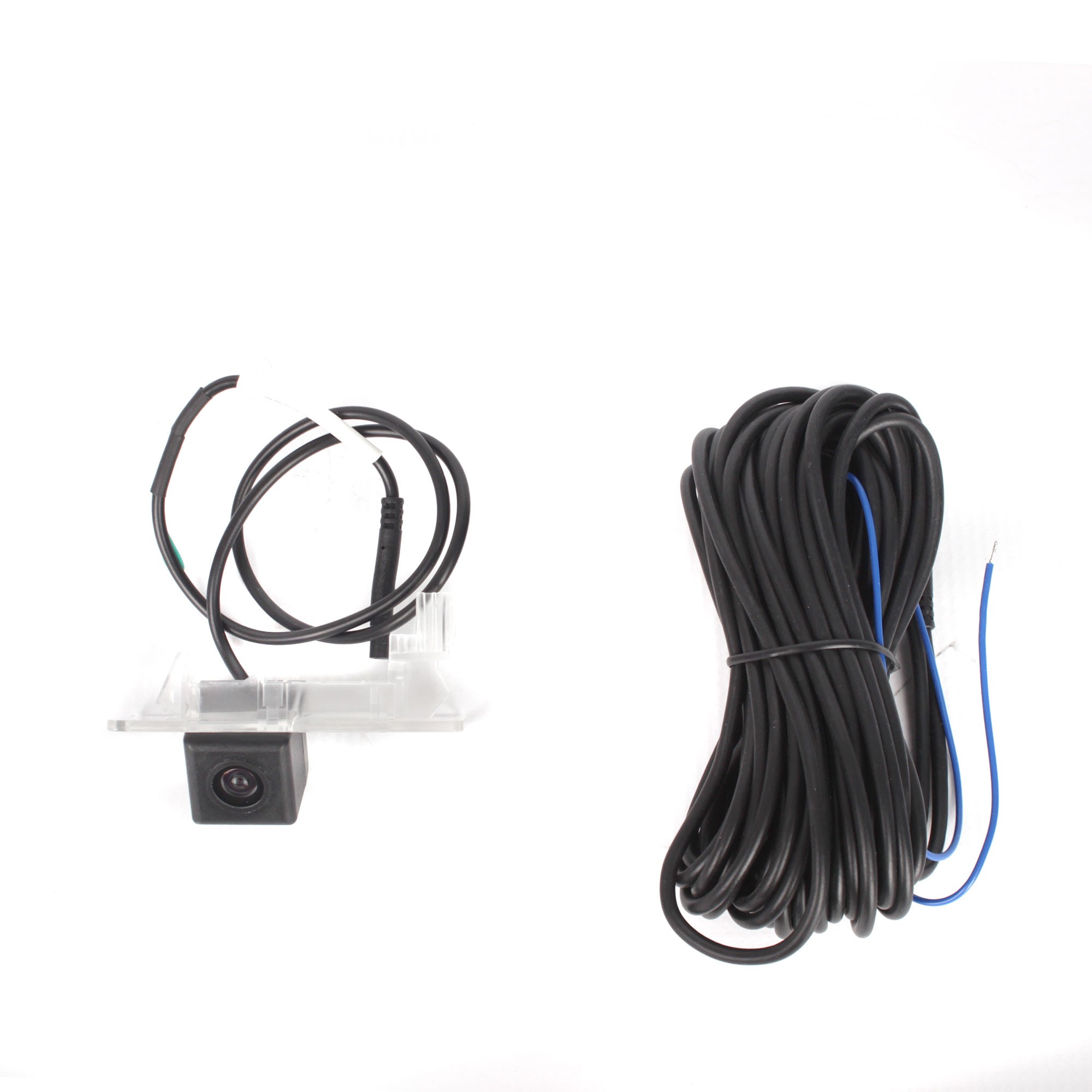

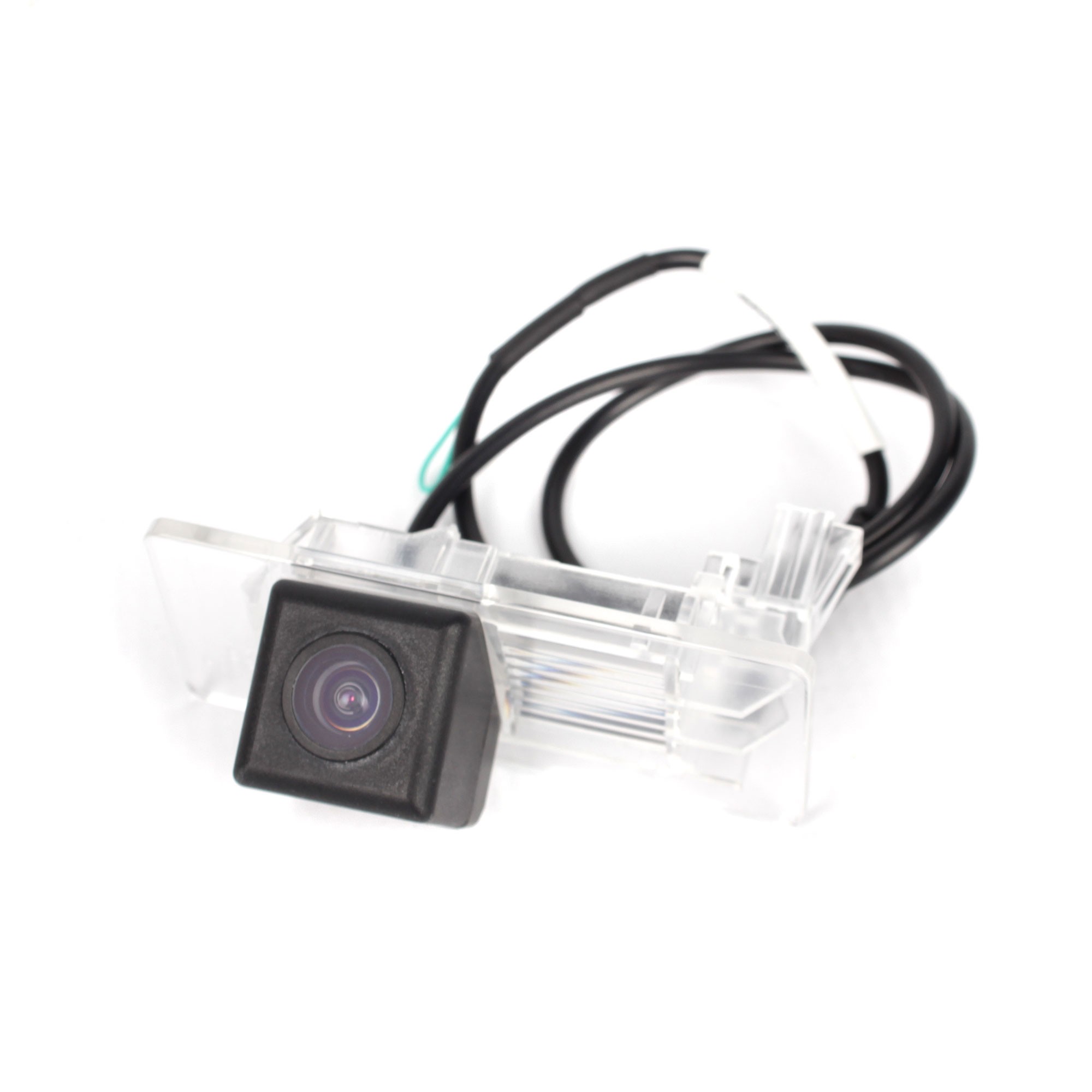

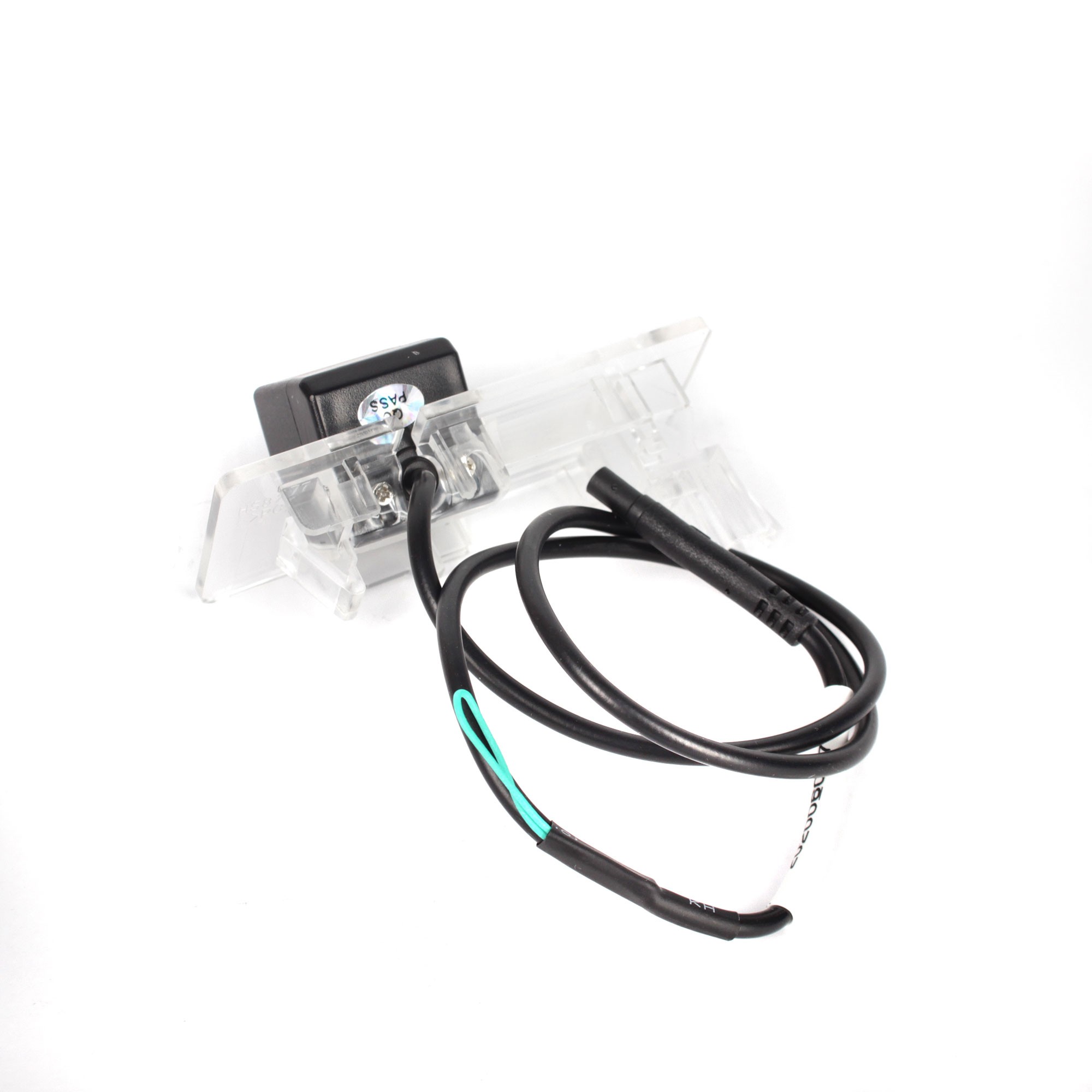

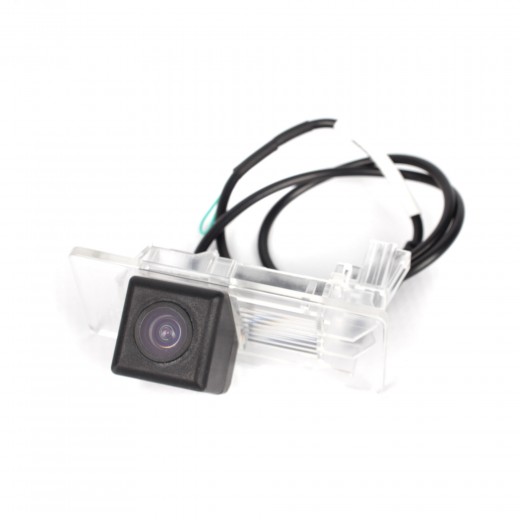

OEM parking camera for VW, Škoda and Seat
OEM color parking camera for installation in place of rear license plate light. The camera includes a socket for placing the bulb from the original license plate light.
Camera suitable for the following vehicles:
- Škoda Superb II Combi (3/2008 ->)
- Skoda Rapid [NH] (10/2012 ->)
- Škoda Octavia III (2013 ->)
- Skoda Yeti (2012 ->)
- Škoda Citigo (10/2011 ->)
- VW Polo IV. (2005 -> 2009)
- VW Jetta
- VW Golf V. (10/2003 ->)
- VW Pheaton
- VW Beetle
- VW Passat (2011 ->)
- VW Passat B6 (2005 ->)
- VW Sharan II. (2010 ->)
- Seat Leon [1P] (2005 ->)
- Seat Altea XL
Technical parameters of the OEM camera for Volkswagen, Škoda and Seat:
- sensing sensor: PC3089 1/3"
- the option to turn on / off the display of auxiliary trajectories (guide lines)
- electronic aperture: 1/60 1/10000 sec.
- minimum illumination: 0.1 lux
- signal / noise ratio: > 48 dB
- TV system: NTSC
- number of TV lines: 600
- effective pixels: 668 × 576
- weather protection: IP67
- scanning angle: 170°
- camera body: durable plastic "private housing"
- image display: mirror image
- white balance: automatic
- operating temperature: from -30°C to +70°C
- AGC, BLC, white balance: automatic
- signal cable: length 6.2 m terminated with CINCH / RCA connector
- video output: 1.0V / 75 ohm
- power cable length: 1 m
- power supply: 12 V DC
- consumption: <1W
Camera dimensions:
- base: 33 x 76 mm
Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
| Catalog number | BC VW-90 2 |
| Brand | TSS Group |
