OEM parking camera Volkswagen, Skoda, Audi, Porsche (BC VW-03)
Audi A3 [8V] (4/12->), A4 [B8] (08->), A5 Coupe [8T] (6/07->), A5 Sportback [8T] (9/09->), A6 (12->), Q3 [U8] (6/11->), Q5 (07->) / Porsche Cayenne II. (10->) / Skoda Octavia III. sedan (13->) / VW Golf V. (10/03->) Variant (combi), Passat B7 [362] (8/10->) sedan, Passat B7 [365] (8/10->) Variant , Tiguan [5N] (5/07->), Touran II. [1T3] (10->)
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

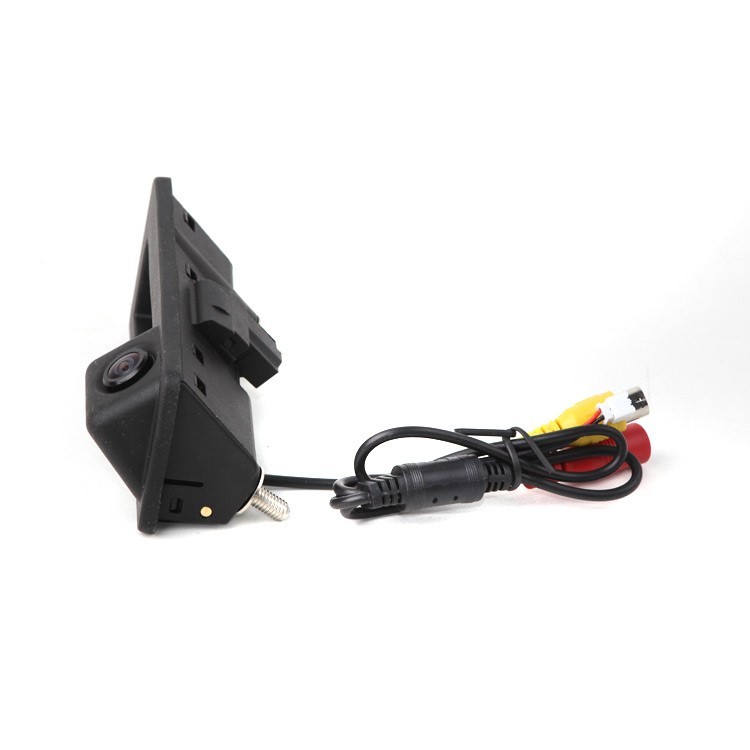

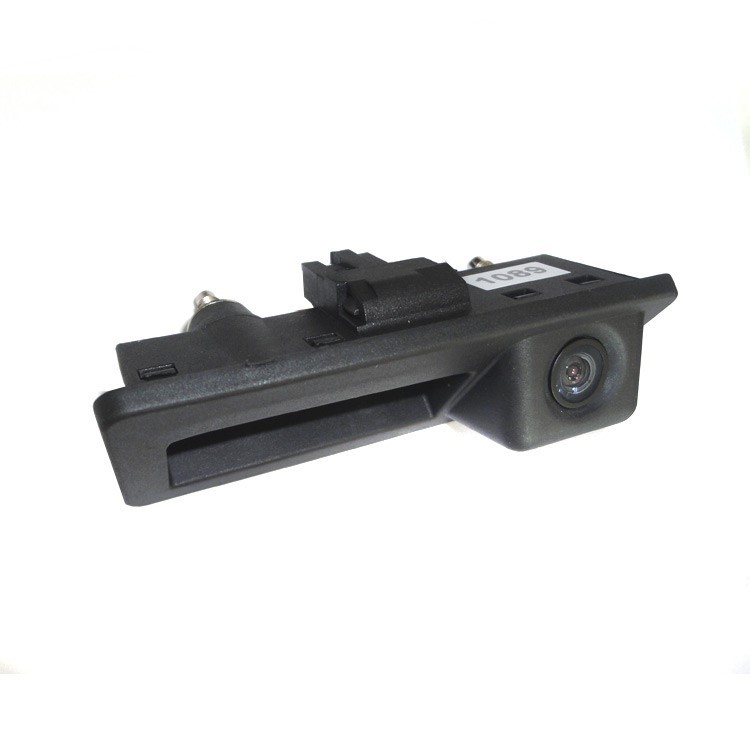

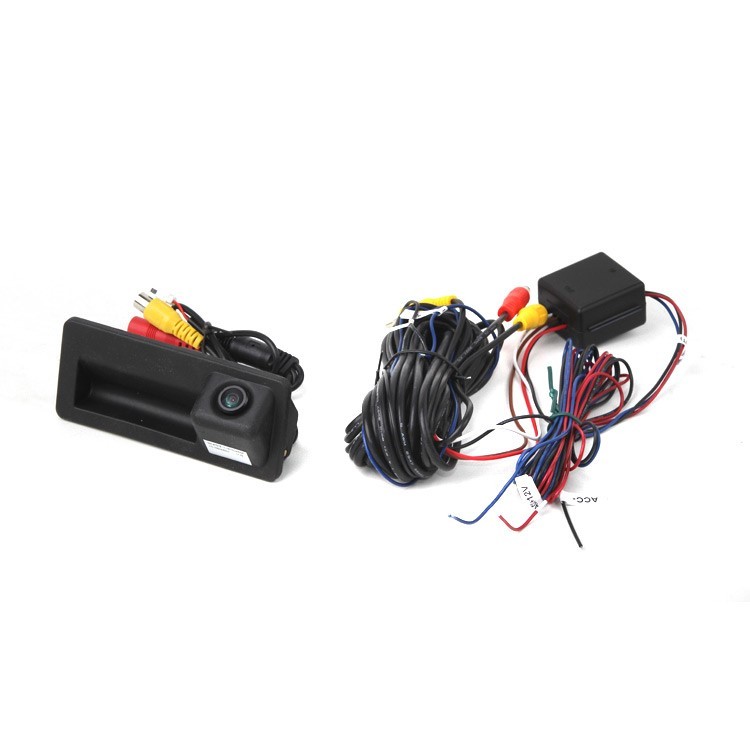

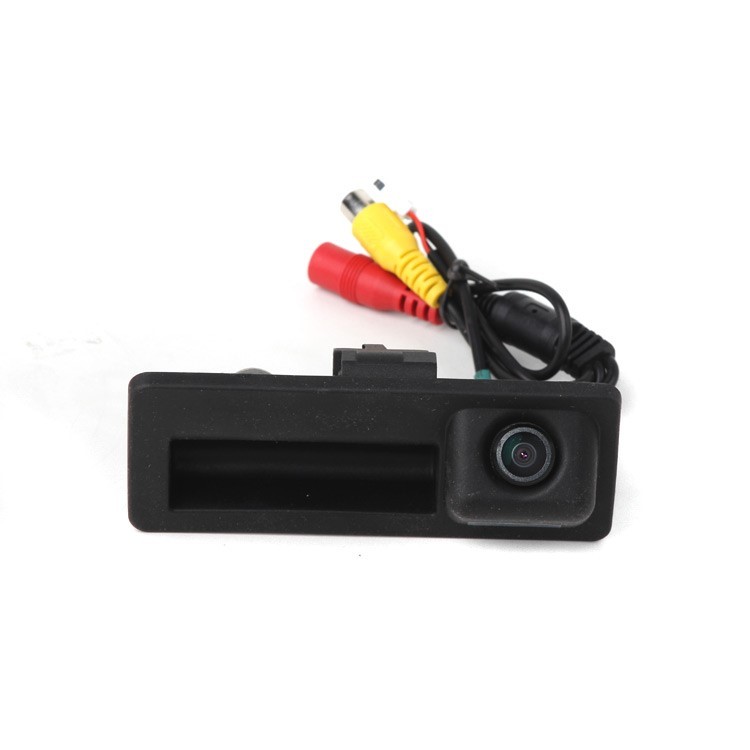

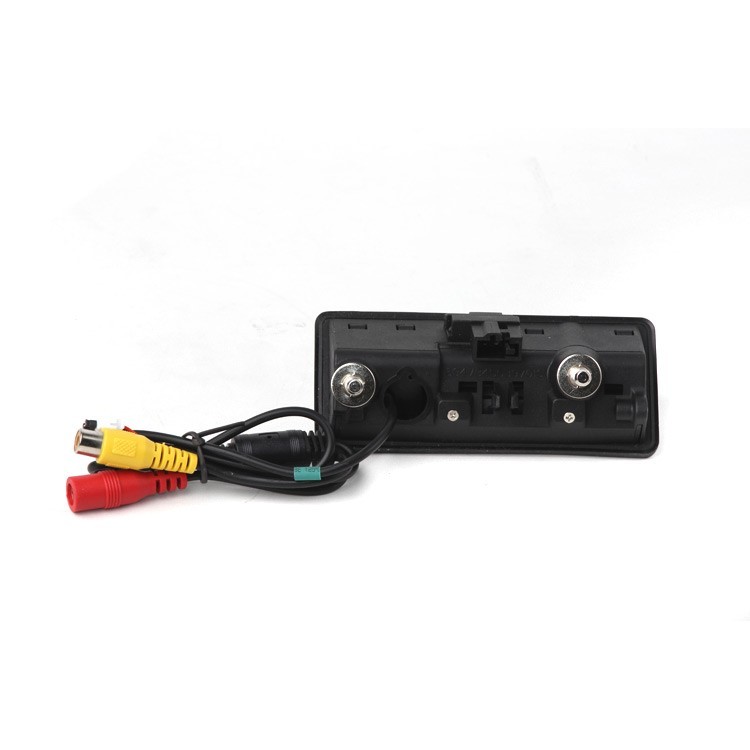

OEM parking camera for VW, Skoda, Porsche, Audi
OEM color parking camera installed in the fifth door opening handle.
Camera suitable for the following vehicles:
- Audi A3 [8V] (4/2012 ->)
- Audi A4 [B8] (2008 ->)
- Audi A5 Coupe [8T] (6/2007 ->)
- Audi A5 Sportback [8T] (9/2009 ->)
- Audi A6 (2012 ->)
- Audi Q3 [U8] (6/2011->)
- Audi Q5 (2007->)
- Porsche Cayenne II. (2010 ->)
- Škoda Octavia III sedan (2013 ->)
- VW Golf V. (10/2003 ->) Variant
- VW Passat B7 [362] (8/2010 ->) - sedan
- VW Passat B7 [365] (8/2010 ->) - Variant
- VW Tiguan [5N] (5/2007 ->)
- VW Touran II. [1T3] (/2010 ->)
Technical parameters of OEM cameras for VW, Skoda, Porsche, Audi:
- sensing sensor: PC3089 1/3"
- the option to turn on / off the display of auxiliary trajectories (guide lines)
- electronic aperture: 1/60 1/10000 sec.
- minimum illumination: 0.1 lux
- signal / noise ratio: > 48 dB
- TV system: NTSC
- number of TV lines: 600
- effective pixels: 668 × 576
- weather protection: IP67
- scanning angle: 170°
- camera body: durable plastic "private housing"
- image display: mirror image
- white balance: automatic
- operating: from -30°C to +70°C
- AGC, BLC, white balance: automatic
- signal cable: length 6.2 m terminated with CINCH / RCA connector
- video output: 1.0V / 75 ohm
- power cable length: 1 m
- power supply: 12 V DC
- consumption: <1W
Camera dimensions:
- base: 48 x 110 mm
- pitch of mounting screws: 72 mm
Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
| Catalog number | BC VW-03 |
| Brand | TSS Group |
