OEM parking camera Skoda Octavia 2 (BC SKO-03)

OEM parking camera for Skoda Octavia II

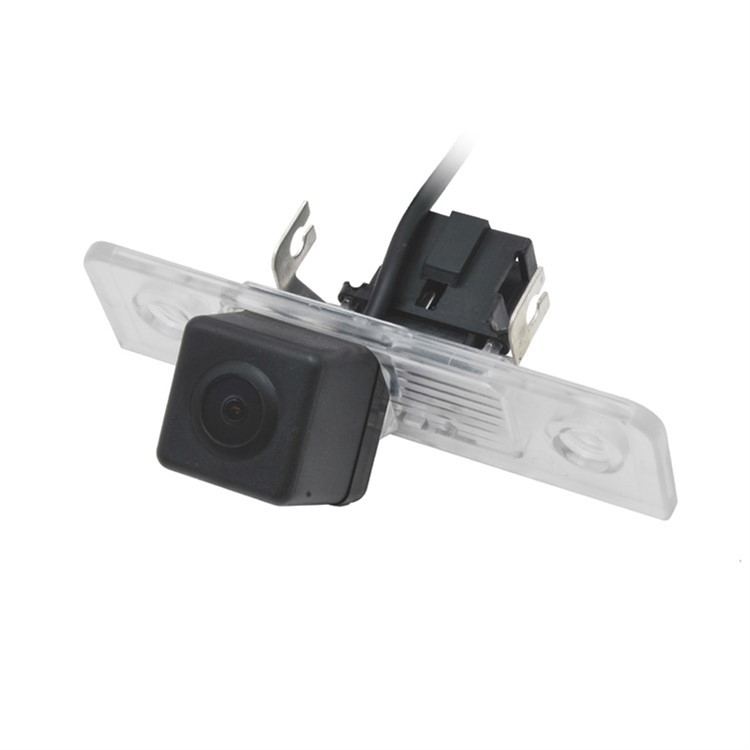

OEM color parking camera for installation in the rear license plate lamp. The camera includes contacts for placing the original bulb and a connector for connecting the supply wires for lighting the license plate.

Camera suitable for the following vehicles:

• Skoda Octavia II (2009 -> 2012) after facelift

Technical parameters of the OEM camera for Škoda Octavia 2:

• sensing sensor: PC3089 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.1 lux
• signal/noise ratio: > 48dB
• TV system: NTSC
• number of TV lines: 600
• effective pixels: 668 × 576
• weather protection: IP67
• scanning angle: 170°
• camera body: durable plastic "private housing"
• image display: mirror image
• white balance: automatic
• operating temperature: from -30°C to +70°C
• AGC, BLC, white balance: automatic
• signal cable: length 6.2 m terminated with CINCH / RCA connector
• video output: 1.0V / 75 ohm
• power cable length: 1 m
• power supply: 12 V DC
• consumption: <1W

Camera dimensions:

• base: 25 x 90 mm
• pitch of screw holes: 66.2 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
