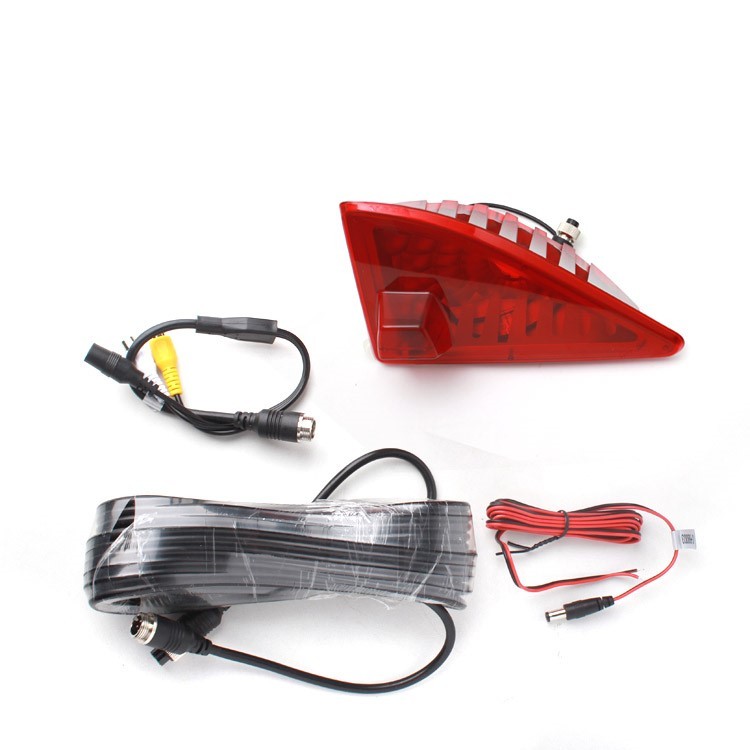

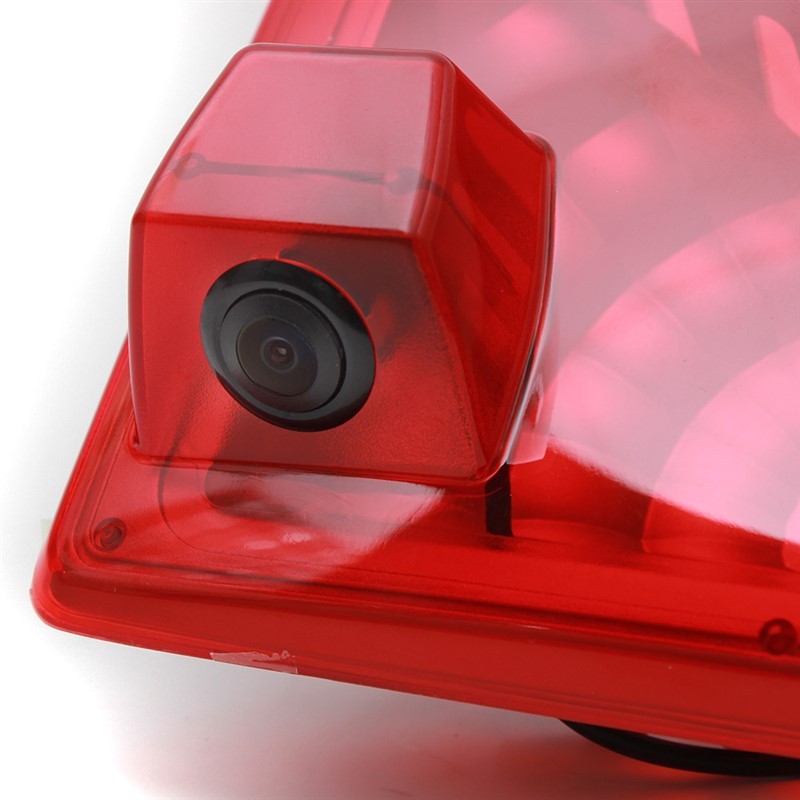

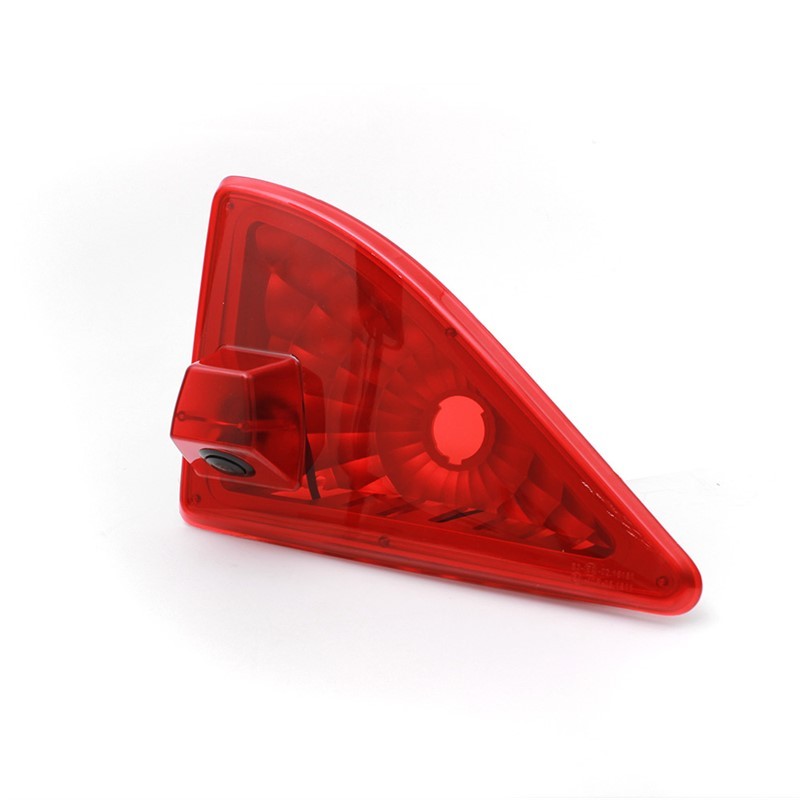

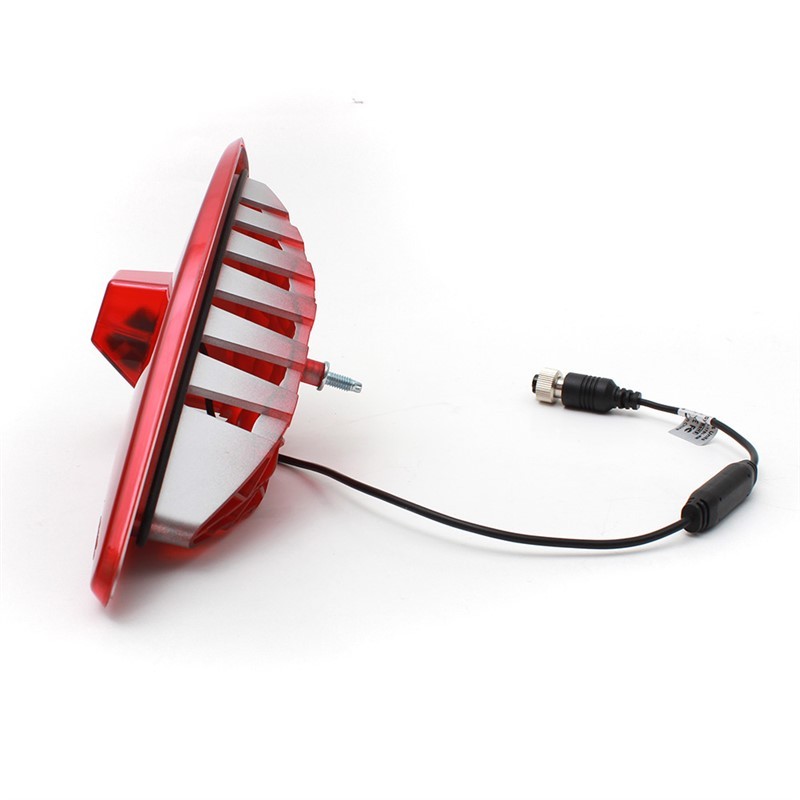

OEM parking camera Renault, Opel, Nissan (BC REN-04)

OEM parking camera for Renault, Opel, Nissan

Parking camera integrated in the central brake light, installed above the rear wing door for vans.

Camera suitable for the following vehicles:

• Renault Master III. [JV][FV] (2/2010 ->)

• Opel Movano B (5/2010 ->)

• Nissan NV400 (11/2011 ->)

Technical parameters of OEM cameras for Renault, Opel, Nissan:

• sensor: HD SONY CCD 1/3"
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.1 lux (0 lux when LEDs are on)
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 600
• effective pixels: 752x494
• weather protection: IP67
• scanning angle: 120°
• image display: mirror image
• white balance: automatic
• operating temperature: from -30°C to +70°C
• signal cable: length 10 m terminated with CINCH / RCA connector
• video output: 1.0V / 75 ohm
• power cable: length: 1 m
• power supply: 12 V DC
• consumption: <1W

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
