OEM parking camera for Renault, Opel, Nissan

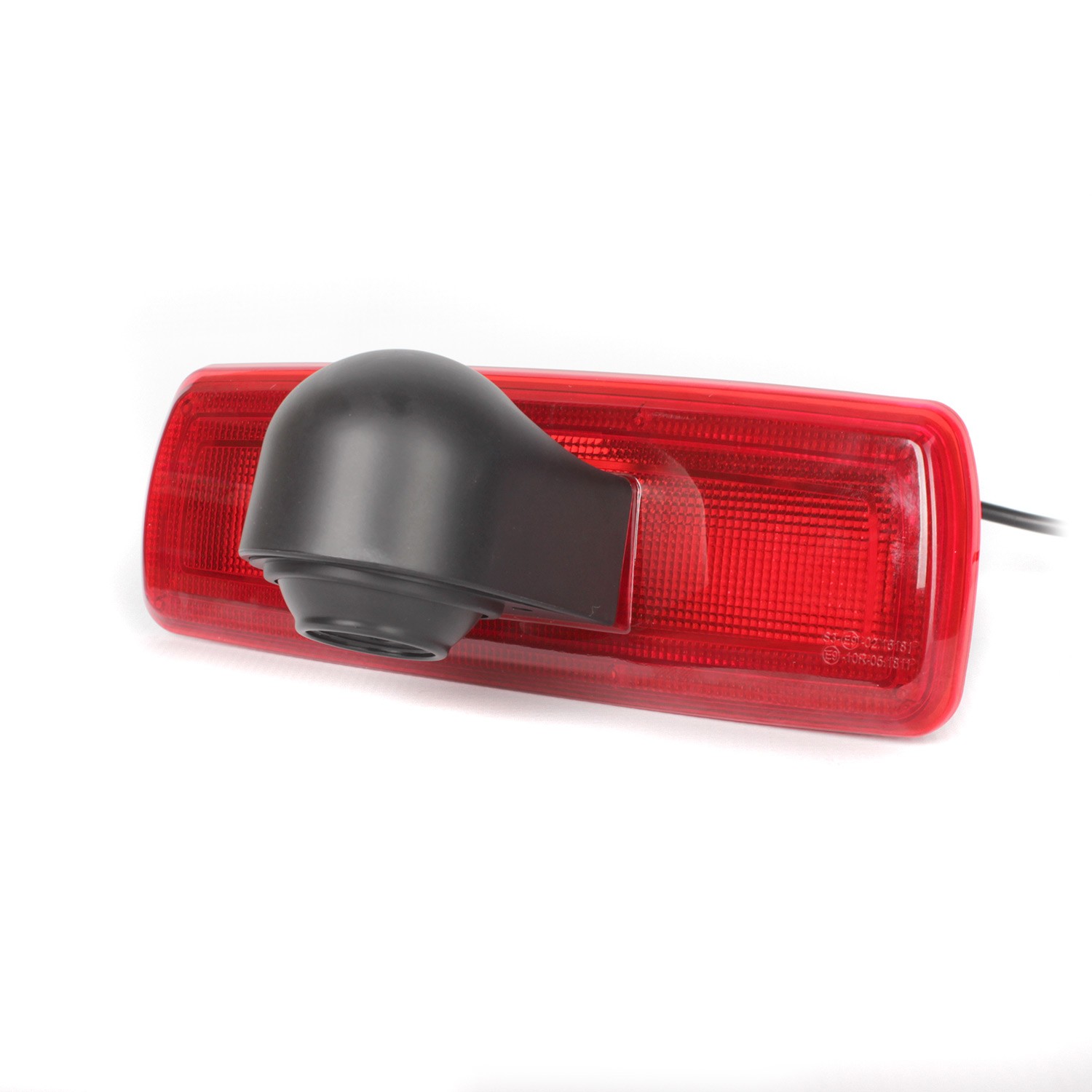

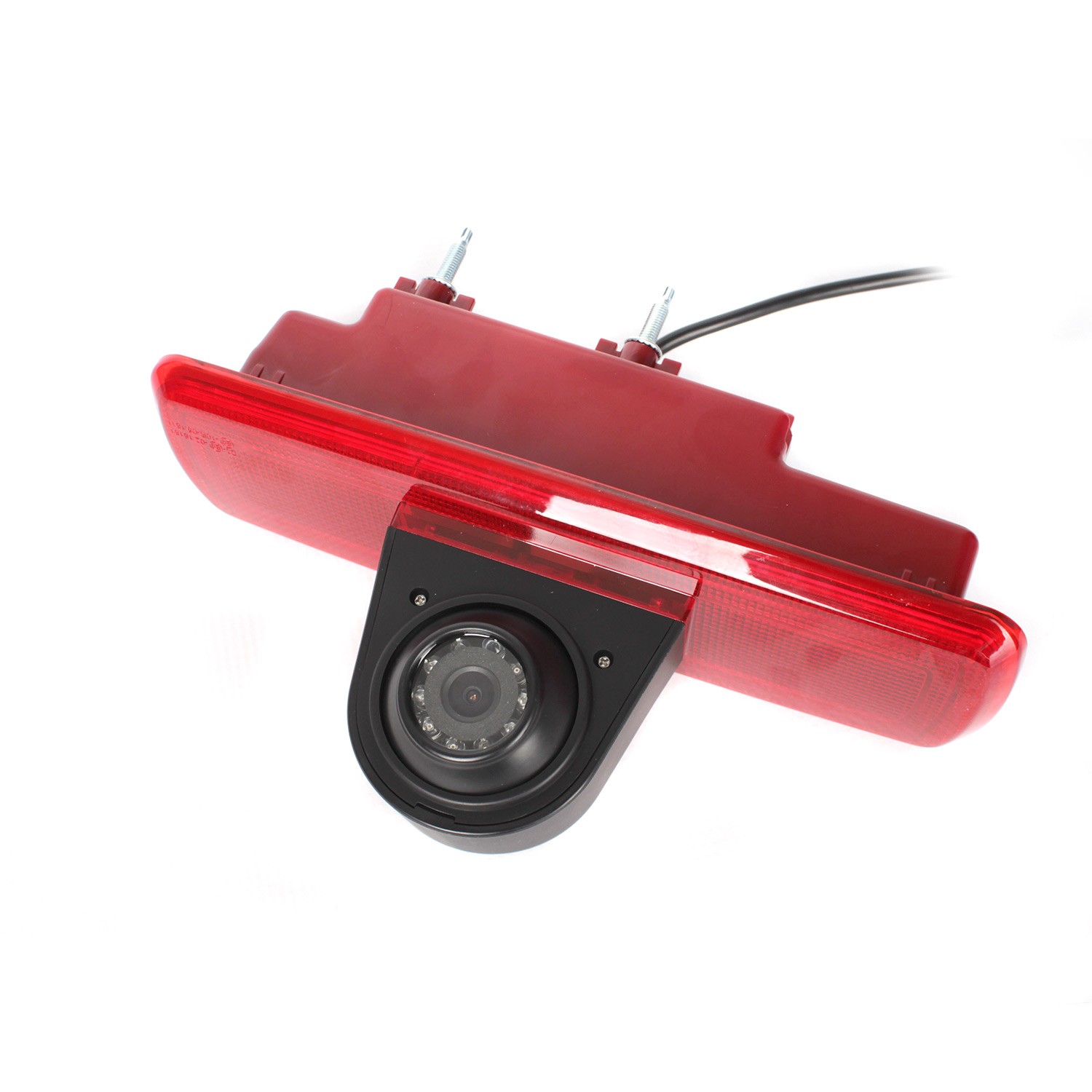

CCD parking camera integrated in the central brake light installed above the rear wing door for vans.
Camera suitable for the following vehicles:
- Renault Trafic III. (2014 ->)
- Opel Vivaro II. (2014 ->)
- Nissan NV300 (2016 ->)
Technical parameters of OEM cameras for Renault, Opel, Nissan:
- CCD Sharp 1/4" sensor chip
- illumination with IR LEDs (6 pcs.)
- lens diameter 14 mm
- electronic aperture: 1/50 1/10000 sec.
- minimum illumination: 0.1 lux
- signal-to-noise ratio: >48 dB
- TV system: NTSC
- number of TV lines: 420
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V /75 ohm
- white balance: automatic
- operating temperature: from -30°C to +70°C

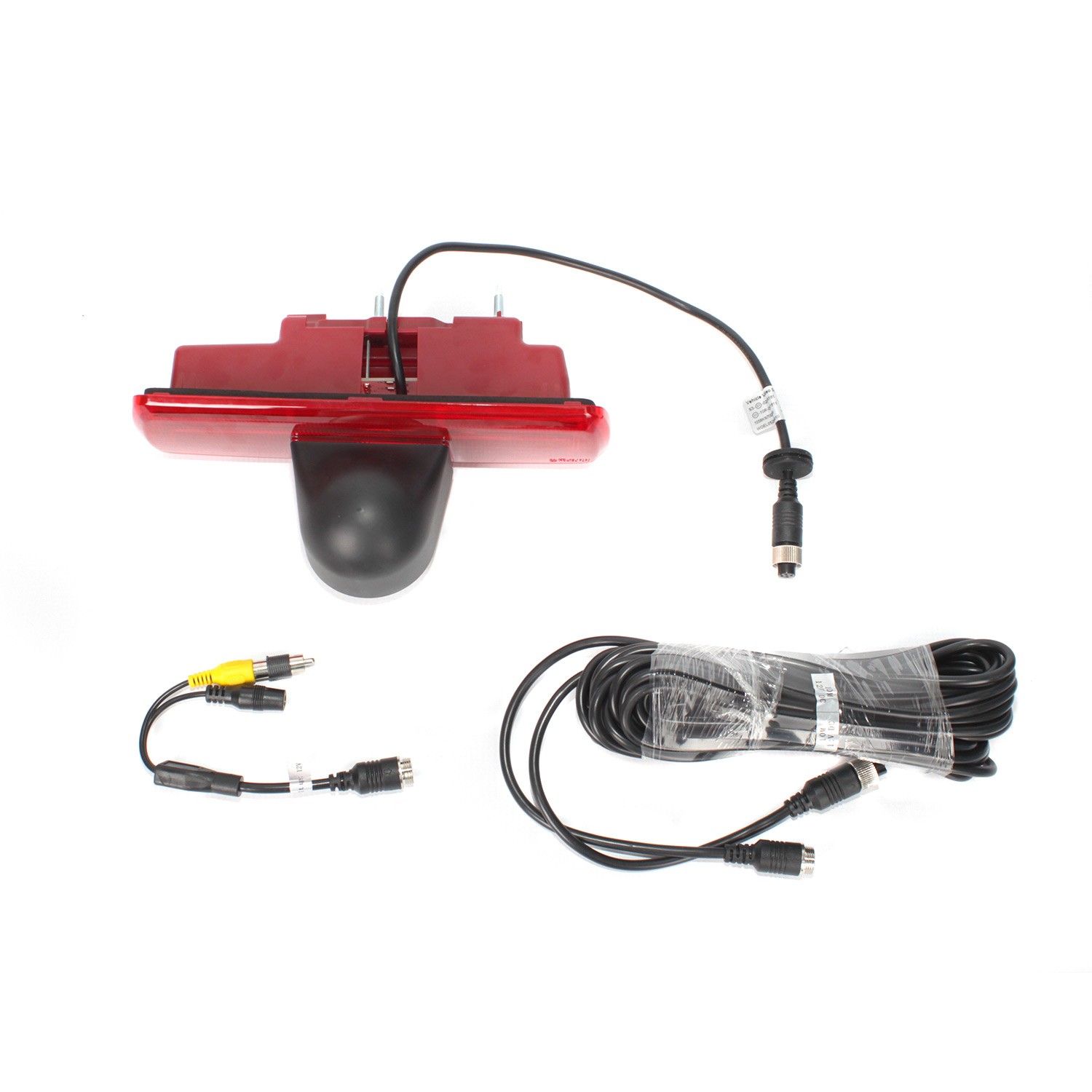

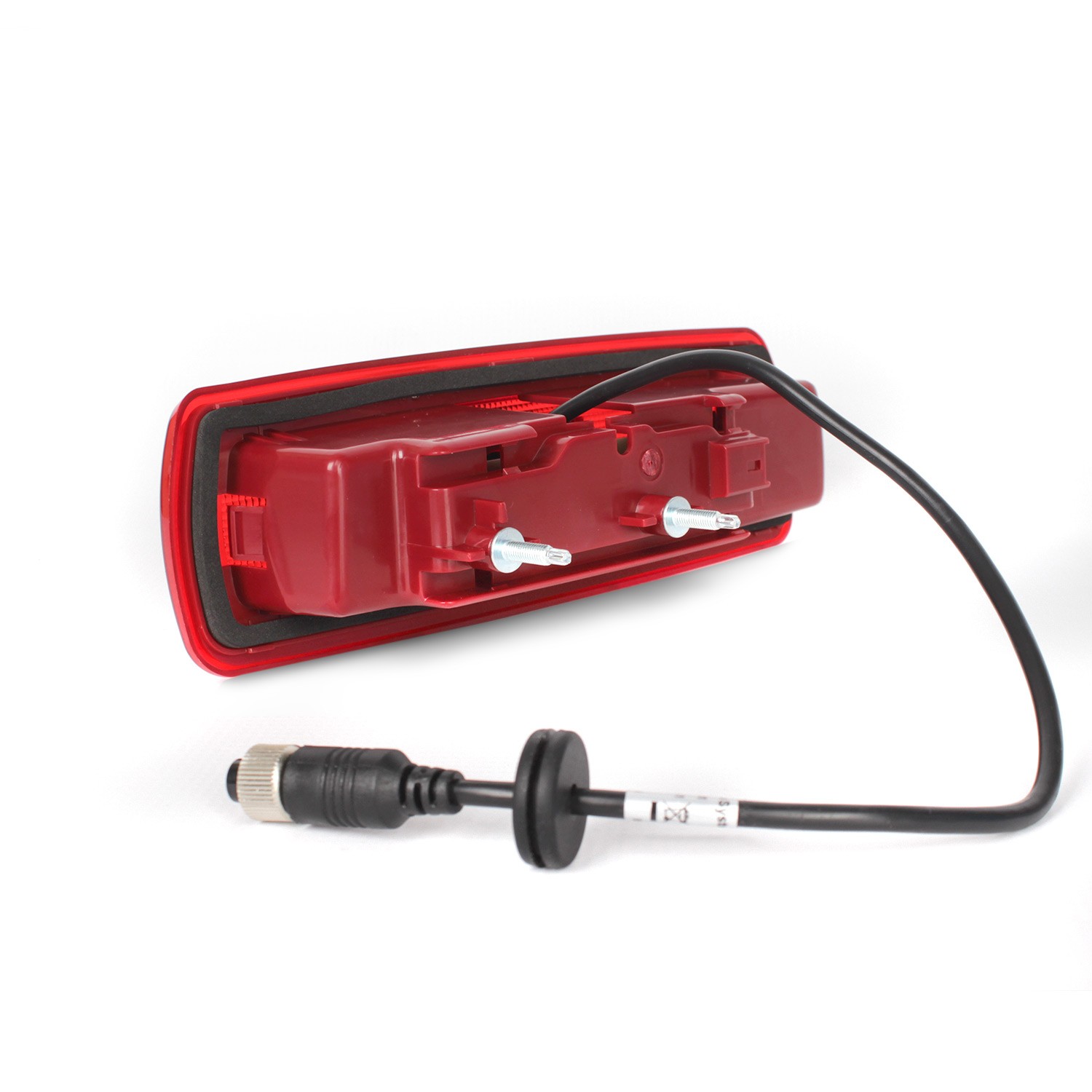

- power and signal cable for the camera: approx. 80 cm
- signal cable length: 10 m terminated with CINCH connectors
- power cable length: 1 m
Note:
Compatibility must be checked according to vehicle design!
Catalog number | BC REN-03 |
Brand | TSS Group |
