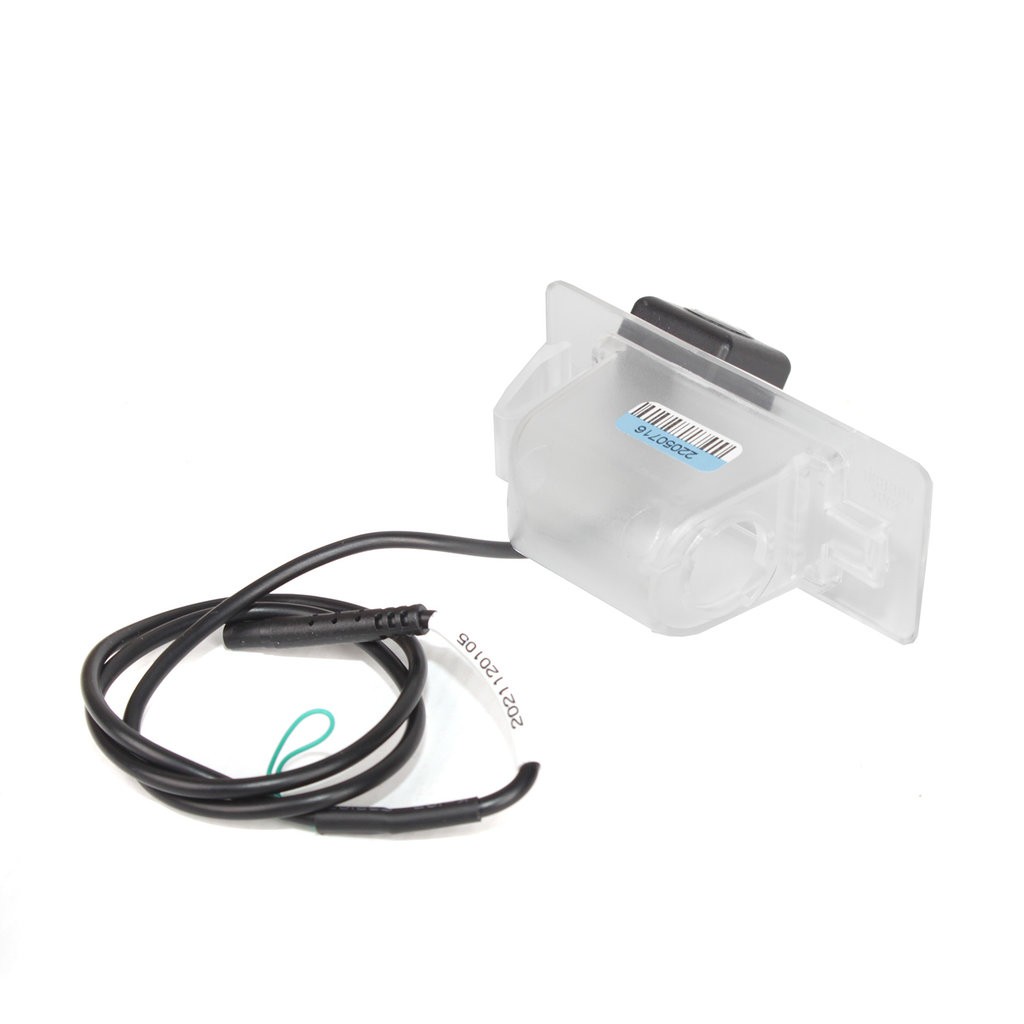

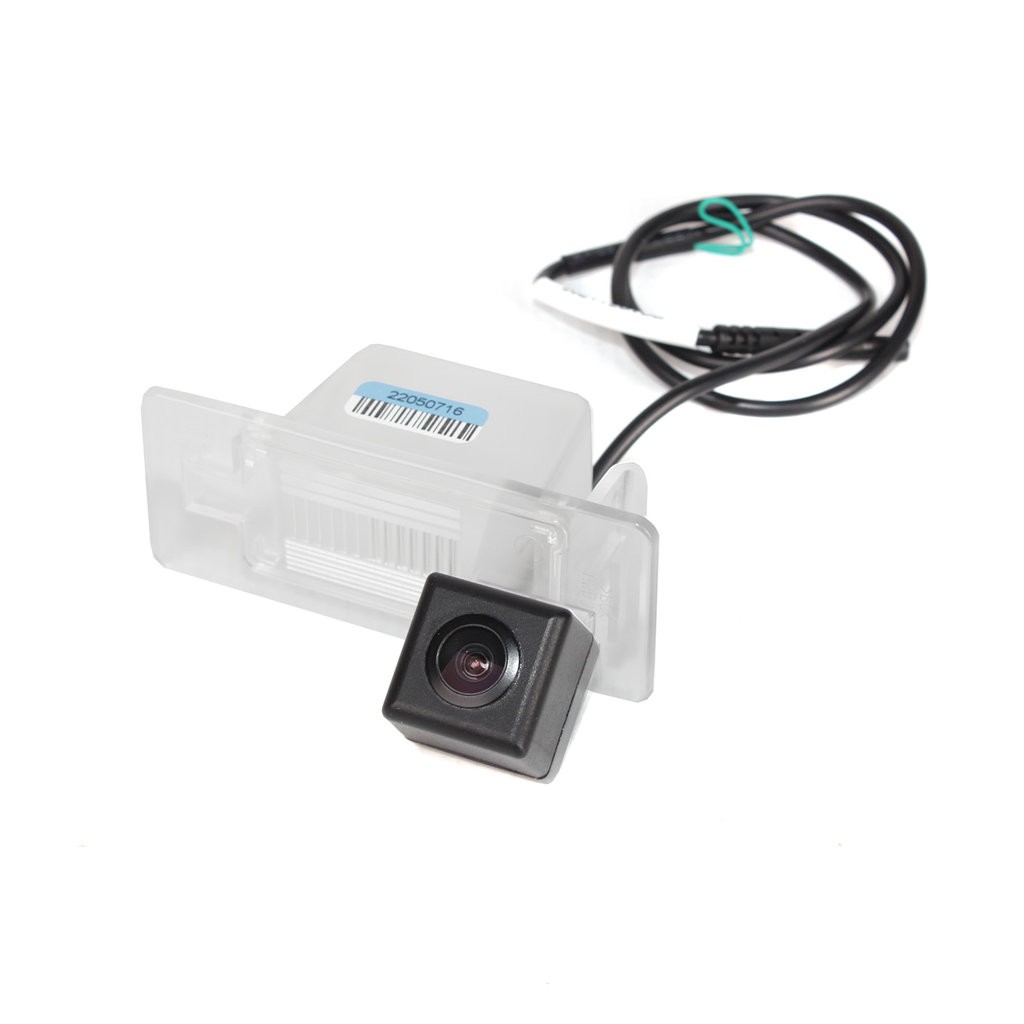

OEM parking camera Opel Astra K (BC OPL-03)

Parking camera for Opel Astra K (BC OPL-03)

OEM color parking camera for installation in place of the rear license plate light. The camera includes space for the bulb socket from the original license plate light.

The camera is suitable for the following vehicles:

• Opel Astra K [B16] (June 2015 ->)

Technical specifications

• Image sensor: PC3089 1/3"
• Option to turn on/off the display of auxiliary trajectories (guidelines)
• Electronic shutter: 1/60–1/10000 sec.
• Minimum illumination: 0.1 lux
• Signal-to-noise ratio: >48 dB
• TV system: NTSC
• Number of TV lines: 600
• Effective pixels: 668 × 576
• Weather protection: IP67
• Viewing angle: 170°
• Camera body: durable plastics "private housing"
• Image display: mirrored
• White balance: automatic
• Operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic

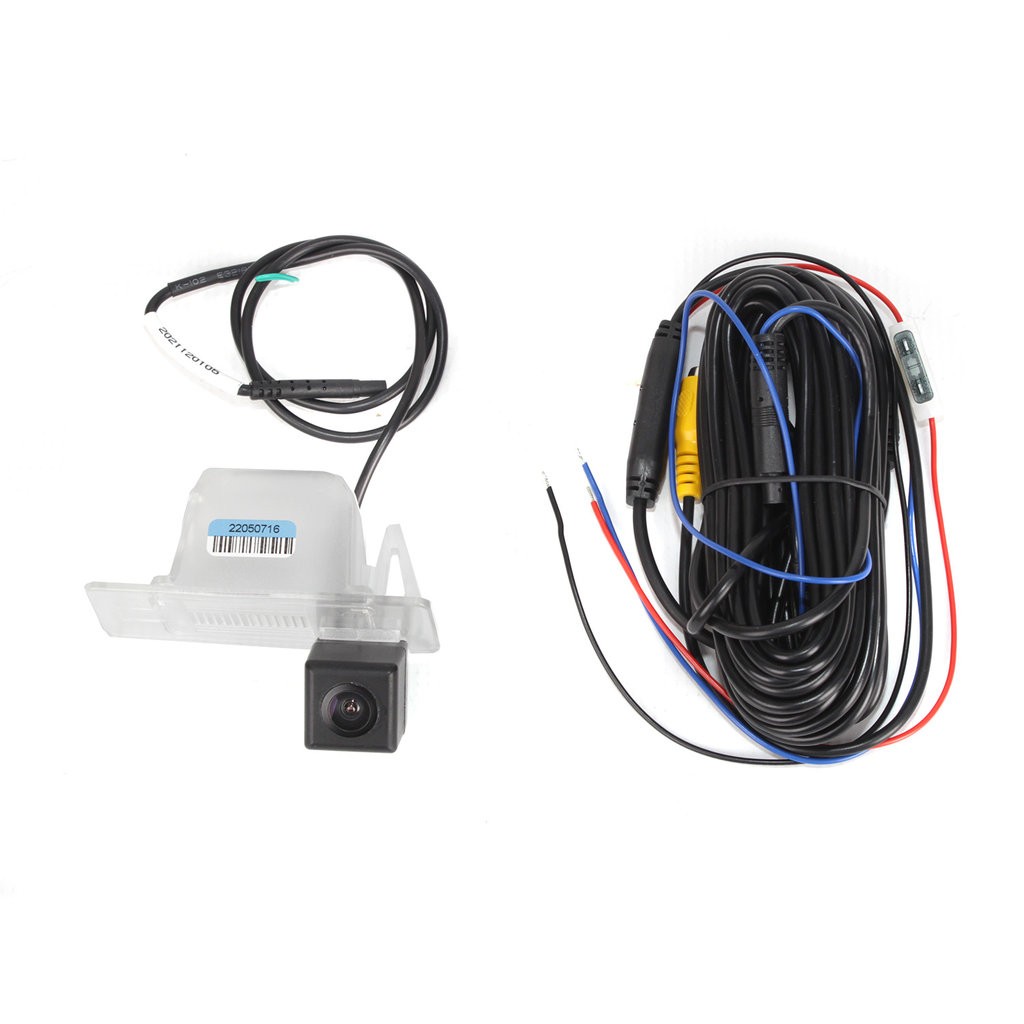

• Signal cable: length 6.2 m terminated with CINCH/RCA connector
• Video output: 1.0 V / 75 ohm
• Power cable length: 1 m
• Power supply: 12 V DC
• Power consumption: <1 W

Dimensions

• Base: 36.5 x 86 mm
• Mounting distance approx. 78 mm

Note

This camera is intended for aftermarket (retrofit) radios with a CINCH AV input. Using it with an original factory radio may require a video adapter for the parking camera!
