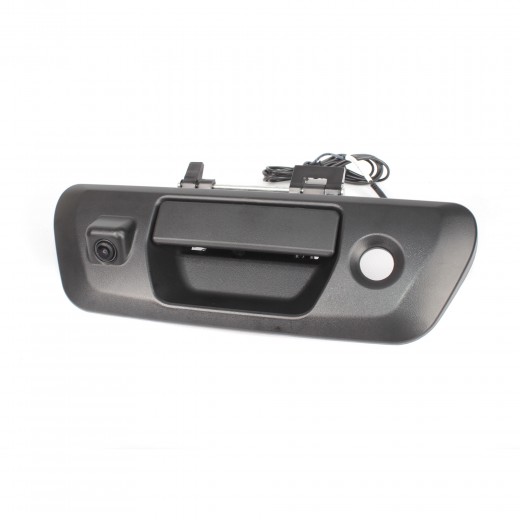

OEM parking camera Nissan and Renault (BC NIS-12)

OEM parking camera for Nissan and Renault

OEM color parking camera for installation in the door opening handle of the cargo area. For Nissan Navara D23, Renaut Alaskan vehicles.

Camera suitable for the following vehicles:

• Nissan Navara [D23] (2014 ->)

• Renault Alaskan (2016 ->)

Technical parameters of the OEM camera

• imaging sensor: CMOS 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.05 lux
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• operating temperature from -30 °C to +70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• video output: 1.0V / 75 ohm
• power supply: 12 V DC
• consumption: <1W

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
