OEM parking camera Mitsubishi L200 (BC MIT-L200)

Parking camera for Mitsubishi L200 (BC MIT-L200)

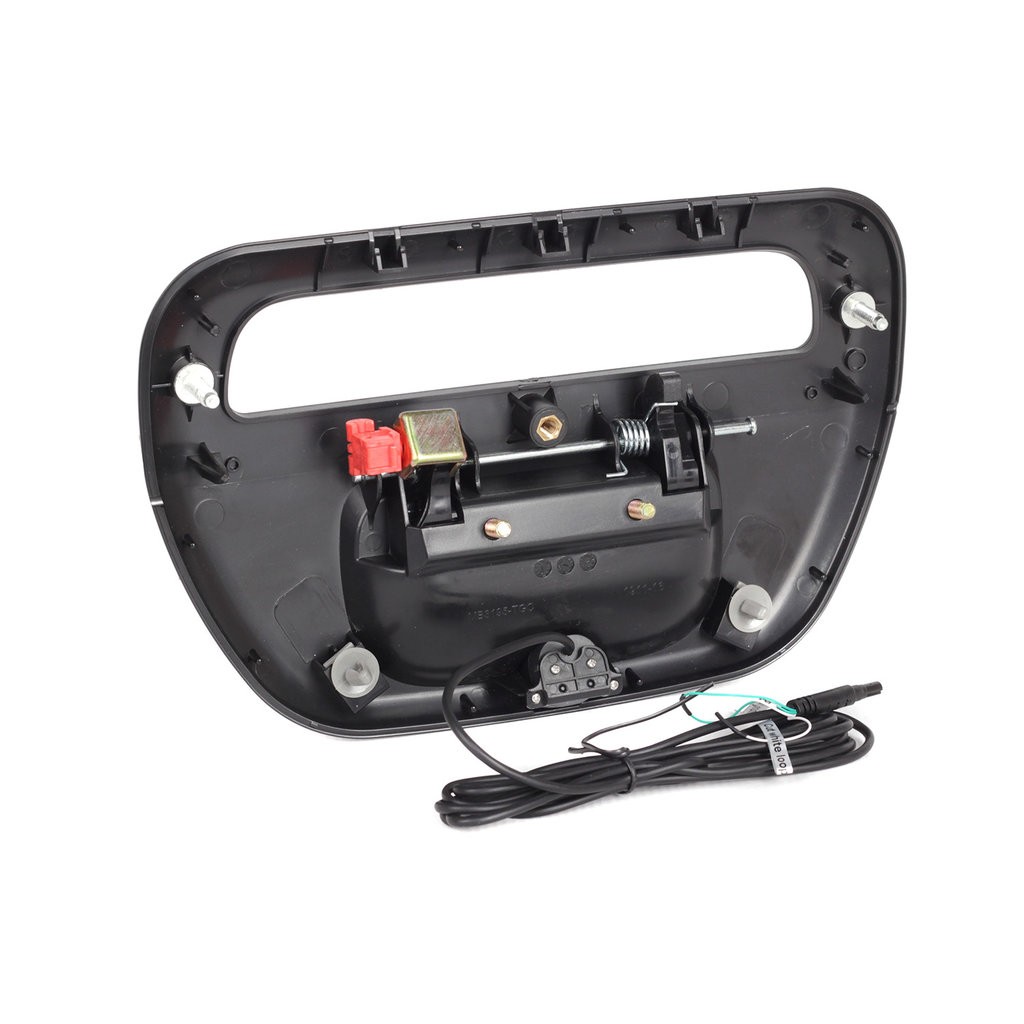

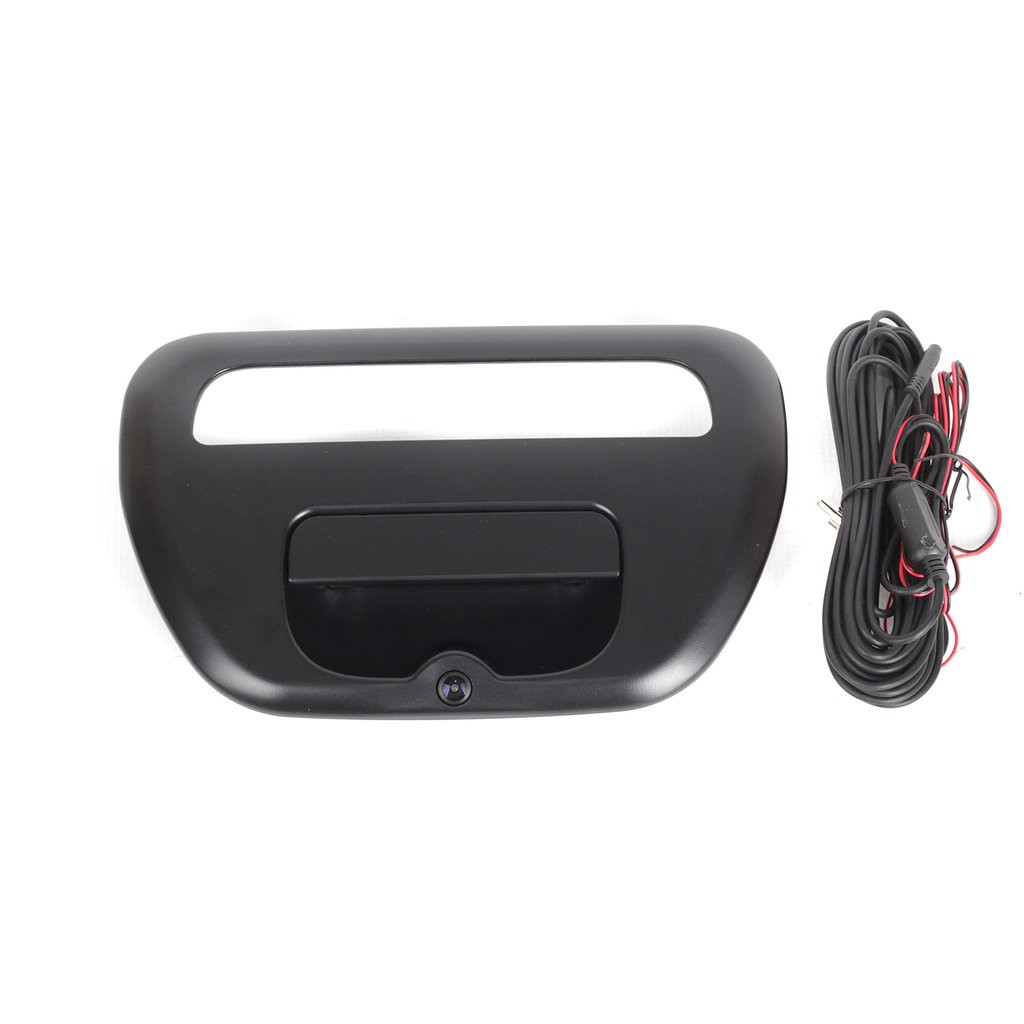

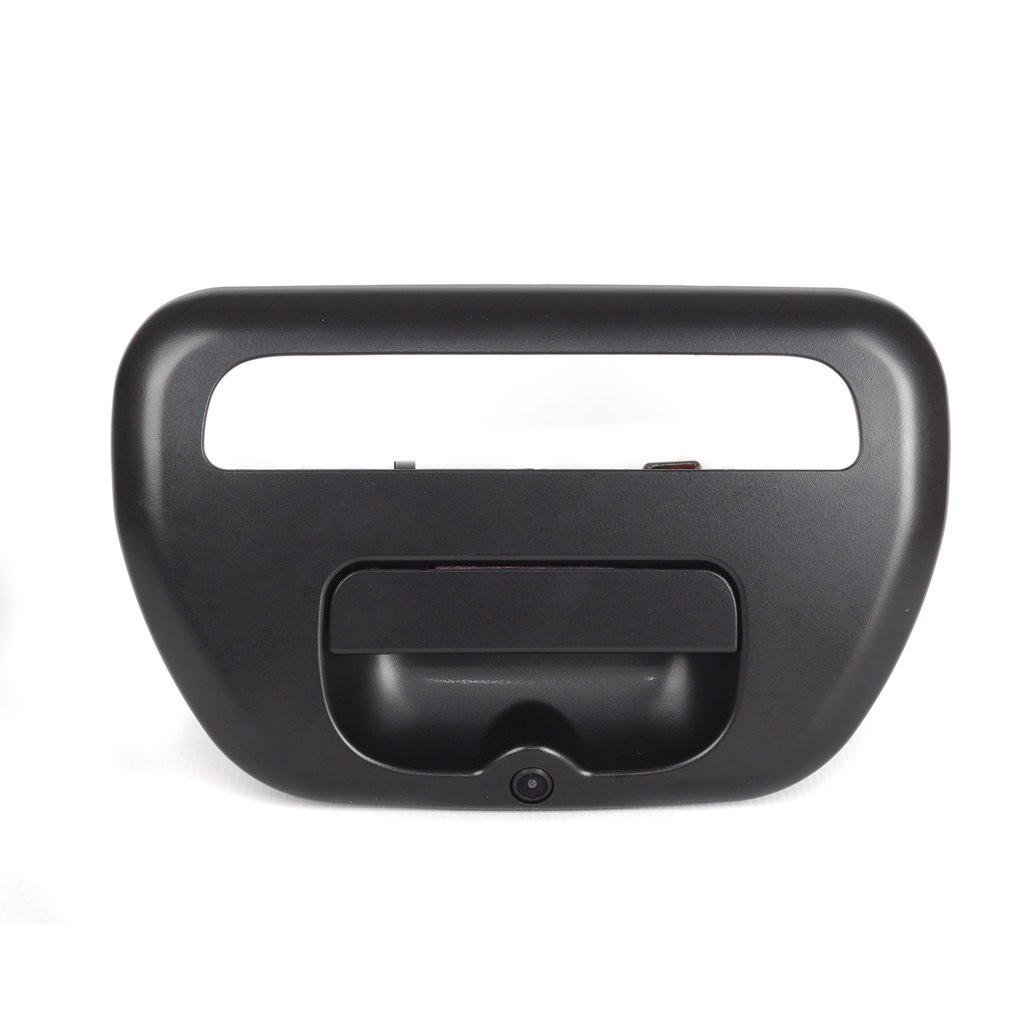

OEM parking camera intended for installation into the tailgate opening handle of the Mitsubishi L200 (2008 to 2016).

The camera is suitable for the following vehicles:

• Mitsubishi L200 (2008 -> 2016)

Technical specifications

• CCD 1/4" image sensor
• displays auxiliary trajectories (guidelines) on the monitor to assist with parking (this function can be turned off)
• electronic shutter: 1/50 - 1/10000 sec.
• minimum illumination: 0.1 lux
• signal-to-noise ratio: >48 dB
• TV system: NTSC / PAL (selectable via jumper)
• resolution: 640 x 480
• weatherproof rating: IP68
• viewing angle: 168° x 136° x 100°
• video output: 1.0 V /75 ohm
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• signal cable: length 8 m terminated with CINCH connectors
• power cable: length 3 m
• power supply: 12 V DC
• power consumption: <1 W

Note

The camera is intended for aftermarket (non-original) radios with a CINCH AV input. Use with an original radio may require connecting a video adapter for the parking camera!
