OEM parking camera Ford Mondeo (BC FORD-11)

OEM parking camera for Ford Mondeo

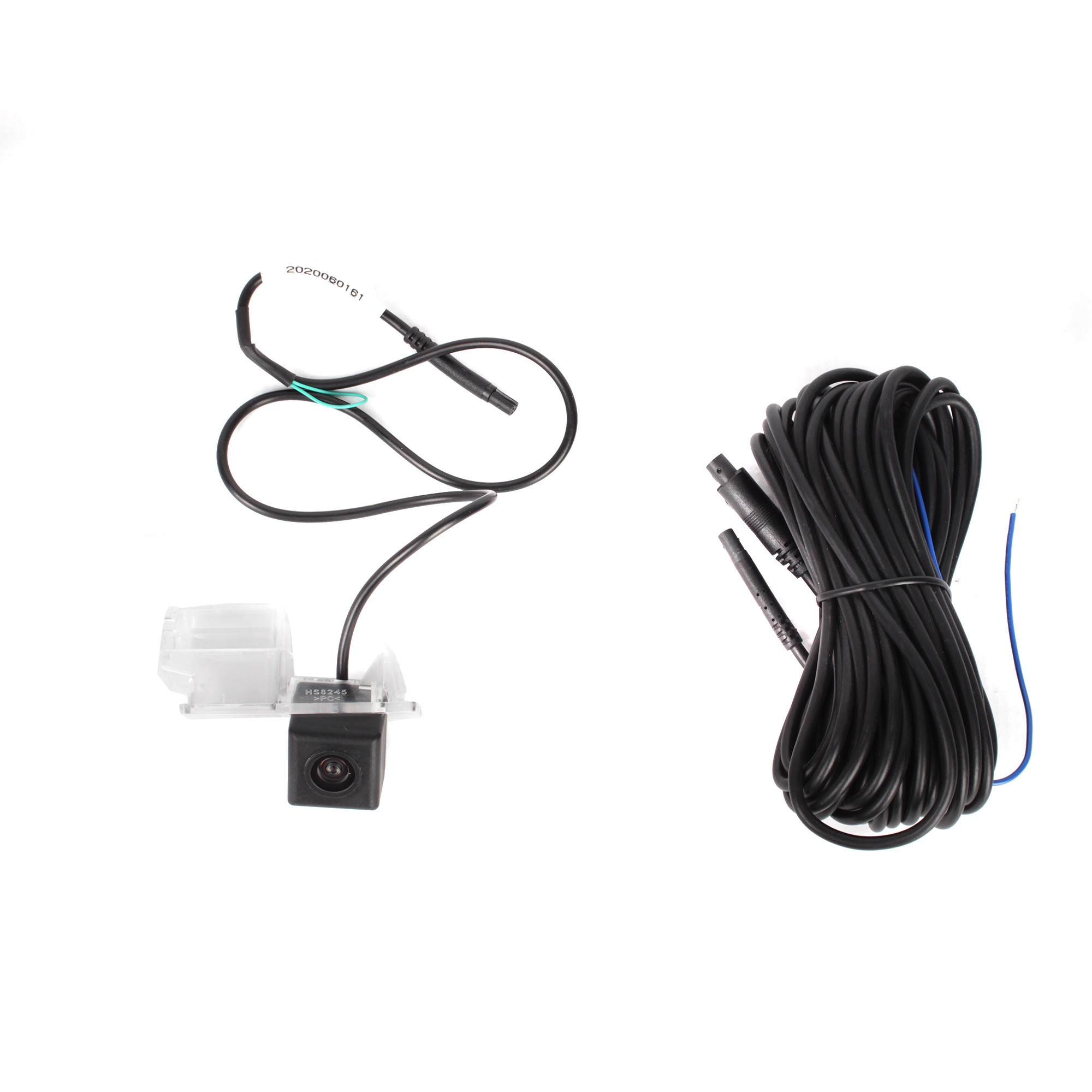

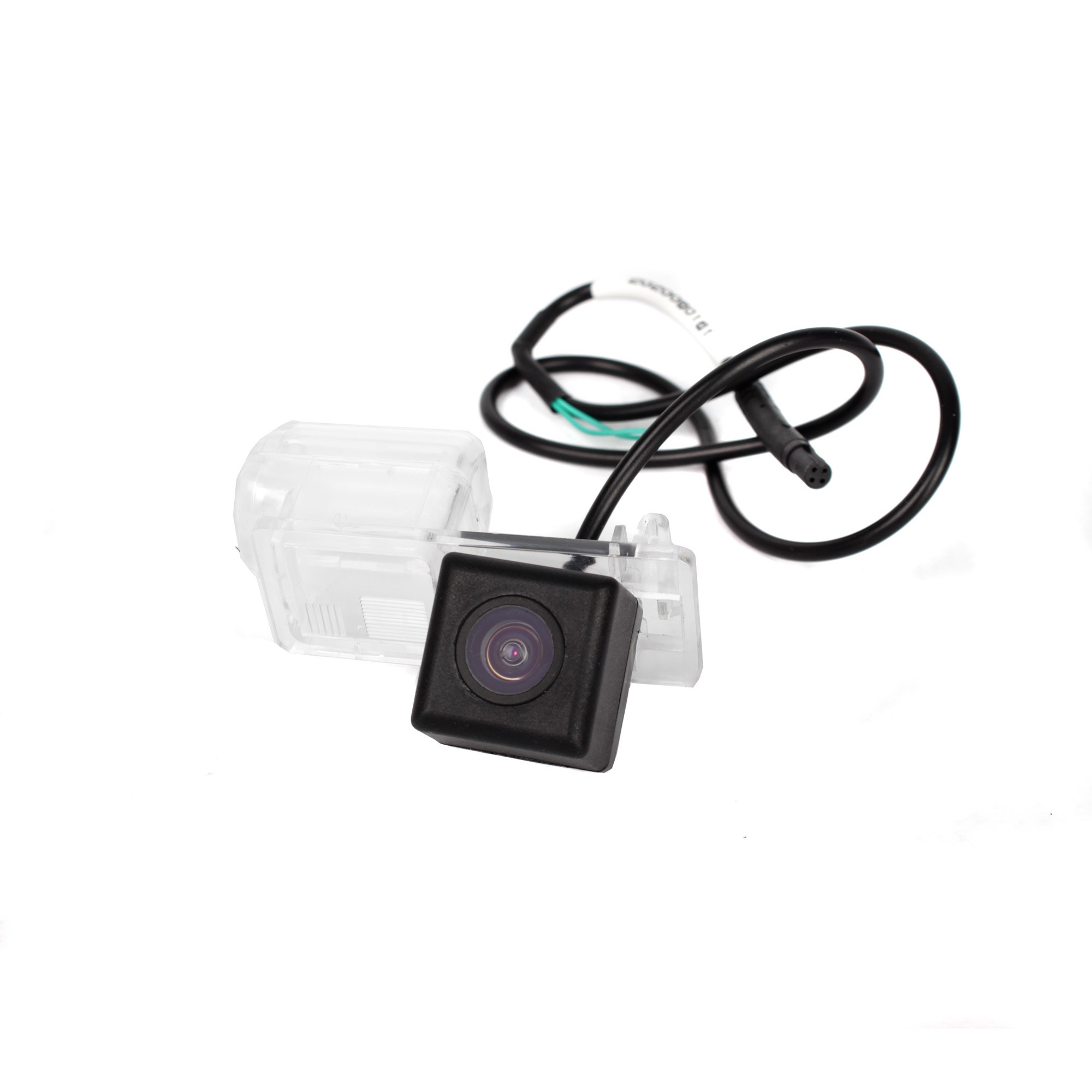

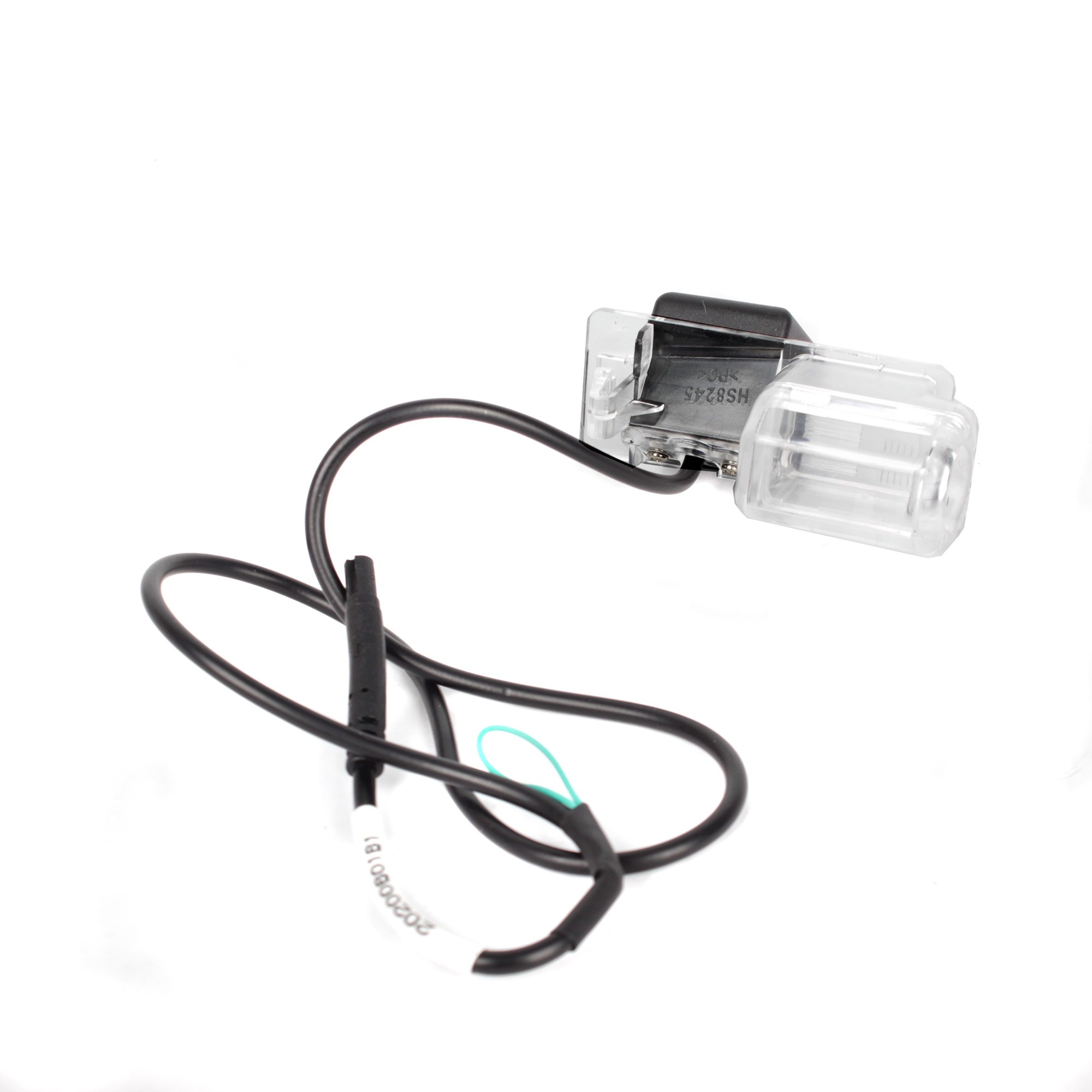

OEM color parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light. For Ford Mondeo vehicles.

Camera suitable for the following vehicles:

• Ford Mondeo (2013 ->)

Technical parameters of the OEM camera for Ford Mondeo:

• imaging sensor: CMOS 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.05 lux
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cable: 30 cm
• video output: 1.0V / 75 ohm
• power supply: 12 V DC
• consumption: <1W

Camera dimensions:

• base: 24 x 59 mm
• pitch: 54 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
