OEM parking camera Citroen, Peugeot, Toyota (BC PSA-11)

OEM parking camera for Citroen, Peugeot, Toyota

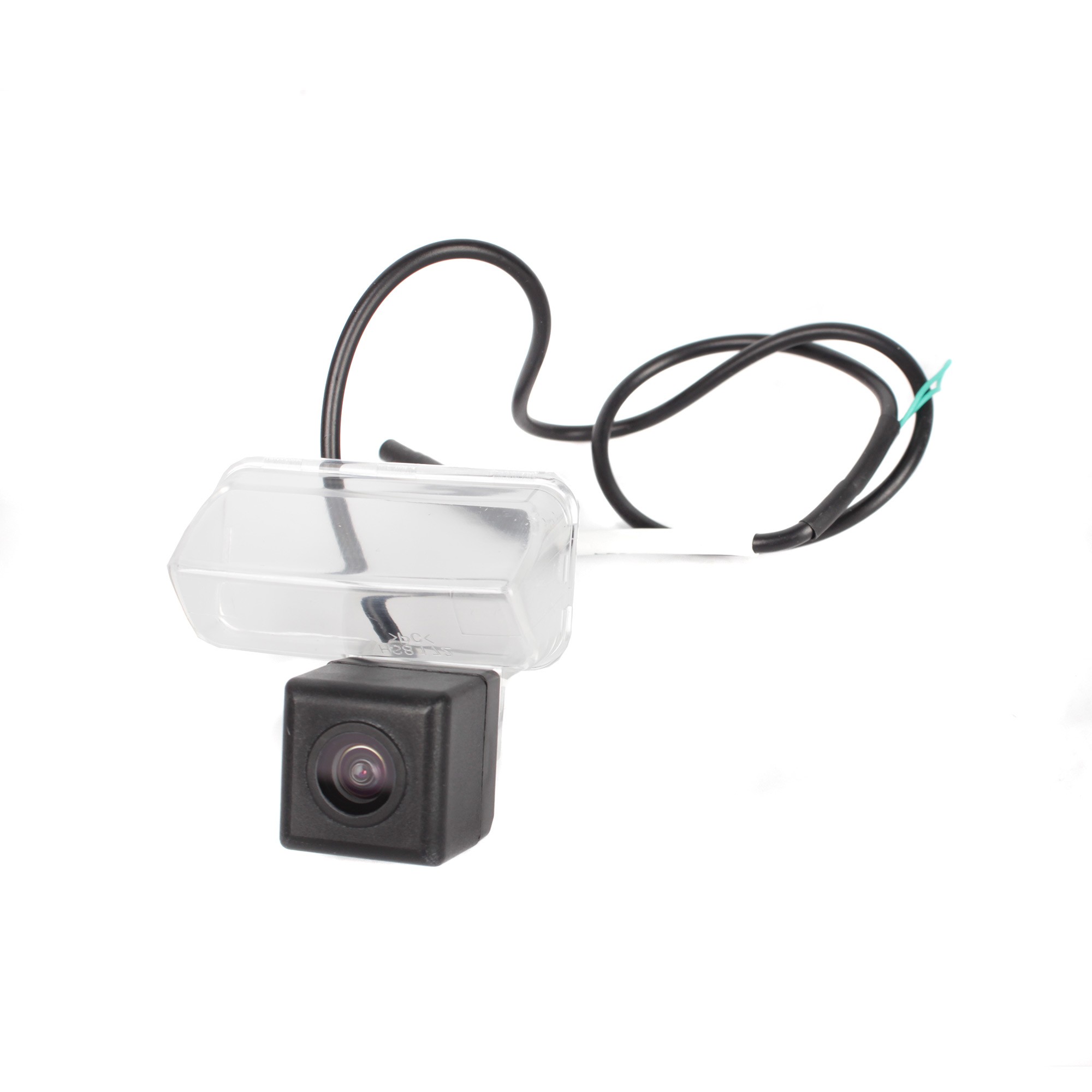

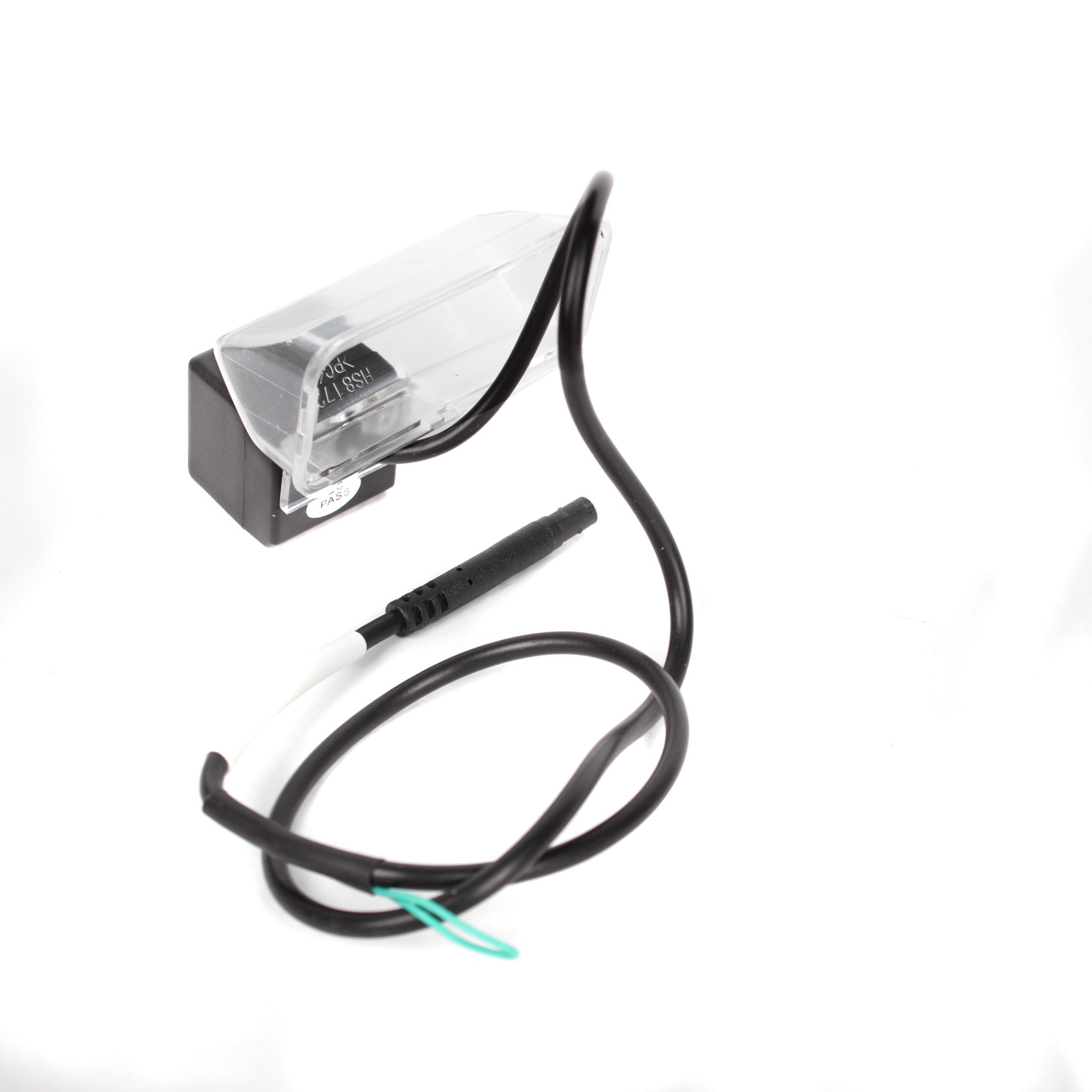

OEM color parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light. For Citroen C3, C4, C5, Berlingo, Saxo, Xsara, DS4, Peugeot 206, 207, 307, 307SW, 407, Toyota Corolla, Yaris L vehicles.

Camera suitable for the following vehicles:

• Citroen C3 (2002 -> 2009)
• Citroen C3 Picasso (2009->)
• Citroen (C3) AirCross 2010->)
• Citroen C4 Picasso (2006 -> 2013)
• Citroen C5
• Citroen Berlingo
• Citroën Saxo
• Citroen Xsara
• Citroen DS4

• Peugeot 206
• Peugeot 207
• Peugeot 407
• Peugeot 307
• Peugeot 307 SW

• Toyota Corolla (2014 ->)
• Toyota Yaris L

Technical parameters of the OEM camera:

• imaging sensor: CMOS 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.05 lux
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic

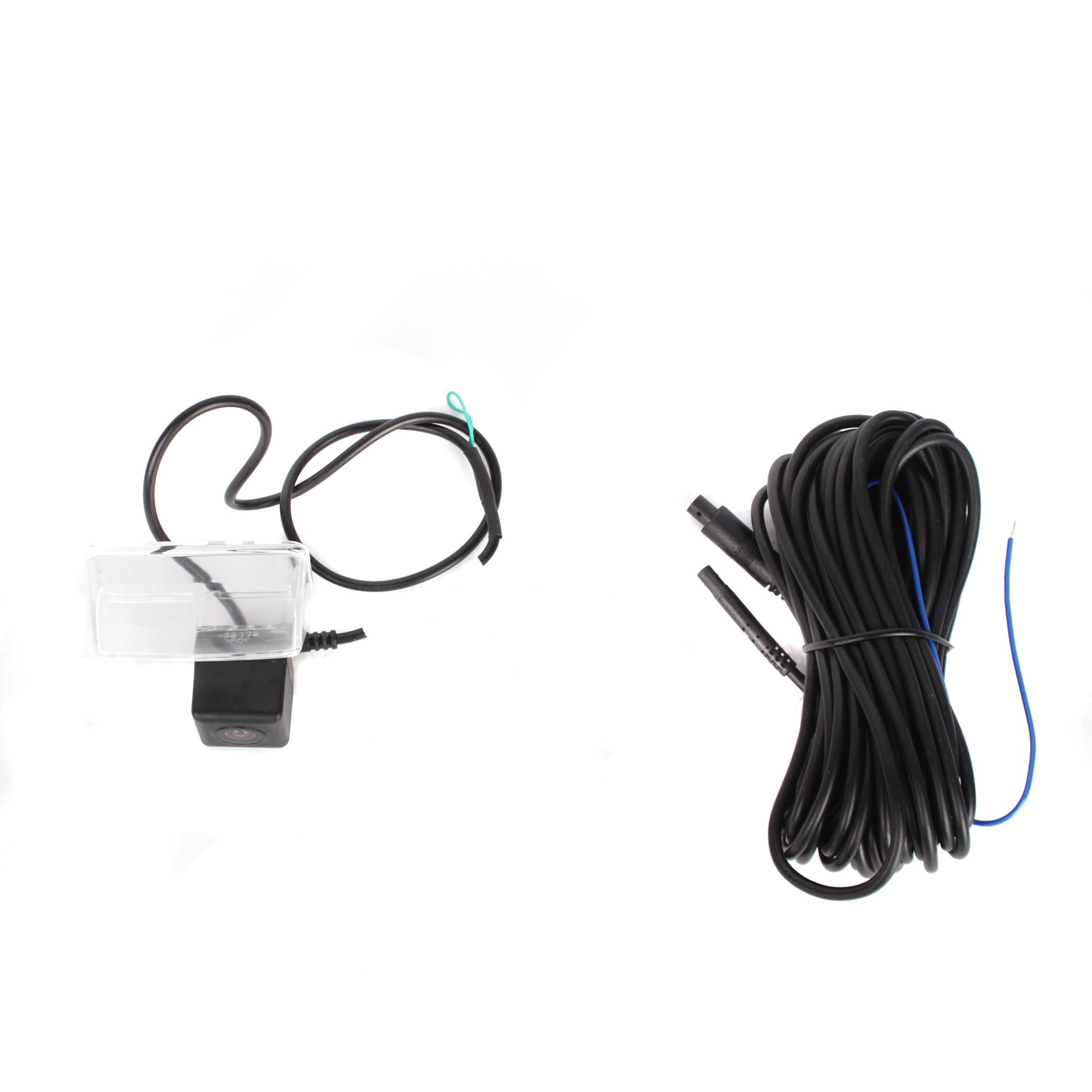

• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cable: 30 cm
• video output: 1.0V / 75 ohm
• power supply: 12 V DC
• consumption: <1W

Camera dimensions:

• base: 56 x 29 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
