OEM enclosure Basser 10" for Ford Mondeo MK3

OEM speaker enclosure Basser 10" for Ford Mondeo MK3

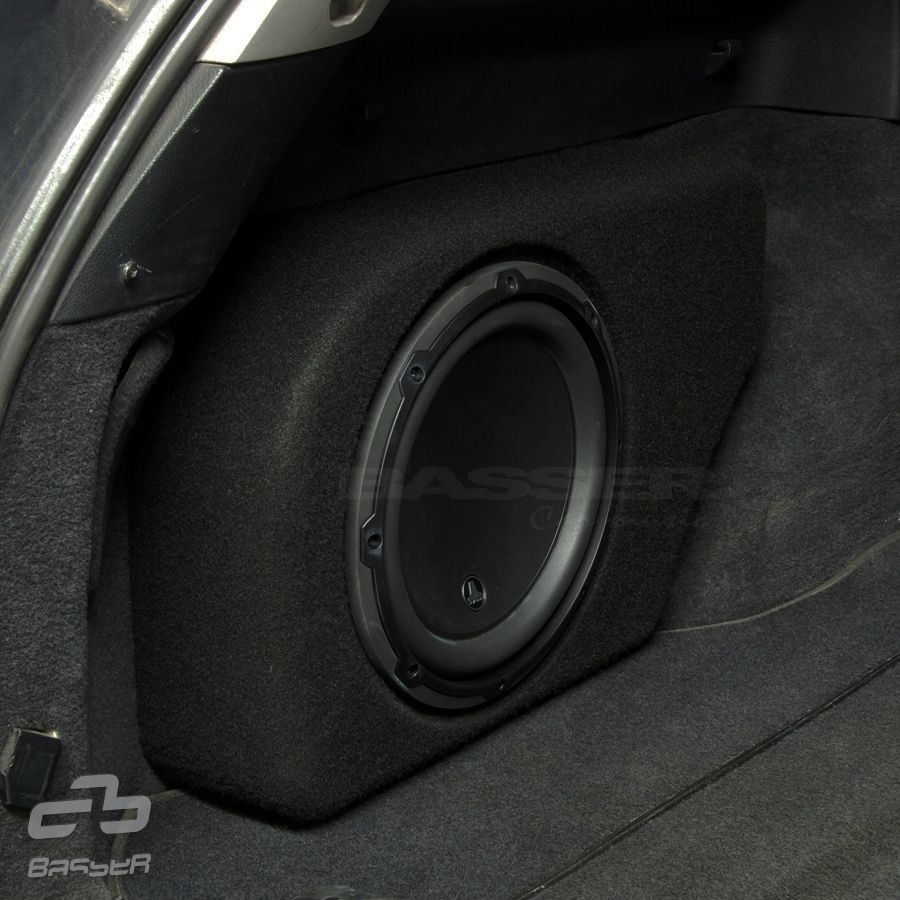

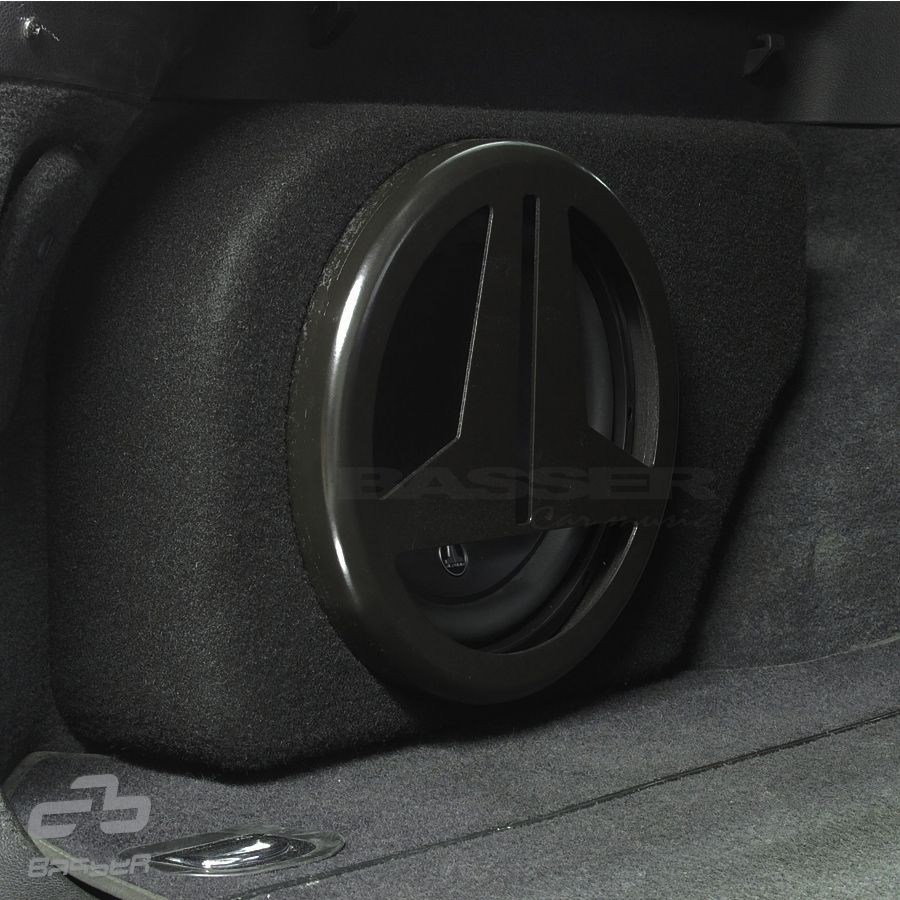

OEM enclosure is a custom-made box that fits precisely into the trunk side panel or into a place intended for installation in a concealed spot in the vehicle. OEM enclosures are the ideal compromise of power, sound and trunk space. In our offer you can find a wide selection of OEM boxes for the most common vehicle models. This enclosure is made for the vehicle Ford Mondeo MK3 (2000 - 2006). Installation of an OEM box requires moderate skill; it should be fastened from the rear to one of the mounting points in the car, or you can make a mount yourself, for example from MDF or a wooden board.

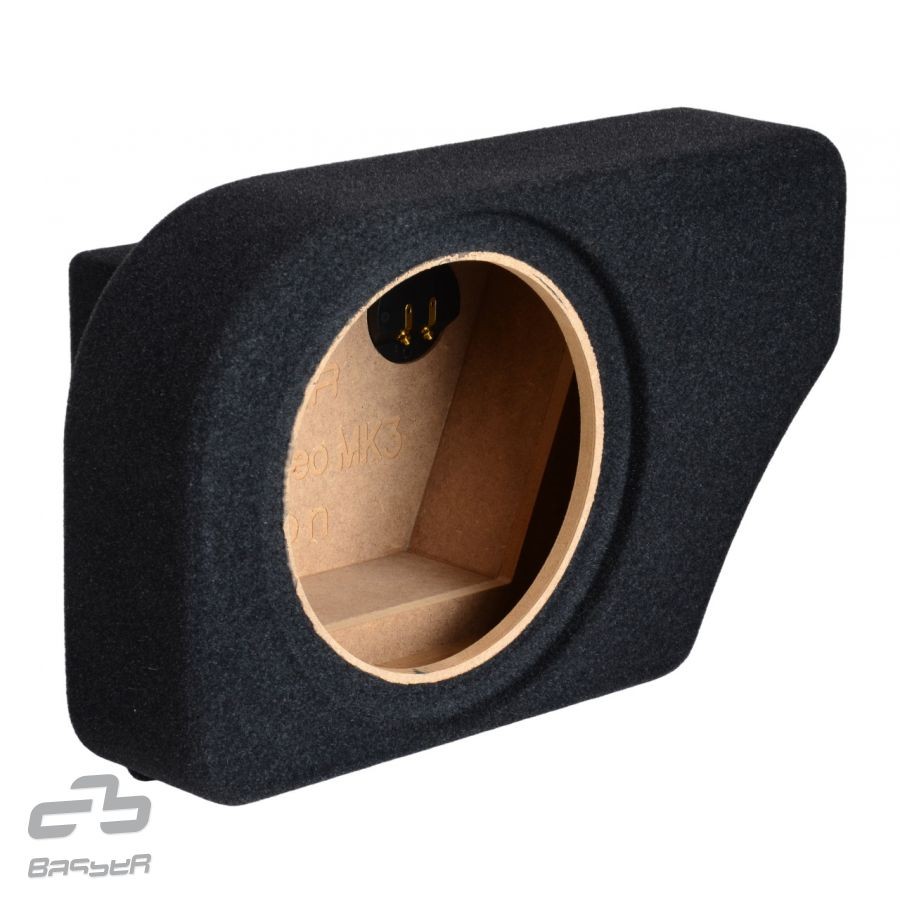

Technical specifications of the OEM enclosure for Ford Mondeo MK3

• Type: sealed enclosure.
• Volume: 15 l.
• Diameter: for 25 cm (10") subwoofer.
• Location: left wheel arch in the area of the compartment.
• Mounting depth for subwoofer: 176 mm.
• Weight: 4.8 kg.

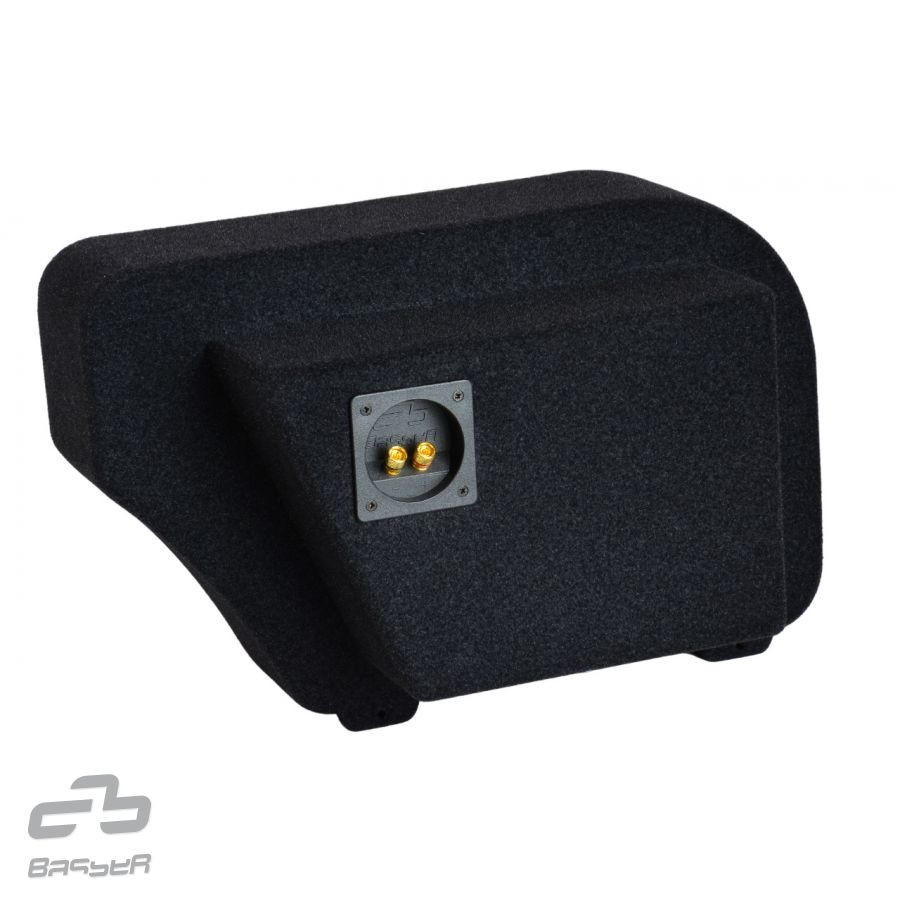

• The enclosure is covered with black carpet and fitted with a terminal for connecting the wiring.

Catalog number	OBGL.FORD.03
Brand	Basser
Links	Official web presentation
Loudspeaker typeEmpty enclosures are most often bass-reflex or closed constructions.	Closed enclosure
Subwoofer hole sizeHole for a given subwoofer diameter category. For a 300mm subwoofer, the hole is most often approx. 28.3 cm. The mounting diameters of subwoofers are usually standardized, so there is no need to adjust anything.	25cm (10")
Loudspeaker volumeThe volume of an empty enclosure is usually given as the total volume including the walls of the box. Some manufacturers also state the net volume, i.e. the pure volume of air in the box after subtracting everything else. We then state the net volume in brackets with the description "net".	15 l
What is the baffle made of?Subwoofer enclosures are usually made of 18-22 mm MDF board or pressed chipboard. Due to its higher strength, MDF board is a better material than ordinary chipboard.	MDF
Connection terminal typeThe connection terminal is most often from the back of the sound box, but sometimes also from the side. It is mostly a plastic terminal with spring clamps for the speaker cable.	Plastic screw terminal
CoverThe vast majority of the enclosure is covered with either black or anthracite carpet.	Carpet
Cover colorColored carpet or leather upholstery.	Black
Other	Recess 286 mm
