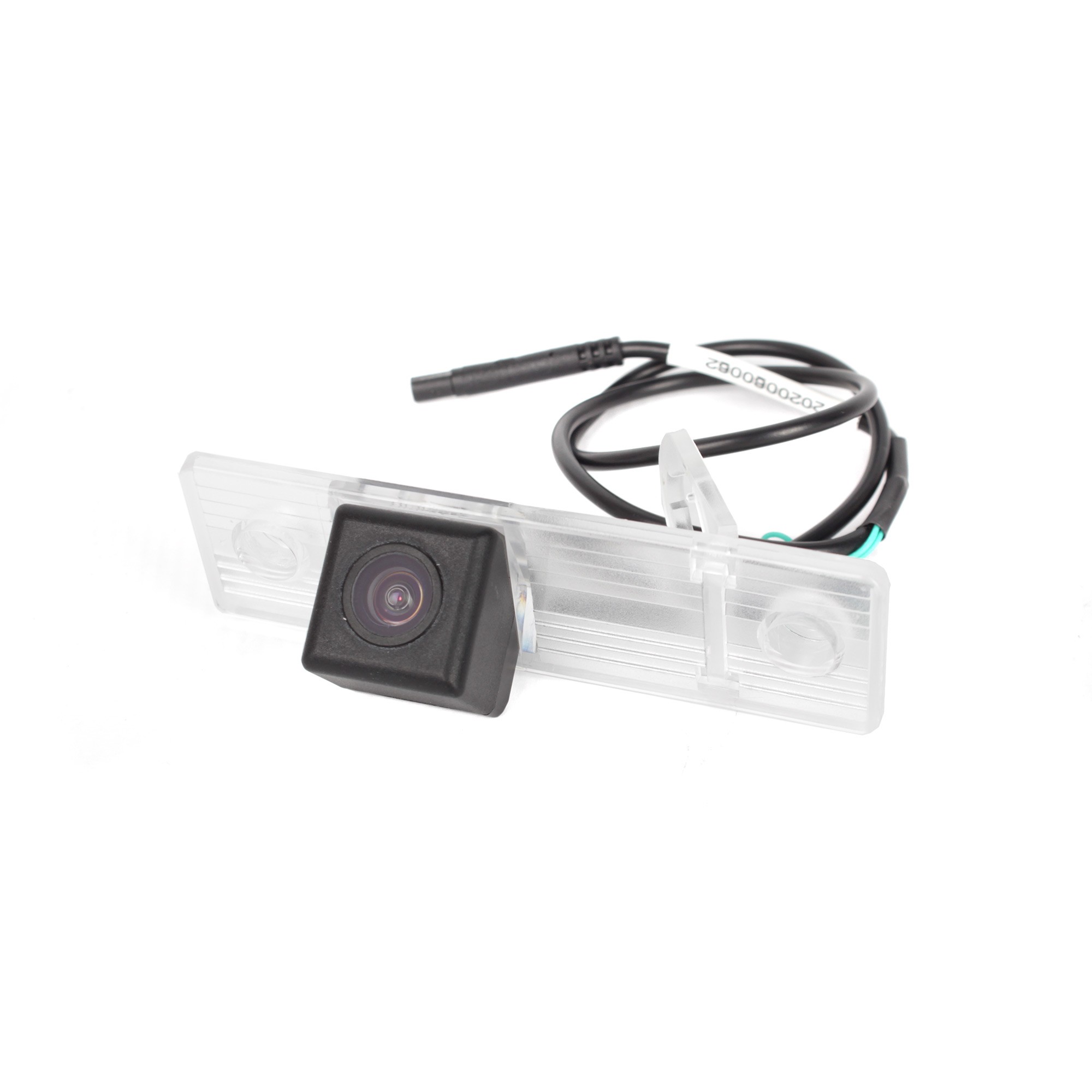

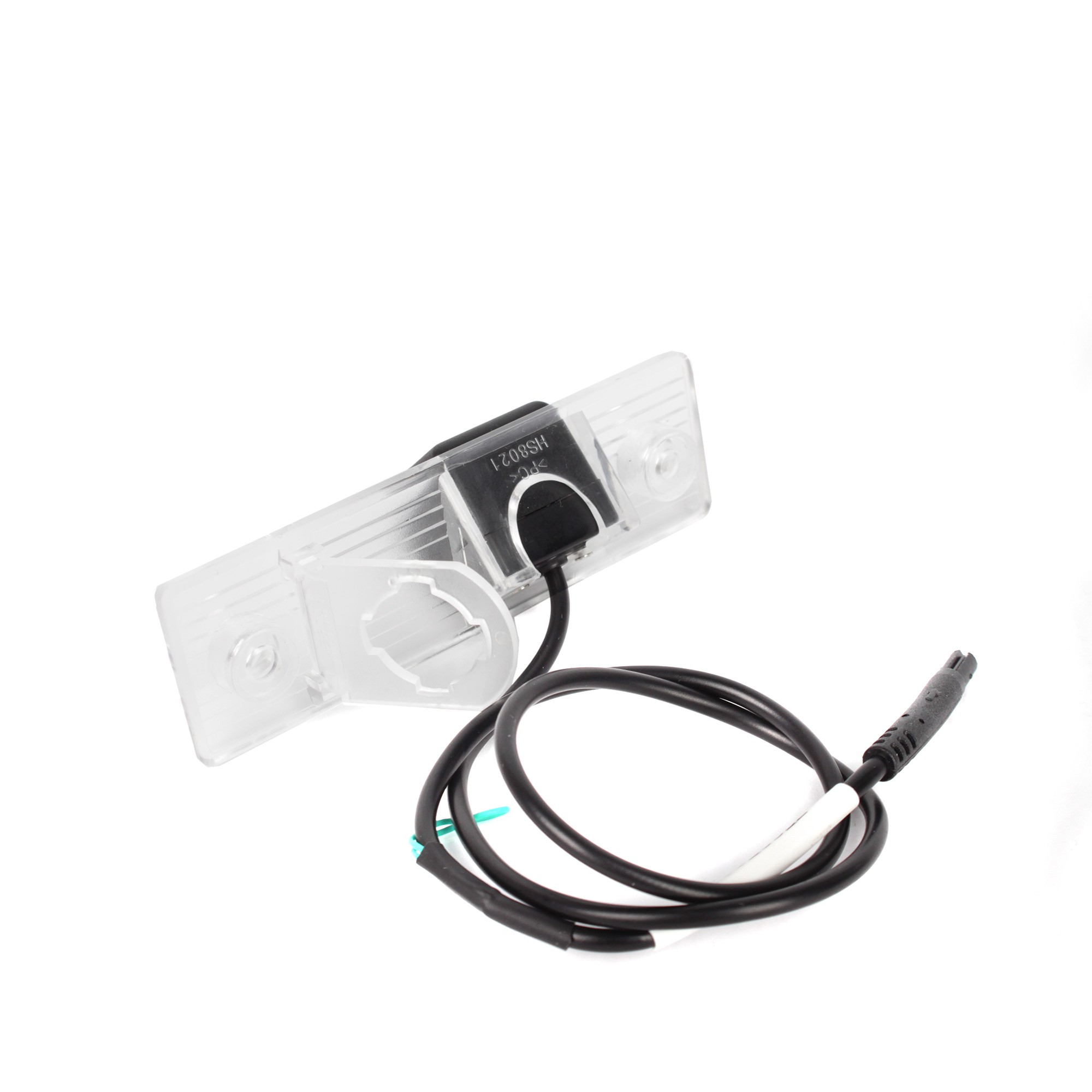

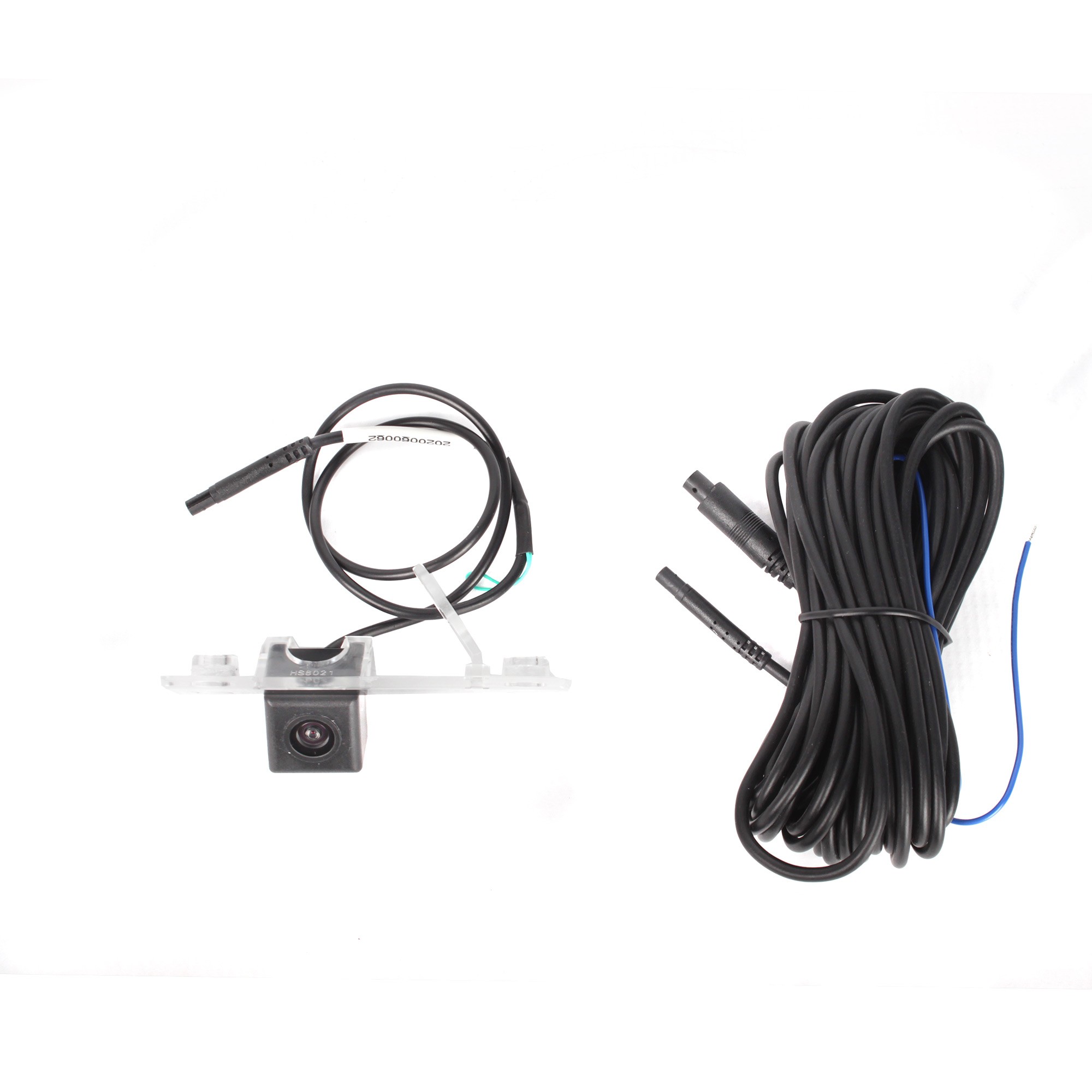

OEM Chevrolet parking camera (BC CHV-01)

OEM parking camera for Chevrolet

OEM color parking camera for installation in the place of illumination of the rear license plate. The camera includes a place to place the bulb socket from the original light.

Camera suitable for the following vehicles:

• Chevrolet Aveo (2006 -> 9/2011)
• Chevrolet Epica (7/2006 ->)
• Chevrolet Captiva I. (2005 -> 2010)
• Chevrolet Orlando (10/2010 ->) [KL1Y][KL1YN]

Specifications OEM camera for Chevrolet:

• sensing sensor: PC3089 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.1 lux
• signal/noise ratio: > 48dB
• TV system: NTSC
• number of TV lines: 600
• effective pixels: 668 × 576
• weather protection: IP67
• scanning angle: 170°
• camera body: durable plastic "private housing"
• image display: mirror image
• white balance: automatic
• working temperature: from -30°C to +70°C
• AGC, BLC, white balance: automatic
• signal cable: length 6.2 m terminated with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cable length: 1 m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 29 x 99 mm
• screw hole spacing 77 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
