Musway CSVT8.2C speakers
More about the product
- You can return the goods to us within 14 days
Reproduktory Musway CSVT8.2C

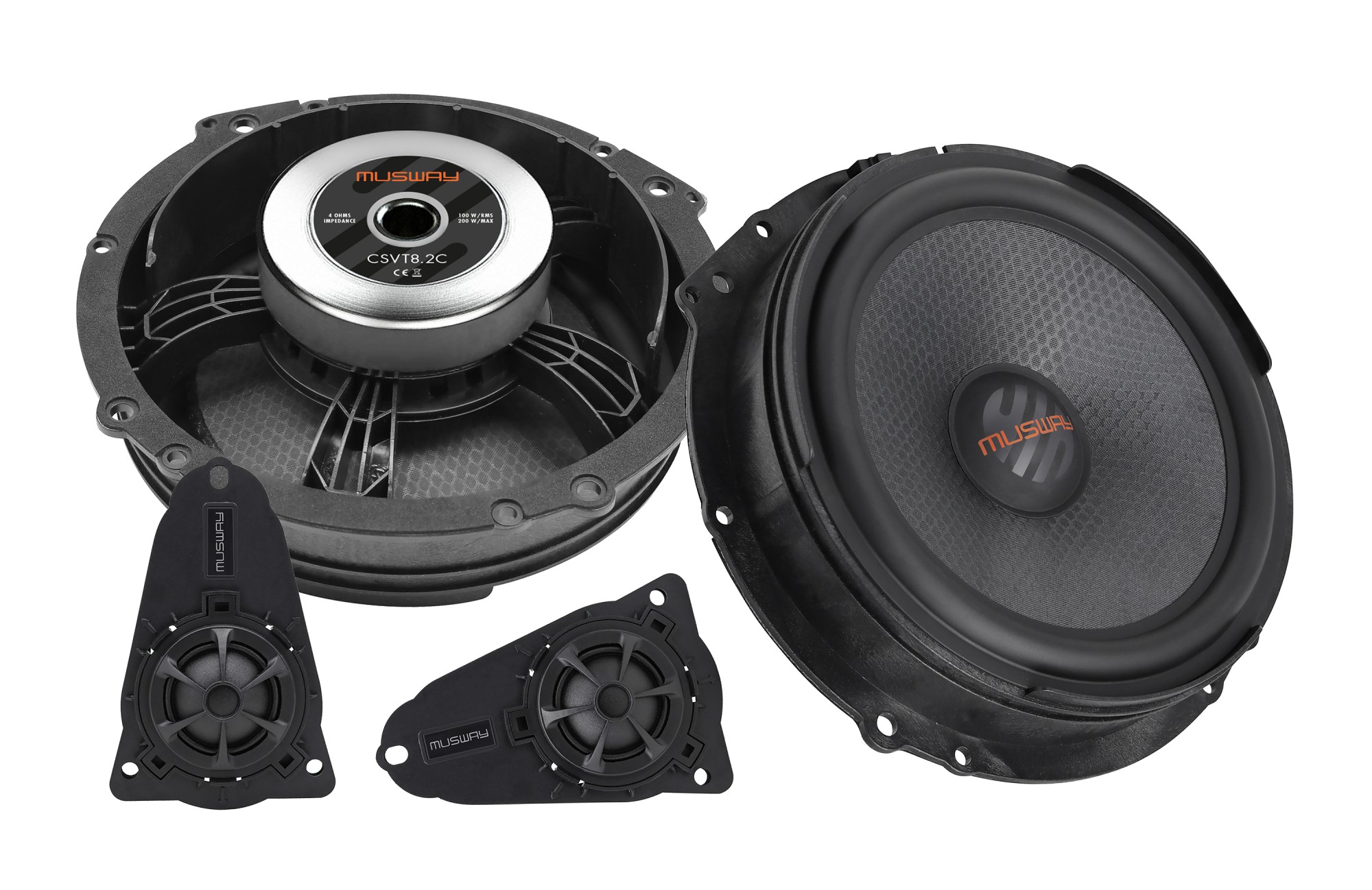

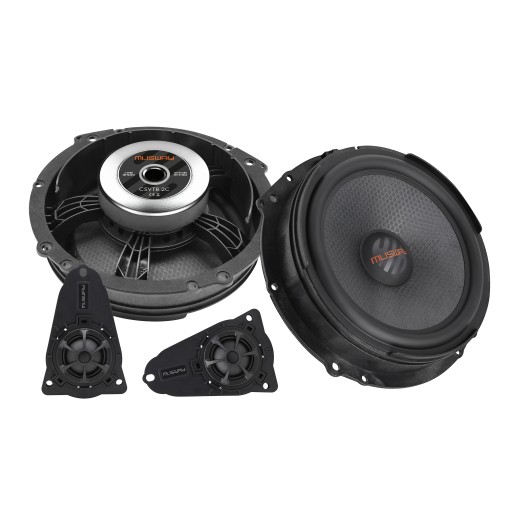

Musway CSVT8.2C are 2-way component speakers specially designed for Volkswagen T5 and T6 vehicles. The entire system is constructed as a fully Plug & Play solution with maximum emphasis on easy installation, full compatibility with the original mounting locations, and a significant sound improvement over the factory audio. Compared to common OEM speakers, the CSVT8.2C offer a significantly larger cone area, higher power handling, and a much more mature sound with emphasis on dynamics, clarity, and a firmer bass foundation.

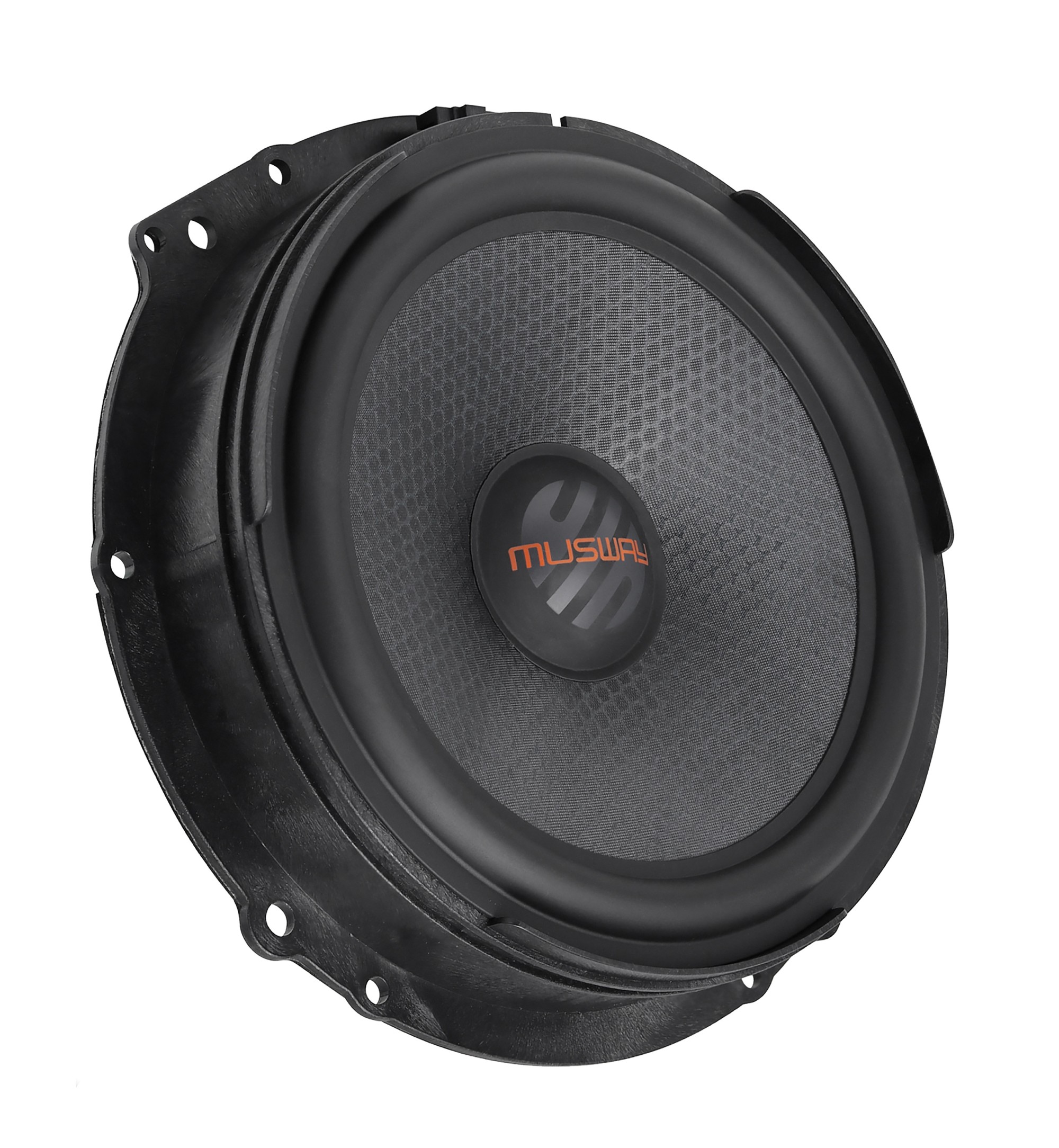

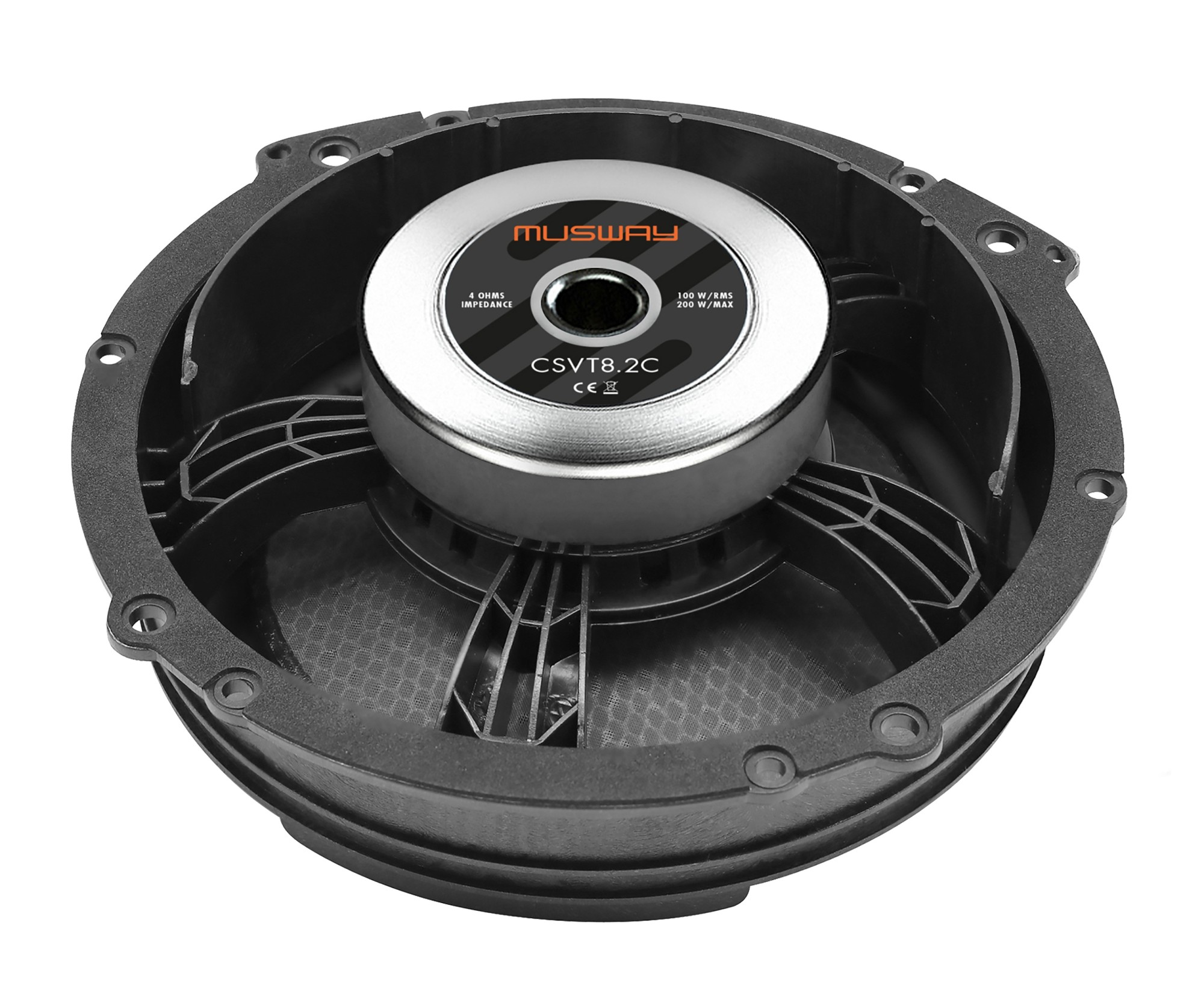

The key difference from the original speakers is the 200 mm midbass drivers, which have approximately 50% more cone area than the standard 165 mm speakers in T5/T6 doors. As a result, the system can reproduce much deeper, fuller, and more dynamic bass even without the need to install a subwoofer. The midbasses use rigid fiberglass cones with very good stiffness and low distortion even at higher volumes. High power handling is provided by a long-excursion voice coil and a strong Y35 magnetic circuit weighing 22 oz. Musway also paid great attention to the door acoustics. The ABS basket design allows the use of optional rubber sound guides that direct sound directly into the vehicle interior and minimize losses inside the door. The result is significantly better efficiency, more defined bass, and cleaner midrange reproduction.

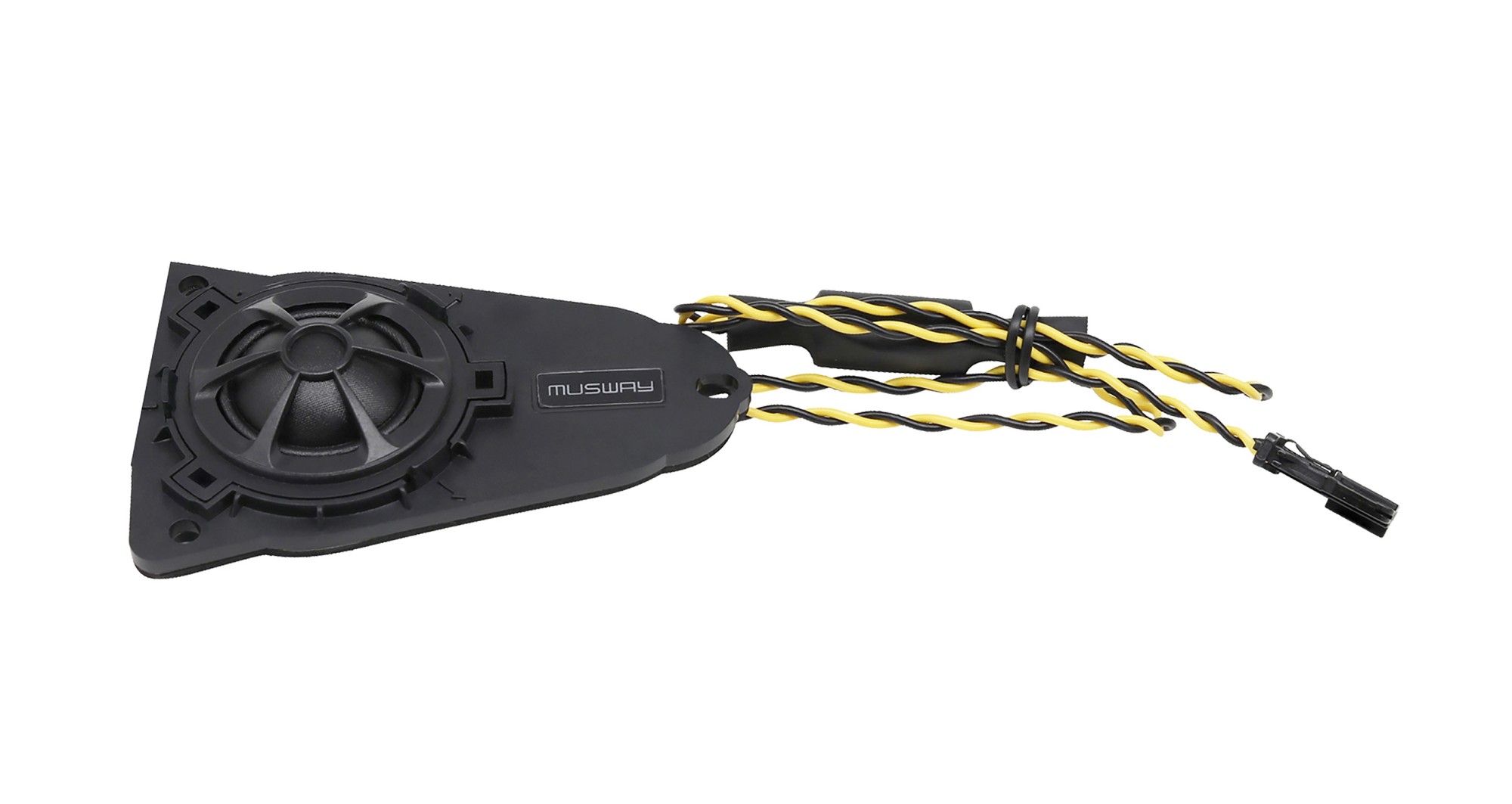

The high-frequency range is provided by 28 mm silk domes with a neodymium magnet, which, thanks to their larger diameter, allow for a lower crossover point and a very good link to the large 8" midbasses. The treble is detailed, clean, and remains calm even at higher volumes. The tweeter can also be removed from the adapter plate, making the system compatible with both the Volkswagen T5 and the newer T6 generation.
Hlavní vlastnosti
- 2-way component speakers for Volkswagen T5 and T6.
- Plug & Play installation with no wiring modifications.
- 200 mm midbass drivers.
- Approximately 50% larger cone area compared to OEM speakers.
- Fiberglass cones with high stiffness.
- Long-excursion voice coils.
- Strong Y35 magnetic circuit weighing 22 oz.
- Option to use rubber sound guides for improved door acoustics.
- 28 mm silk tweeters with neodymium magnet.
- Very good integration with 8" midbasses.
- Frequency range 30 Hz to 22 kHz.
- Accurate, dynamic, and significantly fuller sound compared to the factory system.
- Compatible with Volkswagen T5 (2003–2015) and T6 (from 2015).
O značce
MUSWAY is an abbreviation of the motto “Music is the Way.” The brand was born out of a passion for high-quality sound reproduction and achieved its first notable successes with high-quality Hi-Res audio players and digital signal processors. The real breakthrough came with the introduction of the first class D amplifiers with integrated DSP, which gradually became internationally acclaimed products in professional magazine tests and received a number of prestigious awards, including EISA. Since 2015, the brand has been developmentally anchored in Germany, where product design, technical tuning, and final model concepts take place. Musway has gradually built a reputation as a maker of compact, technically advanced, and musically natural components that combine modern digital technologies with an emphasis on clean and linear sound. The portfolio today includes standalone and DSP amplifiers, speakers, and subwoofers, with each new generation continuing the brand philosophy – to offer the maximum musical experience without compromises in technology, functionality, or workmanship.
| Catalog number | CSVT8.2C |
| Brand | Musway |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | 2-way component |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 100 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 200 W |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 30 – 22000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 200 mm |
| Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. | 34 mm |
| Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. | Paper |
| Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. | 25 mm |
| Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. | Silk |
| Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter. | Yes |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
