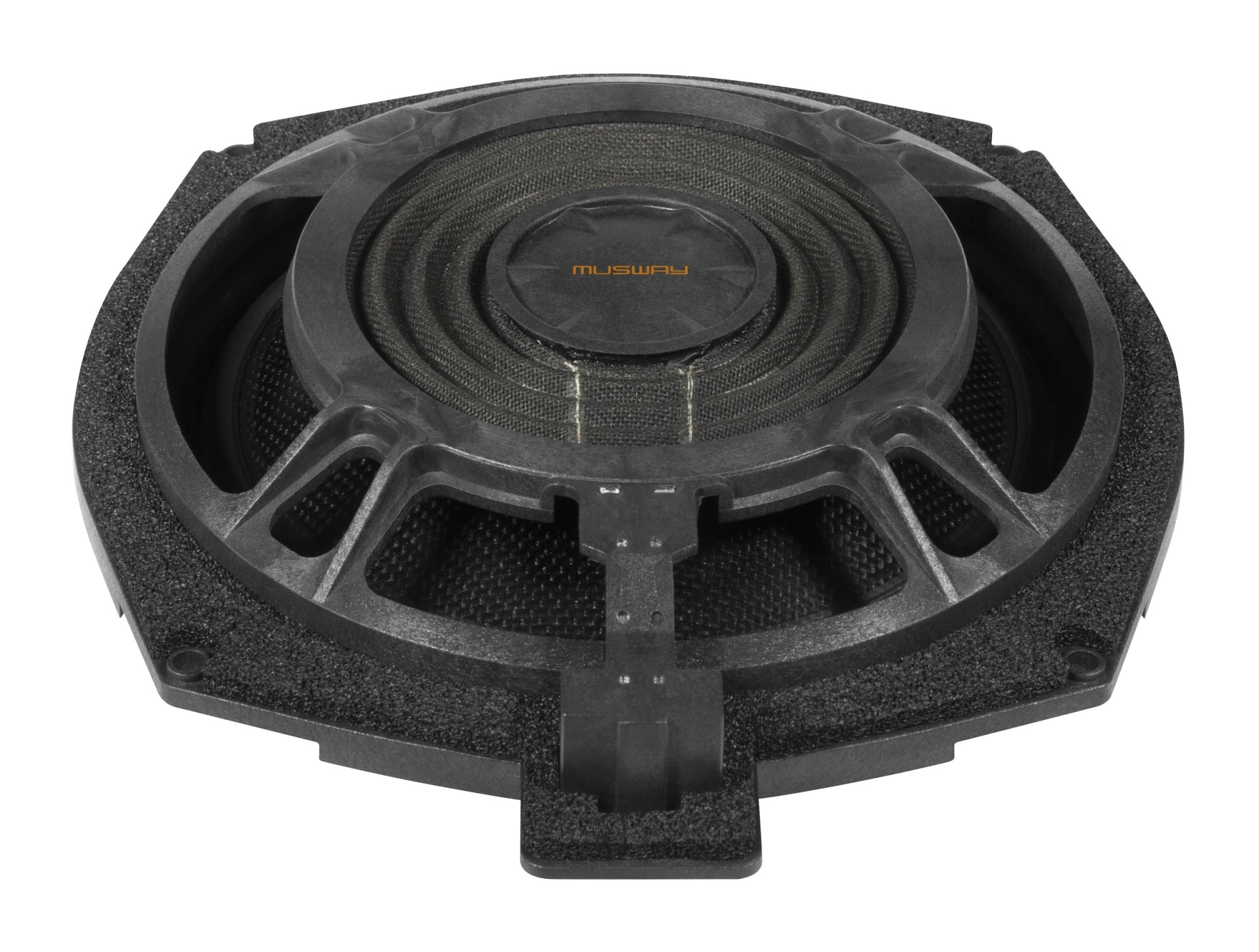

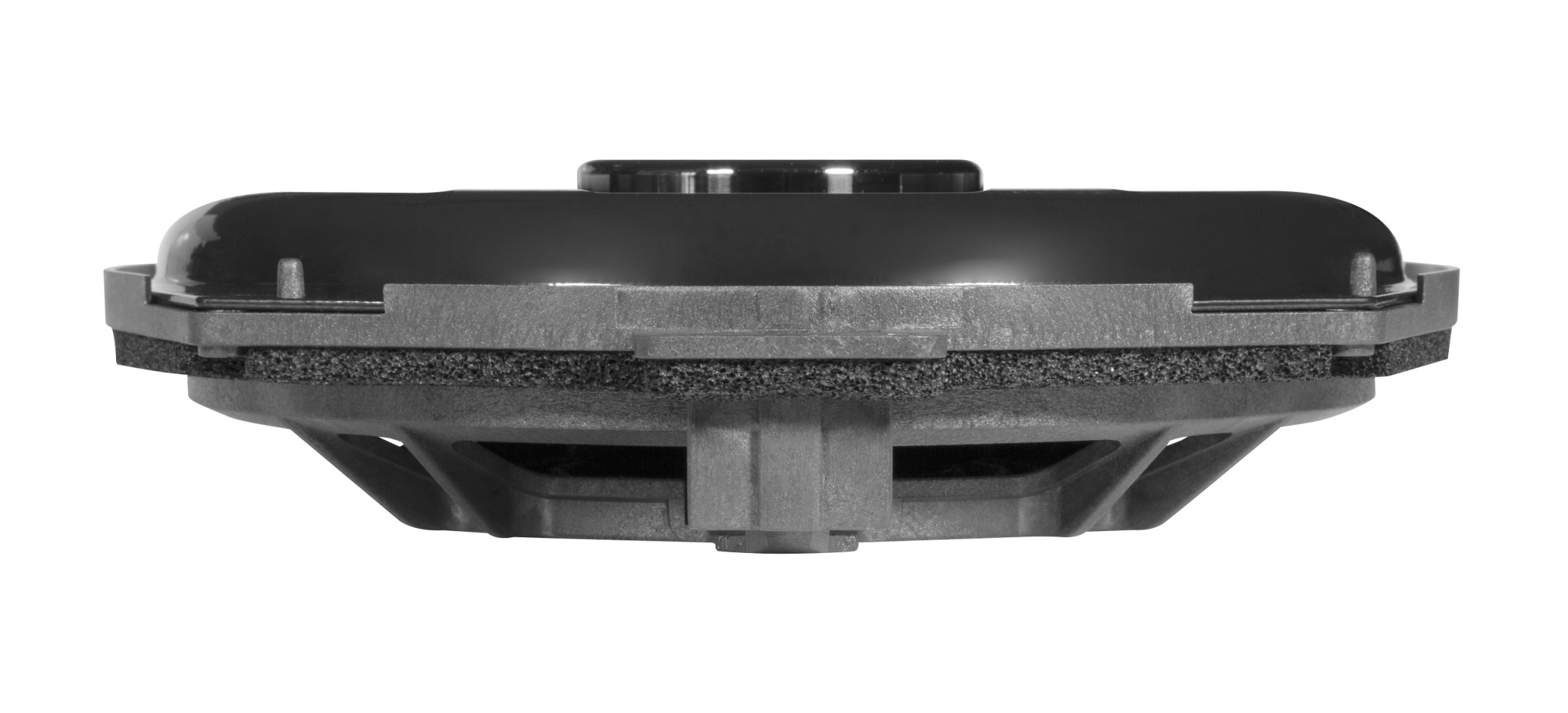

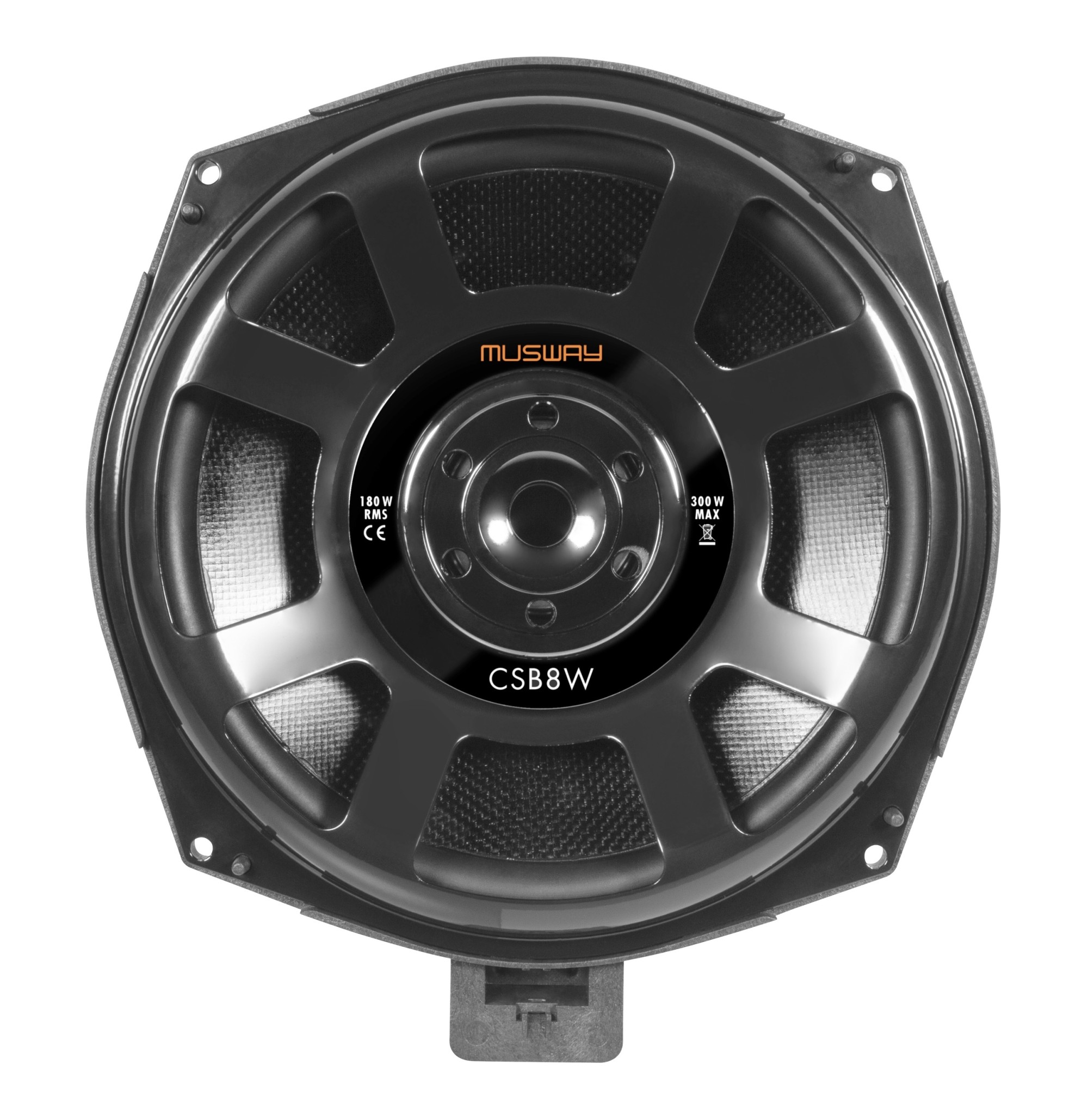

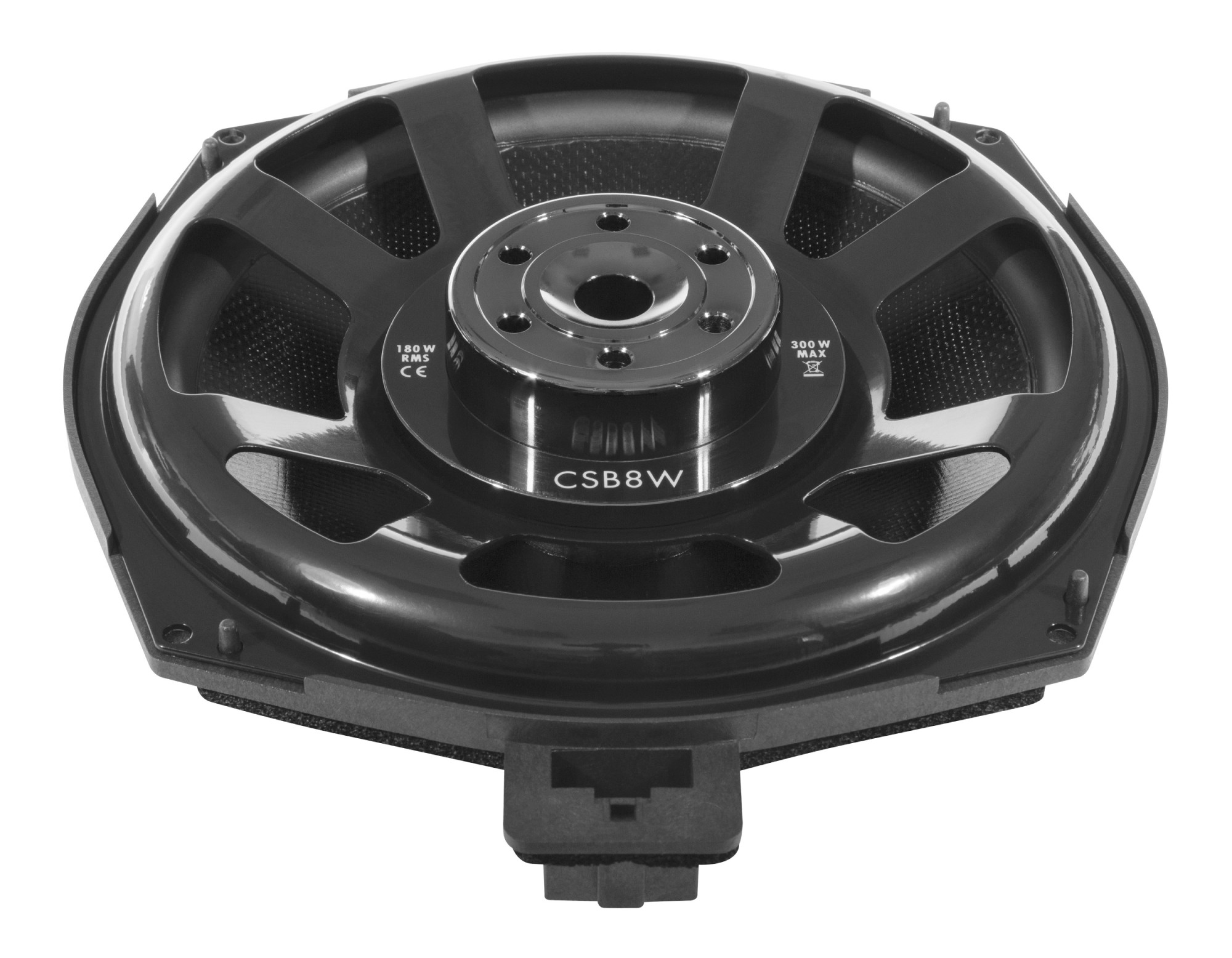

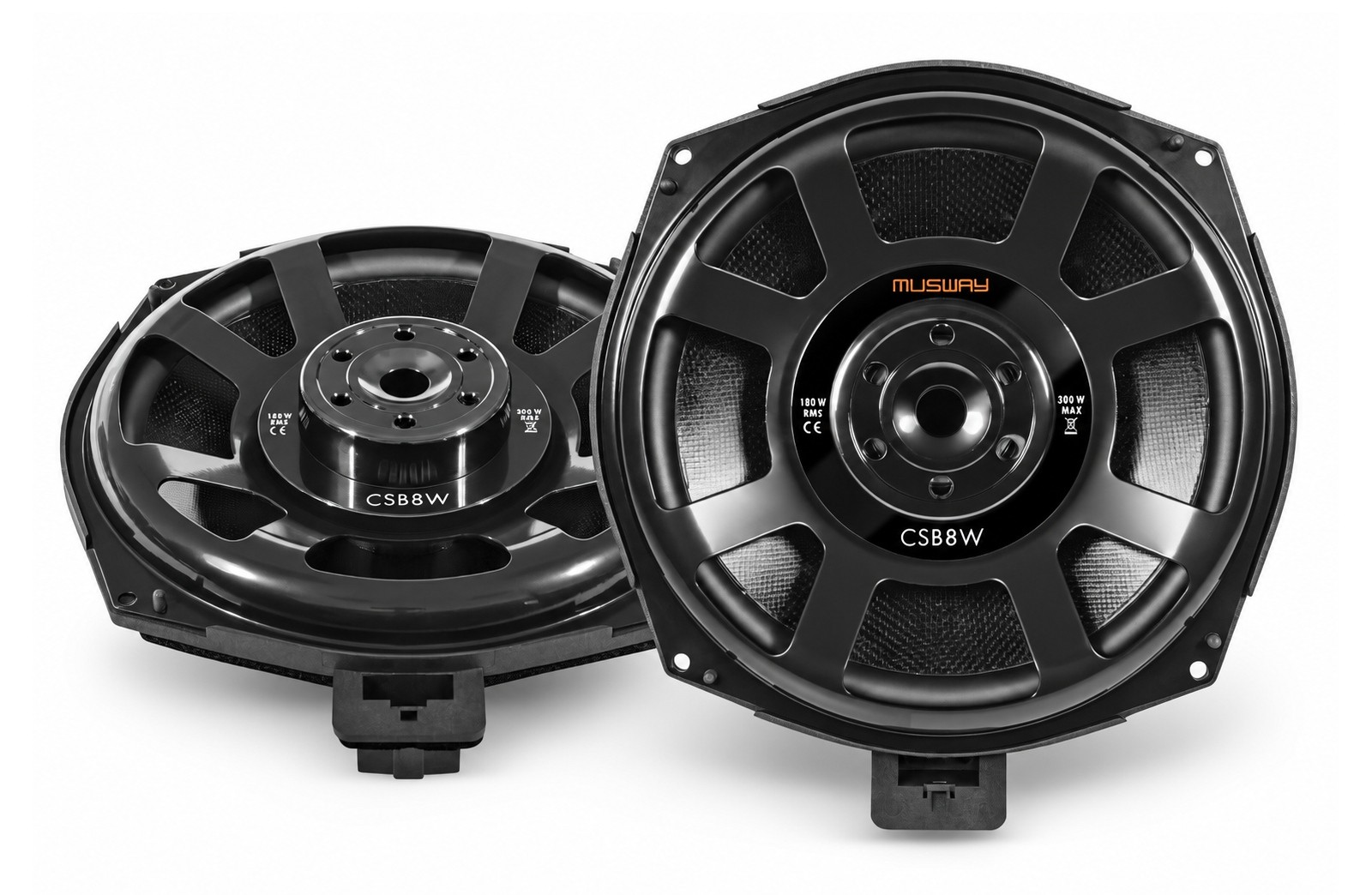

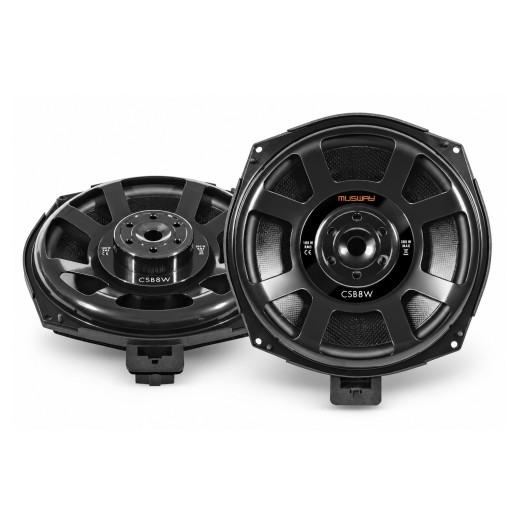

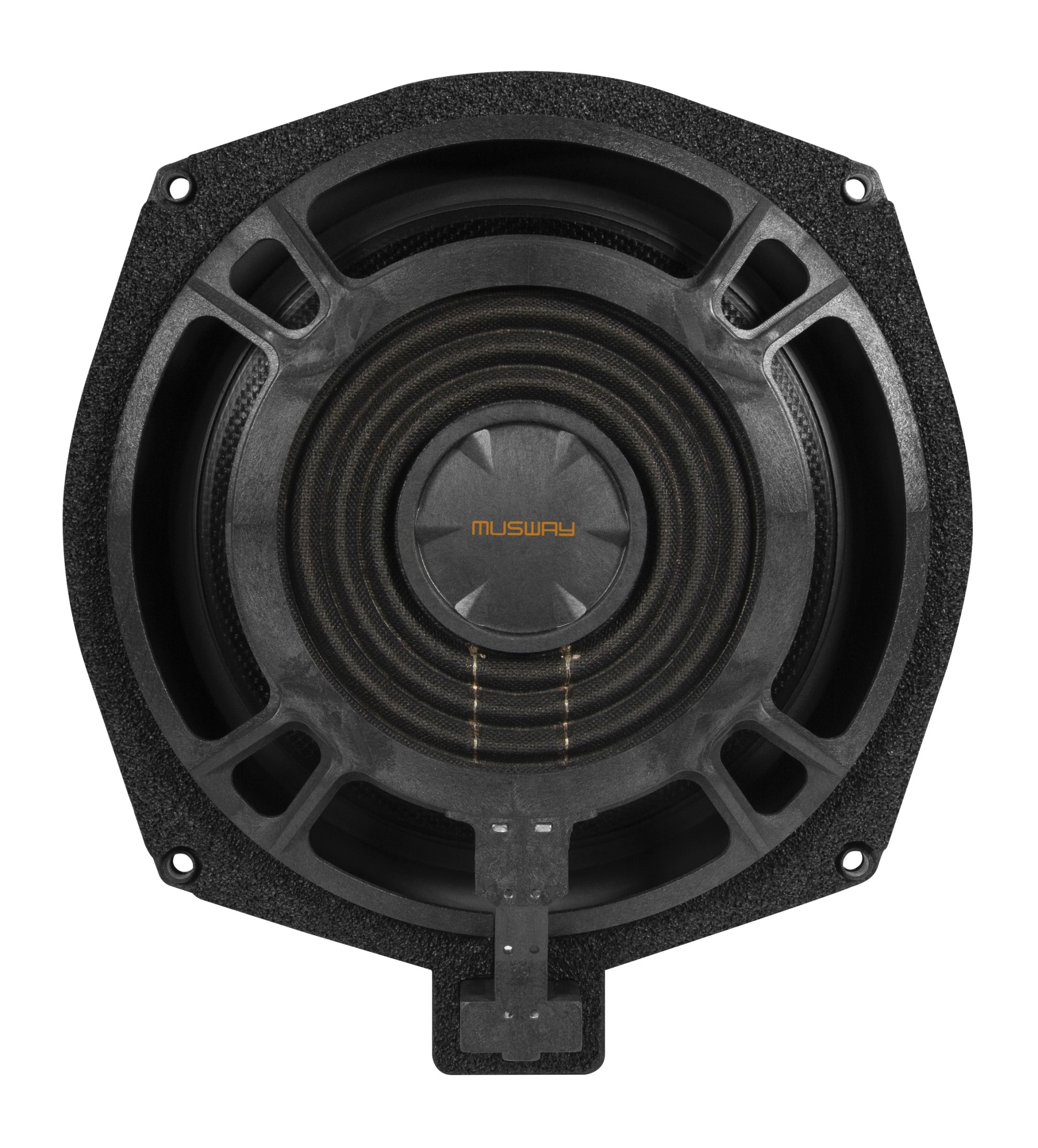

Musway CSB8W Subwoofers for BMW Cars
Musway CSB8W is a pair of 20 cm subwoofers intended as a direct upgrade to the factory bass system in BMW vehicles of the E, F and G series. Thanks to the vehicle-specific design, they replace the factory woofers under the front seats without the need for major installation modifications and preserve the original interior appearance.
The subwoofers use rigid yet very lightweight glass-fiber cones that contribute to quick response and more accurate bass reproduction. Drive is provided by a dual neodymium magnet system with N42H magnets. This allows the woofers to operate efficiently even at lower power and deliver a marked improvement over factory drivers. An important part of the design is a lightweight 50 mm CCAW voice coil and a Nomex centering suspension. This combination helps reduce moving mass and improve the dynamics and efficiency of the driver. The result is tighter, faster and better-controlled bass that integrates well with the midrange drivers and gives the whole system a more substantial foundation.
The CSB8W is designed specifically for the factory positions under the front seats in BMW models and, thanks to its shallow mounting depth, requires no major structural modifications. Installation is done by replacing the original woofers with the new Musway units and reconnecting the factory wiring. The kit includes two subwoofers for the complete replacement of both front bass drivers.
Main features
- A pair of 20 cm subwoofers designed for BMW E, F and G series vehicles.
- Direct replacement of factory woofers located under the front seats.
- Plug and Play design for easy integration into the factory system.
- Lightweight and rigid glass-fiber cone.
- Dual neodymium magnet drive for high efficiency and good cone control.
- 50 mm CCAW voice coil with low moving mass.
- Nomex centering suspension for precise cone guidance and high mechanical durability.
- Significant improvement in tightness, dynamics and bass control compared to factory drivers.
- Good efficiency even with lower-powered amplifiers.
- Preserves the original interior appearance and mounting positions of the vehicle.
- Compact design with very shallow mounting depth.
- Suitable as an upgrade to the factory system or as part of a more powerful setup with an external amplifier.
Compatibility
- BMW E series.
- BMW F series.
- BMW G series.
- Compatibility may vary depending on the specific model and vehicle equipment.
About the brand
MUSWAY is an abbreviation of the motto „Music is the Way“ – music is the way. The brand was born out of a passion for high-quality sound reproduction and achieved its first notable successes with high-end Hi-Res audio players and digital signal processors. The true breakthrough came with the introduction of the first class-D amplifiers with integrated DSP, which gradually earned international recognition in specialist magazine tests and several prestigious awards, including EISA. Since 2015 the brand’s development has been anchored in Germany, where product design, technical tuning and final concept for each model take place. Musway has gradually built a reputation as a maker of compact, technically advanced yet musically natural components that combine modern digital technologies with an emphasis on clean and linear sound. The portfolio today includes standalone and DSP amplifiers, speakers and subwoofers, with each new generation following the brand philosophy – to offer maximum musical experience without compromises in technology, functionality or workmanship.
| Catalog number | CSB8W |
| Brand | Musway |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | Bass |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 180 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 360 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 95 dB |
| Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 92 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 2 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 30 – 300 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 200 mm |
| Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. | 31 mm |
| Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. | Glass fibers |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
