Monitor RM LCD VW3

Rearview mirror with LCD display RM LCD VW2

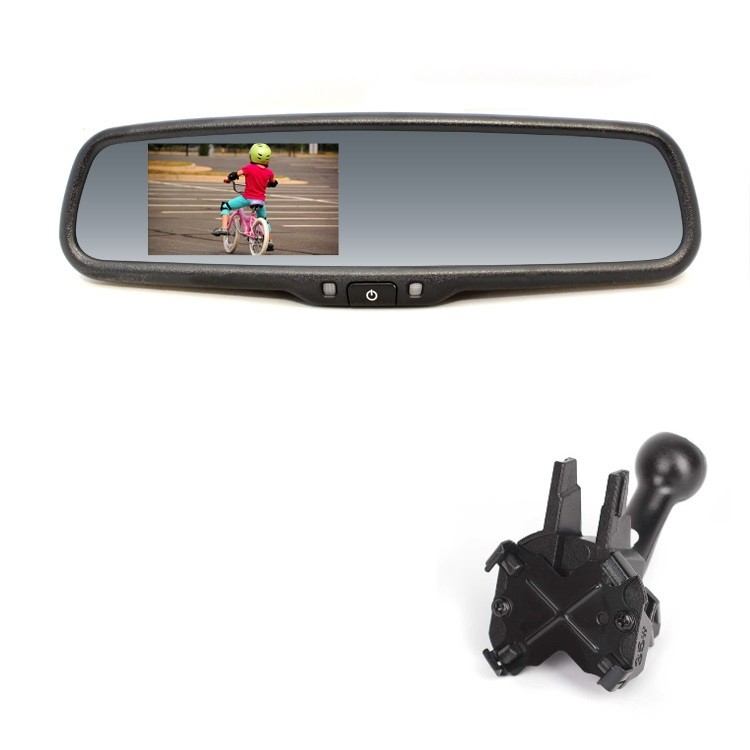

4.3" monitor integrated into a rearview mirror for vehicles VW, Seat, Toyota, designed to display the image from a parking camera and to connect an additional video signal. The rearview mirror is installed in place of the original mirror in the vehicle. When reverse gear is engaged, the real view behind the vehicle is displayed for easier and safer reversing and parking. The camera is not included in the package; depending on your choice, analog cameras from our offer can be used (except AHD cameras).

Technical specifications

• Power supply voltage: 12 V.
• Color depth: 16.7M colors.
• Display screen: TFT LCD.
• Power consumption: 8W.
• Display resolution: 480 (H) x 272 (V).
• Display diagonal: 4.3".
• Video inputs: 2x connector (RCA - CINCH).
• Input activation: automatic upon receiving a video signal.
• Automatic adjustment of display brightness level.
• TV standard: PAL / NTSC (automatic).
• Operating temperature: -20 to + 70°C.
• Dimensions: 80 x 270 x 42 mm.

Supported vehicles

• Seat Leon [5F] (9/2012 -> 6/2020)

• Toyota Proace City (2018 ->)

• VW Golf VII. (8/2012 ->)
• VW Passat B8 [3G] (8/2014 ->)
• VW Tiguan II. [AD1] (1/2016 ->)
• VW T6 (4/2015 ->)
• VW T6.1 (2020 ->)

Note

Only for vehicles with a rain sensor in the mirror base. We recommend checking compatibility with the mount in your vehicle before purchasing!
