Monitor RM LCD SK

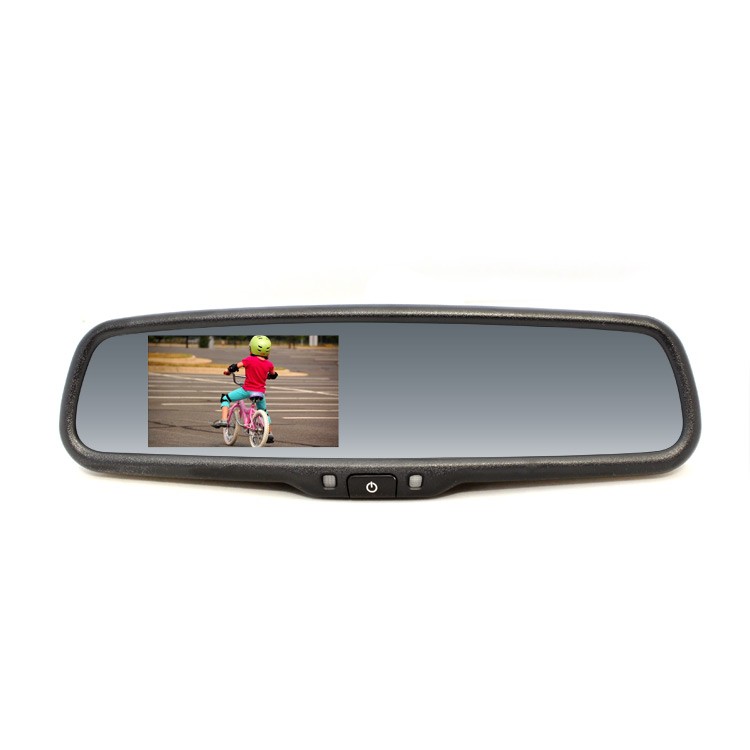

Rearview mirror with LCD display RM LCD SK

4.3" monitor integrated into a rearview mirror for Škoda, VW, Audi, Porsche vehicles, designed to display the image from a parking camera and to connect an additional video signal. The rearview mirror is installed in place of the original mirror in the vehicle. When reverse gear is engaged, the real view behind the vehicle is displayed for easier and safer reversing and parking.

Technical specifications

• Power supply voltage: 12 V.
• Color depth: 16.7M colors.
• Display screen: TFT LCD.
• Power consumption: 8 W.
• Display resolution: 480 (H) x 272 (V).
• Display diagonal: 4.3".
• Video inputs: 2x connector (RCA - CINCH).
• Input activation: automatic upon receiving a video signal.
• Automatic adjustment of display brightness level.
• TV standard: PAL / NTSC (automatic).
• Operating temperature: -20 to +70 °C.
• Dimensions: 80 x 270 x 42 mm.

Supported vehicles

Note: We recommend checking compatibility with the mount in your vehicle before purchasing.

• Audi A3 (1996 -> 2003)
• Audi A3 (2003 -> 2012)
• Audi A4 (2002 -> 2007)
• Audi A6 (1998 -> 2005)

• Porsche Cayenne I. (2002 ->)

• Škoda Felicia I. (1995 ->)
• Škoda Fabia I. (1999 -> 2006)
• Škoda Fabia II. (2007 ->)
• Škoda Rapid [NH] (October 2012 ->)
• Škoda Octavia I. (1997 -> 2004)
• Škoda Octavia II.
• Škoda Octavia III. (2013 ->)
• Škoda Superb I. (2001 -> 2008)

• VW Sharan I. (1995 -> 2003)
• VW Polo Classic (1995 -> 1999)
• VW Polo IV. (2001 -> 2004)
• VW Touareg I. (2002 ->)
• VW Transporter T4 (1990 -> 2003)
• VW Transporter T5 [7H][7J] (April 2003 -> 2015)
• VW Multivan T5 (2003 -> 2015)
• VW Transporter T6 (2015 ->]
• VW Multivan T6 (2015 ->)
• VW Caddy (2004 ->)
• VW Bora (2005 ->)
• VW Jetta III. (2005 ->)
• VW Touran (December 2005 ->)
• VW Tiguan (2007 ->)
• VW Eos (2005 ->)
• VW Scirocco (2008 ->)
• VW Golf III.
• VW Golf IV. (1997 -> 2003)
• VW Golf V. (2003 -> 2009)
• VW Golf V. Plus (2004 ->)
• VW Golf VI. (2008 ->)
• VW Passat [B4]
• VW Passat B5 (1996 -> 2005)
• VW Passat B6 (2005 -> 2010)
• VW Passat B7 (2010 ->)

Note: *for cars without a rain sensor
