Match PP-MQS 1.4 Basic

Match PP-MQS 1.4 Basic

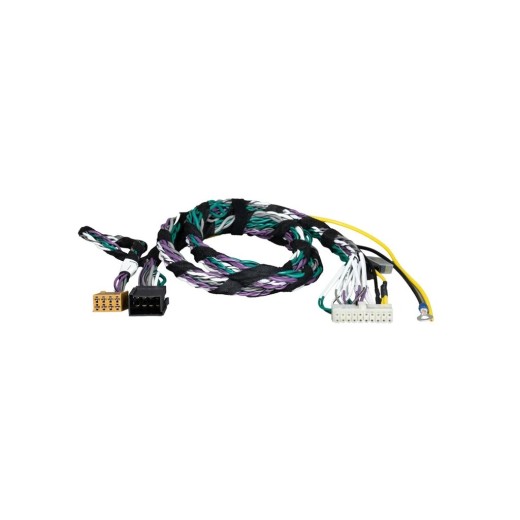

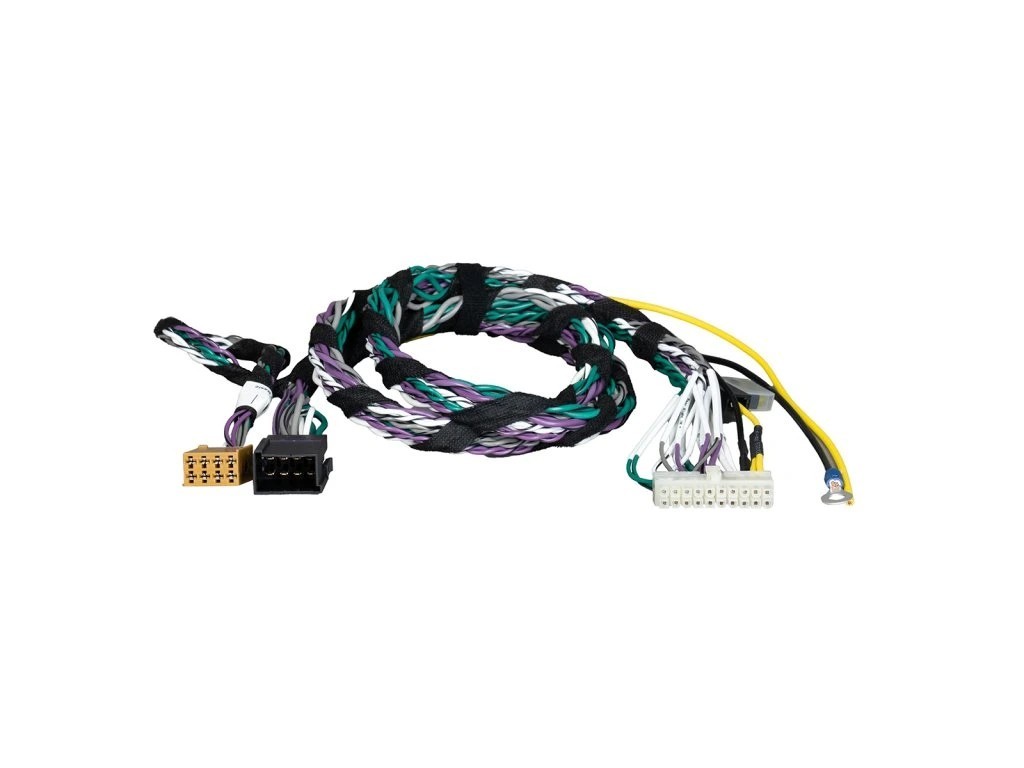

The modular PP-MQS 1.4 Basic wiring harness enables easy transmission of audio signals between a MATCH amplifier with a 20-pin system connector and a factory radio with a 52-pin Quadlock connector used in Mercedes, Volkswagen and other vehicles. The amplifier power supply is handled separately and can be flexibly connected via the two open cable ends of the harness. This allows maximum adaptation to individual installation situations.

Main features

• Plug & Play connector for easy connection of MATCH amplifiers with a 20-pin system connector.
• MQS connectors for signal reception / speaker power.
• Quadlock connector for power supply.
• Integrated fuse • Manufactured to automotive industry standards.
• High-quality twisted automotive wires “FLRY”.
• Cable harness length 1 meter.

Connections

• 1 x 20-pin MOLEX male connector for connecting the MATCH amplifier with System Connector input.
• 1 x 8-pin MQS male connector for speaker power.
• 1 x 8-pin MQS female connector for signal pickup.
• 2 x power connections.

Compatibility

• For more information about vehicle and amplifier compatibility, see the upgrade finder.

About the brand

MATCH by Audiotec Fischer is a German premium brand focused on high-quality amplifiers, DSP processors and Plug & Play solutions for modern vehicles such as BMW and Mercedes-Benz. It offers an ideal upgrade for factory audio systems with emphasis on easy installation, compact dimensions and maximum performance. Thanks to innovative technologies like the ACO platform, TuneEQ, RealCenter and Augmented Bass Processing, it delivers clean, dynamic and precise sound without compromise. MATCH products are designed for easy, trouble-free installation across a wide range of vehicles. They fully support start-stop systems, are compatible with electric vehicles and guarantee top German quality from the renowned manufacturer Audiotec Fischer, a leader in automotive audio.
