Match PP-BMW 1.10RAM-HK

\n

Match PP-BMW 1.10RAM-HK

\n\n

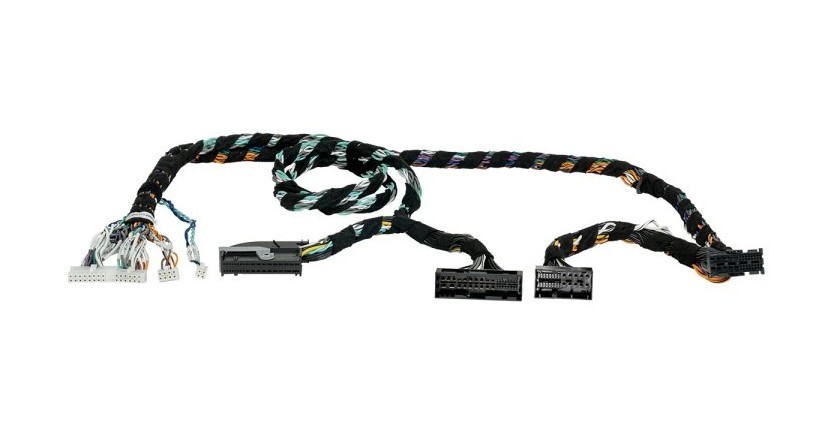

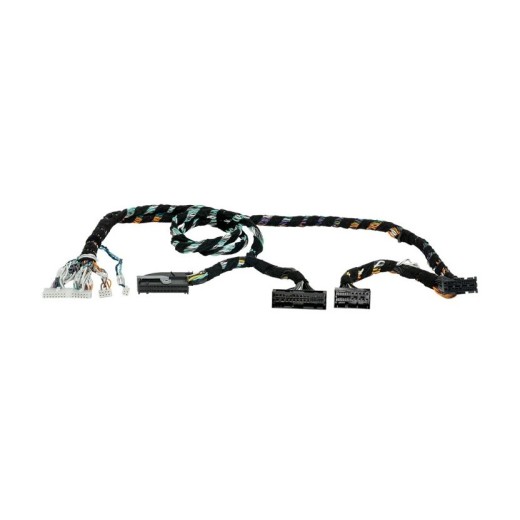

The 10-channel UPGRADE wiring harness PP-BMW 1.10RAM-HK enables easy connection of the MATCH UP 10DSP amplifier with the integrated MEC ANALOG IN expansion card to selected BMW i models with the Harman Kardon sound system and the RAM receiver.

\n\n

Important note: Before first power-up, the high-level input inside the UP 10DSP amplifier must be set to the high-voltage range (jumper position: Input G - H 32V). More information on setting the input sensitivity can be found on page 35 of the UP 10DSP manual.

\n\n

Main features

\n\n

\n\t
• Plug & Play connectors for easy connection of the MATCH UP 10DSP amplifier with the integrated MEC ANALOG IN module.
\n\t
• BMW system connectors for connection to the vehicle wiring harness.
\n\t
• RAM connector for connecting the vehicle wiring harness to the RAM receiver.
\n\t
• Cable length 1 meter.
\n

\n\n

Connections

\n\n

\n\t
• 1 x 20-pin MOLEX connector for connection to the UP 10DSP system connector input.
\n\t
• 1 x 8-pin MOLEX connector for connection to the high-level inputs E - H of the UP 10DSP unit.
\n\t
• 1 x 12-pin MOLEX connector for connection to the speaker outputs E - J of the UP 10DSP unit.
\n\t
• 1 x 4-pin MOLEX connector for connection to the MEC ANALOG IN module.
\n\t
• 1 x 42-pin BMW RAM system connector.
\n\t
• 1 x 42-pin BMW RAM system connector.
\n\t
• 1 x 35-pin BMW system connector.
\n\t
• 1 x 35-pin BMW system plug.
\n

\n\n

Compatibility

\n\n

\n\t
• For connecting MATCH UP 10DSP with the ANALOG IN expansion card.
\n\t
• Suitable for BMW i series vehicles with RAM (audio receiver module).
\n\t
• Compatible with the factory-installed Harman Kardon sound system.
\n

\n\n

About the brand

\nMATCH by Audiotec Fischer is a German premium brand focused on high-quality amplifiers, DSP processors and Plug & Play solutions for modern BMW or Mercedes-Benz cars. It offers the ideal upgrade for factory audio systems with emphasis on easy installation, compact dimensions and maximum performance. Thanks to innovative technologies such as the ACO platform, TuneEQ, RealCenter and Augmented Bass Processing, it delivers clean, dynamic and precise sound without compromise. MATCH products are designed for easy and trouble-free installation in a wide range of vehicles. They fully support start-stop systems, are compatible with electric vehicles and guarantee top German quality from the renowned manufacturer Audiotec Fischer, a leader in car audio.
