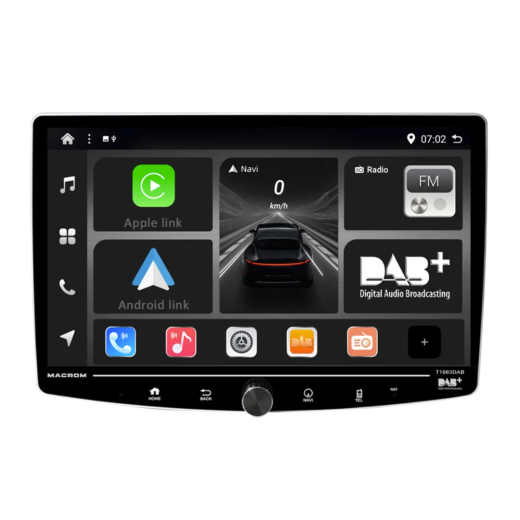

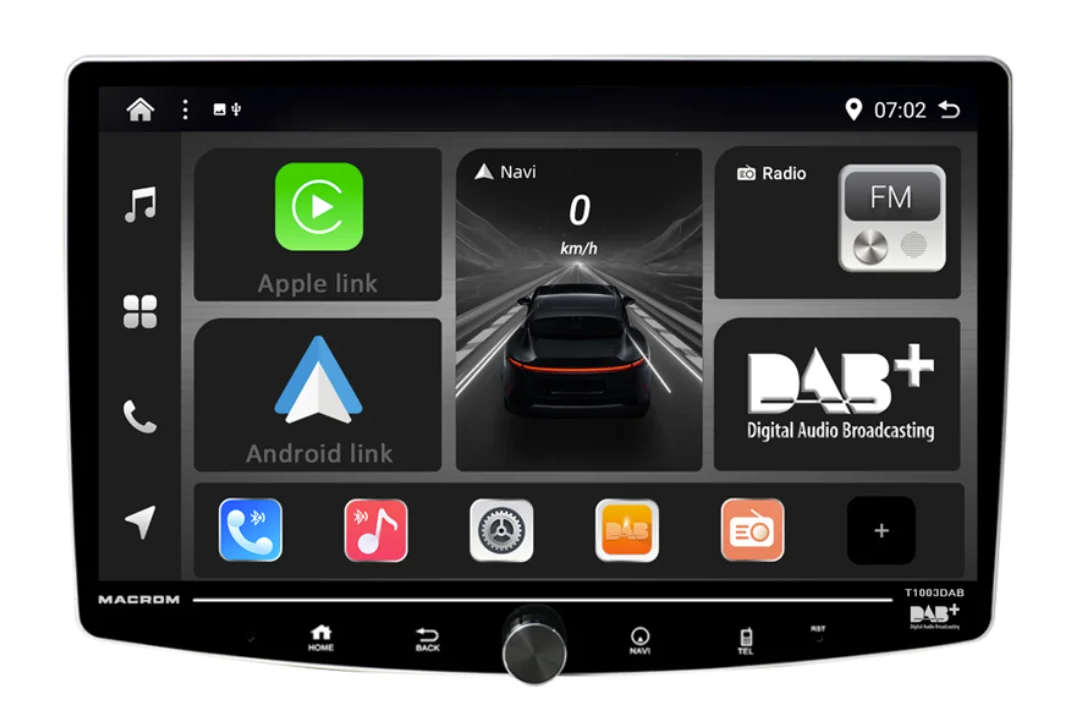

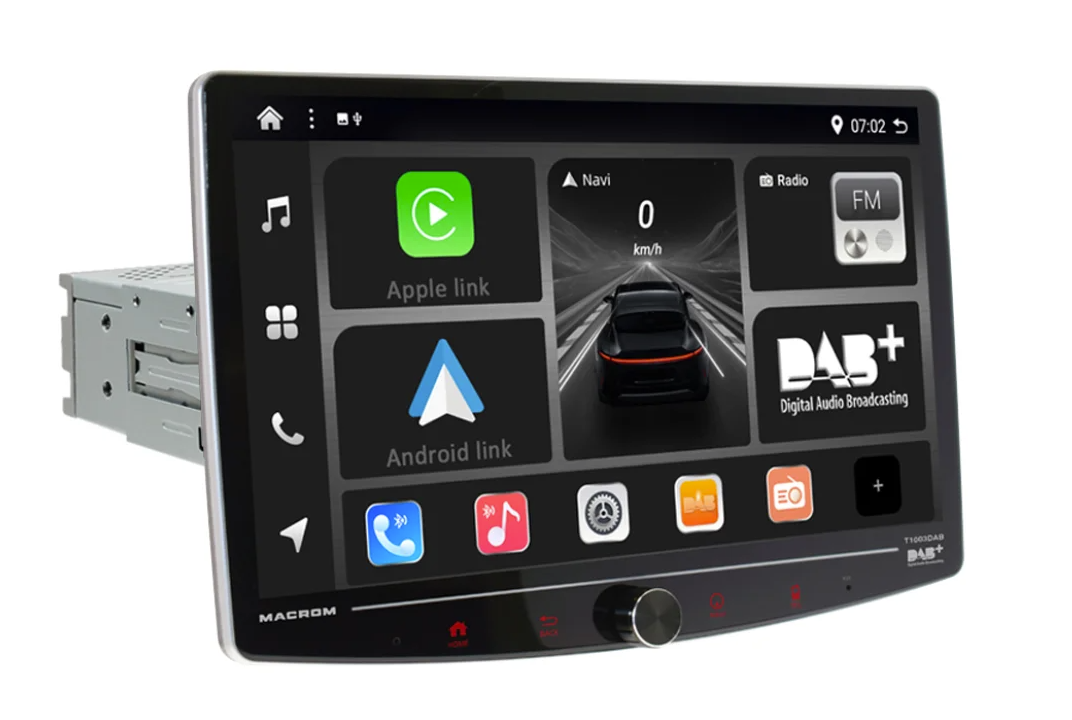

Macrom T1003DAB - 10″ Android car multimedia station with CarPlay, Android Auto and DAB+

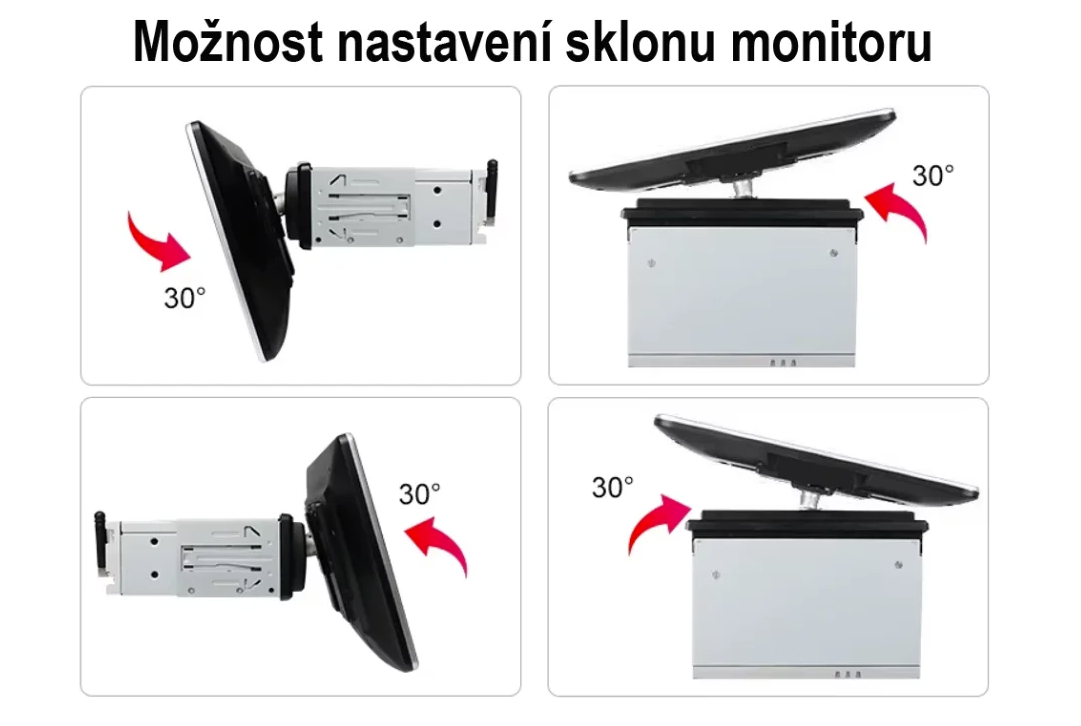

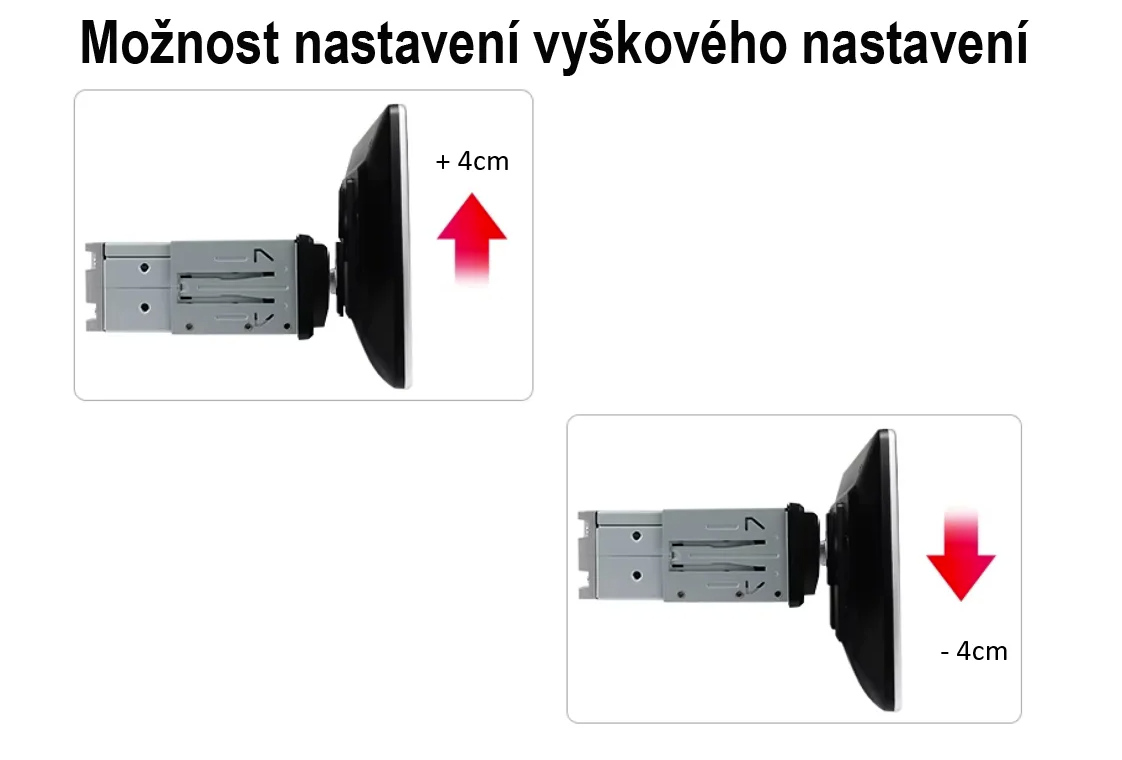

The MACROM T1003DAB is a premium in-car multimedia unit that turns your vehicle into a modern infotainment center. The elegant 10″ QLED Full HD display (1920 × 1080) is rotatable and height-adjustable so you can easily set the viewing angle. Powered by a robust 8-core processor and Android 13, the device runs fast and smoothly. It supports wireless Apple CarPlay and Android Auto, online navigation, Bluetooth hands-free and music streaming. A built-in DSP processor with a 64-band EQ delivers excellent sound, while a fast boot time under 2 seconds provides instant use.
Key features
- 10″ QLED Full HD display (1920 × 1080 px), rotatable and height-adjustable.
- 1DIN chassis – easy installation in most vehicles.
- Android 13 operating system – ability to install apps (Spotify, YouTube, Skylink…).

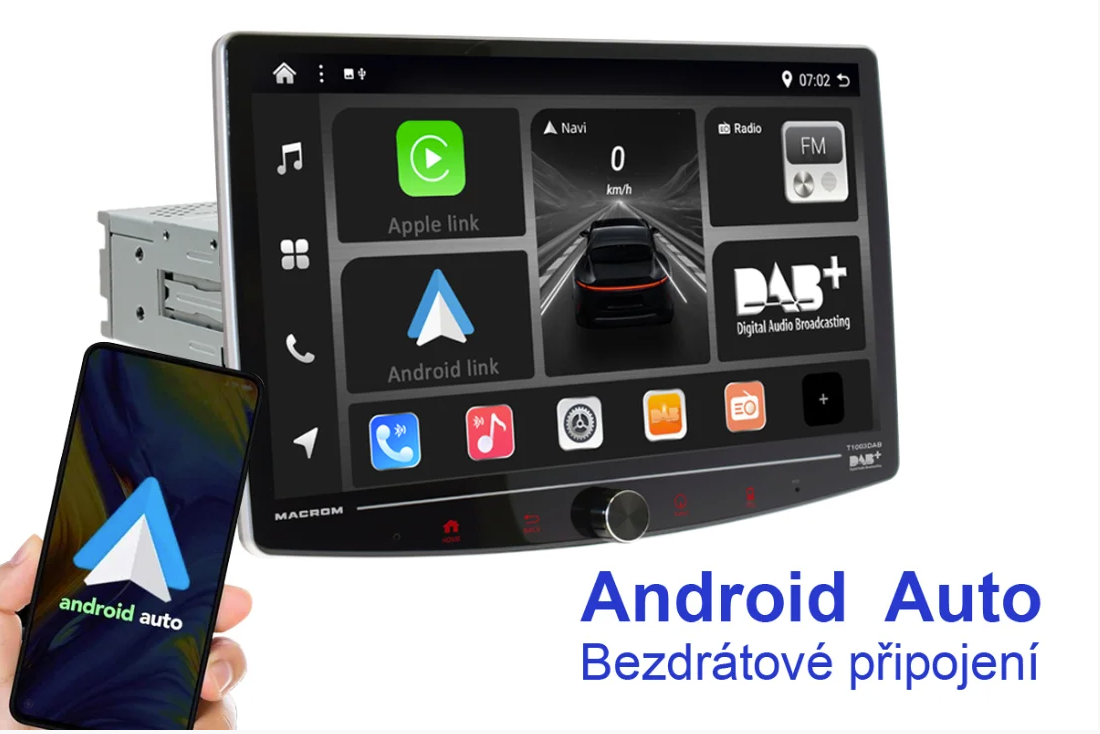

- Wireless Apple CarPlay and Android Auto.
- DAB+ digital radio (glass-mount antenna included).
- AM/FM radio with RDS.
- Powerful 8-core processor, 4 GB RAM, 64 GB ROM.
- Bluetooth 5.0 hands-free (external microphone) + wireless music streaming (A2DP).
- Built-in GPS module (antenna included) + online navigation.
- DSP audio processor with 64-band EQ.
- Amplifier output: 4 × 45 W MOSFET.
- 3× rear USB inputs (music, video, charging).
- Inputs for front and rear cameras (AHD and CVBS formats).
- 5× RCA outputs for amplifiers (2× front, 2× rear, subwoofer).
- Steering wheel control support (programmable / CAN-Bus module required).
- Optional RGB button backlighting and custom wallpapers.
Technical specifications
- Operating system: Android 13.
- CPU: 8 cores, 2.5 GHz.
- Memory: 4 GB RAM / 64 GB ROM.
- Display: 10″ QLED, Full HD 1920 × 1080 px.
- Boot time: <2 seconds.
- GPS: built-in module, antenna included.
- DAB+ tuner, DAB glass-mount antenna included.
- AM/FM tuner with RDS.
- Bluetooth 5.0 (hands-free kit with external microphone, A2DP streaming).
- CarPlay: wireless.
- Android Auto: wireless.
- Online apps: Google Play Store.
- Video inputs: 2× (front and rear camera, PAL/NTSC, CVBS/AHD720/AHD1080/TVI).
- Audio processor: DSP, 64-band EQ.
- Audio outputs: 5× RCA preamp outputs (2× front, 2× rear, subwoofer).
- Audio inputs: 2× RCA.
- USB: 3× rear (USB-A), maximum capacity depends on format.
- Wi‑Fi module built-in.
- Output power: MOSFET 4 × 45 W.
- Steering wheel control: resistive (learnable), CAN-Bus module option.
- Menu: multilingual including Czech and Slovak.

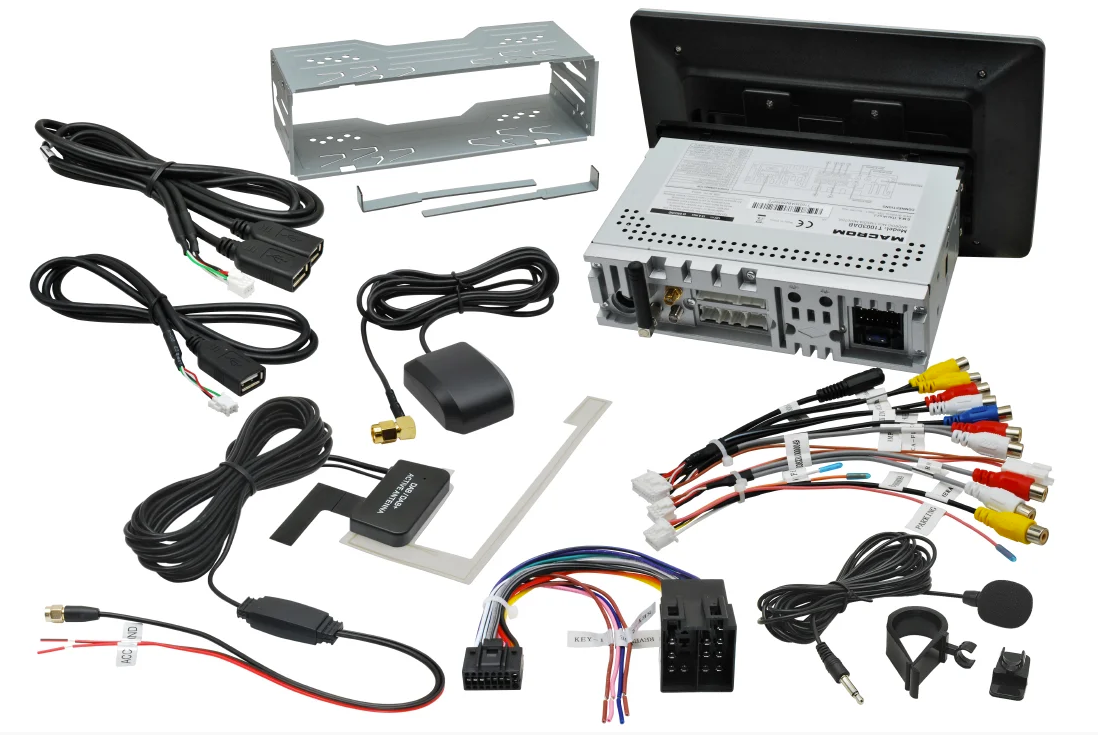

Package contents
- MACROM T1003DAB multimedia unit (10″ monitor, 1DIN chassis).
- 1DIN metal installation frame.
- Wiring harnesses.
- GSM internal antenna.
- DAB glass-mount antenna.
- External microphone.
- Installation manual.
| Catalog number | 222467 |
| Brand | Macrom |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 45 W |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3 / WMA / FLAC |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (3 x) |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | Yes |
| DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile. | Yes |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | Yes |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | Yes |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 10\" |
| Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website. | Yes |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
| Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm. | Yes |
