Macrom M-T6562BT Android car radio
1DIN, 7" tilting monitor, Bluetooth, GPS, Wifi hotspot
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
Multimedia player Macrom M-AN900

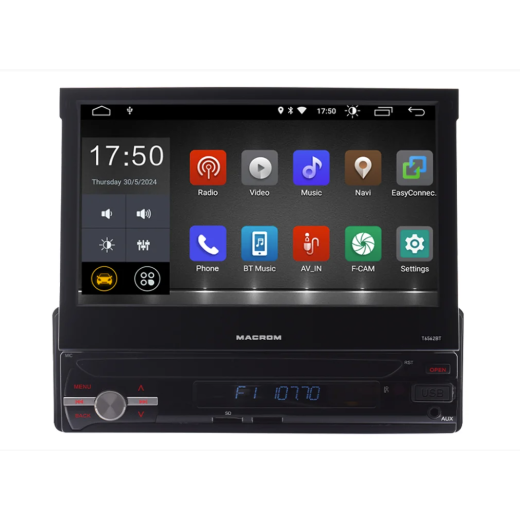

The MACROM M-T6562BT is a versatile multimedia unit with the Android 10 operating system and a 7″ capacitive touchscreen that motorizes out of the 1DIN-sized unit body. This allows installation in vehicles where there is no space for a standard 2DIN head unit. It offers 4 × 45 W power, Bluetooth handsfree with phonebook import and music streaming support, a built-in GPS receiver, Wi‑Fi and wide options for connecting external devices. It enables online navigation, app installation, watching videos or listening to music over the internet just like on a smartphone or tablet.
Main features

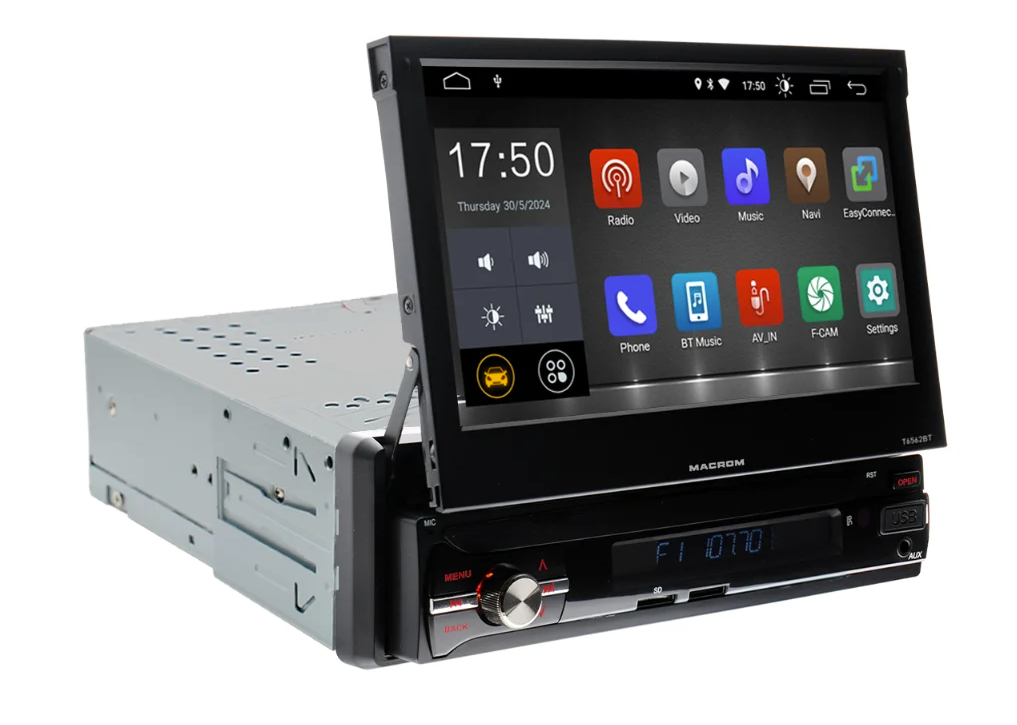

- 1DIN multimedia unit with a motorized 7″ pop-out display.
- Android 10 OS – allows app installation, online navigation, internet, email, YouTube and other functions.
- AM/FM RDS tuner, expandable with a DAB+ module (not included).
- Bluetooth handsfree kit with external microphone and music streaming support (A2DP).
- Built-in GPS receiver and antenna (included).
- Wi‑Fi connectivity (antenna included).
- MOSFET amplifier 4 × 45 W.
- 9-band graphic equalizer.
- Supported audio formats: MP3, WMA, AAC, FLAC, WAV, RM…
- Supported video formats: MPEG-1/2/4, H264, H263, DivX, VP8, RMVB and others.
- Inputs for front and rear parking cameras.
- 4× RCA preamp outputs (front + rear) and a subwoofer output.
- 2× video outputs + 1× AV input.
- Option to connect Apple CarPlay / Android Auto / mirroring module (optional accessory).
- RGB button backlight, optional logo on power up, menu in Czech and Slovak.
- Compatible with OEM steering wheel controls.
Technical specifications

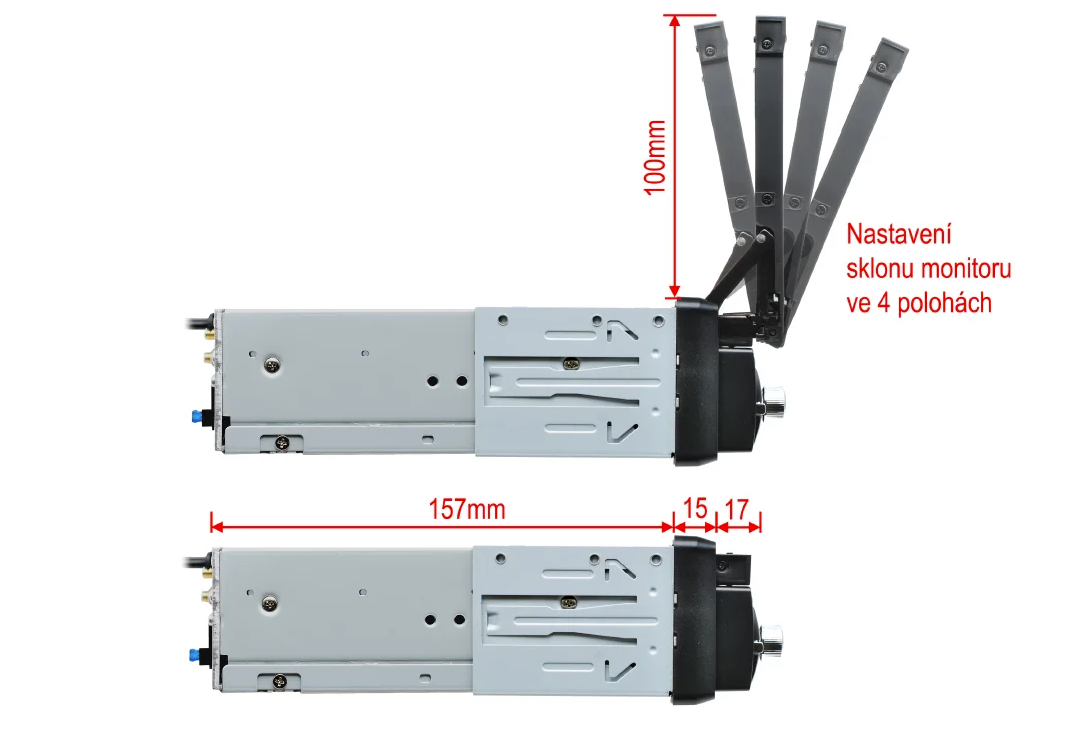

- Unit body size: 1DIN (opening approx. 182 × 52 mm).
- Display: 7″ capacitive touchscreen, 16:9 aspect ratio, motorized pop-out.
- Display resolution: 1024 × 600 px.
- Operating system: Android 10.
- Processor: Quad Core ARM A7, 4 × 1.2 GHz.
- RAM: 2 GB DDR3.
- Internal Flash memory: 32 GB.
- GPS: integrated receiver + antenna included.
- Wi‑Fi: built-in, antenna included.

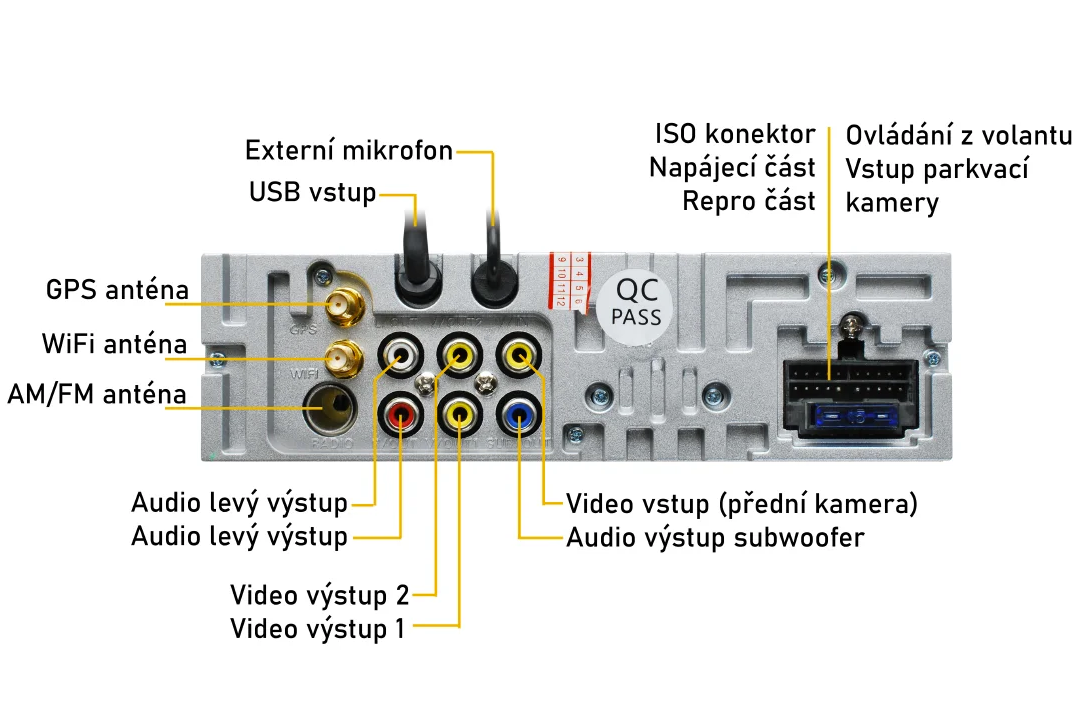

- Audio outputs: 4× RCA preamp (2 V), 1× RCA subwoofer.
- Video outputs: 2× RCA.
- Inputs: AV (CINCH), inputs for front and rear camera.
- Equalizer: 9-band graphic.
- Amplifier: MOSFET 4×45 W.
- Supported audio formats: MP3, WMA, AAC, RM, FLAC, WAV.
- Supported video formats: MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, VP8, AVS Stream, Sorenson Spark.
- Supported image formats: JPG, BMP, JPEG, GIF, PNG.
| Catalog number | 222466 |
| Brand | Macrom |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 45 W |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (3x rear) |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile. | Yes |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 2 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2 V |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Optional RGB |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | " capacitive touch monitor |
| Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps. Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally. | Yes / No |
| Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website. | No |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm. | Yes |
