Kenwood KDC-BT760DAB car radio
1DIN, CD player, USB input, multicolor button backlighting, DAB+ tuner, Amazon Alexa ready
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

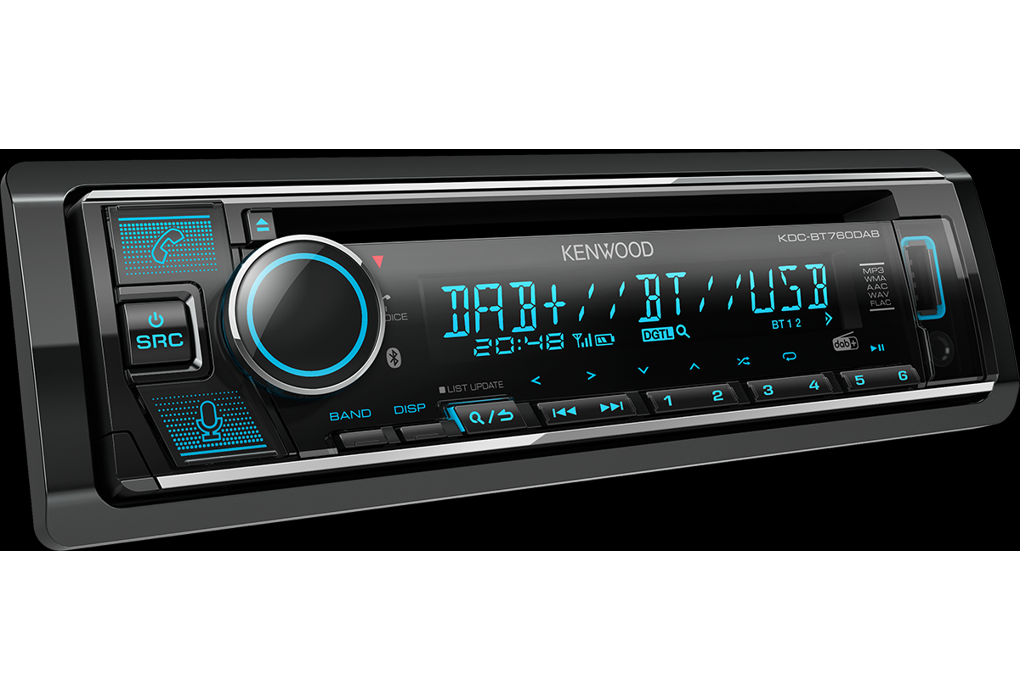

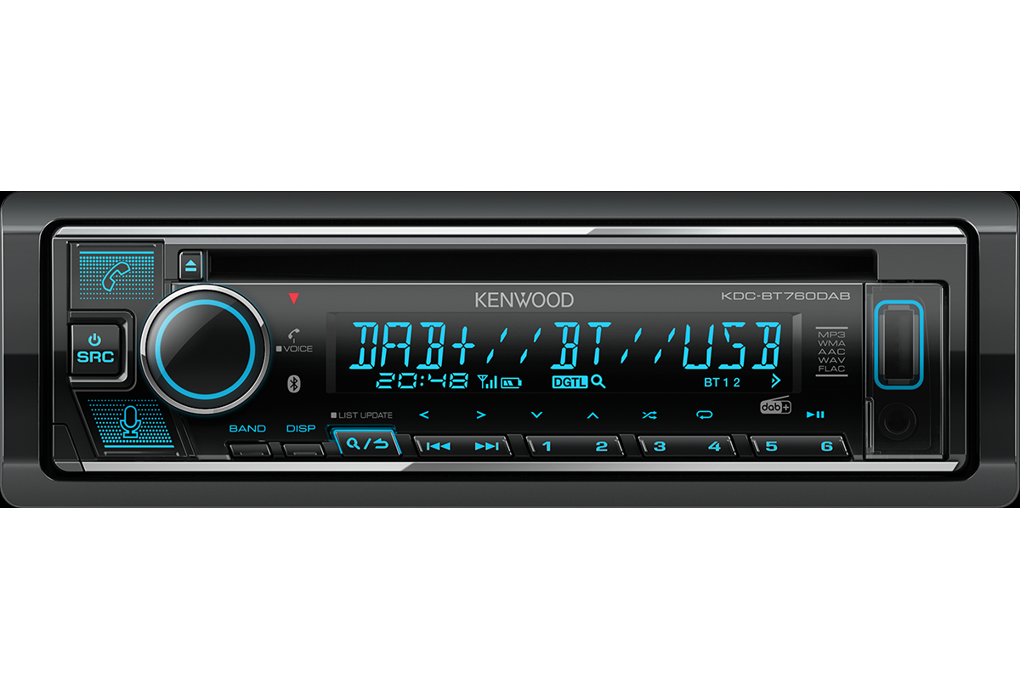

Kenwood KDC-BT760DAB
Kenwood KDC-BT760DAB is a modern CD/USB car receiver that combines a classic car radio with a digital DAB+ tuner, Bluetooth connectivity and smart features for everyday use. It is suitable for drivers who want convenient hands‑free calling, wireless music streaming and high‑quality radio in a single unit. The manufacturer lists it as a CD/USB receiver with Bluetooth, digital DAB+ radio and Amazon Alexa Control support.
A major advantage of the KDC-BT760DAB model is its broad feature set for daily use and an improved audio experience. The unit offers Bluetooth hands‑free and audio streaming, support for the KENWOOD Remote App for control via smartphone and a Music Mix function for switching between up to 5 connected Bluetooth devices. It also supports playback of MP3, WMA, AAC, WAV and FLAC formats, and features a front USB port and AUX input, making it a practical solution for convenient playback from multiple sources.
Kenwood KDC-BT760DAB will also please users who want to tune the sound to their preferences and vehicle. The manufacturer specifies an integrated DSP, time correction, a 13‑band equalizer and 2 RCA preamp outputs with 2.5 V for connecting amplifiers. A large 1.5‑line LCD display with high contrast, wide viewing angle, variable backlighting and a detachable front panel is also provided.
Hlavní vlastnosti
- CD/USB receiver with Bluetooth and digital DAB+ radio.
- Bluetooth hands‑free and audio streaming.
- Amazon Alexa Control support.
- Control via KENWOOD Remote App.
- Music Mix function for switching between up to 5 Bluetooth devices.
- Playback of MP3, WMA, AAC, WAV and FLAC formats.
- Integrated DSP, time correction and 13‑band equalizer.
- 2 RCA preamp outputs with 2.5 V.
- Front USB port and AUX input.
- Large 1.5‑line LCD display with variable backlighting and detachable front panel.
| Catalog number | KDC-BT760DAB |
| Brand | Kenwood |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1 DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 2-line LCD display + user icons |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | Yes |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes - front entry |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3, WMA, AAC, WAV, FLAC |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50W |

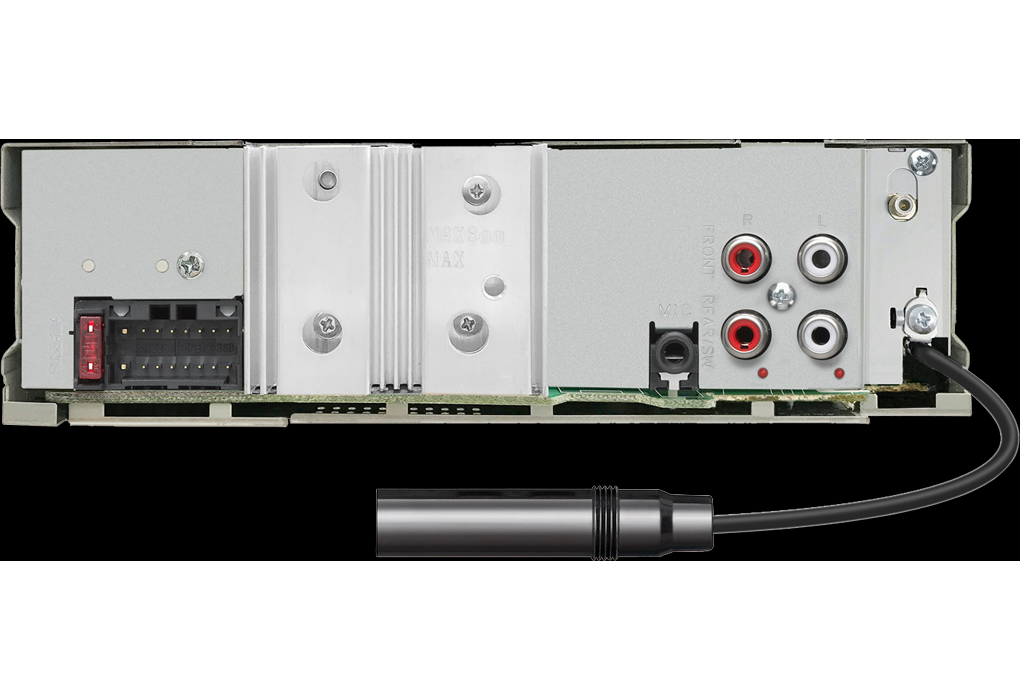

| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 2 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2.5V |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable RGB |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | Yes |
