Kamera CAMHDW
AHD vehicle camera, 720p resolution, automatic IR illumination
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

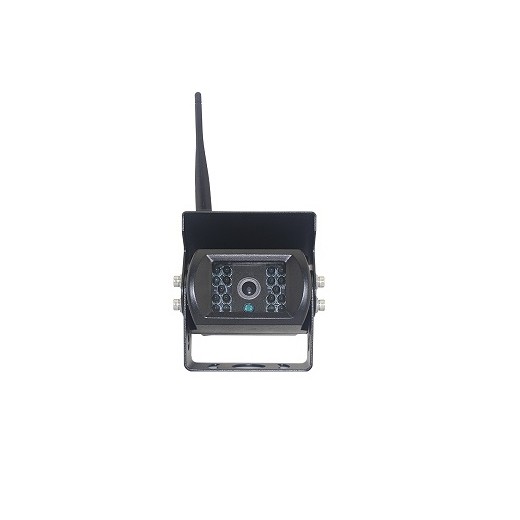

Wireless camera CAMHDW
AHD vehicle camera with 720p resolution and automatic illumination is intended for display on an AHD monitor. It is powered locally at the installation site and transmits the signal wirelessly to the monitor. Ideal for use as a rear camera or in the load area. The aluminum body and vibration resistance make it suitable for use even in demanding conditions. Image orientation is set on the monitor; it is homologated.
Technical specifications
- Image sensor: CMOS 1/2.7".
- HD resolution 1280*720.
- Viewing angle: 140°.
- Water resistance: IP69K.
- No microphone.
- Dimensions: 74 x 46 x 56 mm (without shield and bracket).
- Material: aluminum alloy.
- Maximum range: 200 meters in open space.
- Video compression: H264.
- FHSS floating frequency.
- Power cable with waterproof connector.
- Latency: 120 ms.
- Shock resistance: min. 4G.
- Frequency range: 2400 - 2483.5 MHz.
- Power supply: DC 12-24V.
- Operating temperature: from -20 to +70 °C.
Package contents
- Camera with U bracket and antenna
- Allen key
- 3M double-sided tape
| Catalog number | CAMHDW |
| Brand | TSS Group |
